New old guy. First post ever on the inter web. Using smart phone. No computer.

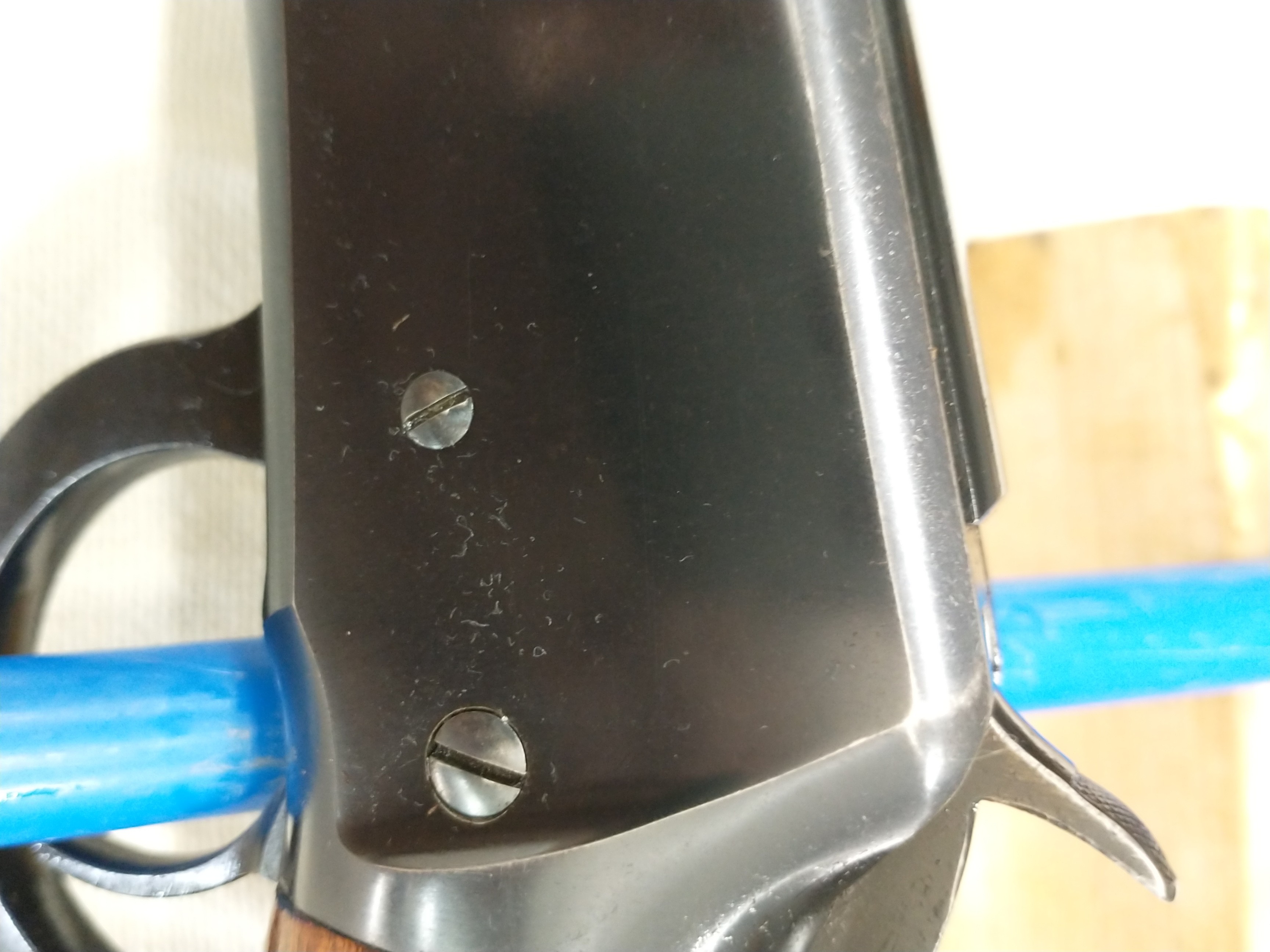

Receiver not tapped for Lyman sight.
Short ramp front sight. 20″ Bbl
Rear sight dovetail 5″ from rec
Comments?
Can’t see enough of the rifle to draw any conclusions… what is the serial number on it?
The 20-inch “carbine” variation of the Model 64 is the least common variation, and especially so in caliber 25-35. Of the 3,301 Model 64 rifles I have documented thus far (in my research survey), just 30 of them are the 20-inch variation in caliber 25-35.
Bert
WACA Historian & Board of Director Member #6571L
January 26, 2011
Offline
I was thinking the 64 carbines had a rear dovetail at the 4″ location, but maybe that’s not definitive for all of them. Also, the caliber stamp looks to be a different font than I’ve seen. Would be nice to see the whole gun though. I’ve always wanted a 25-35 M64
~Gary~
I was always told you could tell a cutoff 64 from a real carbine by rear sight dovetail distance from receiver. Supposed to be 4 inches on carbine, 5 inches on rifle. Don’t know if that’s gospel for sure. If it is genuine it is a scarce rifle.
I think I can only send 2 pics at a time. No one ever showed me how to post this stuff.
November 7, 2015
Offline
Welcome, Jeff. Nice looking carbine! Good job figuring out how to post from a phone, pretty amazing technology once you figure it out but a constant source of frustration for some of us. I’m thinking a pic of the front half of the barrel from the side would be helpful.
Mike
Welcome to the forum hardhat. Impressive that this was your first post ever on the web.
Nice 64 carbine.
Al
I have a similar 64. Serial #1236315. Also not tapped for the receiver sight. Oddly the two 64’s I have with bolt peep sights are tapped for the receiver sight. RDB
Hardhat DV2 said
I think I can only send 2 pics at a time. No one ever showed me how to post this stuff.
Unfortunately I have bad news for you. When I originally surveyed the S/N on your Model 64, it was a standard Model 94 Carbine in caliber 32 W.S. I am relatively sure who it was that intentionally reworked it to sell resell it for a large profit. Contact me directly if you want more information.
Bert
WACA Historian & Board of Director Member #6571L
Looks like I got fake gun from an FFL off Guns International. This is no negative reflection of G.I.
More later.
Looks like they aren’t the same gun. The serial number appears different
https://stevebarnettfineguns.com/winchester-1-rifles-for-sale/winchester-model-64-carbine-25-35-wcf
November 7, 2015
Offline
Hardhat DV2 said
Looks like I got fake gun from an FFL off Guns International. This is no negative reflection of G.I.More later.
I’m sorry, hope the dealer will make it right.
Mike
Online
TXGunNut said
I’m sorry, hope the dealer will make it right.
Mike
No doubt–internet gun sellers are renowned for their honesty & integrity.
Hardhat DV2 said
Looks like I got fake gun from an FFL off Guns International. This is no negative reflection of G.I.More later.
I have 25-35 as a saved search on Guns International and do not recall seeing this one. My search is for 1894 no wonder I didn’t see it.
Let’s go over what is necessary to make a plain 94 .32 into a model 64 25-35 carbine. It will need a complete lower receiver and lever. Also a new butt stock and forearm and barrel and magazine tube. So the only part remaining from the Model 94 is the upper receiver. It would be very difficult to locate all these parts to build a fake 64. So it must have been a once complete 64 with a defaced serial number or other damage. Then the “new” Model 94 receiver was added to the parts package. Need to see the proofs on the barrel and receiver for forensic matching.
Anyone else have a theory about how it was created?
CJS57 said
Let’s go over what is necessary to make a plain 94 .32 into a model 64 25-35 carbine. It will need a complete lower receiver and lever. Also a new butt stock and forearm and barrel and magazine tube. So the only part remaining from the Model 94 is the upper receiver. It would be very difficult to locate all these parts to build a fake 64. So it must have been a once complete 64 with a defaced serial number or other damage. Then the “new” Model 94 receiver was added to the parts package. Need to see the proofs on the barrel and receiver for forensic matching.Anyone else have a theory about how it was created?
Not a “theory”… instead Fact.
The fellow who created this Fake Model 64 is well known to me (and several other WACA members), and he is known to have “manufactured” dozens of Fake Winchesters in rare or very uncommon configurations. Many years ago it was said that he bought up a large batch of Winchester barrels and parts when Winchester began disposing of them (in the late 1960s). This Model 64 (and several others in calibers 32-40 and 38-55) suddenly appeared for sale about 13-14 years ago. A good friend of mine bought three of them (including this rifle), and then asked me for my assessment of them… all three were very high quality Fakes, but each one of them had small perceptible errors that can be detected by someone who knows what to look for. I personally had my hands on this gun (serial number) when it was still a Model 94 Carbine in caliber 32 W.S. (at the Big Reno show). The crook who altered it routinely trolled the isles at the Big Reno show looking for nice condition Model 94 Carbines (which at the time were relatively cheap to procure) to use for his “projects”.
Bert
WACA Historian & Board of Director Member #6571L
