I have an 1894 to in 32ws in the 258k range. The right side of  receiver does not have a finger lever pin hole to remove the pin. The gun has a broken firing pin so I need to remove the bolt. Thoughts?20210611_095934.jpgImage Enlarger

sp_PlupAttachments Attachments
Avatar
Kingston, WA
Admin
Forum Posts: 11120
Member Since:
April 15, 2005
sp_UserOfflineSmall Offline
2
June 11, 2021 - 6:34 pm
sp_Permalink sp_Print sp_EditHistory sp_QuotePost

Mark,

I can see the outlines of the hole… it appears that someone put a filler plug in the hole.  I suggest using a 5X – 10X loup and inspecting the receiver more closely.  Locate the plug and carefully drill it out.

WACA Historian & Board of Director Member #6571L

Avatar
Member
WACA Member
Forum Posts: 202
Member Since:
January 28, 2016
sp_UserOfflineSmall Offline
3
June 11, 2021 - 6:42 pm
sp_Permalink sp_Print sp_QuotePost

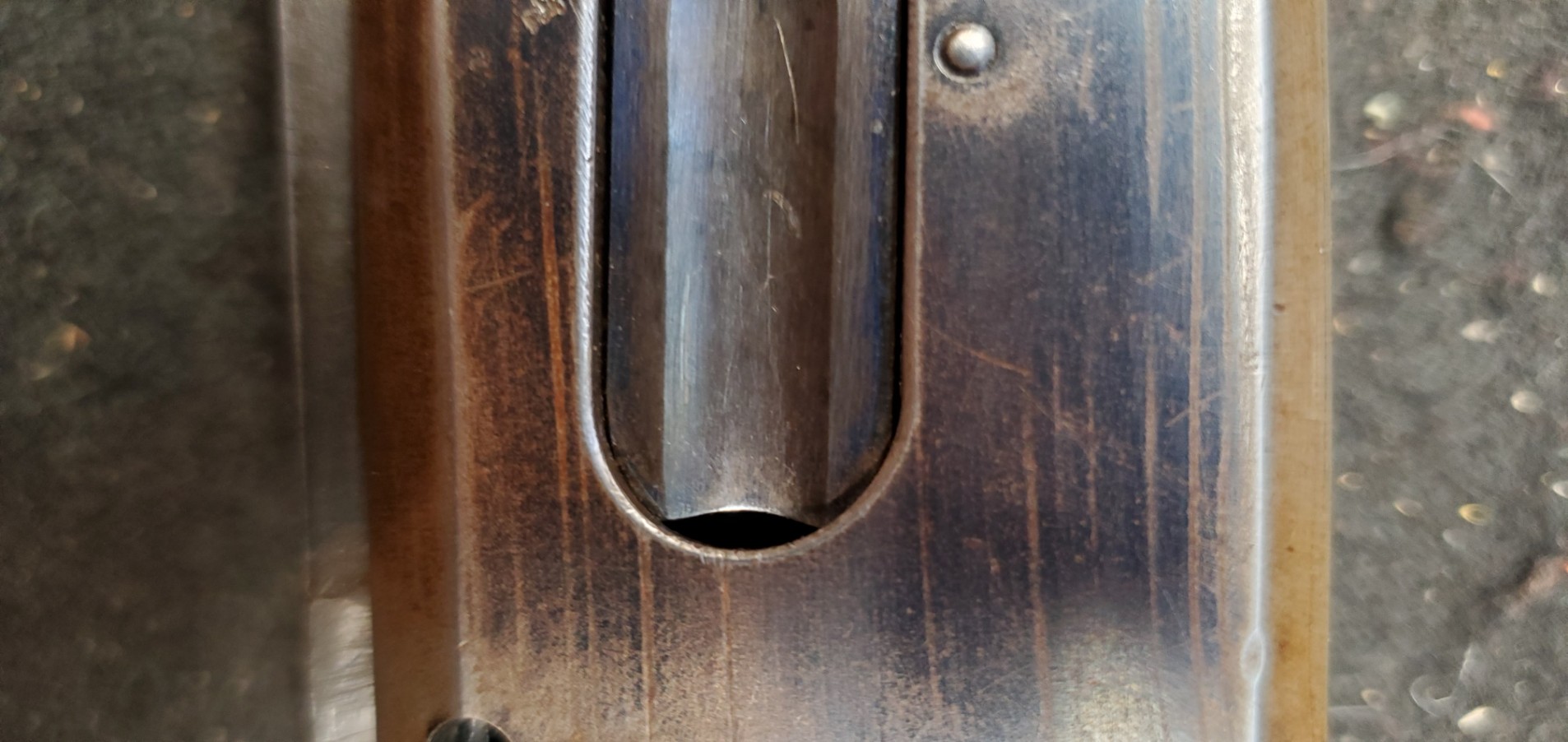

If you can see a hole you got incredible vision.20210611_104038.jpgImage Enlarger

sp_PlupAttachments Attachments
Avatar
Kingston, WA
Admin
Forum Posts: 11120
Member Since:
April 15, 2005
sp_UserOfflineSmall Offline
4
June 11, 2021 - 7:20 pm
sp_Permalink sp_Print sp_QuotePost

mark minnillo said
If you can see a hole you got incredible vision.20210611_104038.jpgImage Enlarger

I can indeed see the outlines of the hole right where it should be.

WACA Historian & Board of Director Member #6571L

Avatar
Member
WACA Member
Forum Posts: 4419
Member Since:
November 19, 2006
sp_UserOfflineSmall Offline
5
June 11, 2021 - 10:51 pm
sp_Permalink sp_Print sp_QuotePost

The sad thing here is why was the hole plugged?  Did someone erroneously think it was an, “extra” hole and this was a misguided restoration effort?

Avatar
Kingston, WA
Admin
Forum Posts: 11120
Member Since:
April 15, 2005
sp_UserOfflineSmall Offline
6
June 12, 2021 - 12:25 am
sp_Permalink sp_Print sp_QuotePost

steve004 said
The sad thing here is why was the hole plugged?  Did someone erroneously think it was an, “extra” hole and this was a misguided restoration effort?

More than likely… people do a lot of stupid things based on pure ignorance.

WACA Historian & Board of Director Member #6571L

Avatar
Member
WACA Member
Forum Posts: 202
Member Since:
January 28, 2016
sp_UserOfflineSmall Offline
7
June 12, 2021 - 12:34 am
sp_Permalink sp_Print sp_QuotePost

Bert you seem to have some knowledge of these guns but I can assure you the hole has not been filled. There is absolutely no sign, mark, roughness, etc. on the gun that there was ever a hole in the receiver.20210611_162939.jpgImage Enlarger Just wondered if anyone has seen this before.

sp_PlupAttachments Attachments
Avatar
Wyoming - Gods Country
Member
WACA Member
Forum Posts: 1277
Member Since:
January 26, 2011
sp_UserOfflineSmall Offline
8
June 12, 2021 - 12:55 am
sp_Permalink sp_Print sp_QuotePost

Bert H. said

More than likely… people do a lot of stupid things based on pure ignorance.

Geez Bert, have you lost all faith in your fellow man? I could actually hear the Angry Santa voice when I read this. Thanks for the unexpected chuckle. Smile

                                                                               ~Gary~


Avatar
Member
WACA Member
Forum Posts: 202
Member Since:
January 28, 2016
sp_UserOfflineSmall Offline
9
June 12, 2021 - 1:37 am
sp_Permalink sp_Print sp_QuotePost

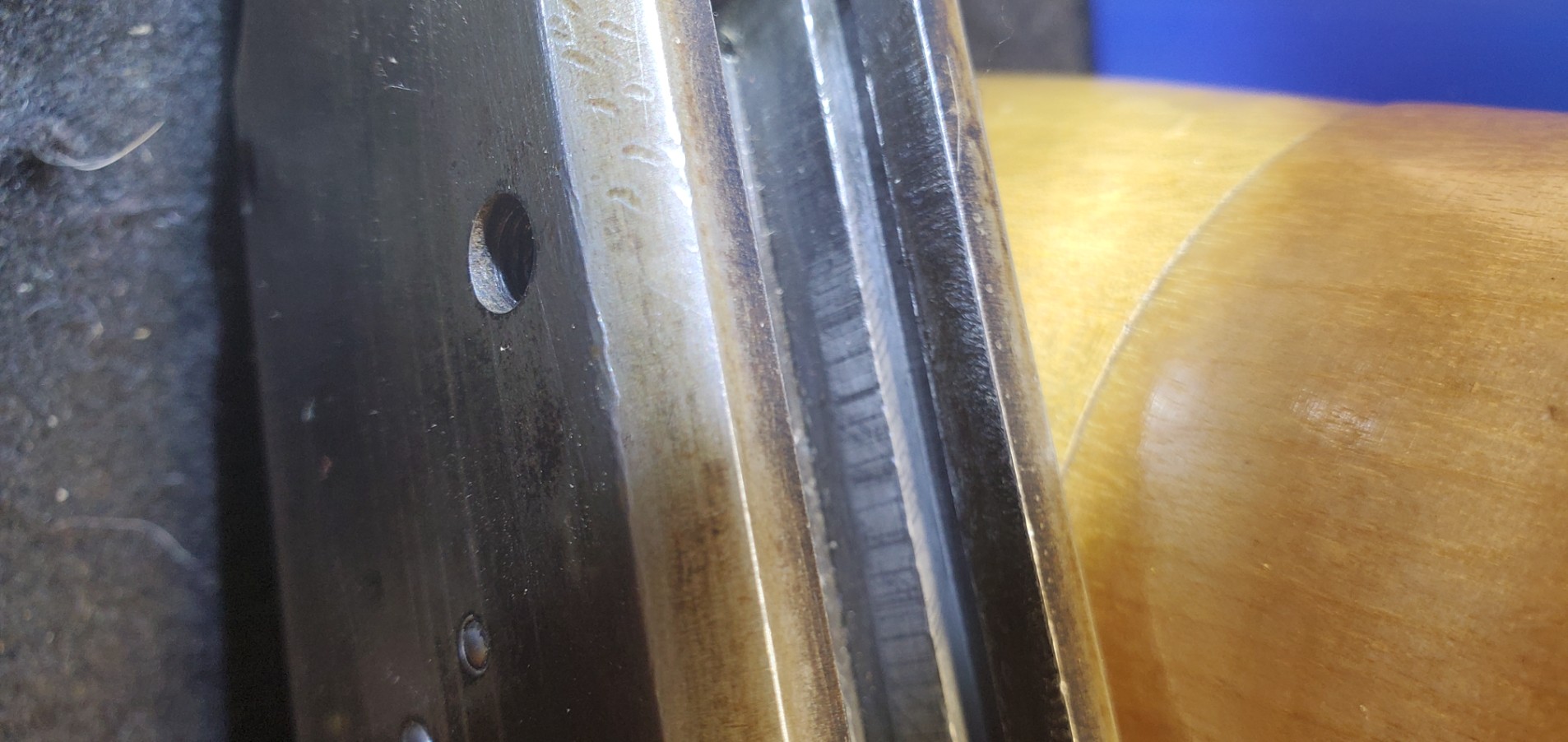

Here’s a pic of the inside. No sign of a hole.20210611_164854.jpgImage Enlarger

sp_PlupAttachments Attachments
Avatar
Santa Clara, CA
Member
WACA Member
Forum Posts: 827
Member Since:
January 27, 1992
sp_UserOfflineSmall Offline
10
June 12, 2021 - 1:38 am
sp_Permalink sp_Print sp_QuotePost

Just a thought.  Using a small powerful magnet perhaps you could draw out the pin.  You may have to jiggle the lever to get it to come out.  I have used small cylindrical magnets to remove and even start small short screws and plugs.  Might be worth a try.  RDB

Avatar
Kingston, WA
Admin
Forum Posts: 11120
Member Since:
April 15, 2005
sp_UserOfflineSmall Offline
11
June 12, 2021 - 1:42 am
sp_Permalink sp_Print sp_QuotePost

Mark,

Over the past many years (I began my research survey in early 2005), I have examined more than 25,000 Model 1894/94 receivers (including the Model 55 & Model 64 receivers), and thus far, every single one of them has the hole machined in the receiver… 100%.  Your Model 1894 receiver was not an exception.  If it truly had not been machined properly when it was originally manufactured, it would have been rejected by Winchester’s core of inspectors.  How do you suppose they installed the pin without the benefit of the access hole?

WACA Historian & Board of Director Member #6571L

Avatar
Kingston, WA
Admin
Forum Posts: 11120
Member Since:
April 15, 2005
sp_UserOfflineSmall Offline
12
June 12, 2021 - 1:57 am
sp_Permalink sp_Print sp_QuotePost

pdog72 said

Geez Bert, have you lost all faith in your fellow man? I could actually hear the Angry Santa voice when I read this. Thanks for the unexpected chuckle. Smile

It is not “angry” Santa… it is Evil Santa!!

WACA Historian & Board of Director Member #6571L

Avatar
Member
WACA Member
Forum Posts: 202
Member Since:
January 28, 2016
sp_UserOfflineSmall Offline
13
June 12, 2021 - 2:11 am
sp_Permalink sp_Print sp_QuotePost

Bert,

As I mentioned you seem quite knowledgable about 94s however, your last comment has me baffled. “How would they have put the pin in without the access hole”? The pin doesn’t need the access hole on the right side of the receiver to be inserted. It goes in through the plug screw hole on the left side of the receiver.

Avatar
Member
WACA Guest
Forum Posts: 532
Member Since:
December 27, 2007
sp_UserOfflineSmall Offline
14
June 12, 2021 - 7:09 am
sp_Permalink sp_Print sp_QuotePost

My imagination sees the same as what Bert sees…right where it is supposed to be.



Mark, are you certain you are not just a little early for the next April Fools Day?

Avatar
South Texas
Member
WACA Member
Forum Posts: 1046
Member Since:
March 20, 2010
sp_UserOfflineSmall Offline
15
June 12, 2021 - 7:12 am
sp_Permalink sp_Print sp_EditHistory sp_QuotePost

Bert H. said
Mark,

 How do you suppose they installed the pin without the benefit of the access hole?

You dont need the access hole on the right side to install the pin, only to remove during disassembly.

Dont think the rifle has been refinished by what Im seeing in the pics.

Im not seeing any access hole in the photos, or thru the inside of the receiver above the right cartridge guide.

Inked20210611_104038_LI.jpgImage Enlarger

You might try using a soft mallet on the left side of the receiver and use inertia to back that pin out as an alternative.  Worth a try.

sp_PlupAttachments Attachments


1892takedown @sbcglobal.net ......NRA Endowment Life Member.....WACA Member

"God is great.....beer is good.....and people are crazy"... Billy Currington

Avatar
South Texas
Member
WACA Member
Forum Posts: 1046
Member Since:
March 20, 2010
sp_UserOfflineSmall Offline
16
June 12, 2021 - 7:22 am
sp_Permalink sp_Print sp_QuotePost

Mark,

The bolt doenst have to come out to replace the firing pin.  Just drift the pin in the bolt closet to the hammer (bottom side of the bolt guide rail), you may have to use a paper clip or something a little stronger (L shaped) to be able to push on the end of the firing pin end towards the back of the bolt to get it to come out, most are stuck with grease and grime.

Chris


1892takedown @sbcglobal.net ......NRA Endowment Life Member.....WACA Member

"God is great.....beer is good.....and people are crazy"... Billy Currington

Avatar
Member
WACA Member
Forum Posts: 202
Member Since:
January 28, 2016
sp_UserOfflineSmall Offline
17
June 12, 2021 - 4:57 pm
sp_Permalink sp_Print sp_QuotePost

Chris,

Thank you for your thoughts. I took the pin out and the firing pin moves freely in the bolt. The tip is broken. I tried a punch through the firing pin hole but the pin does not come out. Been a while since I have taken one of my 94s apart but plan on doing that to refresh my memory what’s going on inside. I recall the lever prevents the pin from coming out. Hope you are correct.

Mark

Avatar
Member
WACA Member
Forum Posts: 202
Member Since:
January 28, 2016
sp_UserOfflineSmall Offline
18
June 12, 2021 - 5:43 pm
sp_Permalink sp_Print sp_QuotePost

Chris,

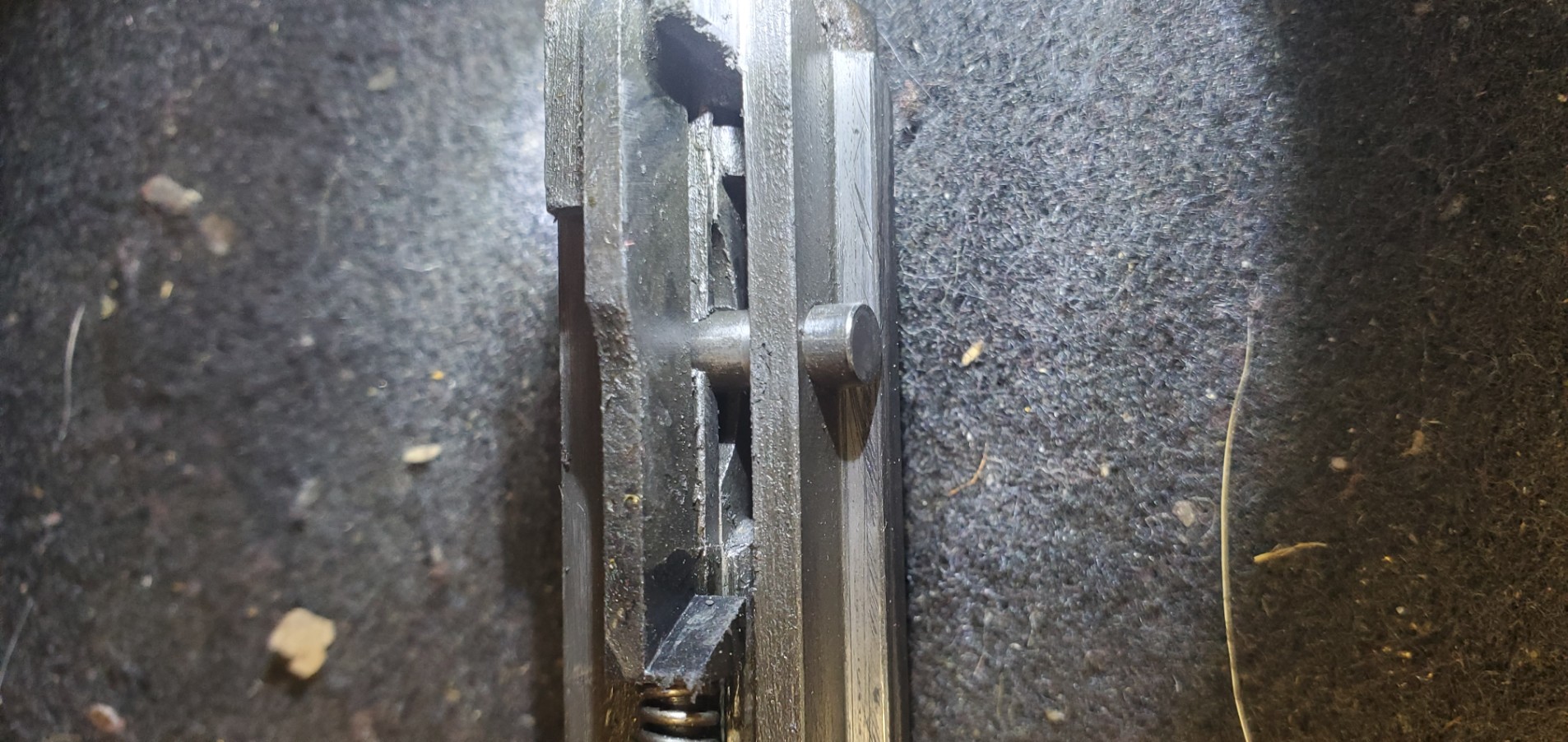

Here is the bolt from a different 94 takedown. You can see how the pin holds the firing pin (curved part behind the pin) in the bolt.

Mark20210612_093538.jpgImage Enlarger

sp_PlupAttachments Attachments
Avatar
Northern edge of the D/FW Metromess
Member
WACA Member
Forum Posts: 5290
Member Since:
November 7, 2015
sp_UserOnlineSmall Online
19
June 12, 2021 - 5:53 pm
sp_Permalink sp_Print sp_QuotePost

Must admit I had to look at an 1894 to see where the hole in this rifle was but once I did it is barely visible even on my lowly iPad. Very impressive work filling that hole.

Good luck with that stubborn firing pin, Mark. Last one I did required bolt removal but I’m not sure why. Could have been 120+ years of grease and grit.



Mike

Life Member TSRA, Endowment Member NRA
BBHC Member, TGCA Member
Smokeless powder is a passing fad! -Steve Garbe
I hate rude behavior in a man. I won't tolerate it. -Woodrow F. Call, Lonesome Dove
Some of my favorite recipes start out with a handful of depleted counterbalance devices.-TXGunNut
Presbyopia be damned, I'm going to shoot this thing! -TXGunNut
Avatar
South Texas
Member
WACA Member
Forum Posts: 1046
Member Since:
March 20, 2010
sp_UserOfflineSmall Offline
20
June 12, 2021 - 7:11 pm
sp_Permalink sp_Print sp_QuotePost

mark your right. the lever pin has to come out to remove the firing pin.

I still can’t see the remnants of a plug in that hole. Maybe need some stronger glasses or higher horsepower monitor


1892takedown @sbcglobal.net ......NRA Endowment Life Member.....WACA Member

"God is great.....beer is good.....and people are crazy"... Billy Currington
