Stopping power 44-40
sp_NewTopic Add Topic
Avatar
RickC
Guest
WACA Guest
21
December 24, 2020 - 1:07 pm
sp_Permalink sp_Print sp_QuotePost

Great story Bob & nice rifle with some historical value. Thanks for sharing.

RickC

Avatar
RickC
Guest
WACA Guest
22
December 24, 2020 - 1:17 pm
sp_Permalink sp_Print sp_QuotePost

Chuck said

The 35 WCF is one of only 3 cartridges I have shot that actually hurts if you are doing load testing at the range and shooting a lot of ammo.  When hunting, hopefully 1 or 2 shots is all you need.  My 35 has a shotgun butt.  If anyone thinks these help they haven’t shot many rounds of this caliber.

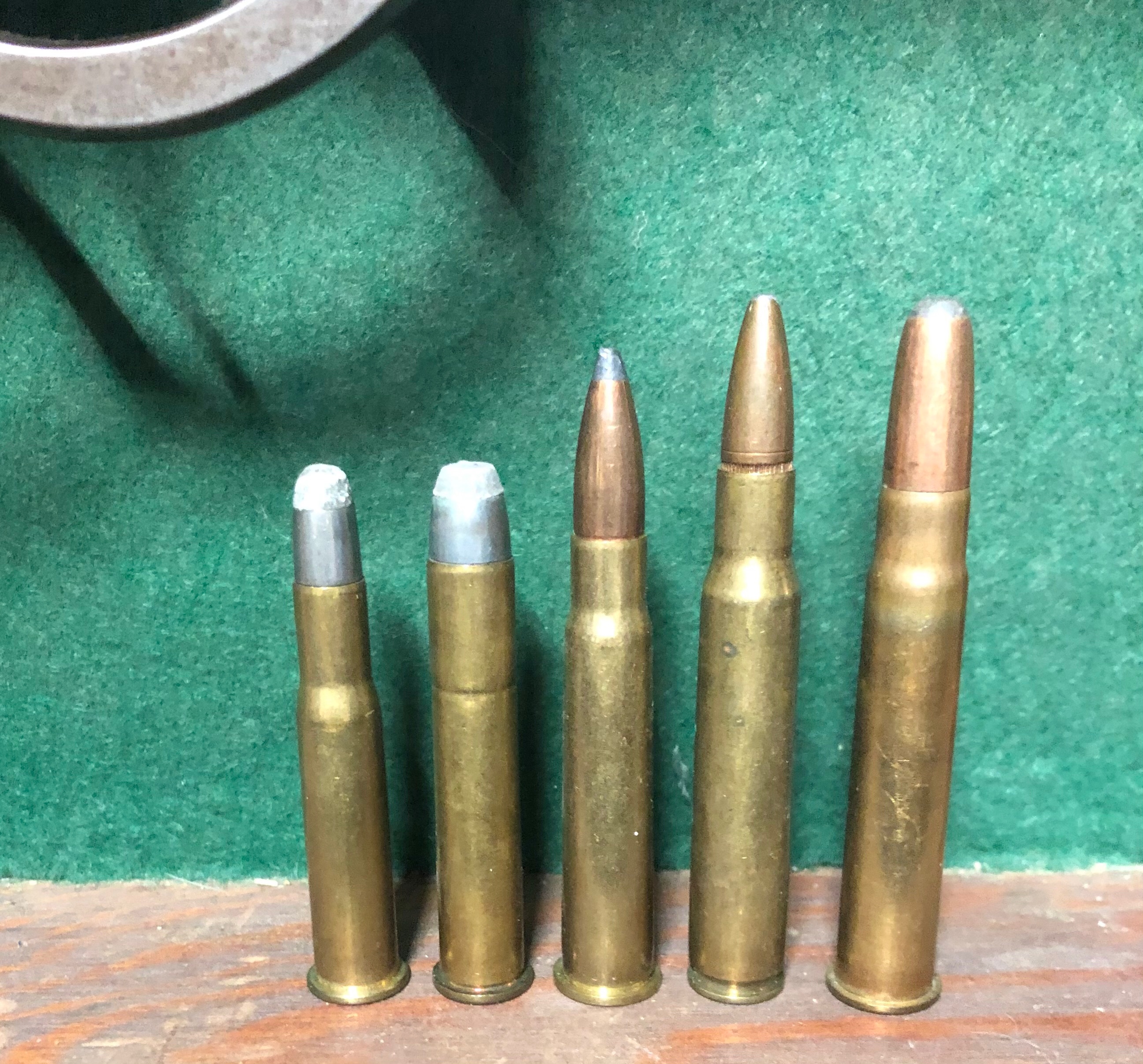

I took a quick photo a few mins ago after scrounging thru the single round drawer for those who’ve never seen a 35 WCF cartridge. From left to right, 30-30, 38-55, 303 British, 30-06, and 35 WCF.

RickC

7973C4A5-62F5-41D8-8936-B04793DB331C.jpegImage Enlarger

Avatar
RickC
Guest
WACA Guest
23
December 25, 2020 - 5:31 pm
sp_Permalink sp_Print sp_QuotePost

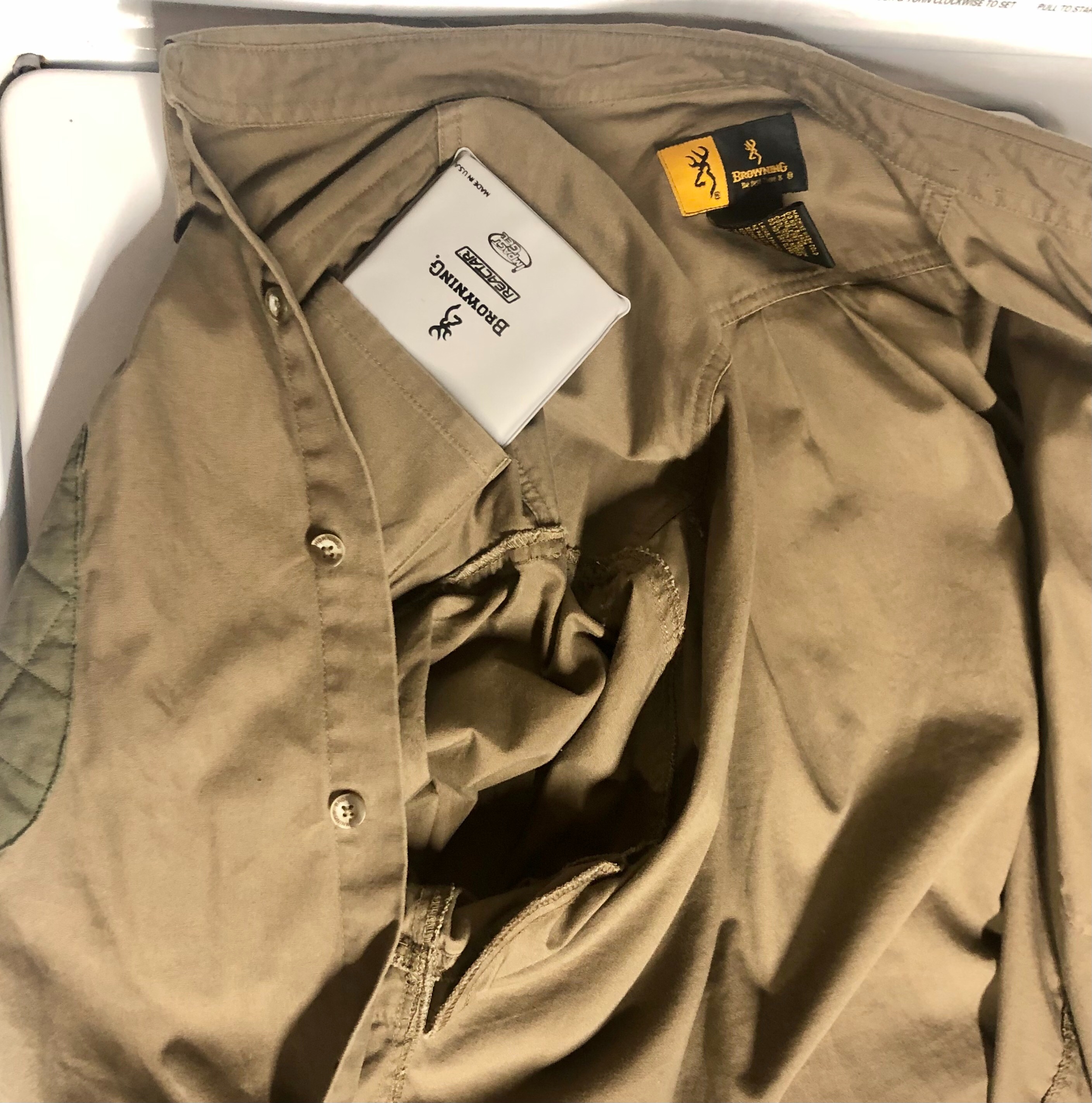

Here’s the shooting shirt with gel pad I use at the range for the big medicine rounds. It definitely helps. Technology applied. They didn’t use anything back in the day or if they did it was a rolled up newspaper.

RickC

FF222A5E-ECE9-4B79-B573-A2EF8718FEDA.jpegImage Enlarger

Avatar
Member
WACA Member
Forum Posts: 5674
Member Since:
March 31, 2009
sp_UserOfflineSmall Offline
24
December 25, 2020 - 7:30 pm
sp_Permalink sp_Print sp_QuotePost

I have a Pact pad I put on when I shoot the 35 or the 45-70’s at the range.  Try shooting 20 to 40 rounds of either.  I have limited brass and need to fire them to test a different load.  I guess I could knock out the bullets?

Avatar
RickC
Guest
WACA Guest
25
December 25, 2020 - 8:24 pm
sp_Permalink sp_Print sp_QuotePost

Ya that would definitely be a must in your case Chuck. I only fire 3 or 4 rounds from each rifle once a year to keep them honest…and my fading memory of where they shoot.

RickC

Avatar
Member
WACA Member
Forum Posts: 5674
Member Since:
March 31, 2009
sp_UserOfflineSmall Offline
26
December 26, 2020 - 6:36 pm
sp_Permalink sp_Print sp_QuotePost

RickC said
Ya that would definitely be a must in your case Chuck. I only fire 3 or 4 rounds from each rifle once a year to keep them honest…and my fading memory of where they shoot.

RickC

I had never got the 35 totally dialed in.  I was planning on using one of the 45-70’s on a deer hunt this year in Iowa.. I called after the hunt.  They had a huge crowd of about 13 hunters.  We usually have about 6.  In the opening weekend they got 14 deer and a few of those were bucks.  All of this on 3 farms.  2 of which were less than 1/2 mile from my Dad’s old farm.  The other I had never been to.  These guys hunt for meat but a nice rack is always appreciated.  Most years I get al least 3 deer.  In this area residents can buy as many doe tags as they wish so someone always has an extra tag for me.

Avatar
RickC
Guest
WACA Guest
27
December 26, 2020 - 7:39 pm
sp_Permalink sp_Print sp_EditHistory sp_QuotePost

I find the 35 a big cartridge for deer so 45-70 would be overkill for me Chuck but the hunting environment plays into it so maybe the right choice where you go. Sounds like plenty of game there.

Avatar
Member
WACA Member
Forum Posts: 5674
Member Since:
March 31, 2009
sp_UserOfflineSmall Offline
28
December 26, 2020 - 8:06 pm
sp_Permalink sp_Print sp_QuotePost

RickC said
I find the 35 a big cartridge for deer so 45-70 would be overkill for me Chuck but the hunting environment plays into it so maybe the right choice where you go. Sounds like plenty of game there.

Iowa is a shotgun state.  They do allow straight wall pistol cartridges but you can use a 45-70 as long as it is a hollow point.  My friend told me that this cartridge might not be allowed in the future.

Avatar
North Carolina
Member
WACA Member
Forum Posts: 222
Member Since:
February 11, 2018
sp_UserOfflineSmall Offline
29
December 27, 2020 - 12:21 am
sp_Permalink sp_Print sp_EditHistory sp_QuotePost

Maybe he used these instead of today’s mousefarts

1,550fps at the muzzle is 1,000ft lbs of energy with a 200gr JSP.
How much “energy” does it take to kill anything?

1909-10-9-HV-a.pngImage Enlarger1920-1941.jpgImage Enlargers-l1600-1LE.jpgImage Enlarger

sp_PlupAttachments Attachments
Avatar
NY
Member
Restricted
Forum Posts: 7119
Member Since:
November 1, 2013
sp_UserOfflineSmall Offline
30
December 27, 2020 - 4:06 am
sp_Permalink sp_Print sp_QuotePost

SavvyJack said
How much “energy” does it take to kill anything?


Depends on exactly where that energy is expended; if it’s in the guts, it will be lethal, but it’s going to take some time.

Avatar
North Carolina
Member
WACA Member
Forum Posts: 222
Member Since:
February 11, 2018
sp_UserOfflineSmall Offline
31
December 27, 2020 - 7:13 pm
sp_Permalink sp_Print sp_EditHistory sp_QuotePost

It has been reported that it only takes 750fps for a 200gr 44-40 bullet to “fully penitrate the broadside of a horse”. If you are hunting for food, that it is plenty of velocity and mass. If you are hunting for sport, you probably should not be hunting. Then there is always the bow and arrow!

Does this answer the black bear question…

44 Magnum revolver
240jsp @ 1,450fps = 1,120ft lbs of energy

44-40 M92 carbine

200jsp @ 1,550fps = 1,066ft lbs of energy (1903 to 1945 W.H.V. strong action rifles only)

200jsp @ 1,350fps = 809 lbs of energy (Original Ballistics)

200jsp @ 1,190fps = 628 ft lbs of energy (current 44-40 factory ammo, velocity reduction after 1979 when Winchester switched from a rifle powder to a pistol powder) (My tests recorded only 1,050fps @ 489 ft lbs of energy)

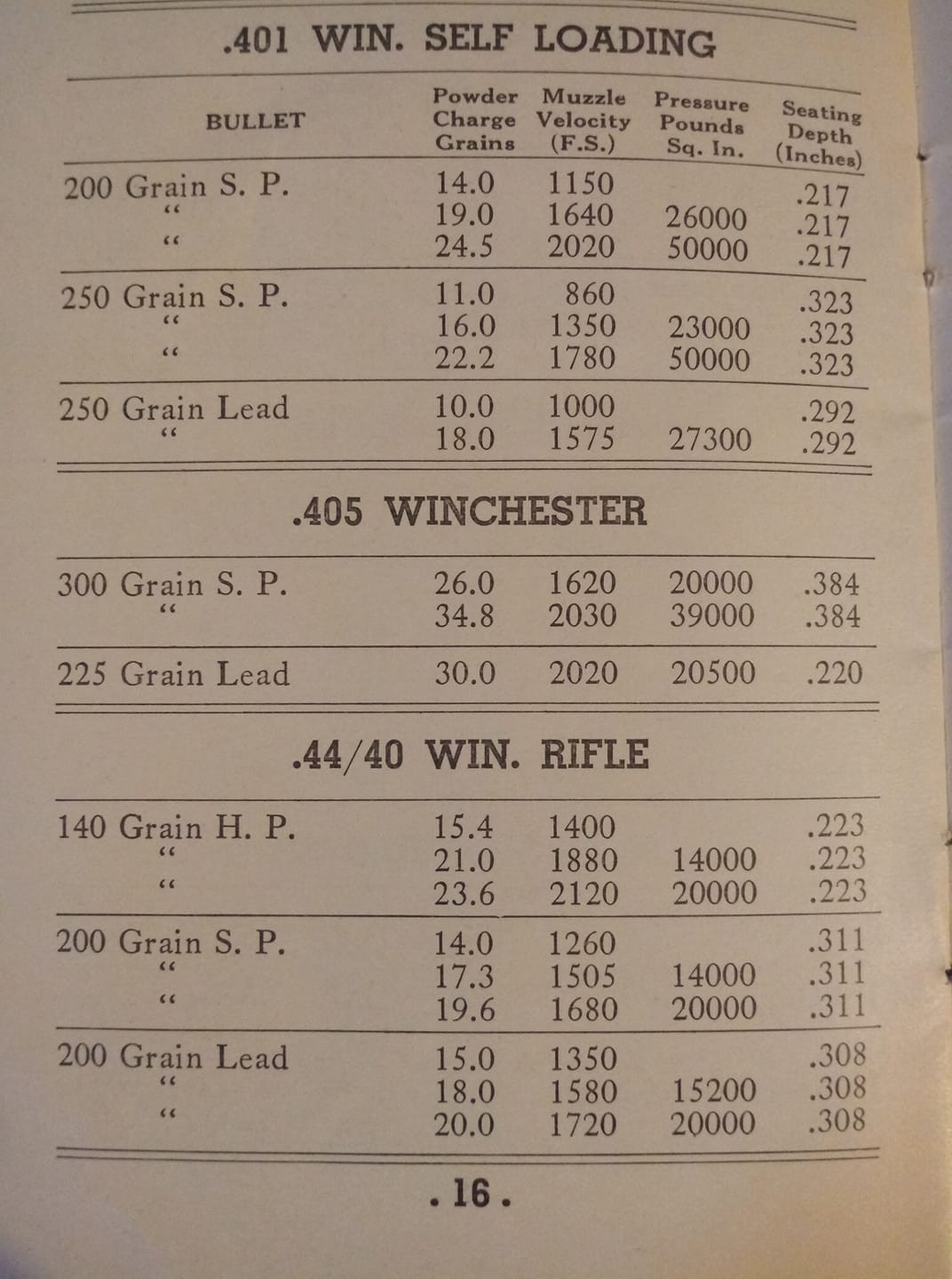

If the grandfather handloaded with data from back in the day (1937)…..then it gets even better.
20gr of Sharpshooter with a 200 lead, 1,720fps @ 1,313ft lbs of energy which created 20,000cup

July-1937-Hercules-Sharpshooter-Pamphlet.jpgImage Enlarger

Avatar
North Carolina
Member
WACA Member
Forum Posts: 222
Member Since:
February 11, 2018
sp_UserOfflineSmall Offline
32
December 27, 2020 - 7:28 pm
sp_Permalink sp_Print sp_EditHistory sp_QuotePost

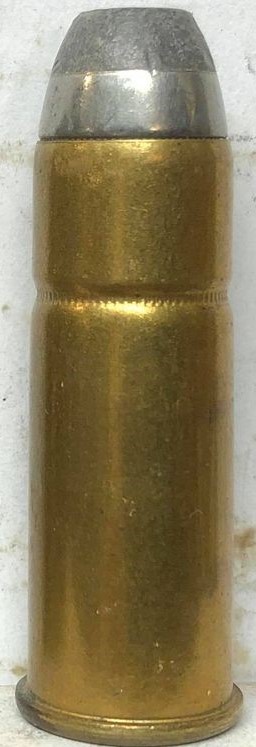

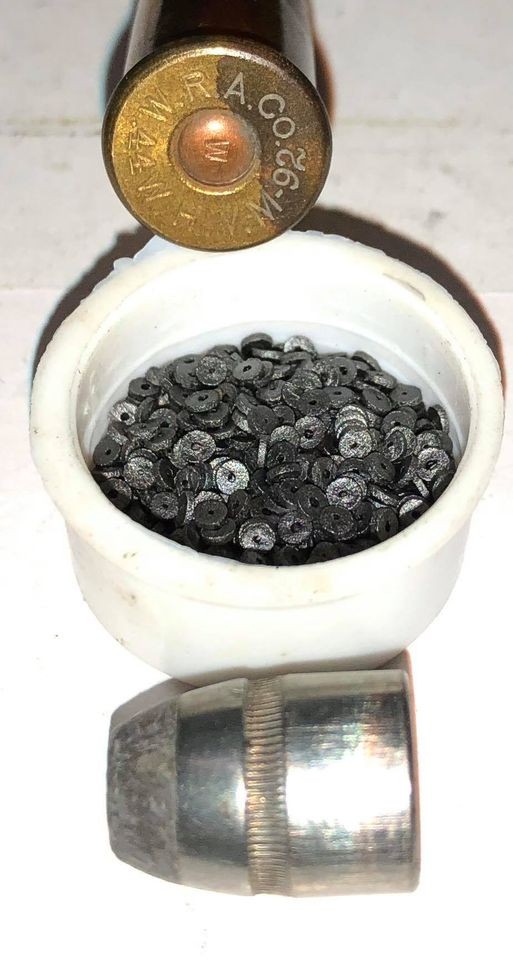

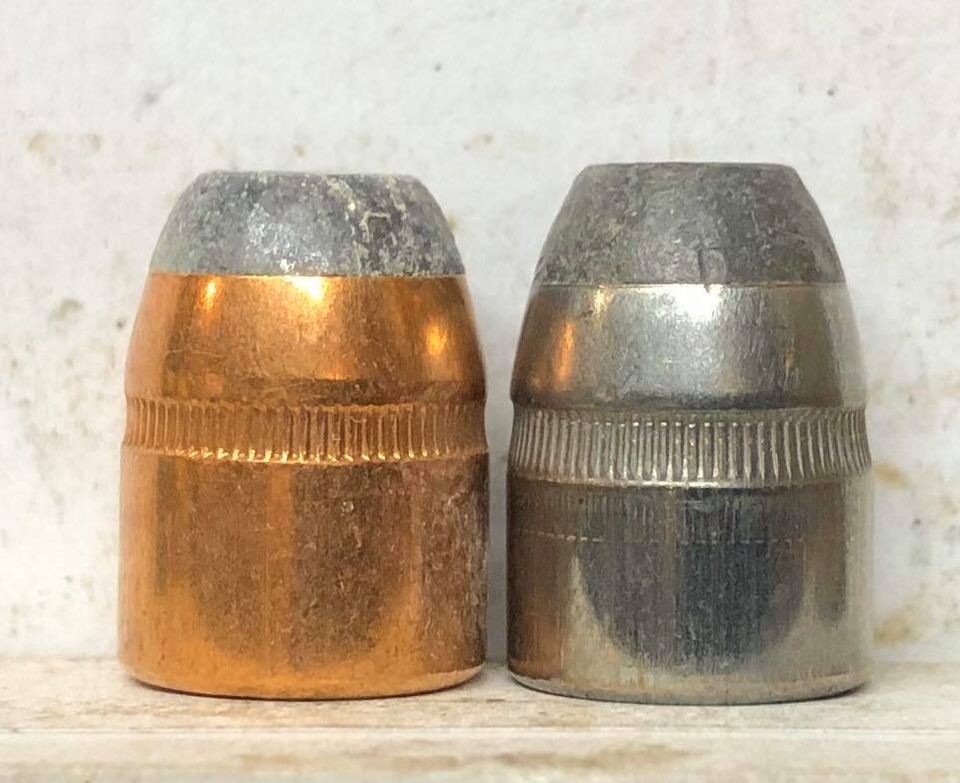

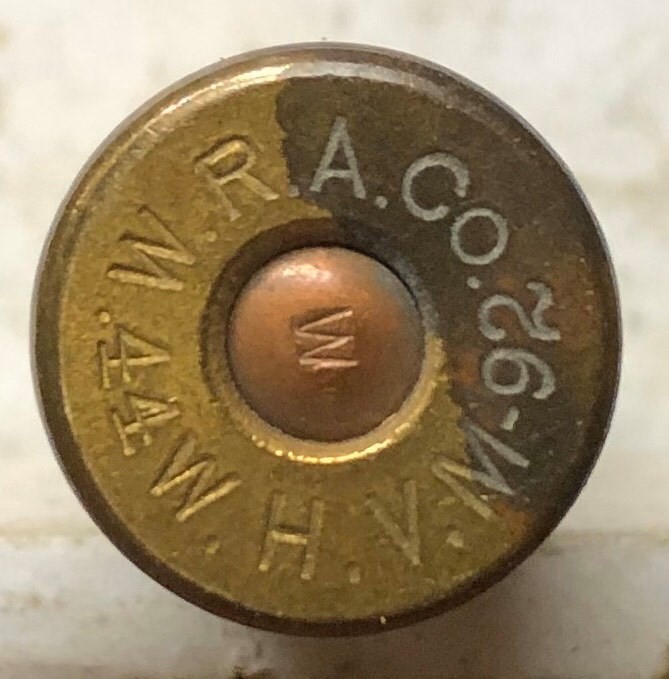

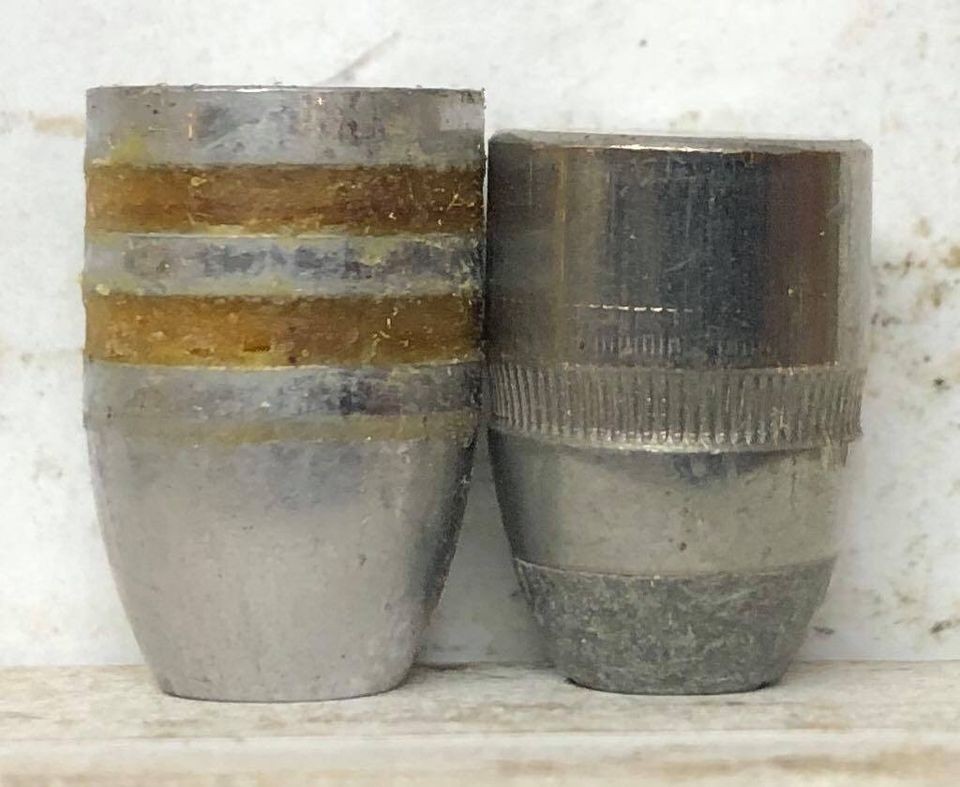

Here is a Winchester M92 44-40 High Velocity cartridge from the late 1920’s that I dissected. It contained 20.3gr of Sharpshooter powder.

19.6gr of Sharpshooter along with a 200gr jsp reported to achieve 1,680fps @ 1,253ft lbs of energy

20.3gr-Sharpshooter.jpgImage Enlarger124540883_567948780708493_1790942302991582787_n.jpgImage Enlarger125205140_933299417495236_3174809593962149315_n.jpgImage Enlarger125277860_291094472116183_7997591943466080408_n.jpgImage Enlarger125419358_866933457384284_1861322396943868794_n.jpgImage Enlarger

I have all of this information uploaded to the internet for all to enjoy
https://docs.google.com/spreadsheets/d/1Jy0pGqWPRx2HOQqufbcnEM1lv6tCWBJsCOB8vLIDOIg/edit#gid=1905899731



Powder information here https://sites.google.com/view/44winchester/powders/smokeless-powders-transition-years?authuser=0

Avatar
RickC
Guest
WACA Guest
33
December 27, 2020 - 7:49 pm
sp_Permalink sp_Print sp_QuotePost

Good info savvyjack. Thanks for posting.

RickC

Avatar
Member
WACA Member
Forum Posts: 5063
Member Since:
November 19, 2006
sp_UserOfflineSmall Offline
34
December 27, 2020 - 8:05 pm
sp_Permalink sp_Print sp_QuotePost

Dave K. said
Not a  black bear “harvest” nor a .44-40 one either story but many years ago during my game warden career I was called upon to shoot a nuisance black bear at a fly camp of a forest fire fighting crew. I was working on the same fire at the time and didn’t have my vehicle or my “predator gun” (.303 Lee Enfield)  with me so I asked the local game warden, a newer recruit, to lend me his. He retrieved a Marlin .44 Magnum with a low power scope from behind the back seat of his truck. I asked him if that was the only gun he had since it was rather underpowered by my reckoning. The men from the fire camp, who were Indiginous from northern Alberta had been flown out because of the bear were from Alberta and told me it was a small bear not thinking that to these fellows a big bear was a grizzly. I decided that the .44 Mag would probably be OK. I was taken to the empty camp by helicopter and left there to deal with the bear. I wanted to test fire the gun and took some shots at a tin can set on a tree stump at very close range and found that with the scope it was shooting about 4″ to the right and low. I should have packed  it in just then but I adjusted the scope with a dime on the screws and got it to be shooting dead on at least at very close range. My shooting must have attracted the bear as he arrived minutes after and was growling and total unafraid of my presence as he began to scavenge for food around the camp. He was in fact a very big boar and one of the biggest bears I have ever seen! He was very wary of me and as I stalked him from about 20 yards he stood up on his hind legs to get my scent but his chest was obscured by heavy brush and a shot in the lung/heart area was not possible unless I shot through the brush but I was worried the bullet might deflect enough to hit a non vital area. In probably the most foolish decision of my long career I decided try and take this bear down with a shot directly between the eyes as his head was clearly visible and I was gettng concerned since I was clearly annoying him and he began showing signs that he might make a charge.  I would only have seconds before he was on top of me at that range. I knew that the gun was dead on at that short range. This was clearly a bear that had absolutely no fear of man and had probably never seen one in his life other than the fire  fighters and now me.

I squeezed the trigger and the bullet hit the bear between the eyes. He didn’t drop but instead immediately  spun around and took off a run into the dense brush behind him. I still had at least an hour to wait before the chopper arrived and sure didn’t want to leave s wounded bear behind so I waited about 1/2 an hour before I began to follow a rather thin blood trail leading down into a swamp and very dense alder thicket. It was then that I noticed the loading gate had come loose and had fallen into the action of the gun. I had only the loaded round in the chamber to deal with the bear if was nearby and decided to attack. Alone with a broken gun I backtracked to the tent camp and waited for my tranpost out. I felt very ashamed that I had wounded the bear and have after all these years since have wondered what might have happened. My thinking is that the bullet hit the bear between the eyes at the top of his skull and ricocheted off since there was not sign of flesh near where he was standing nor along the blood trail. The fire crew did return and the bear was never seen again. He was so far into the bush that the cahnces are he would never again see a human . I have shot several bears before and since and live trapped dozens of other but this one still haunts me in my dreams just as the Cree elder predicted it would. I would be very reluctant to take on a bear while on the ground with a .44-40 given this experience with its big brother the .44 Magnum.

Dave – that was a very exciting story.  It pulled me in completely.  I too, felt like I was there.  Thank you for posting it.  I wonder if the outcome would have been different had the rifle used been a Winchester rather than a Marlin?  I believe at least you wouldn’t have been dealing with a broken rifle.   Also, it may not have been the cartridge at fault.  As you state, you really didn’t want to take that head shot.  Had you had your .303 along, and placed the shot in the same spot, the outcome would probably be the same.  All in all, it worked out very well (except for your dreams).  You weren’t hurt and the bear didn’t come back and hurt anyone.  I think it is very fortunate you didn’t try the chest shot.  You very probably would have needed another shot (or two or three or four…) and as you say, the repeating aspect of the rifle wasn’t there.  In fact, if the loading gate is jammed in the action, the rifle wouldn’t have worked as a single shot either.  I’ve shot a lot of deer with a Marlin M1894 .44 magnum with a low power scope.  It’s worked well enough but the mechanics are nothing close to a vintage M1892.

Avatar
Northwestern Ontario
Member
WACA Guest
Forum Posts: 303
Member Since:
December 14, 2009
sp_UserOfflineSmall Offline
35
December 27, 2020 - 9:52 pm
sp_Permalink sp_Print sp_EditHistory sp_QuotePost

steve, the whole affair was a comedy of errors that could easily have had me killed. Had I had my gear with me at the fire base camp I would have had my Winchester 1897 Riot gun and a magazine full of slugs. I was sceptical of that Marlin from the get go but the native guys from Alberta said it was a small bear. I had shot bears with the .348 Model 71 and even with that gun sometimes more than one shot was necessary. I would have left this big guy alone until the chopper arrived but he had shown he wasn’t afraid of gun fire as he had approached the camp while I was sighting it in and he was a real threat. I decided to do him in before he made a charge as that gun would not have stopped him at the distance between us. The bear would have been on top of me in seconds. I probably should have insisted on getting my 1897 and also have a back up shooter but I didn’t and I am probably lucky to be able to tell the tale.

Avatar
Member
WACA Member
Forum Posts: 5063
Member Since:
November 19, 2006
sp_UserOfflineSmall Offline
36
December 27, 2020 - 10:01 pm
sp_Permalink sp_Print sp_QuotePost

Dave – indeed, you were lucky.  I would say, “a comedy of errors” is often how life unfolds.  It’s amusing that the whole debate of the adequacy of a certain cartridge can turn out to be completely moot if the rifle firing it has a mechanical failure.  And certainly, a ’97 riot gun loaded with slugs would have been very handy to have on hand.

Again, a very enjoyable read.
