Model 54 Carbine 35-Whelen
sp_NewTopic Add Topic
Avatar
Member
WACA Member
Forum Posts: 11
Member Since:
March 15, 2024
sp_UserOfflineSmall Offline
1
March 15, 2024 - 4:06 am
sp_Permalink sp_Print sp_QuotePost

Trying to find more information about a rifle I recently picked up. A model 54 carbine chambered in 35-whelen. Under barrel is marked M.N.S 35W Triangle and 27. Any help or information where to look for more details would be appreciated.

Avatar
Member
WACA Member
Forum Posts: 4344
Member Since:
November 19, 2006
sp_UserOfflineSmall Offline
2
March 15, 2024 - 5:49 pm
sp_Permalink sp_Print sp_QuotePost

Are there caliber markings on top of the barrel?  Standard Winchester barrel address?

Avatar
Member
WACA Member
Forum Posts: 4344
Member Since:
November 19, 2006
sp_UserOfflineSmall Offline
3
March 15, 2024 - 5:58 pm
sp_Permalink sp_Print sp_QuotePost

The factory chambering of the .35 Whelen in the Winchester M54 rifle is mentioned here.  They note it was the first time a factory rifle was chambered in a wildcat cartridge:

https://www.americanrifleman.org/content/the-timeless-winchester-model-54/

Avatar
Canada
Member
WACA Member
Forum Posts: 35
Member Since:
April 9, 2012
sp_UserOfflineSmall Offline
4
March 15, 2024 - 6:23 pm
sp_Permalink sp_Print sp_QuotePost

In reading David’s book on 54 he states  the 35 calibre barrels were from 9/mm stock ,carbines first introduction was 1927,9mm added in 1928   Tom

Avatar
Member
WACA Member
Forum Posts: 11
Member Since:
March 15, 2024
sp_UserOfflineSmall Offline
5
March 15, 2024 - 7:07 pm
sp_Permalink sp_Print sp_QuotePost

Yes caliber marking (35 WHELEN) is present on the barrel as well. Barrel has all standard Winchester proofs and roll marks. All stock, barrel, and sight measurements match up to factory specs mentioned in the Model 54 book. Im wondering the discrepancy in marking could be the 9MM wasn’t released till the following year in the 54.

Avatar
Northern edge of the D/FW Metromess
Member
WACA Member
Forum Posts: 5197
Member Since:
November 7, 2015
sp_UserOfflineSmall Offline
6
March 16, 2024 - 3:23 am
sp_Permalink sp_Print sp_QuotePost

Wyatt-

Quite a find, had no idea the 54 was chambered for this cartridge. Thank you, Steve, for the cite. I recently sold one of two hunting rifles chambered for that cartridge. Nothing in Texas needs that much killing, I’ll keep my old re-chambered Winchester 670 just in case I’m wrong. OTOH a Model 54 in 35 Whelen reminds me of a saying some like-minded Texans coined; “One can’t have too many hog guns”.
I hope you’ll join WACA, Wyatt. I think you’ll fit right in.





Mike

Life Member TSRA, Endowment Member NRA
BBHC Member, TGCA Member
Smokeless powder is a passing fad! -Steve Garbe
I hate rude behavior in a man. I won't tolerate it. -Woodrow F. Call, Lonesome Dove
Some of my favorite recipes start out with a handful of depleted counterbalance devices.-TXGunNut
Presbyopia be damned, I'm going to shoot this thing! -TXGunNut
Avatar
Member
WACA Member
Forum Posts: 533
Member Since:
August 27, 2014
sp_UserOfflineSmall Offline
7
March 16, 2024 - 2:06 pm
sp_Permalink sp_Print sp_QuotePost

That’s a rare one
Love to see pics of the gun and barrel stamps

Avatar
LI NY
Member
WACA Member
Forum Posts: 143
Member Since:
August 14, 2021
sp_UserOfflineSmall Offline
8
March 16, 2024 - 5:40 pm
sp_Permalink sp_Print sp_QuotePost

Have to add pics or it doesn’t exist !

Avatar
Member
WACA Member
Forum Posts: 4344
Member Since:
November 19, 2006
sp_UserOfflineSmall Offline
9
March 16, 2024 - 10:07 pm
sp_Permalink sp_Print sp_QuotePost

TXGunNut said
Wyatt-

Quite a find, had no idea the 54 was chambered for this cartridge. Thank you, Steve, for the cite. I recently sold one of two hunting rifles chambered for that cartridge. Nothing in Texas needs that much killing, I’ll keep my old re-chambered Winchester 670 just in case I’m wrong. OTOH a Model 54 in 35 Whelen reminds me of a saying some like-minded Texans coined; “One can’t have too many hog guns”.

I hope you’ll join WACA, Wyatt. I think you’ll fit right in.





Mike



I have a custom rifle built on a Model 98 Mauser action in .35 Whelen Improved.  It is a very fine cartridge.

Avatar
Member
WACA Member
Forum Posts: 11
Member Since:
March 15, 2024
sp_UserOfflineSmall Offline
10
March 16, 2024 - 11:26 pm
sp_Permalink sp_Print sp_QuotePost

happy to upload images, any instructions on how to do so would be greatly appreciated!

Avatar
Kingston, WA
Admin
Forum Posts: 10986
Member Since:
April 15, 2005
sp_UserOfflineSmall Offline
11
March 17, 2024 - 2:22 am
sp_Permalink sp_Print sp_QuotePost

Wyatt said
happy to upload images, any instructions on how to do so would be greatly appreciated!



Wyatt,

Only full (paid) WACA members can directly upload pictures to our website.  As a “Guest” member on the WACA website, you must first upload your pictures to a photo hosting website, and then post the URL to the internet location where you have them stored.  We do this to help prevent the Spammers of the world from posting filth and junk pictures on our servers.  I can readily block or delete any illicit internet links that the Spammers/Scammers try to post.

Bert – Admin

WACA Historian & Board of Director Member #6571L

Avatar
Member
WACA Member
Forum Posts: 11
Member Since:
March 15, 2024
sp_UserOfflineSmall Offline
12
March 17, 2024 - 2:40 am
sp_Permalink sp_Print sp_QuotePost

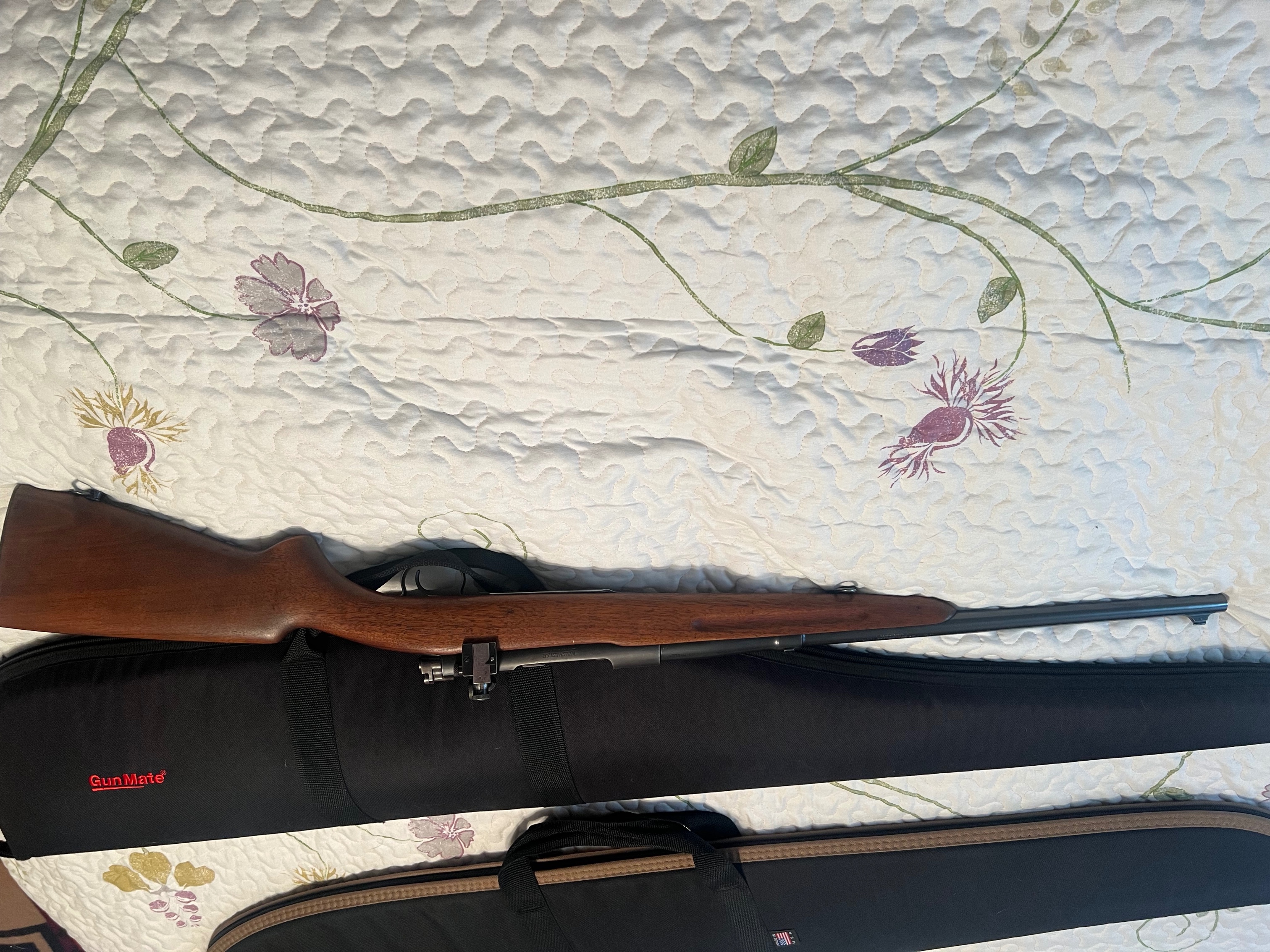

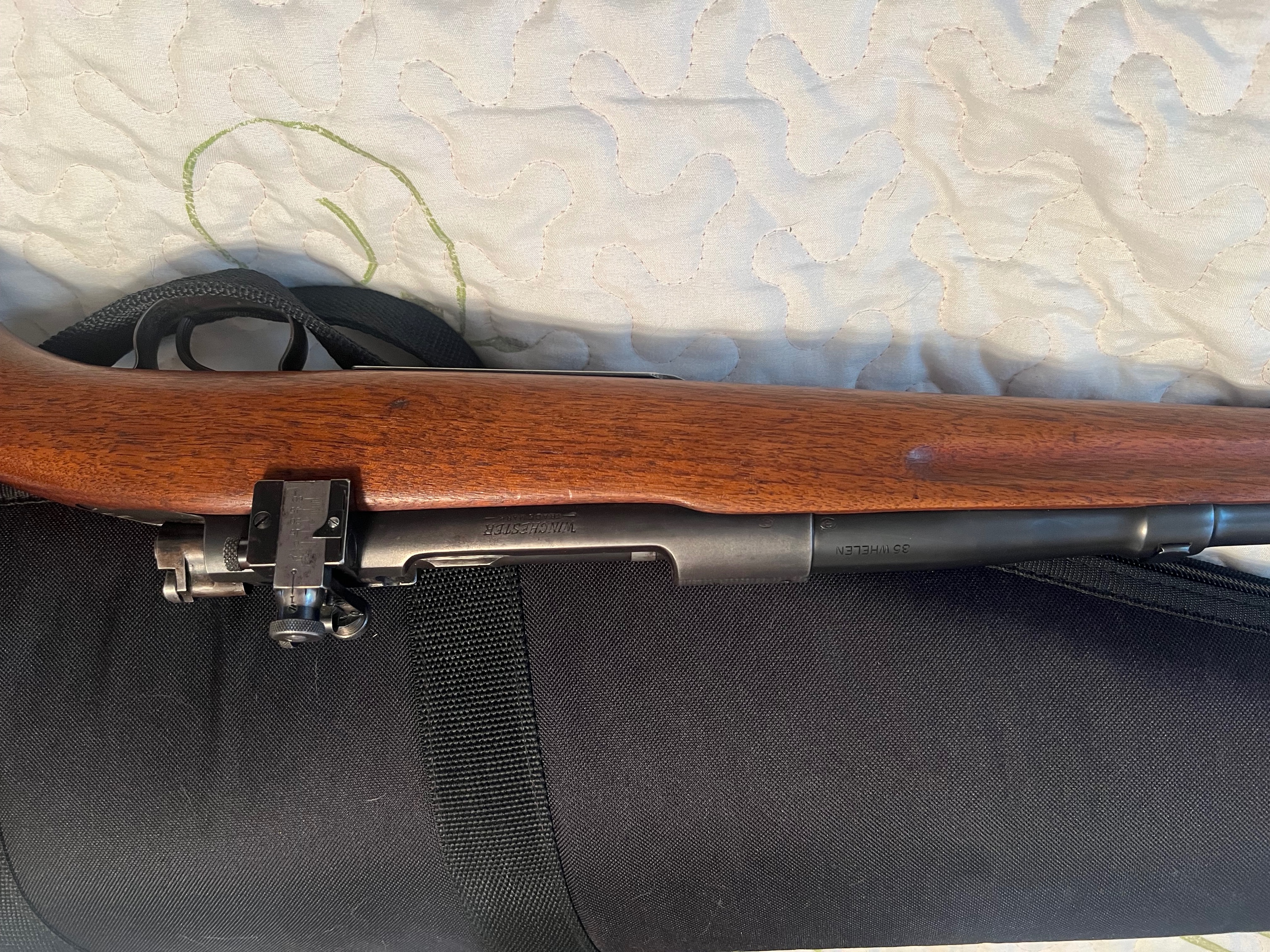

IMG_2785.jpegImage EnlargerIMG_2784.jpegImage EnlargerIMG_2783.jpegImage EnlargerIMG_2782.jpegImage EnlargerIMG_2781.jpegImage EnlargerIMG_2738.jpegImage Enlarger

sp_PlupAttachments Attachments
Avatar
Member
WACA Member
Forum Posts: 11
Member Since:
March 15, 2024
sp_UserOfflineSmall Offline
13
March 17, 2024 - 2:42 am
sp_Permalink sp_Print sp_QuotePost

IMG_2732.jpegImage EnlargerIMG_2737-1.jpegImage EnlargerIMG_2736.jpegImage Enlarger

sp_PlupAttachments Attachments
Avatar
Member
WACA Member
Forum Posts: 11
Member Since:
March 15, 2024
sp_UserOfflineSmall Offline
14
March 17, 2024 - 2:43 am
sp_Permalink sp_Print sp_QuotePost

Bert H. said

Wyatt said

happy to upload images, any instructions on how to do so would be greatly appreciated!



Wyatt,

Only full (paid) WACA members can directly upload pictures to our website.  As a “Guest” member on the WACA website, you must first upload your pictures to a photo hosting website, and then post the URL to the internet location where you have them stored.  We do this to help prevent the Spammers of the world from posting filth and junk pictures on our servers.  I can readily block or delete any illicit internet links that the Spammers/Scammers try to post.

Bert – Admin



Hi Bert, thank you for the help/info! Happy to join the WACA. Wyatt

Avatar
NY
Member
WACA Guest
Forum Posts: 6527
Member Since:
November 1, 2013
sp_UserOfflineSmall Offline
15
March 17, 2024 - 3:07 am
sp_Permalink sp_Print sp_EditHistory sp_QuotePost

Wyatt,  some former owner had the good sense to add the Lyman #48 rcvr sight.  48s were a factory option, but this particular one is a later variation of the one that was available at the time this 54 was built.  Surprising that original rear sight, a folding 2-leaf sight that folded down flat against the brl, was removed, as it wouldn’t have obstructed sight-line from the 48.  I particularly like the early 54s with grooved fore-end.

Avatar
LI NY
Member
WACA Member
Forum Posts: 143
Member Since:
August 14, 2021
sp_UserOfflineSmall Offline
16
March 17, 2024 - 4:39 pm
sp_Permalink sp_Print sp_QuotePost

Why such a disparity between the receiver bluing and the barrel? Educate me please.

Avatar
NY
Member
WACA Guest
Forum Posts: 6527
Member Since:
November 1, 2013
sp_UserOfflineSmall Offline
17
March 17, 2024 - 4:48 pm
sp_Permalink sp_Print sp_EditHistory sp_QuotePost

Steven Gabrielli said
Why such a disparity between the receiver bluing and the barrel? Educate me please.



Often it’s because brl is rust-blued while rcvr is machine-blued (charcoal-blued), a process not nearly as durable as rust-bluing.  Same diff in finish VERY common on 52s produced in ’20s & ’30s.  On this particular gun, the disparity is more pronounced than is usually seen.  Could that mean it’s been rebarreled?  Like to hear Lou’s opinion.

Avatar
LI NY
Member
WACA Member
Forum Posts: 143
Member Since:
August 14, 2021
sp_UserOfflineSmall Offline
18
March 17, 2024 - 5:26 pm
sp_Permalink sp_Print sp_QuotePost

Ah thanks Clarence my fellow NYer. I’d like to hear from Lou also. It raised a flag on my end, but hey I’m still learning.

Avatar
Kingston, WA
Admin
Forum Posts: 10986
Member Since:
April 15, 2005
sp_UserOfflineSmall Offline
19
March 17, 2024 - 6:16 pm
sp_Permalink sp_Print sp_QuotePost

Steven Gabrielli said
Ah thanks Clarence my fellow NYer. I’d like to hear from Lou also. It raised a flag on my end, but hey I’m still learning.



Not Lou, but I will offer this…

Clarence is correct line in his of thought concerning why the bluing looks different on the receiver versus the barrel, but not on the exact bluing type.  However, it is my belief that the Model 70 receiver frames were Du-Lite solution blued from day one of production, and if not from day one, it was very shortly thereafter.  The Model 52 receiver frames manufactured in the 1920s and early to mid 1930s were indeed “machine” blued.

Bert

WACA Historian & Board of Director Member #6571L

Avatar
NY
Member
WACA Guest
Forum Posts: 6527
Member Since:
November 1, 2013
sp_UserOfflineSmall Offline
20
March 17, 2024 - 6:51 pm
sp_Permalink sp_Print sp_QuotePost

Bert H. said However, it is my belief that the Model 70 receiver frames were Du-Lite solution blued from day one of production, and if not from day one, it was very shortly thereafter.


But this is not a Model 70.
