1886 Winchester Deluxe
sp_NewTopic Add Topic
Avatar
Member
WACA Member
Forum Posts: 4
Member Since:
December 26, 2019
sp_UserOfflineSmall Offline
1
December 29, 2019 - 4:45 pm
sp_Permalink sp_Print sp_QuotePost
sp_ReportPost

Hello fellow Winchester enthusiasts;

 I am hoping  someone could tell me what makes an 1886 a “deluxe” model ? is it simply a high class pistol grip checkered stock or is there more to it than that , such as the case color hardening and set trigger.

 Thank you for your response,

 Ray Stark

Avatar
Kingston, WA
Admin
Forum Posts: 12722
Member Since:
April 15, 2005
sp_UserOfflineSmall Offline
2
December 29, 2019 - 9:48 pm
sp_Permalink sp_Print sp_QuotePost
sp_ReportPost

Hello Ray,

The Model 1886 was catalogued as follows;

1. Sporting Rifle (Solid frame & Take Down). The Sporting Rifle was standard with a 26-inch octagon barrel, Full magazine, plain trigger, and a straight grip plain Walnut stock w/steel crescent butt plate.

2. Fancy Sporting Rifle “deluxe” (Solid frame & Take Down) was standard with a 26-inch octagon barrel, Full magazine, plain trigger, and a fancy Walnut checkered pistol grip stock w/steel crescent butt plate.

3. Carbine (Saddle Ring, Solid frame)

4. Extra Light Weight (ELW) Rifle (Solid frame & Take Down), 45-70, 22-inch round barrel, Full or Half magazine, plain trigger, Shotgun butt w/black hard rubber butt plate, and a plain Walnut straight grip stock. The ELW could be ordered with a Fancy checked pistol grip stock & forearm.

Color Case finish was standard for the Solid frame Sporting Rifles, Fancy Sporting Rifles, and Carbines until August 1901, then Blued thereafter. Take Down variations were Blued only, as were all ELWs. The Sporting Rifle, Fancy Sporting Rifle, and Carbine could be ordered with a Half magazine at no extra cost (optional order).

Set triggers were always a “special order” feature, regardless of specific variation.

Bert

WACA 6571L, Historian & Board of Director Member

Avatar
Member
WACA Member
Forum Posts: 328
Member Since:
October 29, 2019
sp_UserOfflineSmall Offline
3
December 29, 2019 - 9:53 pm
sp_Permalink sp_Print sp_QuotePost
sp_ReportPost

I have an ELW with 2X checkered wood. Plan to sell it someday, but not just yet.

Shoot low boys. They're riding Shetland Ponies.

Avatar
Member
WACA Member
Forum Posts: 4
Member Since:
December 26, 2019
sp_UserOfflineSmall Offline
4
December 30, 2019 - 11:54 pm
sp_Permalink sp_Print sp_QuotePost
sp_ReportPost

Thanks Bert,

Your information was exactly what I was looking for.

 Ray Stark

Avatar
RickC
Guest
Guests
5
January 11, 2022 - 5:29 pm
sp_Permalink sp_Print sp_QuotePost
sp_ReportPost

Anyone ever seen a 86 deluxe with an original checkered straight grip stock ?

Avatar
Member
WACA Member
Forum Posts: 3098
Member Since:
November 19, 2006
sp_UserOfflineSmall Offline
6
January 11, 2022 - 6:21 pm
sp_Permalink sp_Print sp_QuotePost
sp_ReportPost

Bert H. said
Hello Ray,
The Model 1886 was catalogued as follows;
1. Sporting Rifle (Solid frame & Take Down). The Sporting Rifle was standard with a 26-inch octagon barrel, Full magazine, plain trigger, and a straight grip plain Walnut stock w/steel crescent butt plate.
2. Fancy Sporting Rifle “deluxe” (Solid frame & Take Down) was standard with a 26-inch octagon barrel, Full magazine, plain trigger, and a fancy Walnut checkered pistol grip stock w/steel crescent butt plate.
3. Carbine (Saddle Ring, Solid frame)
4. Extra Light Weight (ELW) Rifle (Solid frame & Take Down), 45-70, 22-inch round barrel, Full or Half magazine, plain trigger, Shotgun butt w/black hard rubber butt plate, and a plain Walnut straight grip stock. The ELW could be ordered with a Fancy checked pistol grip stock & forearm.
Color Case finish was standard for the Solid frame Sporting Rifles, Fancy Sporting Rifles, and Carbines until August 1901, then Blued thereafter. Take Down variations were Blued only, as were all ELWs. The Sporting Rifle, Fancy Sporting Rifle, and Carbine could be ordered with a Half magazine at no extra cost (optional order).
Set triggers were always a “special order” feature, regardless of specific variation.
Bert

Let’s not forget the .33 WCF.  Given it did not come with an octagon barrel, and the standard barrel length was 24 inches vs. 26 inches, I do not see it as fitting any of the categories listed above.

Avatar
Member
WACA Member
Forum Posts: 1296
Member Since:
June 4, 2017
sp_UserOfflineSmall Offline
7
January 11, 2022 - 8:34 pm
sp_Permalink sp_Print sp_EditHistory sp_QuotePost
sp_ReportPost

The word “Deluxe” was not used by Winchester to describe a Fancy Sporting Rifle, it’s a modern collector term that has different meanings to different people.

 If your question is, have you ever seen a 86 with an original checkered straight grip stock the answer is yes. Not that common but people did order them. Under extras in the 1887 catalog a “Fancy Walnut Stock and Fore-arm” was $4, if also “checked” $8, if also “Pistol-grip” $12 and if you wanted just “Checking Butt-Stock and Fore-arm” on plain wood $4. T/R





Avatar
Member
WACA Member
Forum Posts: 27
Member Since:
November 13, 2008
sp_UserOfflineSmall Offline
8
January 11, 2022 - 9:44 pm
sp_Permalink sp_Print sp_QuotePost
sp_ReportPost

rick and I were discussing this today. I think the question is , can anyone provide information on a sporting rifle (not a extra lightweight as we have all seen those) that has  a fancy checkered stock ( deluxe straight grip) and letters as such.  Im looking for definitive proof confirmed by serial number and letter. hopefully we can get some people to tune in with an example or examples to see just how rare this variation is.

Jeremy S.

CFM MEMBER, WACA MEMBER, BNFC MEMBER,  JSSC MEMBER, CGN MEMBER, MNO HISTORIAN

Avatar
Member
WACA Member
Forum Posts: 939
Member Since:
December 21, 2006
sp_UserOfflineSmall Offline
9
January 11, 2022 - 9:46 pm
sp_Permalink sp_Print sp_EditHistory sp_QuotePost
sp_ReportPost

Some folks say a Winchester has to have xx wood or better to be a deluxe. Now these are only My thoughts. I have owned several Winchesters over the years with 8, 9, and more extra order features and straight grain walnut, I call them “deluxe” guns, some call them semi-deluxe. I have seen Winchesters with 2 extra order features, like pistol grip and checkered stock, with xxx wood and they are called “deluxe”. So all I’m getting at is the term “deluxe” is up to the beholder. I read somewhere that back in the day some folks ordering high end Winchesters were sceptical of fine  burl grained stocks, for fear of cracking or breaking so they would order their gun with the extra features they so desired and straight grain wood for durability kind of like this one.20210427_100531.jpgImage Enlarger20210427_101048-2.jpgImage Enlarger I recently sold this piece, I call it a “deluxe “, 20211008_111047-Copy.jpgImage Enlarger20211008_111059-Copy.jpgImage Enlarger20211008_111124-Copy.jpgImage Enlarger20211008_111131-Copy.jpgImage Enlarger20211008_111242-1.jpgImage Enlarger

W.A.C.A. life member, Marlin Collectors Assn. charter and life member, C,S.S.A. member and general gun nut.

Avatar
Member
WACA Member
Forum Posts: 3098
Member Since:
November 19, 2006
sp_UserOfflineSmall Offline
10
January 11, 2022 - 11:27 pm
sp_Permalink sp_Print sp_QuotePost
sp_ReportPost

JEREMY S. said
rick and I were discussing this today. I think the question is , can anyone provide information on a sporting rifle (not a extra lightweight as we have all seen those) that has  a fancy checkered stock ( deluxe straight grip) and letters as such.  Im looking for definitive proof confirmed by serial number and letter. hopefully we can get some people to tune in with an example or examples to see just how rare this variation is.

I’ve seen them.  In fact, I have one:

https://i.imgur.com/up6adaB.jpgImage Enlarger

https://i.imgur.com/6fEeqiP.jpgImage Enlarger



As you can see from the museum letter, this rifle originally left the factory checkered.  It’s not now, however there is the slightest vestige of checkering remaining – so you can tell it had been checkered as the letter specifies.  When I purchased it, the owner (a dealer) claimed the rifle was returned to the factory to have the checkering removed.  He claimed the return and repair specified in the letter was, “proof.” He asserted this was true because since nothing else was changed on the rifle, it had to be that.  I liked the rifle so went ahead and bought the rifle and the story.

Avatar
RickC
Guest
Guests
11
January 12, 2022 - 12:43 am
sp_Permalink sp_Print sp_QuotePost
sp_ReportPost

Henry Mero said
Some folks say a Winchester has to have xx wood or better to be a deluxe. Now these are only My thoughts. I have owned several Winchesters over the years with 8, 9, and more extra order features and straight grain walnut, I call them “deluxe” guns, some call them semi-deluxe. I have seen Winchesters with 2 extra order features, like pistol grip and checkered stock, with xxx wood and they are called “deluxe”. So all I’m getting at is the term “deluxe” is up to the beholder. I read somewhere that back in the day some folks ordering high end Winchesters were sceptical of fine  burl grained stocks, for fear of cracking or breaking so they would order their gun with the extra features they so desired and straight grain wood for durability kind of like this one.20210427_100531.jpgImage Enlarger20210427_101048-2.jpgImage Enlarger I recently sold this piece, I call it a “deluxe “, 20211008_111047-Copy.jpgImage Enlarger20211008_111059-Copy.jpgImage Enlarger20211008_111124-Copy.jpgImage Enlarger20211008_111131-Copy.jpgImage Enlarger20211008_111242-1.jpgImage Enlarger

Any in 86 Henry?

Avatar
Member
WACA Member
Forum Posts: 3098
Member Since:
November 19, 2006
sp_UserOfflineSmall Offline
12
January 12, 2022 - 2:52 am
sp_Permalink sp_Print sp_QuotePost
sp_ReportPost

Here’s an example of a fancy “deluxe” straight grip M1886.  The straight grip rifles with checkered fancy wood are not common, but I think the seller (Austin) is correct, the ones without checkering are even more uncommon.  Note that this one includes a museum letter.  This is a very appealing rifle:

https://www.gunbroker.com/item/921197196

Avatar
Member
WACA Member
Forum Posts: 13
Member Since:
December 26, 2021
sp_UserOfflineSmall Offline
13
January 12, 2022 - 5:11 am
sp_Permalink sp_Print sp_QuotePost
sp_ReportPost

steve004 said
Here’s an example of a fancy “deluxe” straight grip M1886.  The straight grip rifles with checkered fancy wood are not common, but I think the seller (Austin) is correct, the ones without checkering are even more uncommon.  Note that this one includes a museum letter.  This is a very appealing rifle:

https://www.gunbroker.com/item/921197196

The ad states “no refinishing has been done to the wood”. Why is the wood finish factory fresh (or better?) yet the steel seems to have an aged appearance? Can this be an accurate description?

NRA Life Member

WACA Member #12457

Avatar
Member
WACA Member
Forum Posts: 358
Member Since:
November 9, 2008
sp_UserOfflineSmall Offline
14
January 12, 2022 - 10:51 am
sp_Permalink sp_Print sp_QuotePost
sp_ReportPost

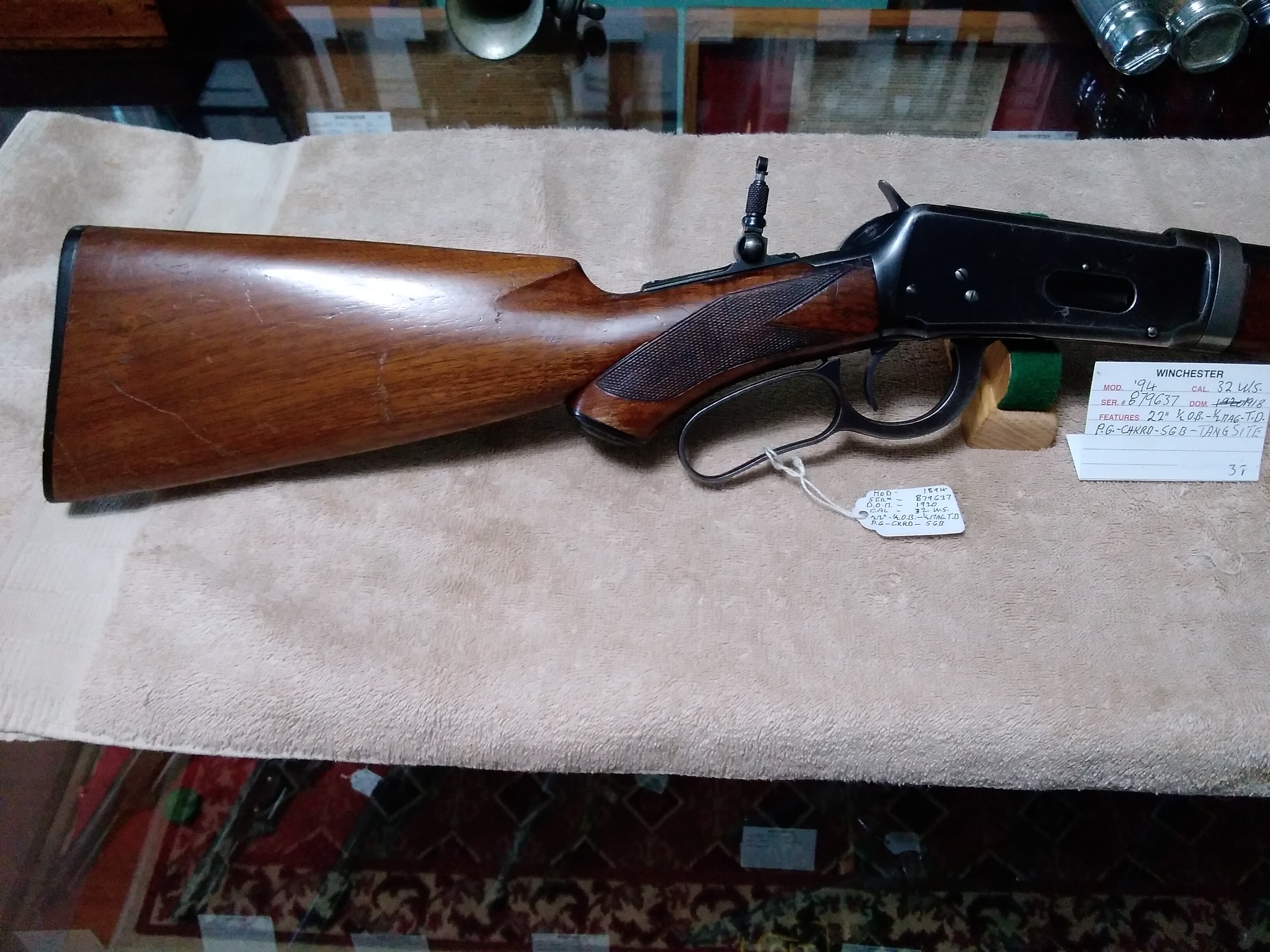

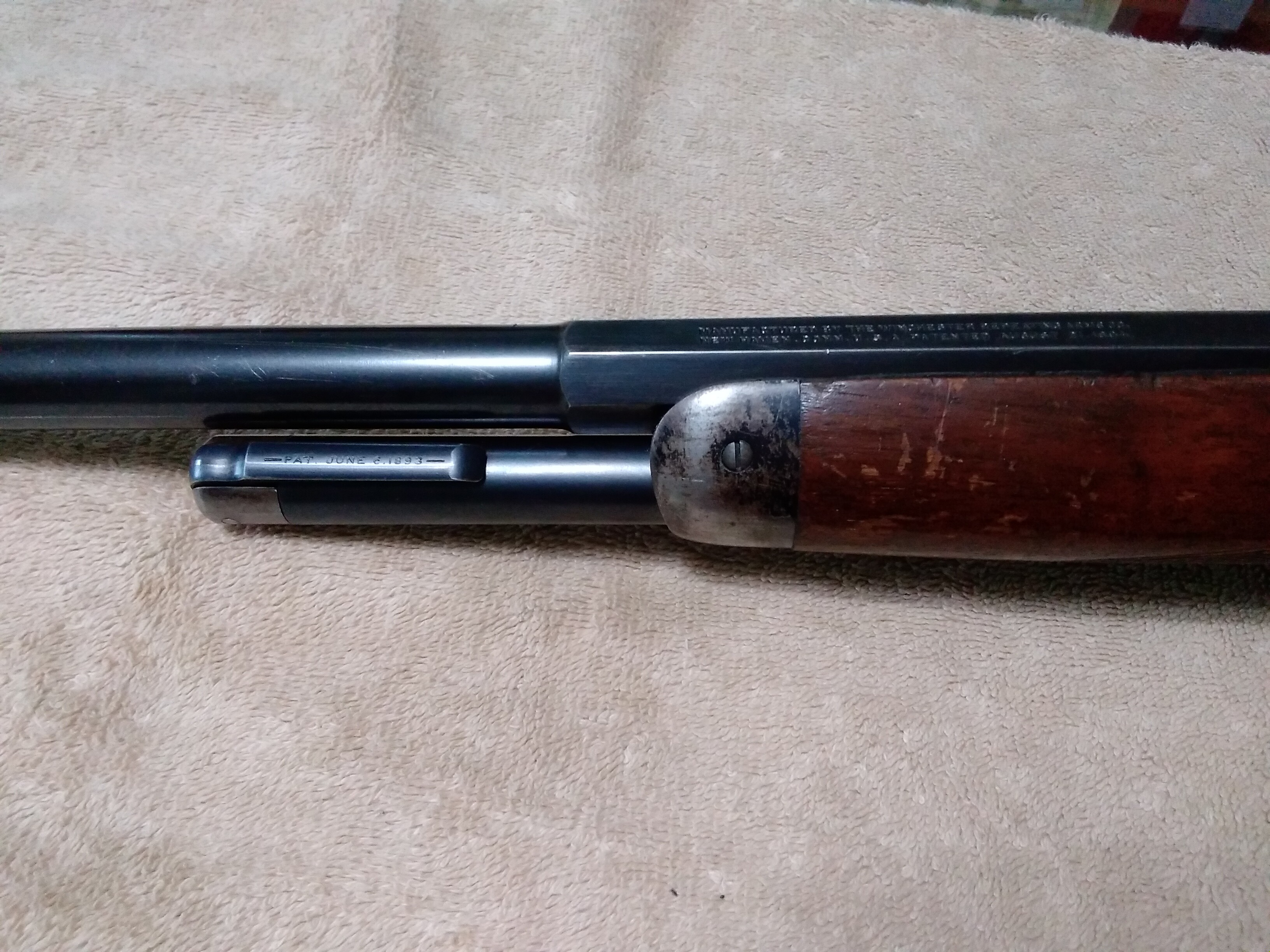

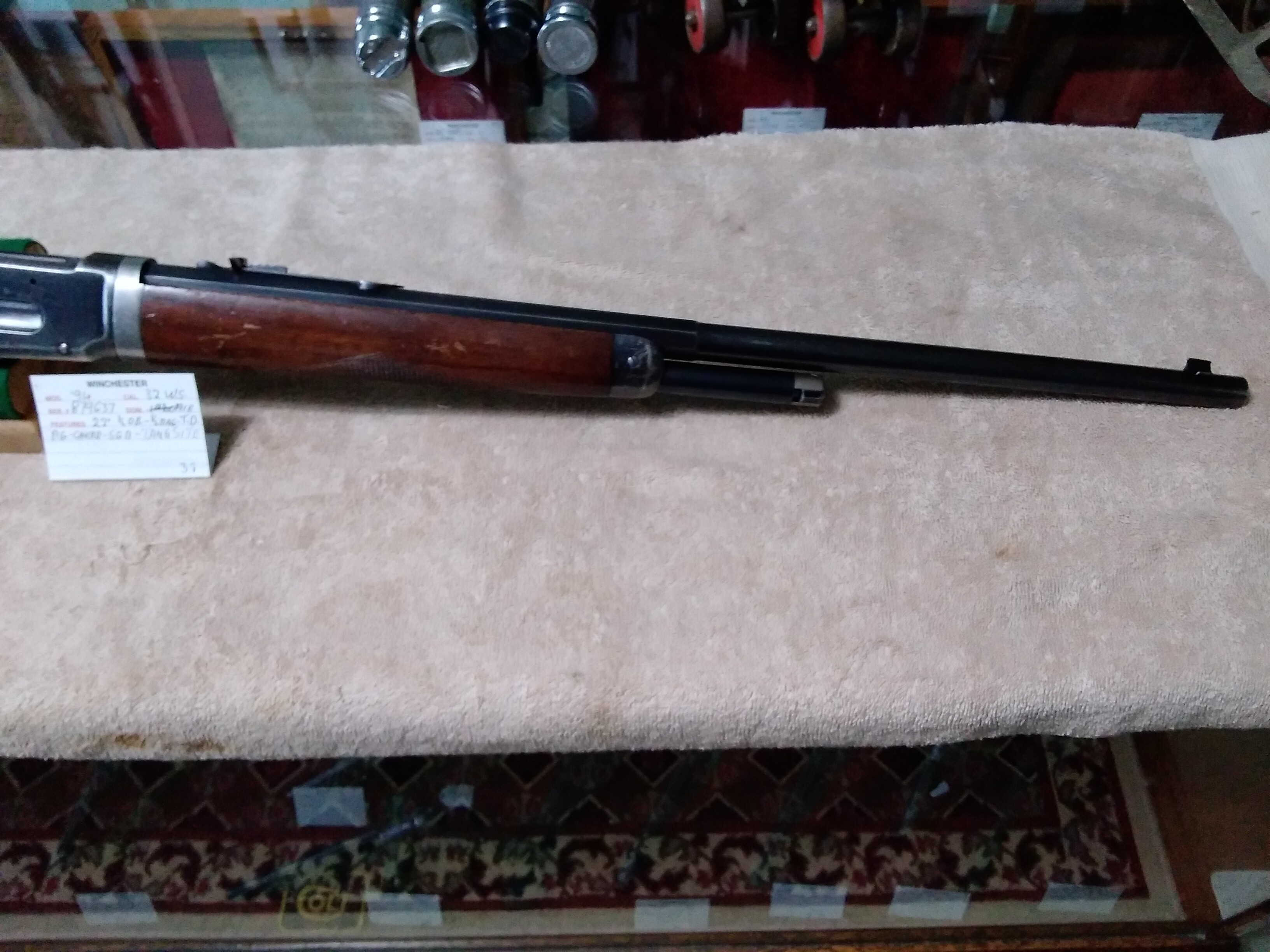

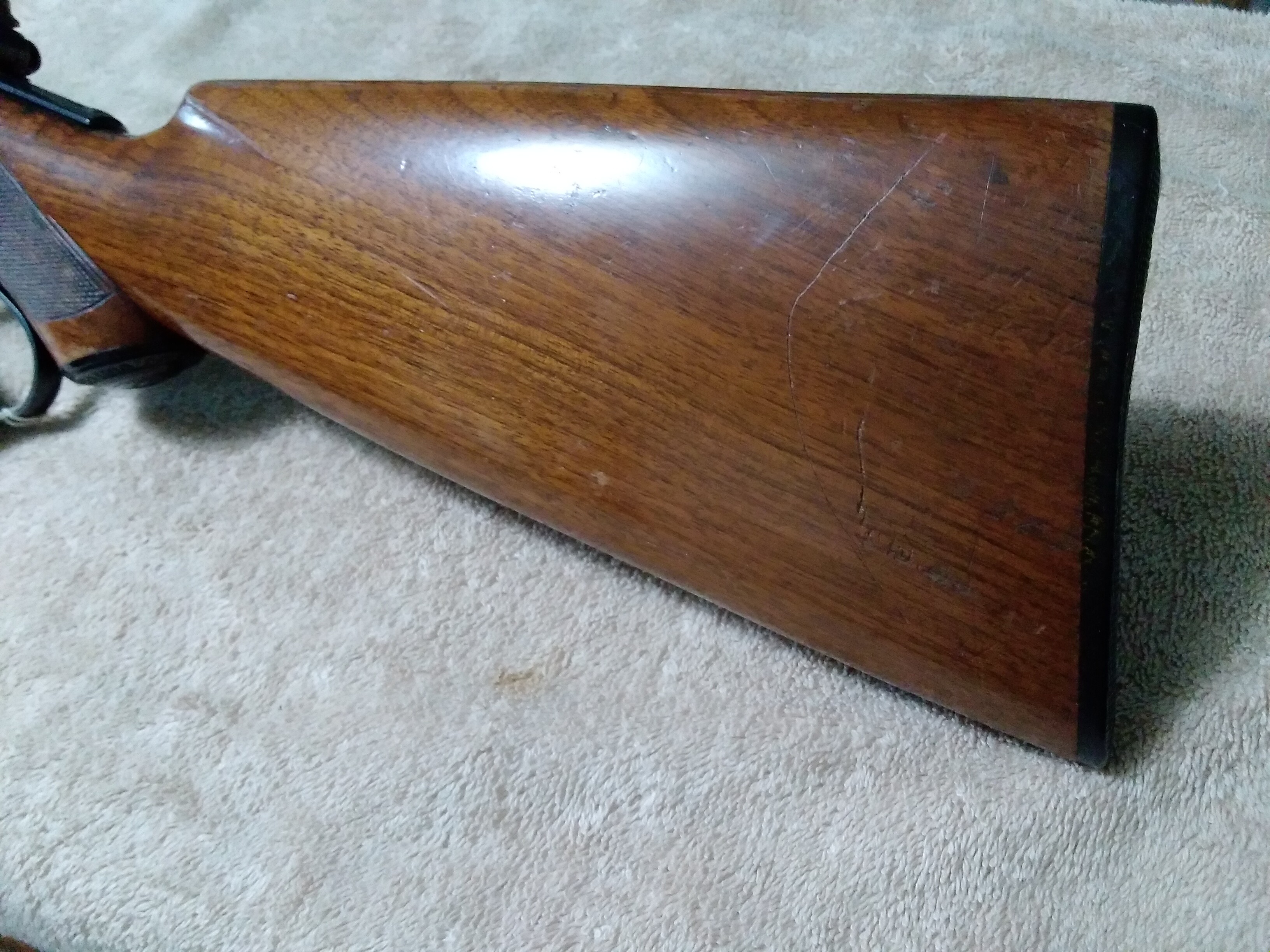

3F765CCA-7BDD-4F57-9BF2-5CDA661D8D7E.jpegImage Enlarger4FF0A77D-708C-47E7-A662-D854167B5BDF.jpegImage Enlarger

Here’s a plain PG, TD, ELW

Avatar
RickC
Guest
Guests
15
January 12, 2022 - 11:39 am
sp_Permalink sp_Print sp_QuotePost
sp_ReportPost

Bert H. said
Hello Ray,
The Model 1886 was catalogued as follows;
1. Sporting Rifle (Solid frame & Take Down). The Sporting Rifle was standard with a 26-inch octagon barrel, Full magazine, plain trigger, and a straight grip plain Walnut stock w/steel crescent butt plate.
2. Fancy Sporting Rifle “deluxe” (Solid frame & Take Down) was standard with a 26-inch octagon barrel, Full magazine, plain trigger, and a fancy Walnut checkered pistol grip stock w/steel crescent butt plate.
3. Carbine (Saddle Ring, Solid frame)
4. Extra Light Weight (ELW) Rifle (Solid frame & Take Down), 45-70, 22-inch round barrel, Full or Half magazine, plain trigger, Shotgun butt w/black hard rubber butt plate, and a plain Walnut straight grip stock. The ELW could be ordered with a Fancy checked pistol grip stock & forearm.
Color Case finish was standard for the Solid frame Sporting Rifles, Fancy Sporting Rifles, and Carbines until August 1901, then Blued thereafter. Take Down variations were Blued only, as were all ELWs. The Sporting Rifle, Fancy Sporting Rifle, and Carbine could be ordered with a Half magazine at no extra cost (optional order).
Set triggers were always a “special order” feature, regardless of specific variation.
Bert

With the only difference in the standard Sporting rifle & the Fancy Sporting rifle(deluxe) being fancy Walnut checkered pistol grip stock, was it always 3x wood?

Avatar
Member
WACA Member
Forum Posts: 1296
Member Since:
June 4, 2017
sp_UserOfflineSmall Offline
16
January 12, 2022 - 1:41 pm
sp_Permalink sp_Print sp_QuotePost
sp_ReportPost

RickC said

With the only difference in the standard Sporting rifle & the Fancy Sporting rifle(deluxe) being fancy Walnut checkered pistol grip stock, was it always 3x wood?

 No it wasn’t. You really can’t tell the grade until you look at the tang and count the X’s. I have seen one to four X’s and sometimes when you compare guns a 2X might look nicer than a 3X. Maybe the grading was done to the blank before being cut, maybe the grading varied with supply, or maybe different graders. The beauty is in the eye of the beholder. T/R

Avatar
RickC
Guest
Guests
17
January 12, 2022 - 1:52 pm
sp_Permalink sp_Print sp_QuotePost
sp_ReportPost

Thanks T/R for your replies. So realistically you could order two Fancy sporting rifles & one could have 2x or 3x wood & the other 4x.

Avatar
Wilson, Ks.
Member
WACA Member
Forum Posts: 102
Member Since:
March 21, 2011
sp_UserOfflineSmall Offline
18
January 12, 2022 - 1:53 pm
sp_Permalink sp_Print sp_QuotePost
sp_ReportPost

Orion Jim said

The ad states “no refinishing has been done to the wood”. Why is the wood finish factory fresh (or better?) yet the steel seems to have an aged appearance? Can this be an accurate description?

Actually Jim, I think this is one description that is very accurate. I am seeing wood finish condition far less than “better than factory fresh” and matches nicely with the metal. The bidding will reflect my opinion.

Darrin

Avatar
RickC
Guest
Guests
19
January 12, 2022 - 1:58 pm
sp_Permalink sp_Print sp_QuotePost
sp_ReportPost

Darrin Smith said

Actually Jim, I think this is one description that is very accurate. I am seeing wood finish condition far less than “better than factory fresh” and matches nicely with the metal. The bidding will reflect my opinion.

Darrin

If I still lived in the U.S, I would be bidding on it.

RickC

Avatar
Member
WACA Member
Forum Posts: 1296
Member Since:
June 4, 2017
sp_UserOfflineSmall Offline
20
January 12, 2022 - 2:11 pm
sp_Permalink sp_Print sp_QuotePost
sp_ReportPost

RickC said
Thanks T/R for your replies. So realistically you could order two Fancy sporting rifles & one could have 2x or 3x wood & the other 4x.

 RickC,

 I have had only one with 4X and one with 1X. My experience has been 2X is the most common. The wood grade listed on the letter is not common.

  Just my opinion. T/R
