30/30 w.c.f. 30 s.r.?
Avatar
ideabaker
Canada
New Member
WACA Guest
Forum Posts: 2
Member Since:
June 8, 2020
sp_UserOfflineSmall Offline
1
June 8, 2020 - 5:48 pm
sp_Permalink sp_Print

Can anyone tell me if 30 W.C.F  S.R. is the same cartridge dimensions as 30/30? Is the S.R. just less powder with  a smaller bullet  and a crimp.  I am looking at a 1894 reloader and wondering if it is for making (short) rounds or is it a different shell than 30/30.

Avatar
1892takedown
South Texas
Member
WACA Member
Forum Posts: 1098
Member Since:
March 20, 2010
sp_UserOfflineSmall Offline
2
June 8, 2020 - 11:42 pm
sp_Permalink sp_Print


1892takedown @sbcglobal.net ......NRA Endowment Life Member.....WACA Member

"God is great.....beer is good.....and people are crazy"... Billy Currington

Avatar
TXGunNut
Northern edge of the D/FW Metromess
Member
WACA Member
Forum Posts: 6403
Member Since:
November 7, 2015
sp_UserOfflineSmall Offline
3
June 9, 2020 - 1:06 am
sp_Permalink sp_Print

Thanks for the link, Chris. I miss John Kort. He was quite the cartridge historian, very knowledgeable bullet caster as well.



Mike

Life Member TSRA, Endowment Member NRA
BBHC Member, TGCA Board Member
Smokeless powder is a passing fad! -Steve Garbe
I hate rude behavior in a man. I won't tolerate it. -Woodrow F. Call, Lonesome Dove
Some of my favorite recipes start out with a handful of depleted counterbalance devices.-TXGunNut
Presbyopia be damned, I'm going to shoot this thing! -TXGunNut
Avatar
Maverick
Member
WACA Member
Forum Posts: 2029
Member Since:
May 23, 2009
sp_UserOfflineSmall Offline
4
June 10, 2020 - 4:58 pm
sp_Permalink sp_Print

[email protected] said
I am looking at a 1894 reloader and wondering if it is for making (short) rounds or is it a different shell than 30/30.

The 1894 Reloading Tool was sold in two distinct calibers in this regard, one for the 30W.C.F. and one for the 30W.C.F. S.R. (Short Range).

So if you want to load the short range cartridges you have to use the tool with the die marked 30W.C.F. S.R. And if you were wanting to load the regular 30W.C.F. the die will be marked “30 W.C.F.” only without the S.R. markings. The die chamber is slightly shorter and different for the Short Range cartridge.

Sincerely,

Maverick

P.S. When I get a minute I’ll try and post you some pictures of the differences.

Avatar
rwsem
Member
WACA Member
Forum Posts: 342
Member Since:
January 7, 2017
sp_UserOfflineSmall Offline
5
June 11, 2020 - 1:46 am
sp_Permalink sp_Print

smiley-popcorn.gifImage Enlarger

sp_PlupAttachments Attachments

Technically, the glass is always full; half liquid, half air....

WACA #10293

Avatar
Maverick
Member
WACA Member
Forum Posts: 2029
Member Since:
May 23, 2009
sp_UserOfflineSmall Offline
6
June 11, 2020 - 4:38 am
sp_Permalink sp_Print

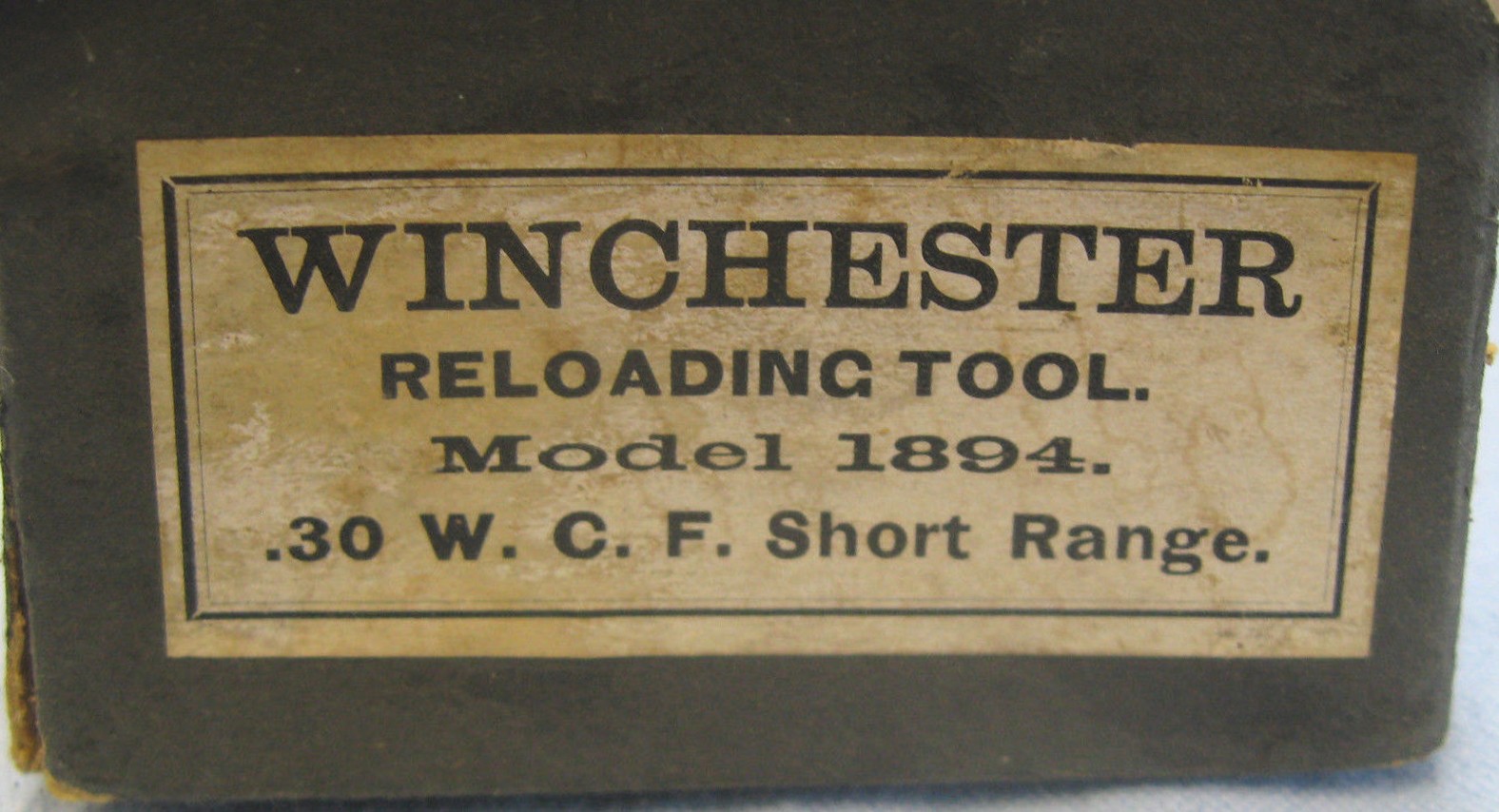

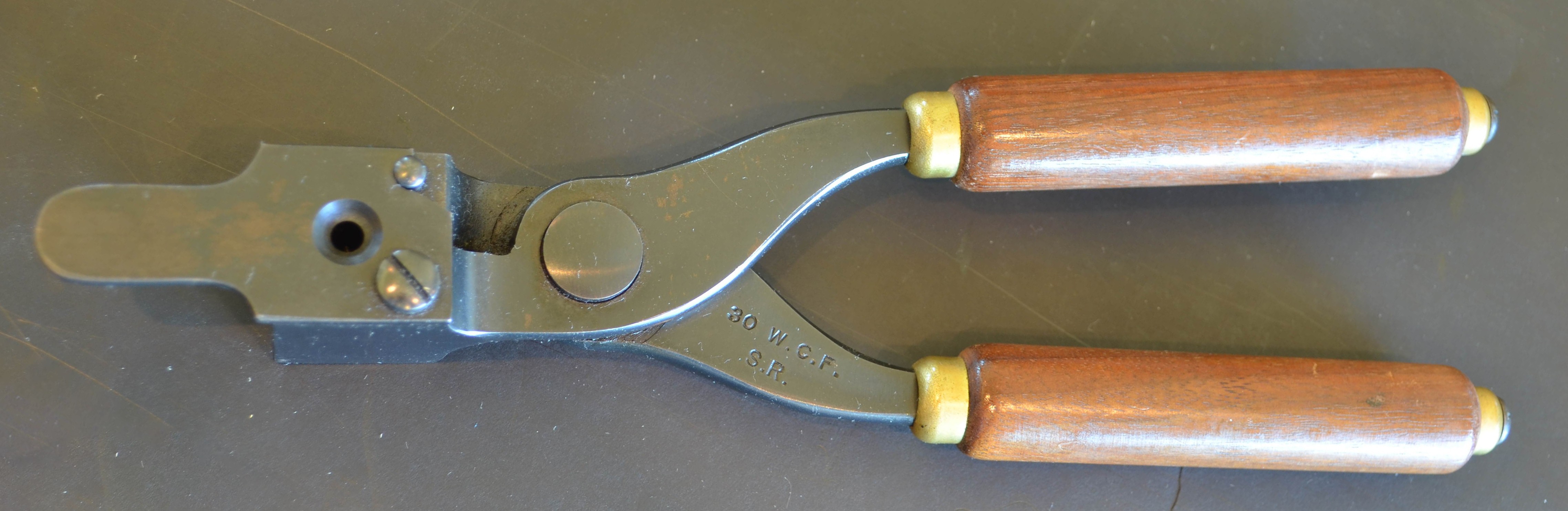

In my research I’ve found that Winchester sold the 1894 Tool boxes in two sizes. A large box to include the tool with mold, and a small box with the tool only. You could also order just the mold by itself for $1.10 and you could order just the die separately for $1.00. I’ve observed a few boxed sets that have two dies in the set. 30wcfBoxMold.JPGImage Enlarger Again they sold the sets marked in either the 30wcf. 30wcfendLabel.JPGImage Enlarger30wcf.jpgImage Enlarger Or in the 30 W.C.F. Short Range. 30wcfSRendLabel.JPGImage Enlarger30wcfSR.JPGImage EnlargerThere is some evidence to suggest that Winchester may have sold strictly a 30W.C.F. mold, but it was likely for only made a short period of time. If at all, as I have yet to come across one, but I don’t rule it out either. The 1900 Catalog and 1900 dated instruction sheets have an added note. “Bullet molds, except for short range bullets, cannot be furnished for .25-35wcf, 30wcf or 30US Army cartridges. Price of reloading tools for these cartridges, per set, $2.10.”  Which apparently the 25-35wcf, 30wcf, and 30Gov where the only calibers that Winchester sold the Tools and Molds in both the Short Range & standard cartridges. No other caliber tools were offered in the Short Range. Winchester started offering the Short Range Tools & Molds in 1896, along side the cartridges. 30wcfSRmold.JPGImage EnlargerThe first 30W.C.F. Short Range molds from 1896-1904 have a round nosed cavity = 100grains. After 1904 the 30W.C.F. Short Range molds have a flat point cavity =117 grains. 117grs100grs.jpgImage EnlargerEarly 30W.C.F. boxed tools will be found with a powder measure. 30wcfPowderMeasure.jpgImage EnlargerWhere later sets will be absent a powder measure and have a warning notice flyer insert in the box. MeasureNotice.jpgImage EnlargerI hadn’t quite narrowed down the time frame when this change occurred, but would say roughly midway through production.

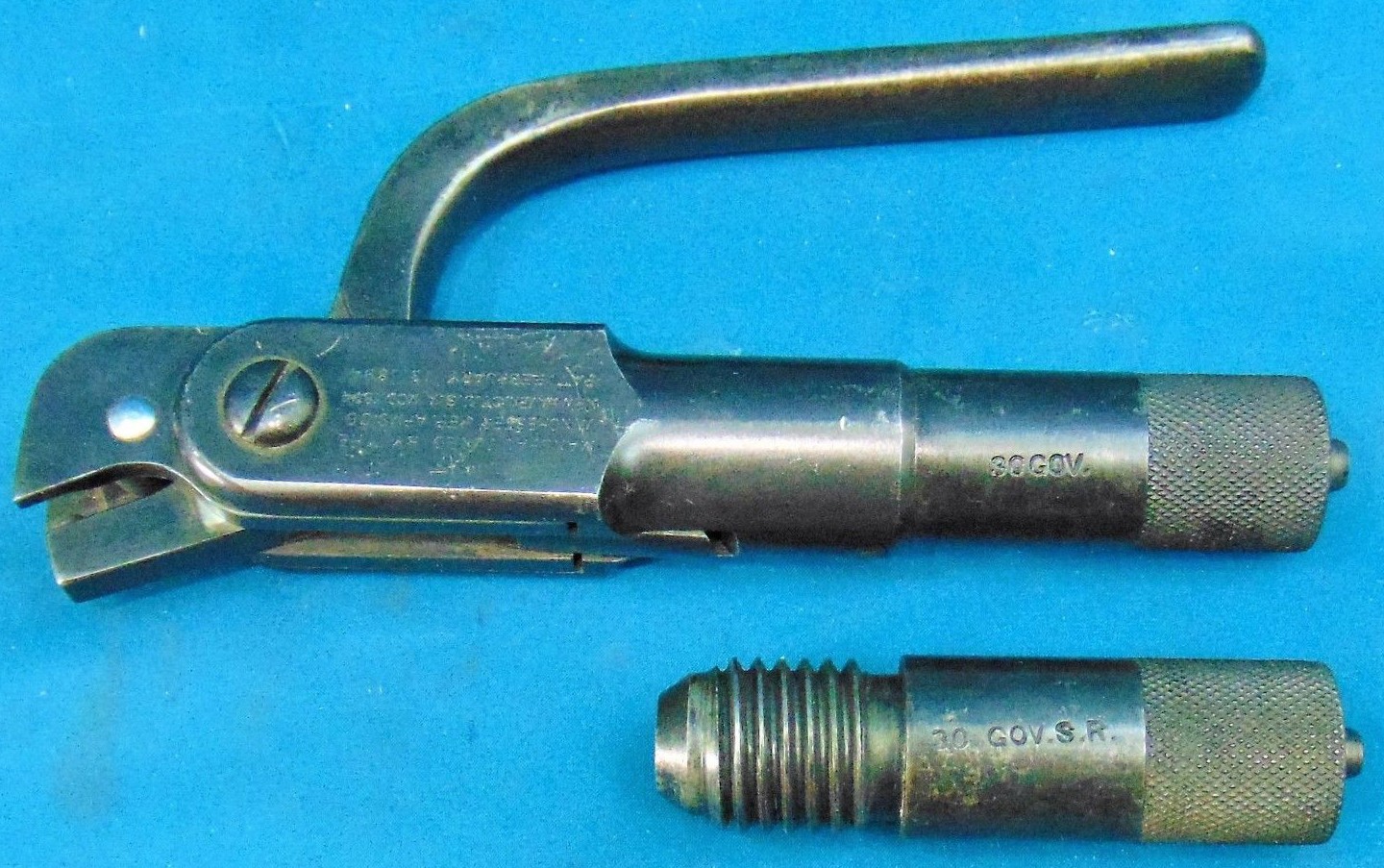

Here is an example of 30 Gov Tool with both the standard and short range dies. 30GovSR.jpgImage Enlarger



Sincerely,

Maverick

sp_PlupAttachments Attachments
Avatar
ideabaker
Canada
New Member
WACA Guest
Forum Posts: 2
Member Since:
June 8, 2020
sp_UserOfflineSmall Offline
7
June 15, 2020 - 11:41 am
sp_Permalink sp_Print

Thanks for the information, I have ordered two different 1894 reloaders one in 30 W.C.F. and one in 30 S.R. They will go nicely in a case I made for my 94. I don’t think either of the tools have the decapping rod, I will have to get the size of the rods and make some.
