Winchester flaking receivers
Avatar
Eagle
NE OREGON
Member
WACA Guest
Forum Posts: 538
Member Since:
July 8, 2016
sp_UserOfflineSmall Offline
1
September 11, 2016 - 12:56 pm
sp_Permalink sp_Print sp_EditHistory

 Yes, I know this has been talked about before, but I’ve either forgotten the answers, or they didn’t make sense to me, so I still question the problem. The experts say this problem began around 1920+- and was caused by a poor bluing process I think. (??) Why it went on as long as it did is still amazing to me. I’m not sure why Winchester would not have corrected it almost immediately. What I really don’t understand is why a majority of receivers during the time period show some signs of the flaking, when others absolutely do not. I look at a lot of Winchesters everyday on different net sites/auctions. If I see an old Winchester that was made during the time period and the receiver is not flaked, I am very suspicious of it. Most times the pictures that are shown do not show areas of the rifle well enough to determine whether or not it has been re-blued/browned or not, so I just pass on it. There is also no sense in asking the re-blue question, and many times they have a no return policy. As we all know, there are folks out there that can re-blue or refinish a receiver well enough that it is about impossible to detect, especially with managed photos. I think I remember Mike Hunter having some scientific answers on this subject, and I’m sure Bert and others know also. Help is appreciated. Thanks, Peter

PS: I can link a present GB auction for an example if desired

Avatar
TXGunNut
Northern edge of the D/FW Metromess
Member
WACA Member
Forum Posts: 6461
Member Since:
November 7, 2015
sp_UserOfflineSmall Offline
2
September 11, 2016 - 8:17 pm
sp_Permalink sp_Print

It is a bit perplexing, I have a nice 94 from this period that has absolutely no finish on the receiver. For months I was convinced it was faded color case finish. The popular theory of a higher nickel content in the receiver has been debunked, it seems they were simply using bluing process that didn’t work. Bert started to explain it a few months ago over some excellent prime rib in Cody but I either can’t recall the details or we moved on to another subject.

I have a couple of other rifles from that period that look terrible and a few that look very good so I’m thinking that sometimes they got it right, sometimes they didn’t. The ones that look good show no signs of refinishing but I could have missed it.

Life Member TSRA, Endowment Member NRA
BBHC Member, TGCA Board Member
Smokeless powder is a passing fad! -Steve Garbe
I hate rude behavior in a man. I won't tolerate it. -Woodrow F. Call, Lonesome Dove
Some of my favorite recipes start out with a handful of depleted counterbalance devices.-TXGunNut
Presbyopia be damned, I'm going to shoot this thing! -TXGunNut
Avatar
XLIV
Member
WACA Guest
Forum Posts: 121
Member Since:
March 9, 2005
sp_UserOfflineSmall Offline
3
September 12, 2016 - 2:16 pm
sp_Permalink sp_Print

http://i68.tinypic.com/m93jes.jpgImage Enlarger

I dont know what the time frame for flaking but this might help narrow it as there is limited production of the M59.



44

Avatar
deerhunter
Troutdale, OR
Member
WACA Member
Forum Posts: 2711
Member Since:
June 26, 2013
sp_UserOfflineSmall Offline
4
September 12, 2016 - 2:49 pm
sp_Permalink sp_Print

There’s a good article by Mike Hunter in the Fall 2014 WACA magazine explaining the different types of metal finishes / bluing processes used by Winchester over the years.  According to the article, the flaking receivers were the result of a new labor/money-saving machine-bluing process used by Winchester in the 1920’s and 1930’s.

https://winchestercollector.org/magazines/201409/index.html#30

Avatar
Mike Hunter
Member
WACA Member
Forum Posts: 352
Member Since:
January 24, 2013
sp_UserOfflineSmall Offline
5
September 12, 2016 - 6:09 pm
sp_Permalink sp_Print

I’m not sure that I would characterize the machine/Carbonia bluing process as faulty just because the bluing didn’t last 75-100 years. Kinda like faulting Henry Ford for not putting better paint on the Model A.

Machine/Carbonia blue was a labor/cost saving process; by the time Winchester began using it, it had been an industry standard/acceptable finish in use for many yeras used by notable companies such as Royal Typewriter, Schwinn, General Electric, Colt, Remington, S&W, etc.

I have some indirect information that Winchester did have some issues with the finish early on, traced back to moisture contamination. Workers were to check for flaking by punching with an inspector mark/punch on the lower tang. As of yet I have not specifically identified this mark.

Winchester used this finish for about 10-15 years; around 1937 Winchester contracted with the Du-Lite company and started using their hot caustic salt bluing process, which I believe they continued until they shut the doors.

Avatar
Kevin Jones
Member
WACA Guest
Forum Posts: 482
Member Since:
March 21, 2016
sp_UserOfflineSmall Offline
6
September 12, 2016 - 10:11 pm
sp_Permalink sp_Print

Mike Hunter said
I’m not sure that I would characterize the machine/Carbonia bluing process as faulty just because the bluing didn’t last 75-100 years. Kinda like faulting Henry Ford for not putting better paint on the Model A.

I like your analogy, we do expect a lot from Winchester don’t we? Wink


Winchester Model 1873 44-40 circa 1886

Avatar
Wincacher
New Mexico
Member
WACA Guest
Forum Posts: 1167
Member Since:
December 1, 2012
sp_UserOfflineSmall Offline
7
September 13, 2016 - 3:24 am
sp_Permalink sp_Print

Mike Hunter said

I have some indirect information that Winchester did have some issues with the finish early on, traced back to moisture contamination. Workers were to check for flaking by punching with an inspector mark/punch on the lower tang. As of yet I have not specifically identified this mark.



Mike:

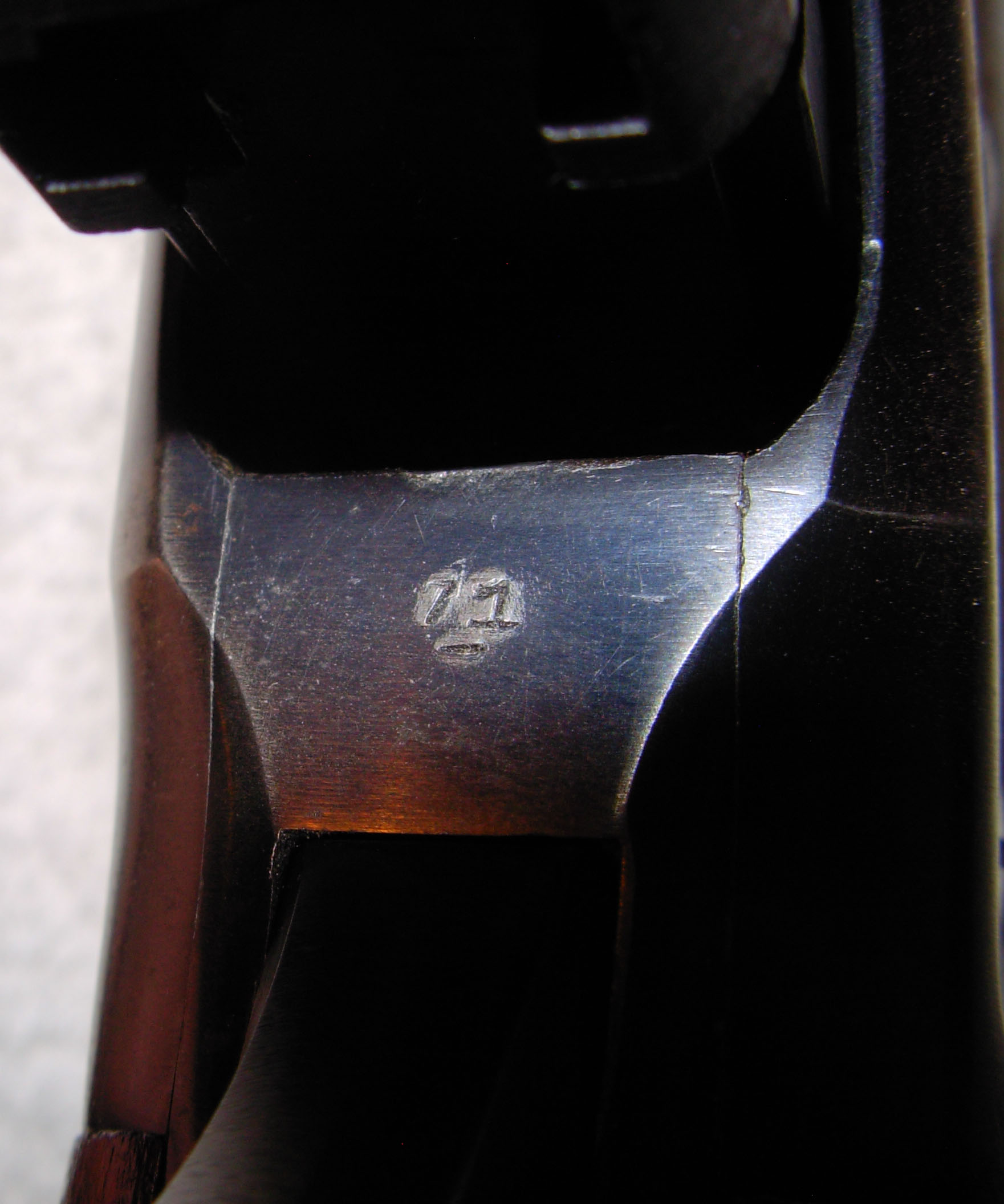

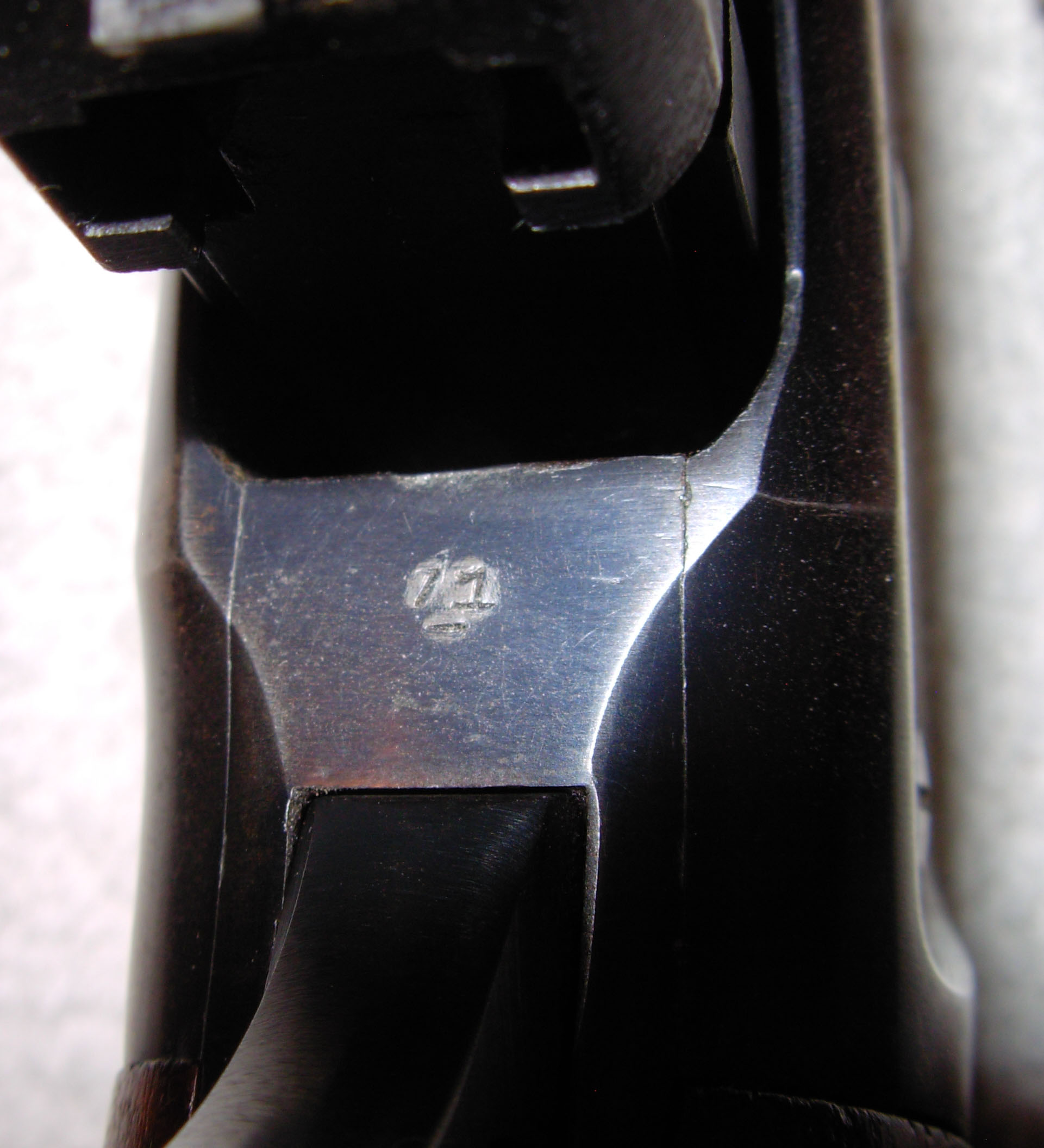

Could this be a sample of the inspector’s mark you refer to?

This is directly in front of the trigger.  It is on an 1923 rifle, TD, 32 WS.

DSCN1052.JPGImage Enlarger

DSCN1054.JPGImage Enlarger

sp_PlupAttachments Attachments


"This is the West, sir. When the legend becomes fact, print the legend."

Avatar
Bert H.
Kingston, WA
Admin
Forum Posts: 12980
Member Since:
April 15, 2005
sp_UserOfflineSmall Offline
8
September 13, 2016 - 3:53 am
sp_Permalink sp_Print

That is an inspector’s stamp, but it was not for the purpose of checking the bluing. Winchester inspectors stamped hundreds of different combinations of numerals and letters in the location in your pictures for at least 5-decades.

Bert

WACA Historian & Board of Director Member #6571L

Avatar
cjs57
Member
WACA Guest
Forum Posts: 270
Member Since:
November 17, 2011
sp_UserOfflineSmall Offline
9
September 13, 2016 - 11:46 am
sp_Permalink sp_Print

How does one find Mike Hunter’s article?

https://winchestercollector.org/magazines/201409/index.html#30

The link just takes me back to this thread?

Avatar
Mike Hunter
Member
WACA Member
Forum Posts: 352
Member Since:
January 24, 2013
sp_UserOfflineSmall Offline
10
September 13, 2016 - 12:54 pm
sp_Permalink sp_Print

As Bert noted, there are a large variety of inspection marks on Winchesters, I’ve been researching but have not yet found one directly attributed to checking the bluing.  Also keep in mind that these stamps can serve more than one purpose… final inspection of the lower tang and as a check on the bluing.

It’s also possible that Winchester only did the inspection for a short time, once they got the process right, they may have stopped checking.

Lots of possibilities.

Avatar
Eagle
NE OREGON
Member
WACA Guest
Forum Posts: 538
Member Since:
July 8, 2016
sp_UserOfflineSmall Offline
11
September 13, 2016 - 1:00 pm
sp_Permalink sp_Print

I think you have to be a member to get the link. If you are a member, sign in and then it will take you back to this thread, then click on the link again and it should come up. Must have/install updated Adobe Flash Player before it will work.

Avatar
Wincacher
New Mexico
Member
WACA Guest
Forum Posts: 1167
Member Since:
December 1, 2012
sp_UserOfflineSmall Offline
12
September 13, 2016 - 2:08 pm
sp_Permalink sp_Print

You are right, Eagle.  I clicked on the link without signing in and it came back to this same post.  Then I signed in and clicked on the link and it took me to the magazine article.  Since one has to be a member to access the magazines, that makes sense.
