Shortened buttstock on my 1936 M71 - Could this be factory??
sp_NewTopic Add Topic
Avatar
Salmon, Idaho (Keith Country)
Member
WACA Guest
Forum Posts: 66
Member Since:
March 1, 2011
sp_UserOfflineSmall Offline
1
February 18, 2023 - 4:25 pm
sp_Permalink sp_Print sp_QuotePost

Hello all, I purchased this 1936 production M71 a while back from a friend and it was owned by his father-in-law who used it for hunting.

He decided to remove the aperture on the bolt peep sight and go with a traditional rear sight…..so I am on the hunt for a replacement aperature.

The stocks were nicely carved at some point and there was a slip on butt pad on the buttstock.

When I removed the slip on pad I discovered that the buttstock had split and been repaired (very poor repair) and the buttstock appears to have been shortened as the length of pull is 13-1/4″

My question is could someone have ordered this rifle with a shorter than standard LOP??

I really like the carved stocks and will most likely leave them on the gun, but I am hoping to be able to do a better repair on the buttstock at some point.

I was told that the very early M71 stocks were slightly different than the later production??

https://i.postimg.cc/yNsvSWHS/IMG-5458.jpgImage Enlarger

https://i.postimg.cc/pLDsTzgH/IMG-5459.jpgImage Enlarger

https://i.postimg.cc/d3b9QV63/IMG-5460.jpgImage Enlarger

https://i.postimg.cc/vTgzdVWC/IMG-5461.jpgImage Enlarger

https://i.postimg.cc/ydNjv5W1/IMG-5462.jpgImage Enlarger

https://i.postimg.cc/NMP4V4r1/IMG-5463.jpgImage Enlarger

https://i.postimg.cc/bvgL08yV/IMG-5464.jpgImage Enlarger

https://i.postimg.cc/2j1R59TN/IMG-5465.jpgImage Enlarger

https://i.postimg.cc/sDWkYBtn/IMG-5466.jpgImage Enlarger

https://i.postimg.cc/HkCfBYmT/IMG-5467.jpgImage Enlarger

https://i.postimg.cc/cJF2xfnJ/IMG-5468.jpgImage Enlarger

https://i.postimg.cc/BvSRfmty/IMG-5469.jpgImage Enlarger

https://i.postimg.cc/gjZTH5Bw/IMG-5470.jpgImage Enlarger

https://i.postimg.cc/0ydh4T5D/IMG-5471.jpgImage Enlarger

https://i.postimg.cc/26JtvmTR/IMG-5472.jpgImage Enlarger

https://i.postimg.cc/wv3P73XQ/IMG-5473.jpgImage Enlarger

https://i.postimg.cc/KckwbkvZ/IMG-5474.jpgImage Enlarger

https://i.postimg.cc/5N8rHhCT/IMG-5476.jpgImage Enlarger

https://i.postimg.cc/7PFcZHfS/IMG-5477.jpgImage Enlarger

https://i.postimg.cc/VkRHgX4F/IMG-5478.jpgImage Enlarger

https://i.postimg.cc/htg5V28j/IMG-5479.jpgImage Enlarger

Tom Graham - Salmon, Idaho

Avatar
NY
Member
WACA Member
Forum Posts: 6168
Member Since:
November 1, 2013
sp_UserOfflineSmall Offline
2
February 18, 2023 - 6:08 pm
sp_Permalink sp_Print sp_QuotePost

I like the carving, too, & wouldn’t replace the stock despite the injuries it’s suffered.  I’d be inclined to doubt a shorter LOP could be ordered, but the buttplate does fit well.  That crack would be hard to repair, if it’s been previously glued.

The front swivel was used by the factory, but not the rear, which you could replace with one of these:  https://winchestercollector.org/forum/winchester-swap-meet/selling-winchester-fish-hook-style-sling-swivels-1/

Too bad about the (stupid) replacement of the bolt peep.  They show up on ebay from time to time; in fact, I think they may have been repro’d, but I’m not sure.

Avatar
Kingston, WA
Admin
Forum Posts: 10640
Member Since:
April 15, 2005
sp_UserOnlineSmall Online
3
February 18, 2023 - 6:18 pm
sp_Permalink sp_Print sp_QuotePost

What does the end of the butt stock look like underneath the butt plate?  Is the inletted widows peak at the top of the butt plate fitted perfectly?

WACA 6571L, Historian & Board of Director Member

Avatar
Northeast Washington
Member
WACA Member
Forum Posts: 186
Member Since:
July 3, 2020
sp_UserOfflineSmall Offline
4
February 18, 2023 - 6:42 pm
sp_Permalink sp_Print sp_QuotePost

Mike Richards in Minnesota has bolt peep parts… original & reproduction.  I sent you his phone number via pm….  He’s a good guy to work with.

Avatar
Salmon, Idaho (Keith Country)
Member
WACA Guest
Forum Posts: 66
Member Since:
March 1, 2011
sp_UserOfflineSmall Offline
5
February 19, 2023 - 4:52 am
sp_Permalink sp_Print sp_QuotePost

[email protected] said
Mike Richards in Minnesota has bolt peep parts… original & reproduction.  I sent you his phone number via pm….  He’s a good guy to work with.



Thanks, I have spoken with Mike recently regarding the peep parts…..He has sent me photos & prices.

Tom Graham - Salmon, Idaho

Avatar
Salmon, Idaho (Keith Country)
Member
WACA Guest
Forum Posts: 66
Member Since:
March 1, 2011
sp_UserOfflineSmall Offline
6
February 19, 2023 - 4:54 am
sp_Permalink sp_Print sp_QuotePost

Bert H. said
What does the end of the butt stock look like underneath the butt plate?  Is the inletted widows peak at the top of the butt plate fitted perfectly?



Bert, the inletted widows peak appears to be fitted very well, as does the butt plate.

I have not removed the place, but I can do that……what am I looking for??

Also, maybe the buttstock has not been cut down…..the LOP is 13-1/4″ measuring from the center of the buttplate to the front of the trigger.

My reference books are still in storage so I am unable to do research on what the LOP should be on the M71’s??

Tom Graham - Salmon, Idaho

Avatar
Member
WACA Member
Forum Posts: 490
Member Since:
August 27, 2014
sp_UserOfflineSmall Offline
7
February 19, 2023 - 2:13 pm
sp_Permalink sp_Print sp_EditHistory sp_QuotePost

THREEDFLYER said

Bert H. said

What does the end of the butt stock look like underneath the butt plate?  Is the inletted widows peak at the top of the butt plate fitted perfectly?



Bert, the inletted widows peak appears to be fitted very well, as does the butt plate.

I have not removed the place, but I can do that……what am I looking for??

Also, maybe the buttstock has not been cut down…..the LOP is 13-1/4″ measuring from the center of the buttplate to the front of the trigger.

My reference books are still in storage so I am unable to do research on what the LOP should be on the M71’s??



If you remove the plate look for a little bleeding/seepage of stain into the wood immediately around the perimeter of the butt, if the stock was shortened this likely wouldn’t be there.
If one has looked at enough of them the general appearance of the wood underneath the plate can be a fairly good indication of original factory work.

Avatar
Salmon, Idaho (Keith Country)
Member
WACA Guest
Forum Posts: 66
Member Since:
March 1, 2011
sp_UserOfflineSmall Offline
8
February 19, 2023 - 4:22 pm
sp_Permalink sp_Print sp_QuotePost

OK, I will remove the butt plate and take a look and add photos.

Can anyone verify what the standard length of pull would typically be on the M71’s measuring from the center of the buttplate to the front of the trigger?

Tom Graham - Salmon, Idaho

Avatar
Member
WACA Member
Forum Posts: 395
Member Since:
November 8, 2011
sp_UserOfflineSmall Offline
9
February 19, 2023 - 4:35 pm
sp_Permalink sp_Print sp_QuotePost

I get a little over 13 1/4 on mine

Avatar
Member
WACA Member
Forum Posts: 232
Member Since:
September 21, 2016
sp_UserOfflineSmall Offline
10
February 19, 2023 - 4:37 pm
sp_Permalink sp_Print sp_QuotePost

Neat 71 you have there with a lot of character.

The length of pull it about 13 1/8” – 13 1/4”. The trigger has about 1/8” of movement front to rear and can affect the LOP measurement depending on its position at the time of measuring.

Your rifle started off life as a standard rifle without checkering or sling swivels. The front and rear swivels are none factory, but a sling sure is handy when actually carrying these in the woods.

Peep parts are available but tend to be pricy. As are original long tang stock sets.

Thanks for sharing!

Avatar
Salmon, Idaho (Keith Country)
Member
WACA Guest
Forum Posts: 66
Member Since:
March 1, 2011
sp_UserOfflineSmall Offline
11
February 19, 2023 - 4:41 pm
sp_Permalink sp_Print sp_QuotePost

jsgwoodsman said
Neat 71 you have there with a lot of character.

The length of pull it about 13 1/8” – 13 1/4”. The trigger has about 1/8” of movement front to rear and can affect the LOP measurement depending on its position at the time of measuring.

Your rifle started off life as a standard rifle without checkering or sling swivels. The front and rear swivels are none factory, but a sling sure is handy when actually carrying these in the woods.

Peep parts are available but tend to be pricy. As are original long tang stock sets.

Thanks for sharing!



Thank you!  The measurement I get is 13-1/4″ but I will pull the plate and inspect the wood.

The metal condition is great, but shows obvious use/wear on the finish…..I am not going to spend a lot of time on this one, it’s got a lot of character as is.

Tom Graham - Salmon, Idaho

Avatar
Salmon, Idaho (Keith Country)
Member
WACA Guest
Forum Posts: 66
Member Since:
March 1, 2011
sp_UserOfflineSmall Offline
12
February 19, 2023 - 6:15 pm
sp_Permalink sp_Print sp_EditHistory sp_QuotePost

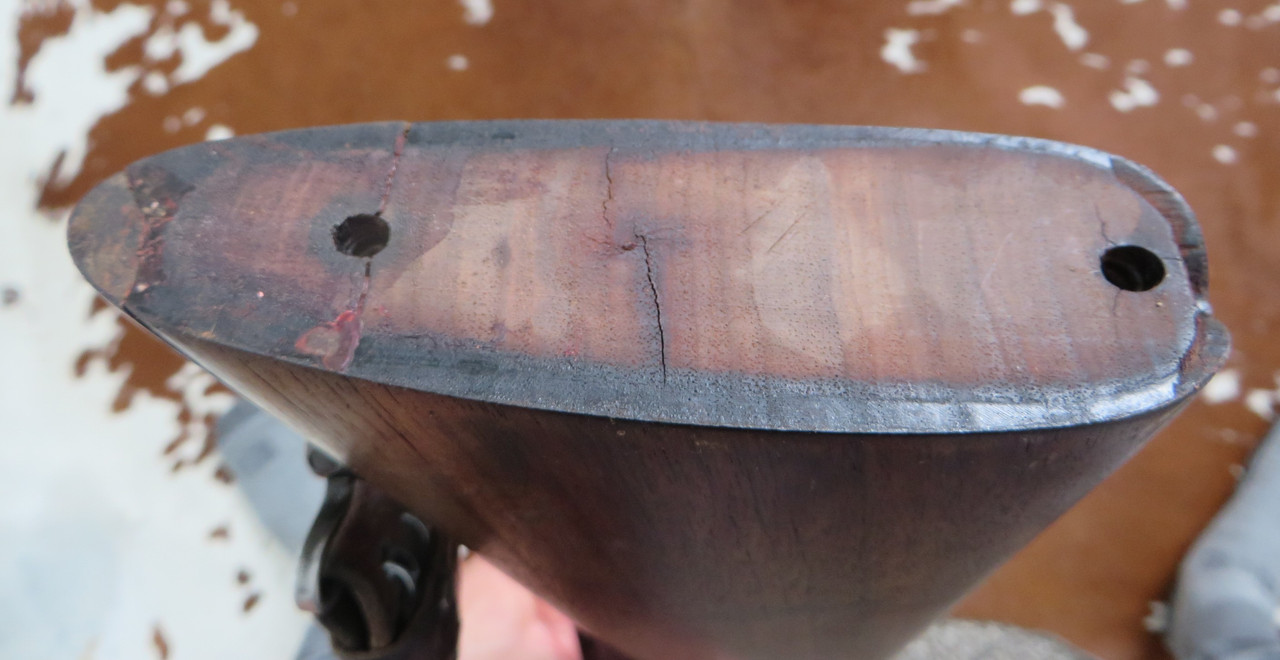

I removed the butt plate and here are photos…..certainly looks like it has NOT been cut based on the wood stain along the edges.

Looking at the grain of this wood, it’s no wonder that it cracked the way it did!

Thoughts??

https://i.postimg.cc/4xZ55hpP/IMG-5492.jpgImage Enlarger

https://i.postimg.cc/gk3s8KLr/IMG-5493.jpgImage Enlarger

https://i.postimg.cc/3rs9kqRP/IMG-5494.jpgImage Enlarger

https://i.postimg.cc/htr03PrB/IMG-5495.jpgImage Enlarger

https://i.postimg.cc/1z7rsC27/IMG-5496.jpgImage Enlarger

https://i.postimg.cc/HLktGDZ7/IMG-5497.jpgImage Enlarger

Tom Graham - Salmon, Idaho

Avatar
Member
WACA Member
Forum Posts: 490
Member Since:
August 27, 2014
sp_UserOfflineSmall Offline
13
February 19, 2023 - 10:33 pm
sp_Permalink sp_Print sp_QuotePost

Your stock hasn’t been cut.

Avatar
Member
WACA Member
Forum Posts: 42
Member Since:
December 25, 2019
sp_UserOfflineSmall Offline
14
February 20, 2023 - 2:01 am
sp_Permalink sp_Print sp_QuotePost

Hey guys I hope I am not offending anyone by jumping in on this thread but I also have an early production Model 71 that is missing the aperture for the bolt peep sight. Could some one please forward me the number for Mr. Richards in Minnesota? I would appreciate the help. Thanks in advance.

Avatar
Salmon, Idaho (Keith Country)
Member
WACA Guest
Forum Posts: 66
Member Since:
March 1, 2011
sp_UserOfflineSmall Offline
15
February 20, 2023 - 2:26 am
sp_Permalink sp_Print sp_EditHistory sp_QuotePost

[email protected] said
Hey guys I hope I am not offending anyone by jumping in on this thread but I also have an early production Model 71 that is missing the aperture for the bolt peep sight. Could some one please forward me the number for Mr. Richards in Minnesota? I would appreciate the help. Thanks in advance.



Mike’s number is:  701-238-6761

[email protected]

Tom Graham - Salmon, Idaho

Avatar
Kingston, WA
Admin
Forum Posts: 10640
Member Since:
April 15, 2005
sp_UserOnlineSmall Online
16
February 20, 2023 - 2:58 am
sp_Permalink sp_Print sp_QuotePost

Tedk said
Your stock hasn’t been cut.



I concur, and that is precisely why I asked to see what the end grain of the stock looked like.

Bert

WACA 6571L, Historian & Board of Director Member

Avatar
Salmon, Idaho (Keith Country)
Member
WACA Guest
Forum Posts: 66
Member Since:
March 1, 2011
sp_UserOfflineSmall Offline
17
February 20, 2023 - 5:30 pm
sp_Permalink sp_Print sp_QuotePost

Thanks again to everyone for helping me with the stock questions, I am pleased to learn the stock has not been cut!

My guess is the way the grain is on this butt stock the cracks may have been inevitable.

Being that this gun has a fair amount of blue loss, I’ll probably leave it as is and eventually pick up the repro aperture for the bolt peep sight.

Take care!

Tom

Tom Graham - Salmon, Idaho
