For personal information do you know what kind of blue Winchester used in the late 1800s early 1900s for the 1873 models.
Avatar
Kingston, WA
Admin
Forum Posts: 11120
Member Since:
April 15, 2005
sp_UserOfflineSmall Offline
2
October 6, 2021 - 1:41 pm
sp_Permalink sp_Print sp_QuotePost

[email protected] said

For personal information do you know what kind of blue Winchester used in the late 1800s early 1900s for the 1873 models.



You need to be more specific… are you asking about the barrel bluing, or the receiver frame bluing?

WACA Historian & Board of Director Member #6571L

Avatar
Member
WACA Member
Forum Posts: 1745
Member Since:
June 4, 2017
sp_UserOnlineSmall Online
3
October 6, 2021 - 1:52 pm
sp_Permalink sp_Print sp_QuotePost

  The blued finish was applied to the polished metal by a rusting process that employed a solution of mercury chloride and other chemicals, (rust blue). On a original gun you can see fine grains of red, if examined with a bright light. As the blue ages it can turns color to plum or brown. As the alloy of the metal and polish changed so did the appearance of the finish. Turn of the century 73’s had a bright blue blue. T/R

Avatar
Kingston, WA
Admin
Forum Posts: 11120
Member Since:
April 15, 2005
sp_UserOfflineSmall Offline
4
October 6, 2021 - 2:07 pm
sp_Permalink sp_Print sp_QuotePost

TR said
  The blued finish was applied to the polished metal by a rusting process that employed a solution of mercury chloride and other chemicals, (rust blue). On a original gun you can see fine grains of red, if examined with a bright light. As the blue ages it can turns color to plum or brown. As the alloy of the metal and polish changed so did the appearance of the finish. Turn of the century 73’s had a bright blue blue. T/R

The receiver frames were not “rust” blued. That process was used on the barrels & magazine tubes.

WACA Historian & Board of Director Member #6571L

Avatar
NY
Member
WACA Guest
Forum Posts: 6681
Member Since:
November 1, 2013
sp_UserOfflineSmall Offline
5
October 6, 2021 - 2:13 pm
sp_Permalink sp_Print sp_QuotePost

I believe receivers were carbonia (charcoal) blued until the superior “machine” bluing process was developed late in ’73 production.

Avatar
Kingston, WA
Admin
Forum Posts: 11120
Member Since:
April 15, 2005
sp_UserOfflineSmall Offline
6
October 6, 2021 - 2:14 pm
sp_Permalink sp_Print sp_EditHistory sp_QuotePost

clarence said
I believe receivers were carbonia (charcoal) blued until the superior “machine” bluing process was developed late in ’73 production.

I agree… and I believe that small parts (loading gates & screws) were Nitre blued.

WACA Historian & Board of Director Member #6571L

Avatar
Member
WACA Member
Forum Posts: 1745
Member Since:
June 4, 2017
sp_UserOnlineSmall Online
7
October 6, 2021 - 3:13 pm
sp_Permalink sp_Print sp_QuotePost

 Sorry, my information came from Arthur Pirkle’s book “Winchester Lever Action Repeating Firearms” Volume 1 page 193. Maybe to general or maybe outdated. T/R

Avatar
Kingston, WA
Admin
Forum Posts: 11120
Member Since:
April 15, 2005
sp_UserOfflineSmall Offline
8
October 6, 2021 - 6:51 pm
sp_Permalink sp_Print sp_QuotePost

TR said
 Sorry, my information came from Arthur Pirkle’s book “Winchester Lever Action Repeating Firearms” Volume 1 page 193. Maybe to general or maybe outdated. T/R

Both outdated and too general.

WACA Historian & Board of Director Member #6571L

Avatar
Member
WACA Guest
Forum Posts: 5
Member Since:
March 23, 2019
sp_UserOfflineSmall Offline
9
October 9, 2021 - 1:54 pm
sp_Permalink sp_Print sp_EditHistory sp_QuotePost

i am presently in the process of restoring my winchester 1873. i paid a very good price for it but it was in a mess. it was missing several pieces the forend was broken and the metal was badly rusted and pitted. I am in the process of restoring it to the most original condition possible. to blue the metal what is a current method which could resemble as much as possible a original blue. keep in mind that this rifle will remain a shooter and I will restore it for me.

Avatar
Wisconsin
Member
WACA Member
Forum Posts: 4377
Member Since:
May 2, 2009
sp_UserOfflineSmall Offline
10
October 9, 2021 - 2:12 pm
sp_Permalink sp_Print sp_QuotePost

The issue you have is your going to have is your going to spend a lot of money to have it blued to the right color unless you are going to try it yourself. Not many people can do it or have a working formula. If you take it to the typical gunsmith it will be blued to the modern black blue and be buffed on a buffing wheel. The guys that can make it look right do most of the metal prep by hand which adds labor cost.

Bob

WACA Life Member---
NRA Life Member----
Cody Firearms member since 1991
Researching the Winchester 1873's


Email: [email protected]

Avatar
NY
Member
WACA Guest
Forum Posts: 6681
Member Since:
November 1, 2013
sp_UserOfflineSmall Offline
11
October 9, 2021 - 2:25 pm
sp_Permalink sp_Print sp_EditHistory sp_QuotePost

[email protected] said  I am in the process of restoring it to the most original condition possible. to blue the metal what is a current method which could resemble as much as possible a original blue.

Not something you can do yourself, & expect good results, without a LOT of experience.  Unfortunate you paid a “good price” for a gun in that condition, but now you’ll have to pay more to a qualified gunsmith if you expect a good job.  If the metal is “badly rusted and pitted,” it would have to be sanded & polished before it could be re-blued–no job for an amateur, unless you consider yourself especially skilled at working with your hands.  You can probably find a You Tube video to show the proper way of doing it.  I think you’d be better off to remove as much of the rust as you can with steel wool & oil, & try to be satisfied with that.  You could apply “cold blue” to darken the metal, but the results would not be very satisfactory.

Avatar
Member
WACA Member
Forum Posts: 1745
Member Since:
June 4, 2017
sp_UserOnlineSmall Online
12
October 9, 2021 - 9:18 pm
sp_Permalink sp_Print sp_QuotePost

  Keep in mind, new blue with rust pits, rounded corners, and under sized will not look original. You can go the brown/smooze route, antique it. Some people like the old, been there done that look. It’s very expensive to make metal flat again, that’s why the restoration people use donor guns. T/R

Avatar
Member
WACA Guest
Forum Posts: 5
Member Since:
March 23, 2019
sp_UserOfflineSmall Offline
13
October 10, 2021 - 9:32 am
sp_Permalink sp_Print sp_EditHistory sp_QuotePost

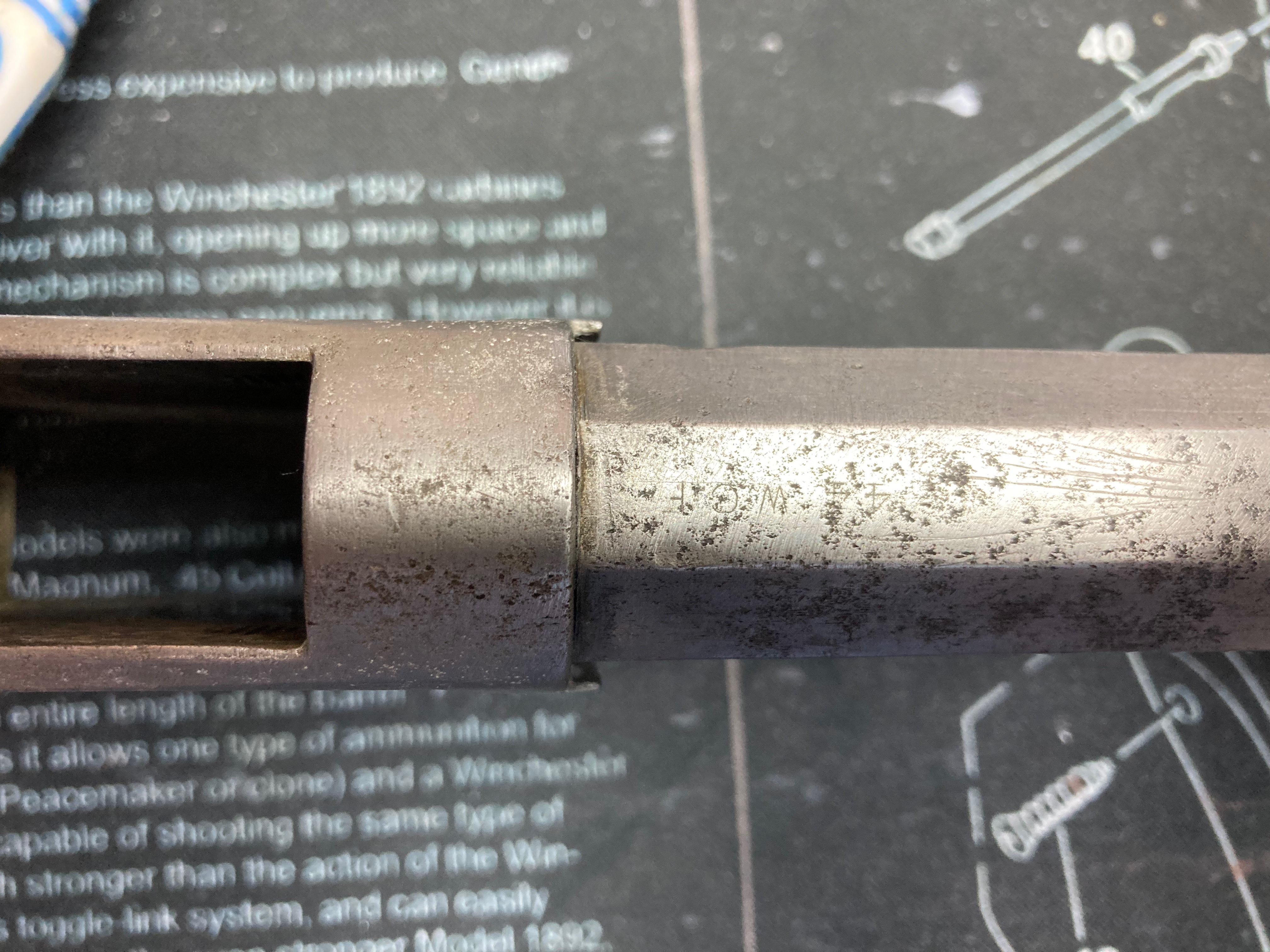

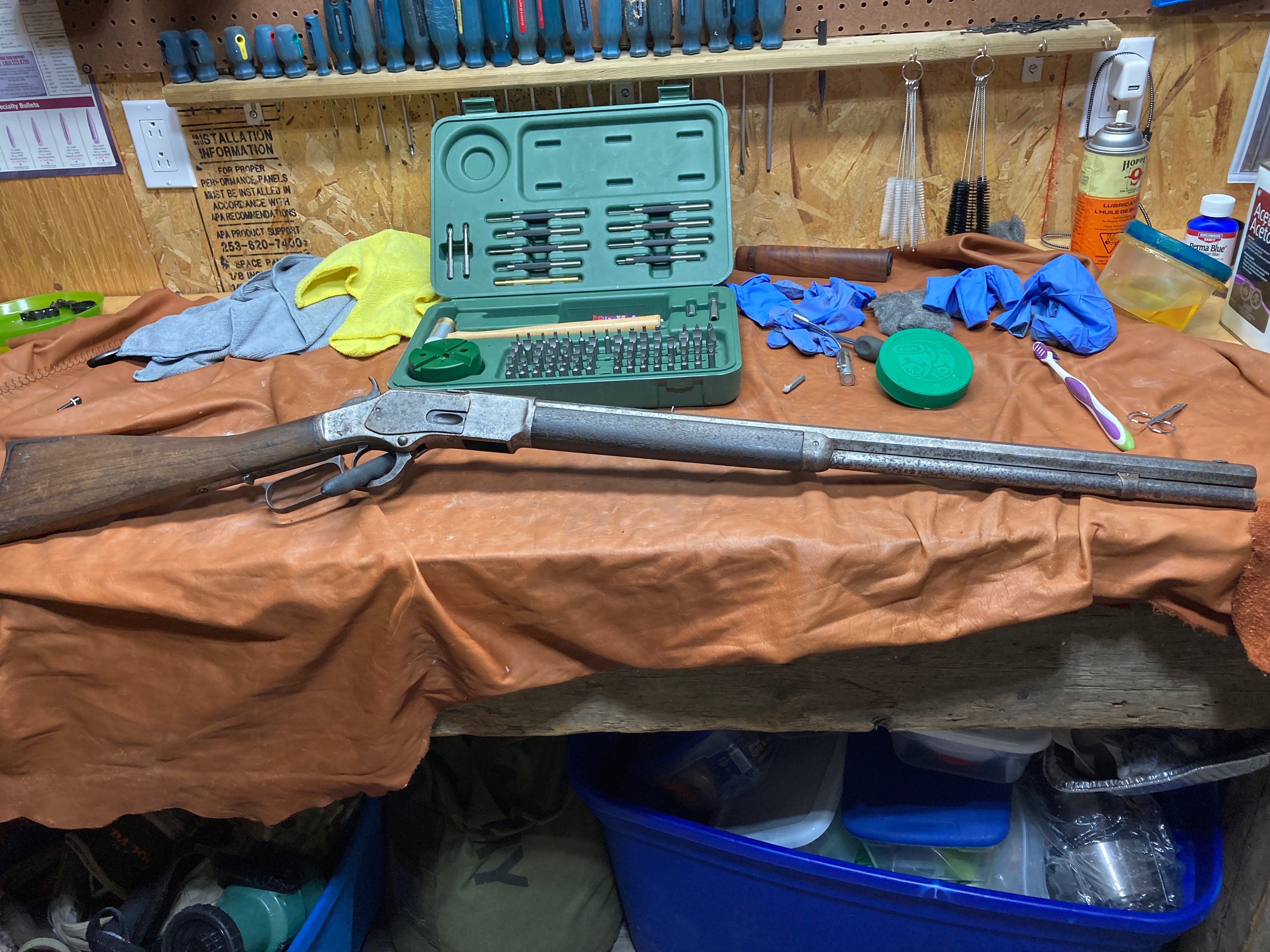

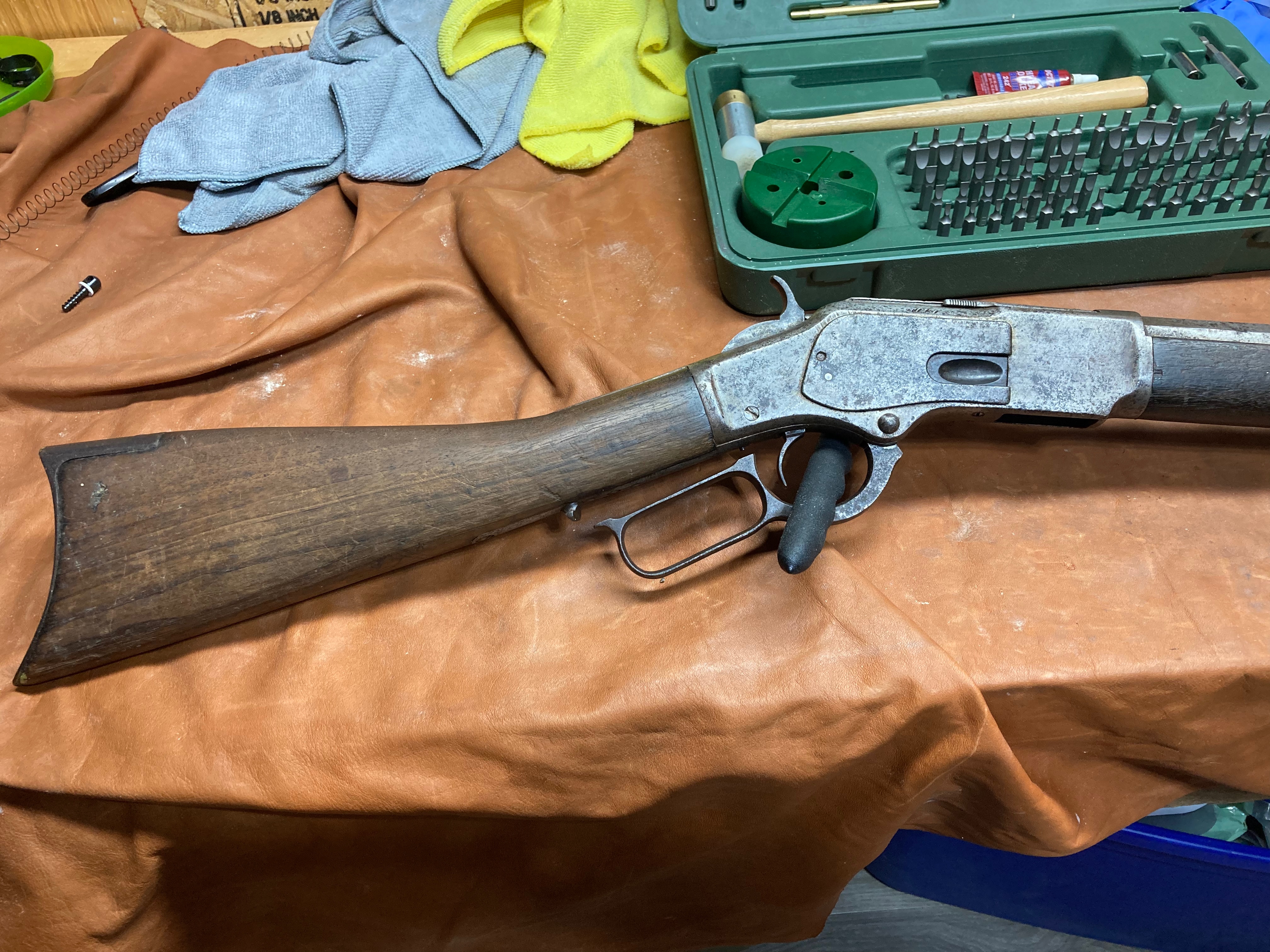

08AE8AFD-A286-42DC-B2ED-6272DF75A227.jpegImage EnlargerC8D0D583-1D75-4D4C-878E-82FA7FB62FBF.jpegImage EnlargerE8B0DCE1-C5C3-4714-9001-27ED5969D998.jpegImage EnlargerA2954BA6-E76F-44F3-834F-C51527231204.jpegImage Enlarger72EA02E5-F7AA-4077-8D2E-BF45E7D3BBC2.jpegImage Enlarger8953CDCC-00D2-4CD1-92D6-8CA41FF6BCDC.jpegImage Enlarger9E1C4369-4E76-46DF-92B6-DEA81858D476.jpegImage Enlargerto start I sent the parts in a basin of evapo-rust. then I took each piece and sanded them to remove the rough effect. I used 800 grain wet sandpaper. I don’t want to remove all the scracht it’ the story of this gun but I would have to polish and then blue.

Avatar
NY
Member
WACA Guest
Forum Posts: 6681
Member Since:
November 1, 2013
sp_UserOfflineSmall Offline
14
October 10, 2021 - 1:35 pm
sp_Permalink sp_Print sp_QuotePost

Well, I admire you’re restraint in starting with 800 paper–I’d have started with 400.  Given the terrible condition of the surface, I think it might look better if browned, rather than blued.  It’s easy to find out:  apply one of the commercial browning solutions, & if you don’t like the results, wipe it off with your Evaporust.

Avatar
Member
WACA Member
Forum Posts: 1745
Member Since:
June 4, 2017
sp_UserOnlineSmall Online
15
October 10, 2021 - 2:51 pm
sp_Permalink sp_Print sp_QuotePost

  The value of of your gun is the fun your having doing the work. Any money spent on the gun from this point forward will most likely not add resale value, but all  hobbies cost money. Enjoy the time spent. T/R

Avatar
Wisconsin
Member
WACA Member
Forum Posts: 4377
Member Since:
May 2, 2009
sp_UserOfflineSmall Offline
16
October 10, 2021 - 2:57 pm
sp_Permalink sp_Print sp_EditHistory sp_QuotePost

I see someone already has tried to clean up the gun before you got it. They used a file on the receiver. The gun will look better with a browning rather than a blue finish.

Bob

WACA Life Member---
NRA Life Member----
Cody Firearms member since 1991
Researching the Winchester 1873's


Email: [email protected]

Avatar
Member
WACA Guest
Forum Posts: 5
Member Since:
March 23, 2019
sp_UserOfflineSmall Offline
17
October 11, 2021 - 9:50 am
sp_Permalink sp_Print sp_QuotePost
thank you all. i just ordered plum brown birchwood casey. I can't wait to try it. I am also impatiently awaiting several parts missing from the rifle. i live in canada and the antique gun parts are all on the american side. with the covid the delivery is very slow. but its actually prolonging the fun
