Interesting model 1892 semi deluxe
sp_NewTopic Add Topic
Avatar
MartyR
Guest
WACA Guest
1
July 11, 2023 - 11:48 pm
sp_Permalink sp_Print sp_QuotePost

As an engraver I am usually looking for good project guns. I recently bought a 1892 that had perfect metal, good wood and sometime ago nicely refinished. All I need is good metal for my canvas as it will always be restocked.

when n I got home I noticed something very interesting. It has an 1873 butt plate with the sliding brass door and the stock is machined for it..has anyone ever seen this before on a 92. It is to my eyes factory installed

Avatar
MartyR
Guest
WACA Guest
2
July 11, 2023 - 11:50 pm
sp_Permalink sp_Print sp_QuotePost

The rifle is a semi deluxe pistol grip, 44wcf Oct barrel full mag. Pretty gun to do up

Avatar
NY
Member
WACA Member
Forum Posts: 6150
Member Since:
November 1, 2013
sp_UserOfflineSmall Offline
3
July 12, 2023 - 1:02 am
sp_Permalink sp_Print sp_QuotePost

Don’t find trap plates listed among options available for all rifles, but customer requesting one would probably be obliged for a slight extra charge.  To PROVE it was factory would require letter from Cody Museum.

Avatar
Member
WACA Member
Forum Posts: 4097
Member Since:
November 19, 2006
sp_UserOfflineSmall Offline
4
July 15, 2023 - 11:59 am
sp_Permalink sp_Print sp_QuotePost

What is the serial number range of this ’92?

Avatar
MartyR
Guest
WACA Guest
5
July 15, 2023 - 11:59 pm
sp_Permalink sp_Print sp_QuotePost

The ser number is 478319

Avatar
Member
WACA Member
Forum Posts: 2283
Member Since:
March 20, 2009
sp_UserOfflineSmall Offline
6
July 16, 2023 - 10:28 am
sp_Permalink sp_Print sp_EditHistory sp_QuotePost

MartyR said
The ser number is 478319



That is too late in production for a factory letter from the Cody Museum so that option is not possible.  If you will send me a series of photos I will be happy to attach them to this thread and add the gun into my research survey.  The reap door option was certainly available for the Model 1892 though it is not commonly found on these rifles.

Michael




Model 1892 / Model 61 Collector, Research, Valuation

Avatar
MartyR
Guest
WACA Guest
7
July 16, 2023 - 11:09 am
sp_Permalink sp_Print sp_QuotePost

sure  I can do that   just need an address  thanks

Avatar
Member
WACA Member
Forum Posts: 2283
Member Since:
March 20, 2009
sp_UserOfflineSmall Offline
8
July 16, 2023 - 11:29 am
sp_Permalink sp_Print sp_QuotePost

MartyR said
sure  I can do that   just need an address  thanks



[email protected]




Model 1892 / Model 61 Collector, Research, Valuation

Avatar
MartyR
Guest
WACA Guest
9
July 16, 2023 - 12:19 pm
sp_Permalink sp_Print sp_QuotePost

pictures sent

Avatar
Member
WACA Member
Forum Posts: 2283
Member Since:
March 20, 2009
sp_UserOfflineSmall Offline
10
July 16, 2023 - 1:23 pm
sp_Permalink sp_Print sp_QuotePost

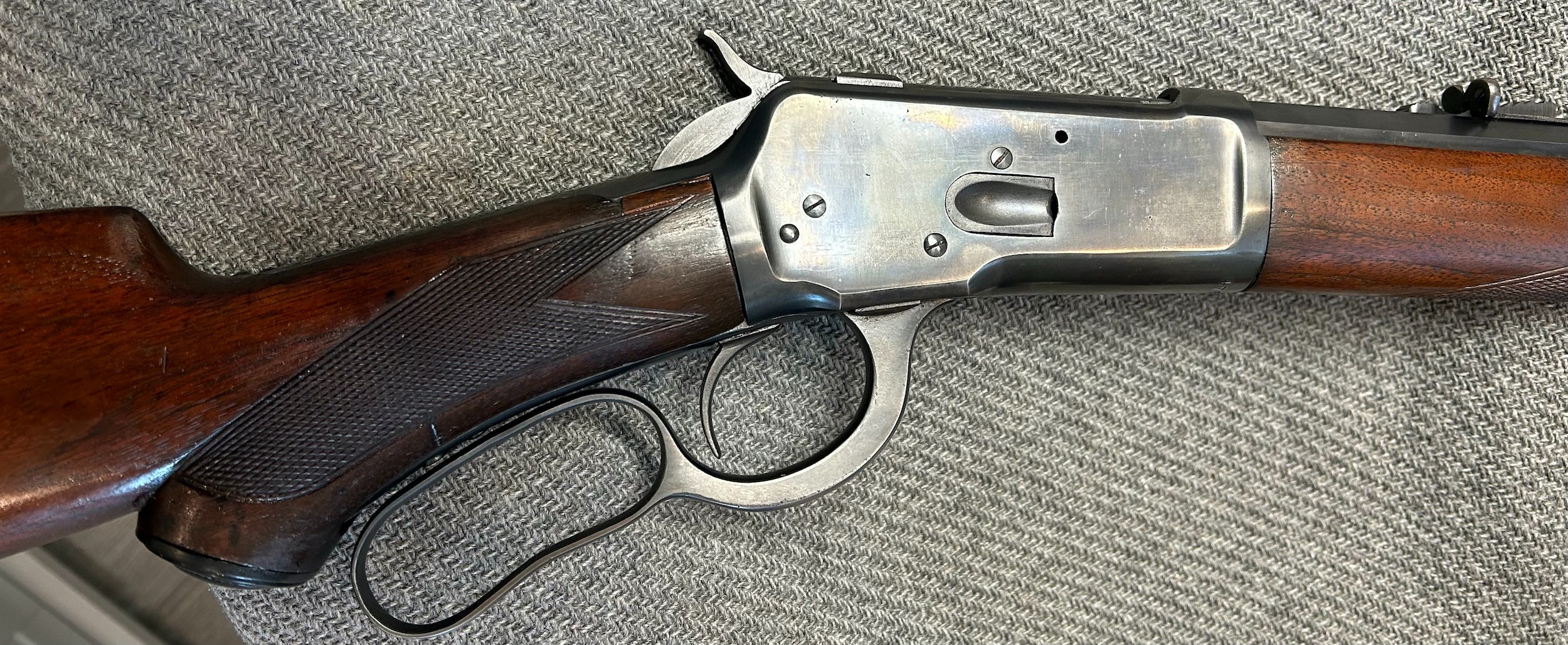

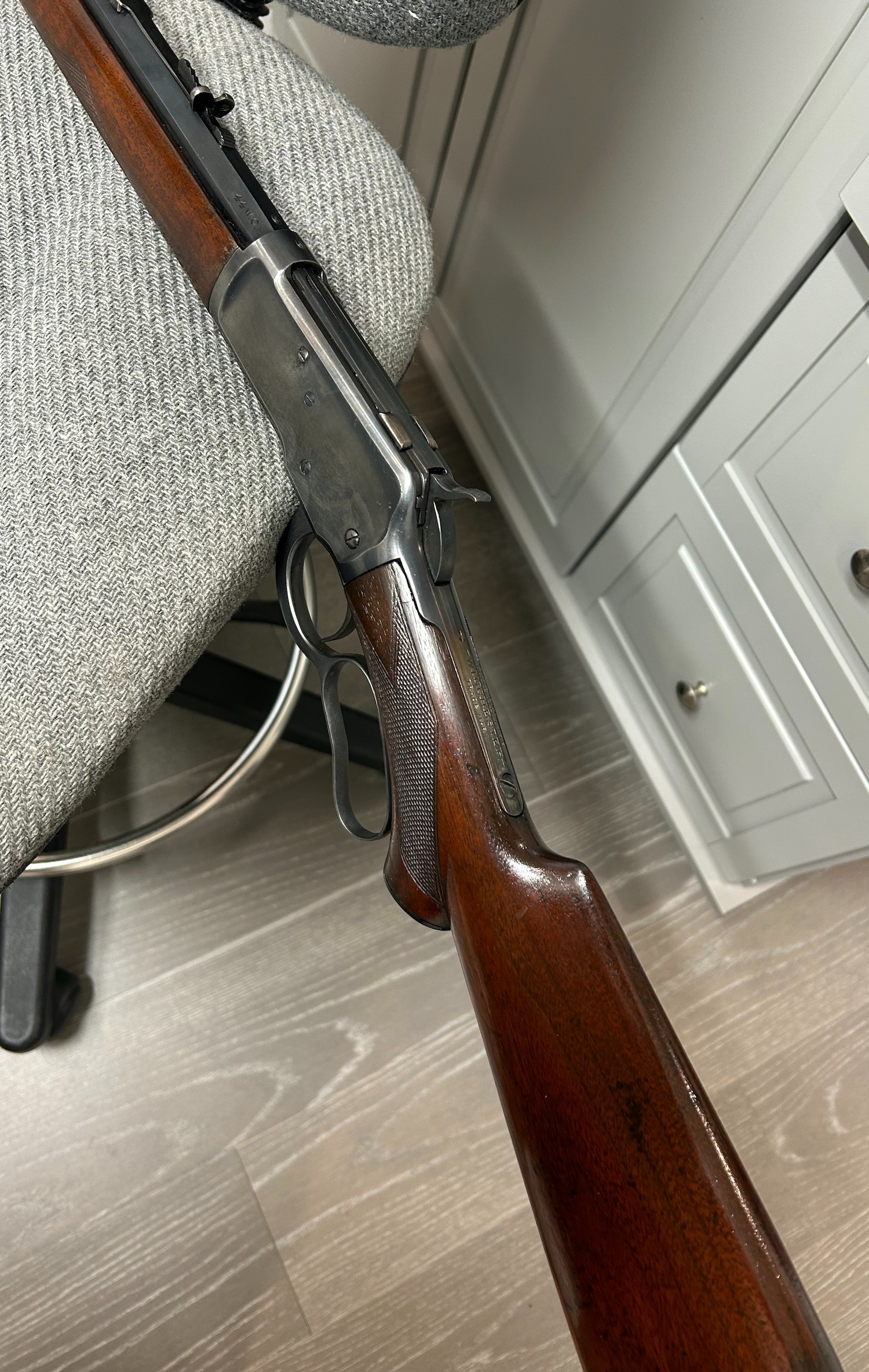

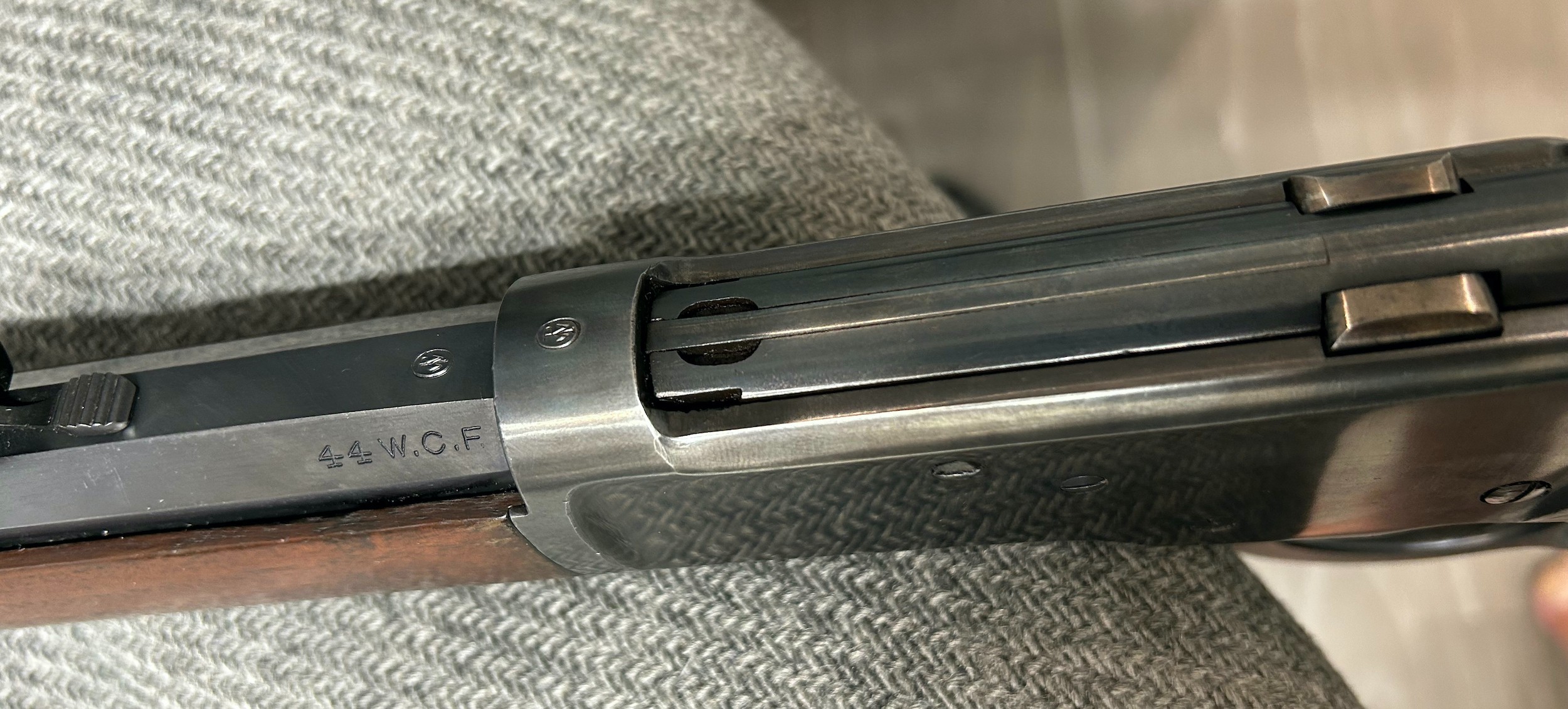

Here are the images.  I have a few worries as to the originality of the butt stock to the gun and the receiver finish.

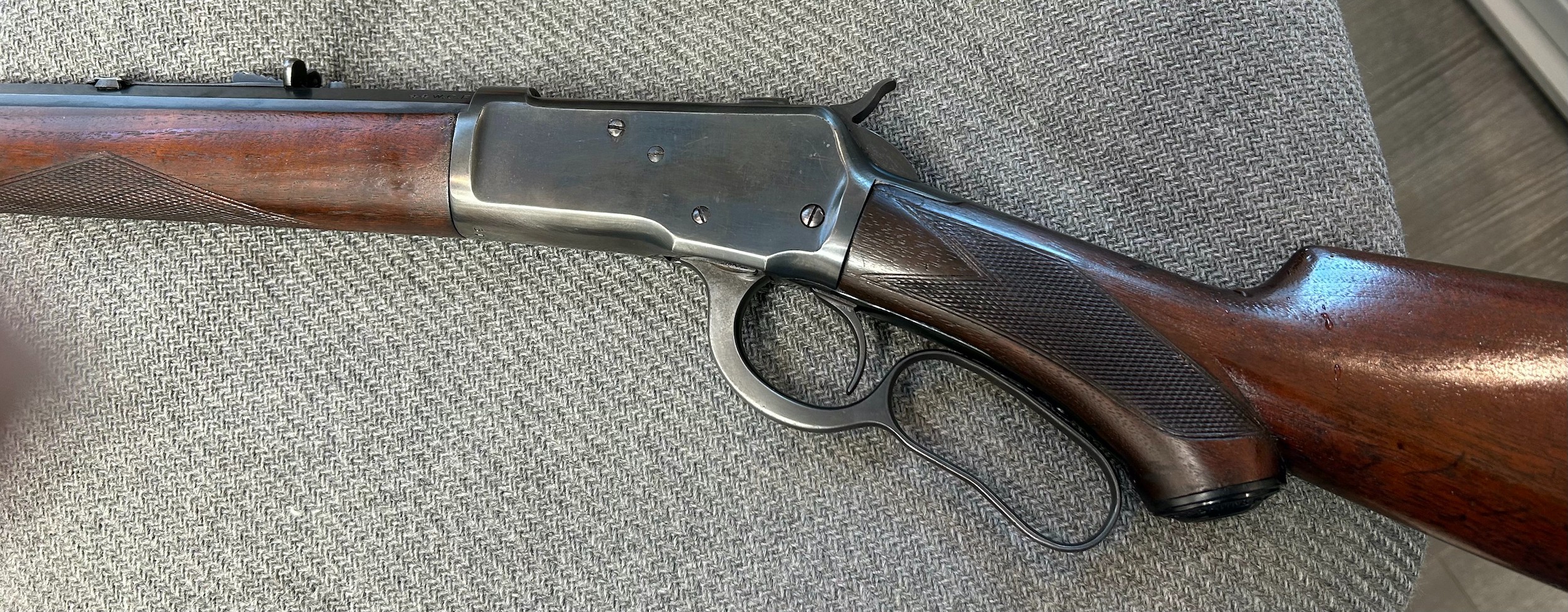

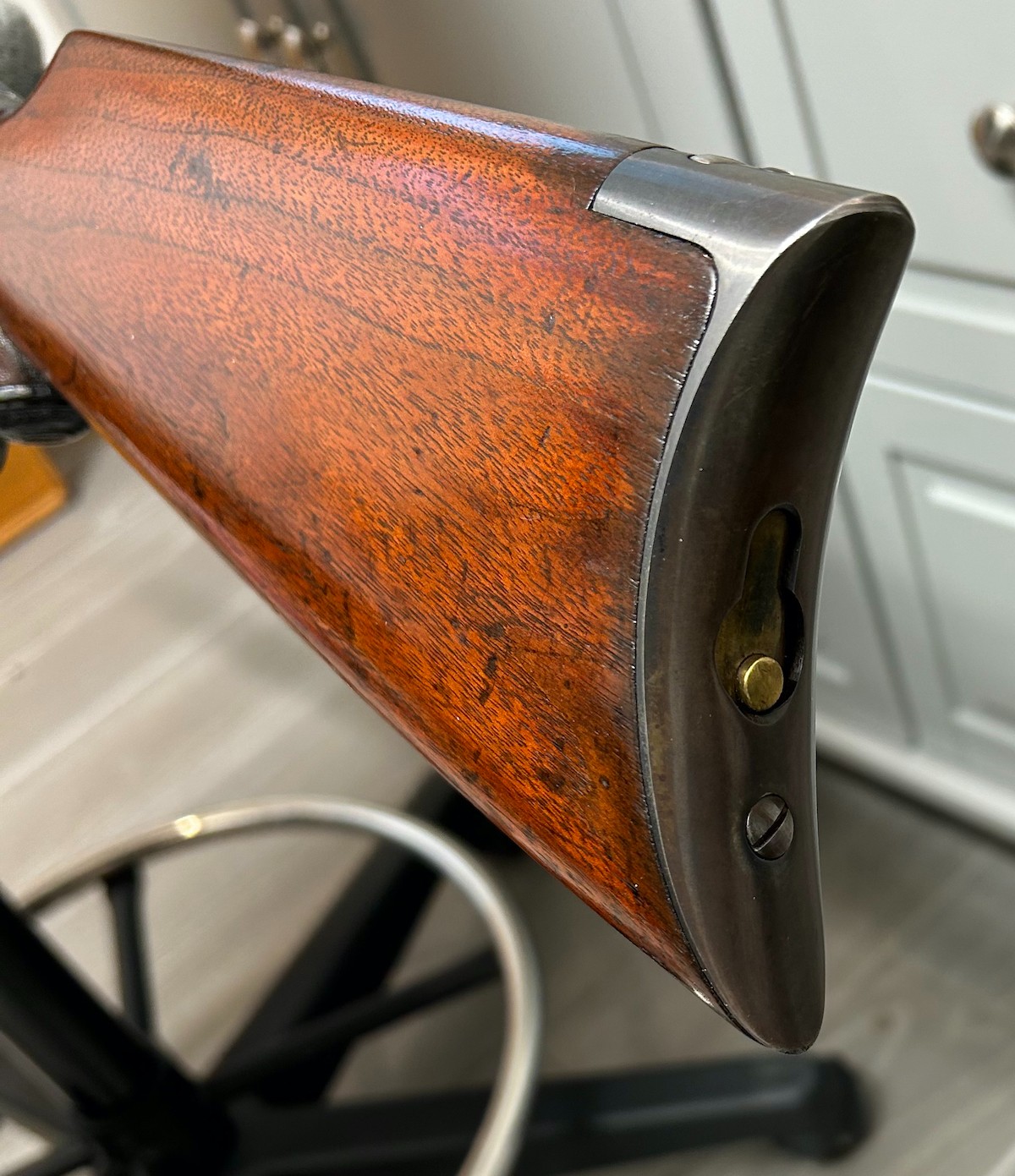

92-butt-plate.jpegImage Enlarger92-left-side.jpegImage Enlarger92-proofs.jpegImage Enlarger92-right-side.jpegImage Enlarger92-stock.jpegImage Enlarger



Michael

sp_PlupAttachments Attachments




Model 1892 / Model 61 Collector, Research, Valuation

Avatar
Member
WACA Member
Forum Posts: 4097
Member Since:
November 19, 2006
sp_UserOfflineSmall Offline
11
July 16, 2023 - 6:40 pm
sp_Permalink sp_Print sp_QuotePost

I have similar concerns as Michael has.  When you add it all up, I think a M1894 rifle buttstock has been placed on that rifle.

Avatar
Member
WACA Member
Forum Posts: 516
Member Since:
April 1, 2005
sp_UserOfflineSmall Offline
12
July 16, 2023 - 6:51 pm
sp_Permalink sp_Print sp_QuotePost

twobit said
Here are the images.  I have a few worries as to the originality of the butt stock to the gun and the receiver finish.

92-butt-plate.jpegImage Enlarger92-left-side.jpegImage Enlarger92-proofs.jpegImage Enlarger92-right-side.jpegImage Enlarger92-stock.jpegImage Enlarger



Michael

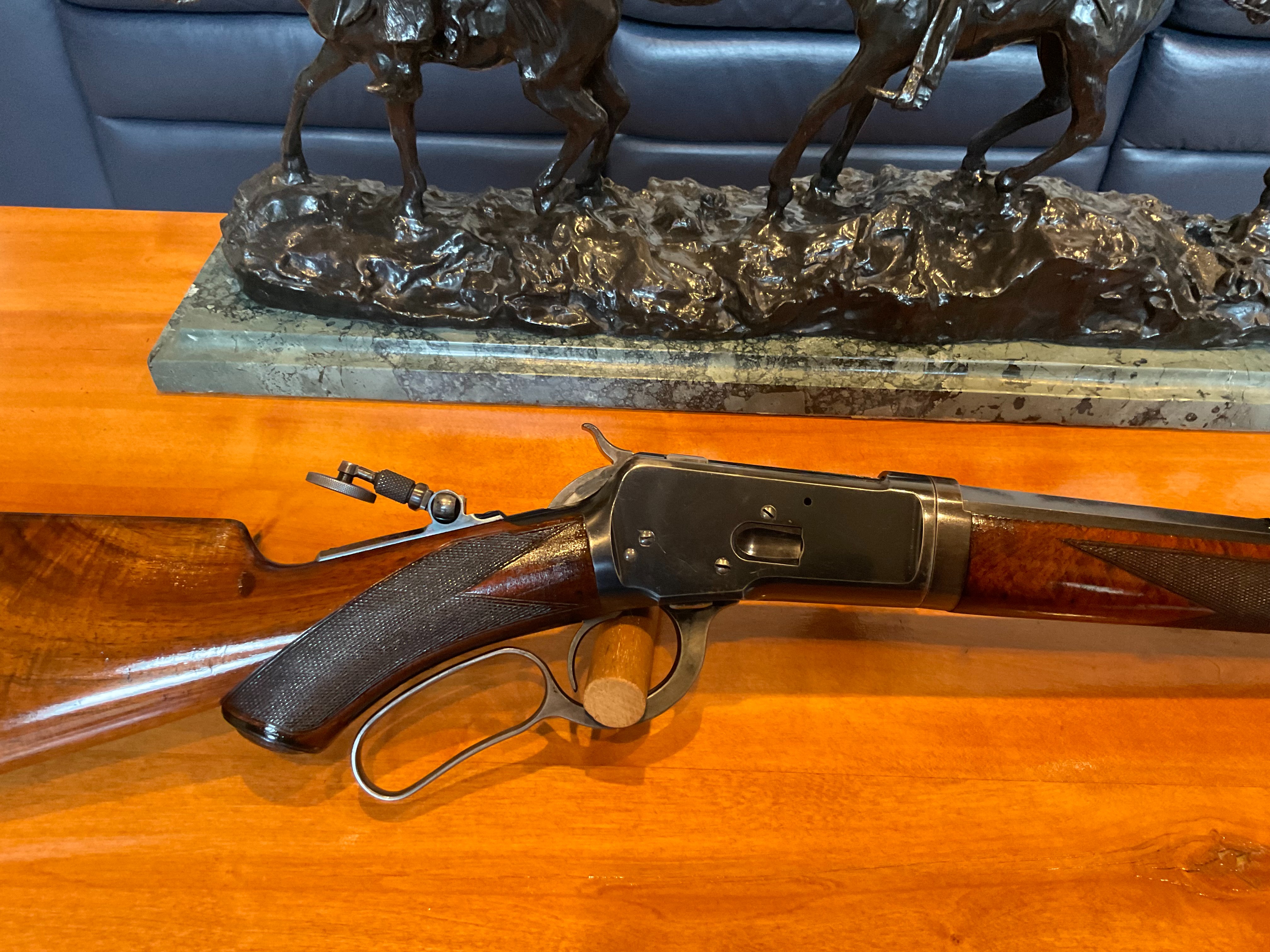

parts gun in my opinion – look at the photo of the loading gate side of the receiver and note the very, very poor wood to metal fit. This gun did not leave the factory like this. Here is an example of the same area of a 92 with original and correct wood to metal fit – draw your own conclusion.

92woodmetal.jpgImage Enlarger

sp_PlupAttachments Attachments
Avatar
Member
WACA Member
Forum Posts: 541
Member Since:
February 17, 2022
sp_UserOfflineSmall Offline
13
July 16, 2023 - 9:18 pm
sp_Permalink sp_Print sp_QuotePost

Geez Burt once again you have displayed a beautiful rifle.

Avatar
MartyR
Guest
WACA Guest
14
July 16, 2023 - 9:40 pm
sp_Permalink sp_Print sp_QuotePost

Guys

You are probably correct. Either way it was cheap enough and all I need was a canvas to engrave. So price wise and metal conditon wise it suites my needs  I would never do this to a gun with much original condition.  after all I am a collector also

Avatar
Member
WACA Member
Forum Posts: 4097
Member Since:
November 19, 2006
sp_UserOfflineSmall Offline
15
July 16, 2023 - 9:53 pm
sp_Permalink sp_Print sp_QuotePost

MartyR said
Guys

You are probably correct. Either way it was cheap enough and all I need was a canvas to engrave. So price wise and metal conditon wise it suites my needs  I would never do this to a gun with much original condition.  after all I am a collector also



I also recall you mentioned the rifle is going to get new wood anyway.

Avatar
MartyR
Guest
WACA Guest
16
July 16, 2023 - 10:26 pm
sp_Permalink sp_Print sp_QuotePost

I do have a very nice piece of wood to make a new stock for it. I will however save the butt plate for a 73 and put a regular 92 crescent plate on it

Thanks guys for your insight

Avatar
Member
WACA Member
Forum Posts: 1375
Member Since:
July 8, 2012
sp_UserOfflineSmall Offline
17
July 17, 2023 - 12:09 am
sp_Permalink sp_Print sp_QuotePost

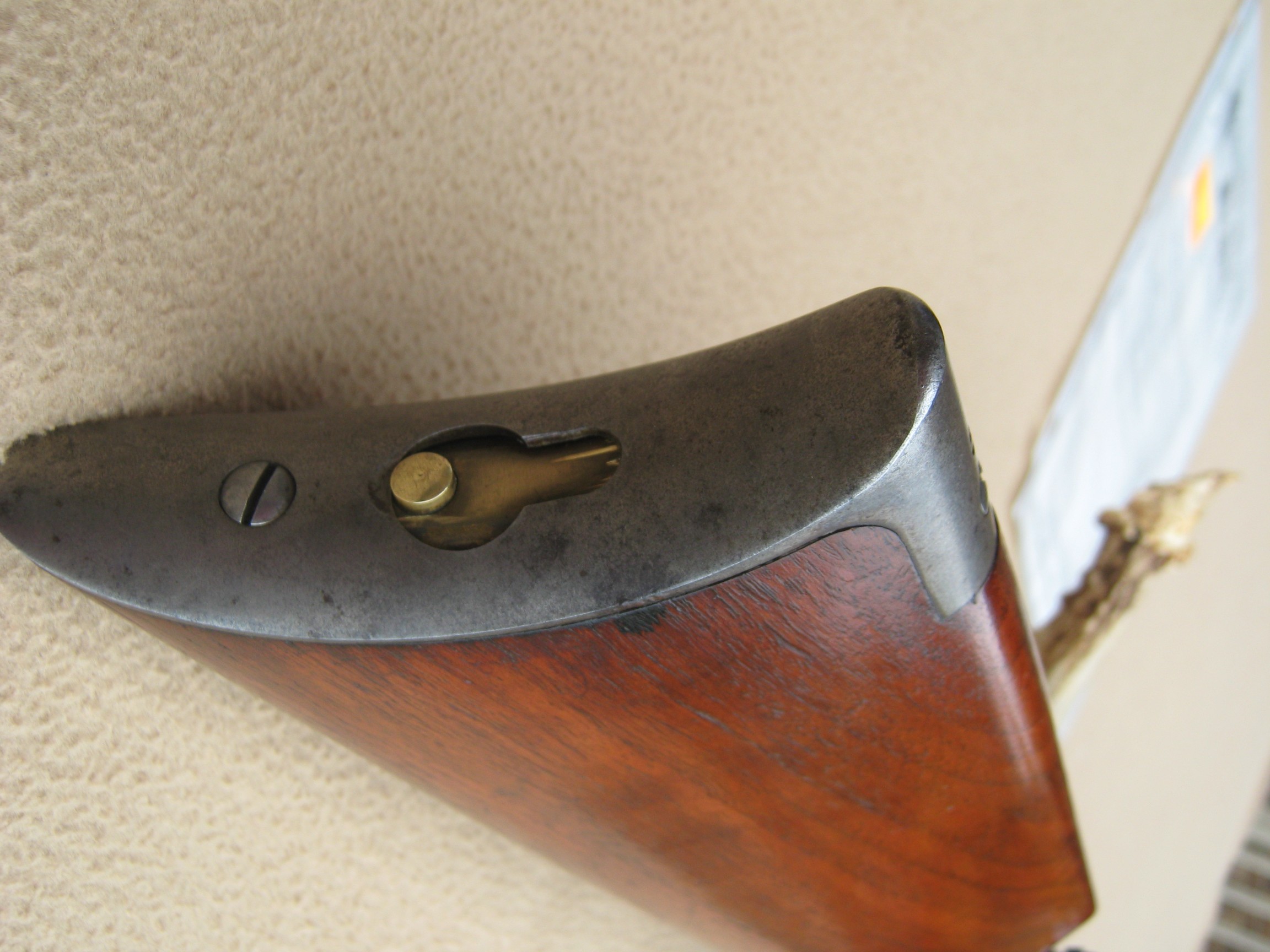

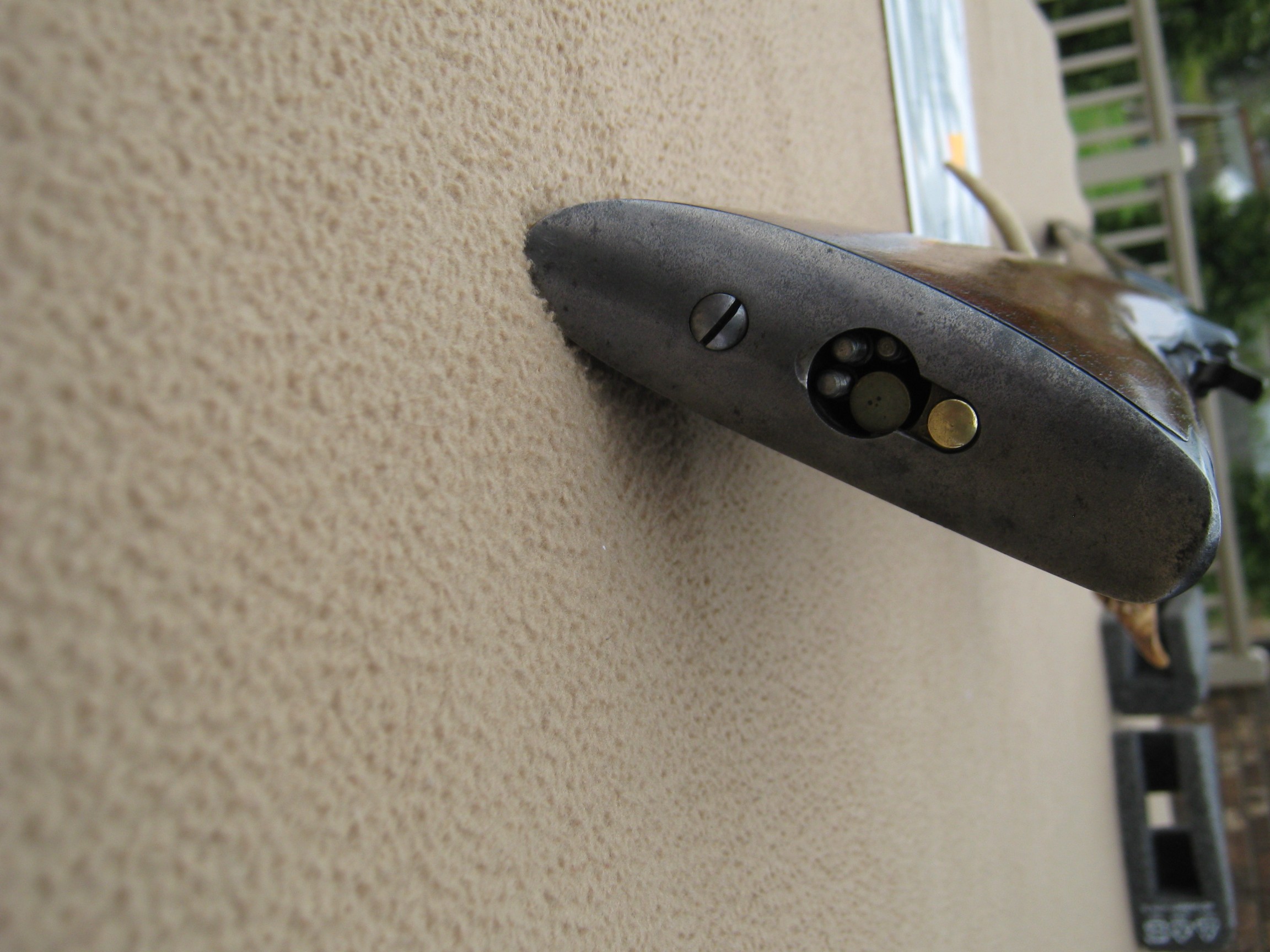

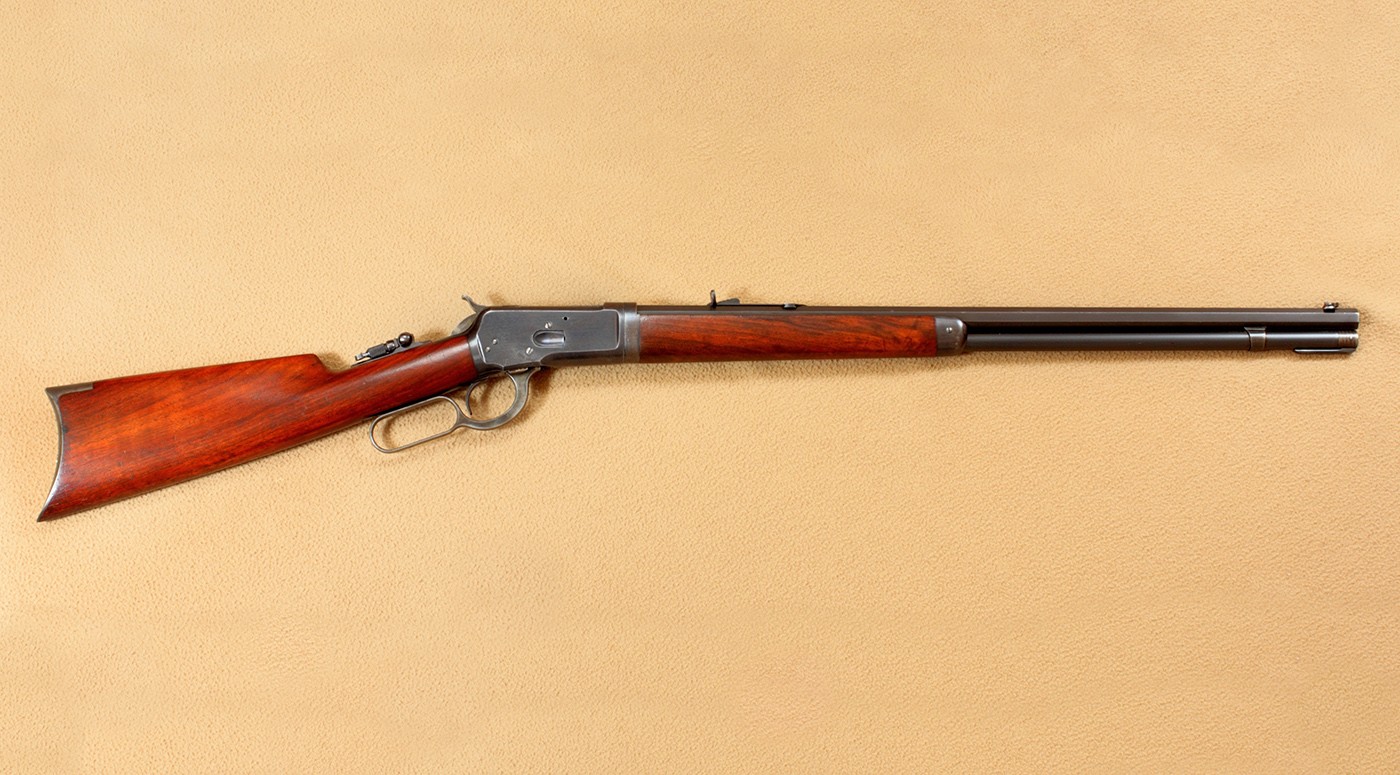

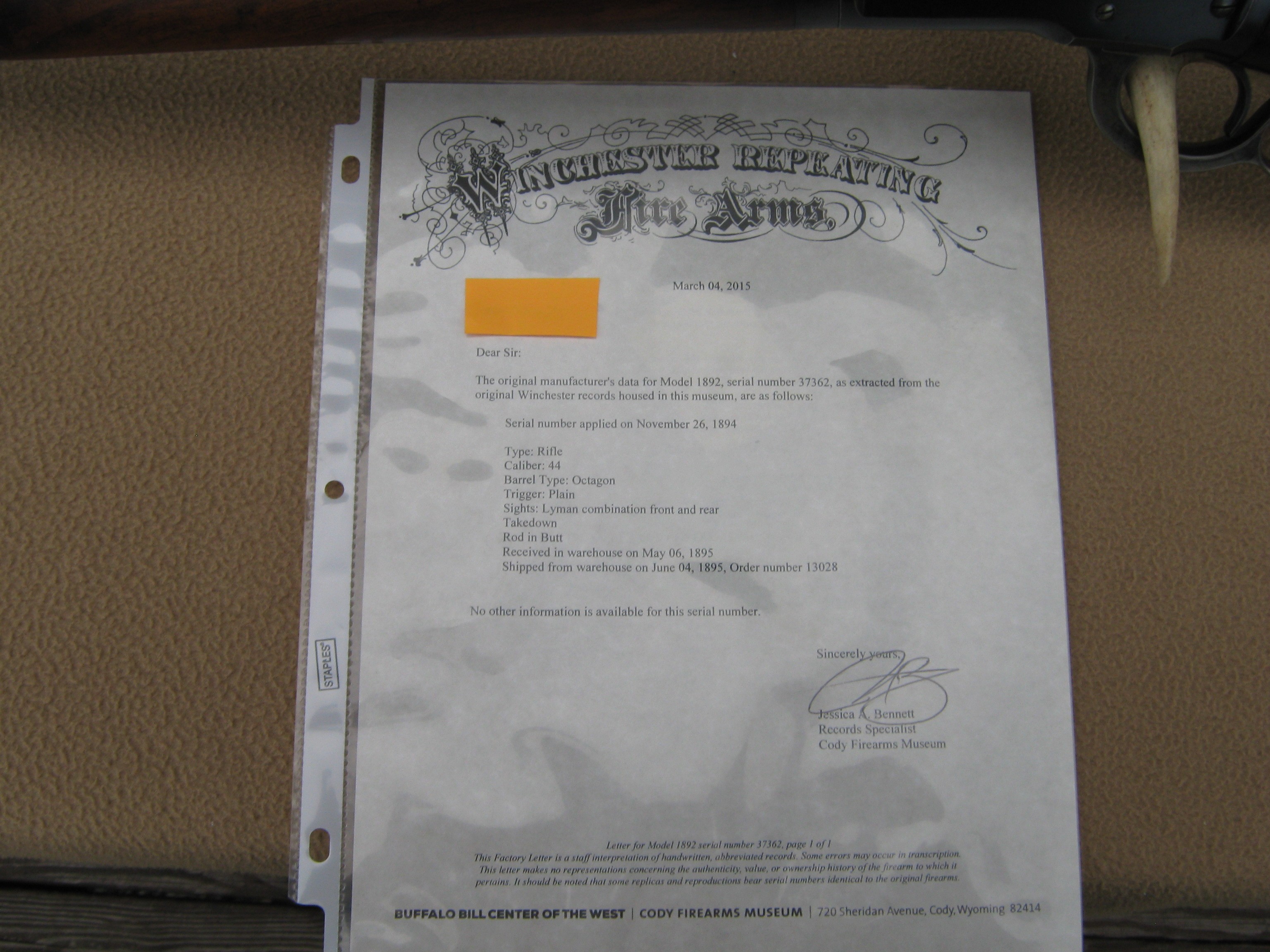

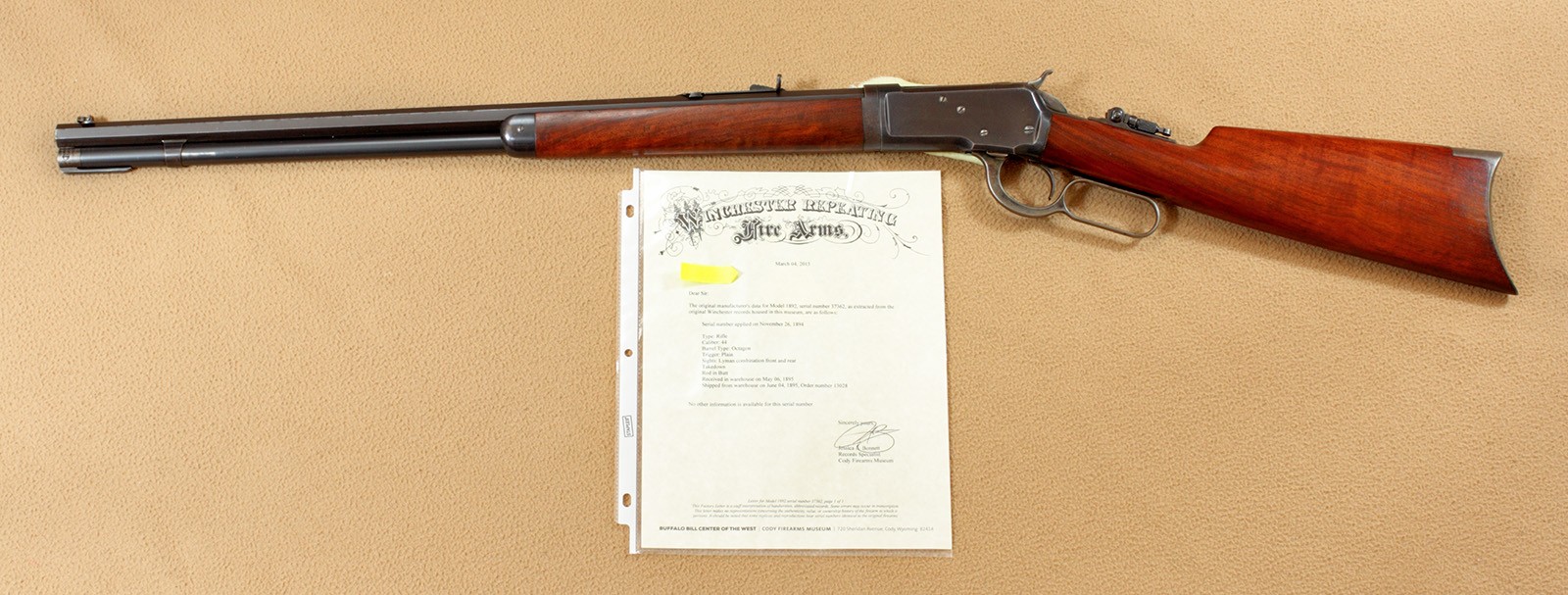

I have a nice model 1892 takedown antique that letters with “Rod in Butt”

See pictures,

Al

MD_0335_4card2.jpgImage EnlargerMD_0342sm.jpgImage EnlargerIMG_8712.JPGImage EnlargerIMG_8752.JPGImage EnlargerIMG_8719.JPGImage Enlarger

sp_PlupAttachments Attachments
Avatar
Member
WACA Member
Forum Posts: 516
Member Since:
April 1, 2005
sp_UserOfflineSmall Offline
18
July 17, 2023 - 1:36 am
sp_Permalink sp_Print sp_QuotePost

tionesta1 said
I have a nice model 1892 takedown antique that letters with “Rod in Butt”

See pictures,

Al

MD_0335_4card2.jpgImage EnlargerMD_0342sm.jpgImage EnlargerIMG_8712.JPGImage EnlargerIMG_8752.JPGImage EnlargerIMG_8719.JPGImage Enlarger



Al – you are right about it being nice – best caliber, highly sought after configuration, antique and with condition – then, the cleaning rod and verificaton of the features puts it over the top.

Avatar
MartyR
Guest
WACA Guest
19
July 17, 2023 - 10:34 am
sp_Permalink sp_Print sp_QuotePost

Beautiful rifle and great seeing the rod in butt verification

as an aside..my butt stock fits very nicely until you tighten the tang screw. Then it seems to slide back a bit. But either way it will be upgraded.  Thanks for some great insight and discussions. It’s always a learning experience

Avatar
Member
WACA Member
Forum Posts: 1375
Member Since:
July 8, 2012
sp_UserOfflineSmall Offline
20
July 17, 2023 - 2:46 pm
sp_Permalink sp_Print sp_QuotePost

Burt Humphrey said

tionesta1 said

I have a nice model 1892 takedown antique that letters with “Rod in Butt”

See pictures,

Al

MD_0335_4card2.jpgImage EnlargerMD_0342sm.jpgImage EnlargerIMG_8712.JPGImage EnlargerIMG_8752.JPGImage EnlargerIMG_8719.JPGImage Enlarger



Al – you are right about it being nice – best caliber, highly sought after configuration, antique and with condition – then, the cleaning rod and verificaton of the features puts it over the top.



Thanks Burt,

You’re 1892 Deluxe is very impressive, and rare.

Al
