Case hardening 86
sp_NewTopic Add Topic
Avatar
Member
WACA Guest
Forum Posts: 88
Member Since:
July 31, 2017
sp_UserOfflineSmall Offline
1
August 27, 2017 - 4:14 pm
sp_Permalink sp_Print sp_QuotePost

Did winchester apply any kind of coating to there case hardened deluxe 86 firearms after the case hardening procedure ?  I’ve heard that they applied some type of lacquer to protect the finish.

regards Gerald

Avatar
Wisconsin
Member
WACA Member
Forum Posts: 4652
Member Since:
May 2, 2009
sp_UserOfflineSmall Offline
2
August 27, 2017 - 5:08 pm
sp_Permalink sp_Print sp_QuotePost

Gerald,

Yes they did. I’m sure of what it was but its been seen on different models and where it still intact the case colors are very bright.

Bob

WACA Life Member---
NRA Life Member----
Cody Firearms member since 1991
Researching the Winchester 1873's


Email: [email protected]

Avatar
New Mexico
Member
WACA Guest
Forum Posts: 1167
Member Since:
December 1, 2012
sp_UserOfflineSmall Offline
3
August 28, 2017 - 1:54 am
sp_Permalink sp_Print sp_QuotePost

Here are 2 posts:  one says no the other says yes.  Have never seen a definitive source stating a coating was applied.  On the other hand, there would be no reason for an historical source saying it wasn’t applied.

http://forums.gunbroker.com/topic.asp?TOPIC_ID=328264

https://jamesdjulia.com/item/lot-2066-spectacular-deluxe-winchester-model-1886-lever-action-rifle-41322/


"This is the West, sir. When the legend becomes fact, print the legend."

Avatar
New Mexico
Member
WACA Guest
Forum Posts: 1167
Member Since:
December 1, 2012
sp_UserOfflineSmall Offline
4
August 28, 2017 - 1:57 am
sp_Permalink sp_Print sp_EditHistory sp_QuotePost

Also, Mike Hunter has an article on metal finishes done by Winchester in the FALL 2014 issue but I am unable to access past issues now for some reason.


"This is the West, sir. When the legend becomes fact, print the legend."

Avatar
Member
WACA Guest
Forum Posts: 482
Member Since:
March 21, 2016
sp_UserOfflineSmall Offline
5
August 30, 2017 - 12:30 am
sp_Permalink sp_Print sp_QuotePost

Yes, you can still see signs of it on some very well-kept 86s.


Winchester Model 1873 44-40 circa 1886

Avatar
Montana
Member
WACA Member
Forum Posts: 690
Member Since:
November 2, 2009
sp_UserOfflineSmall Offline
6
August 30, 2017 - 12:55 am
sp_Permalink sp_Print sp_QuotePost

Kevin is right. In fact, on some high condition cased guns, it’s very easy to see.  It was a product similar to orange shellac varnish.  After time, this created the slight smoky tint we often see on brilliant case color.

Avatar
Wisconsin
Member
WACA Member
Forum Posts: 4652
Member Since:
May 2, 2009
sp_UserOfflineSmall Offline
7
August 30, 2017 - 3:11 pm
sp_Permalink sp_Print sp_QuotePost

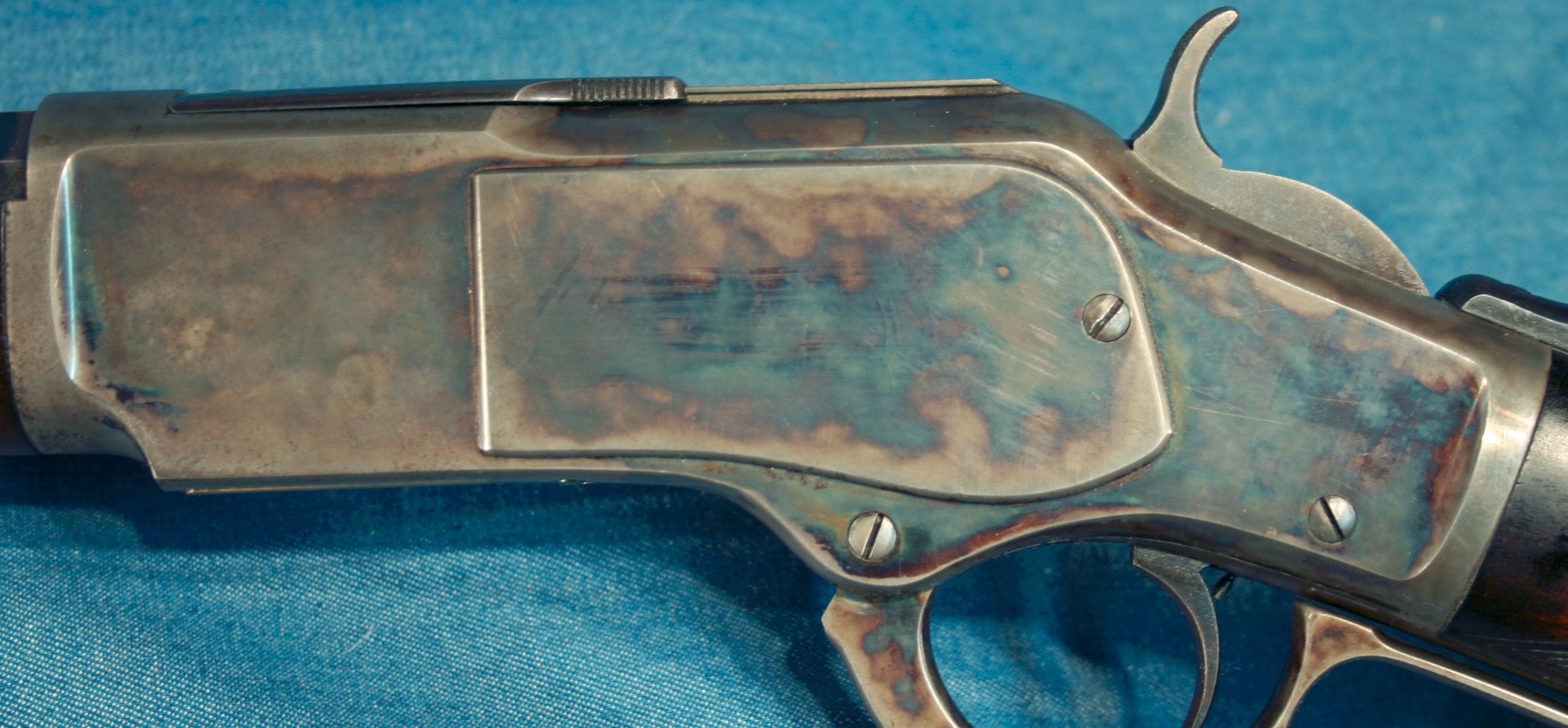

Here is one of mine that shows the affects of the lacquer or varnish protecting the colors.

Bob

lacqure-lines.jpgImage Enlarger

sp_PlupAttachments Attachments
WACA Life Member---
NRA Life Member----
Cody Firearms member since 1991
Researching the Winchester 1873's


Email: [email protected]

Avatar
New Mexico
Member
WACA Guest
Forum Posts: 1167
Member Since:
December 1, 2012
sp_UserOfflineSmall Offline
8
August 30, 2017 - 3:15 pm
sp_Permalink sp_Print sp_EditHistory sp_QuotePost

1873man said
Here is one of mine that shows the affects of the lacquer or varnish protecting the colors.

Bob

lacqure-lines.jpgImage Enlarger

There ought to be a better way to preserve the case coloring without clouding over it.  Is that a factory applied coating, Bob, or as they say now, “after market”.


"This is the West, sir. When the legend becomes fact, print the legend."

Avatar
Wisconsin
Member
WACA Member
Forum Posts: 4652
Member Since:
May 2, 2009
sp_UserOfflineSmall Offline
9
August 30, 2017 - 3:24 pm
sp_Permalink sp_Print sp_QuotePost

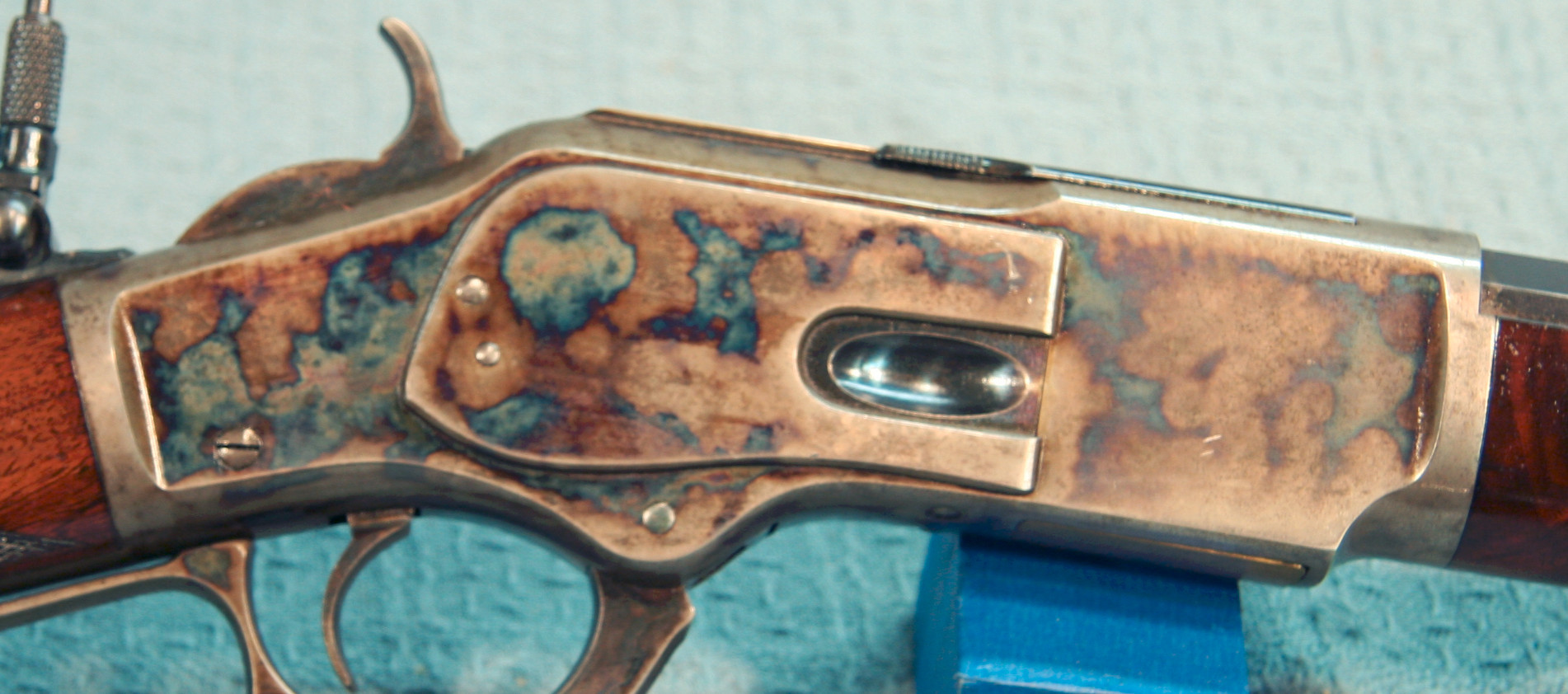

That is factory coated. I’ve seen that on many case colored guns now and it all has the same look to it. Here is another and if you look right behind the loading gate you can see where the coating starts

Bob

lacquer1.jpgImage Enlarger

sp_PlupAttachments Attachments
WACA Life Member---
NRA Life Member----
Cody Firearms member since 1991
Researching the Winchester 1873's


Email: [email protected]

Avatar
Member
WACA Guest
Forum Posts: 88
Member Since:
July 31, 2017
sp_UserOfflineSmall Offline
10
August 30, 2017 - 10:46 pm
sp_Permalink sp_Print sp_QuotePost

 Thanks for the info. I have a couple  deluxe 86s in very high condition that appear to have some type  of  protective finish on them and then I have a 76 deluxe express in extremely high condition that appears to have no protective coating.  Thus I am confused.

 Regards  Gerald

Avatar
Wisconsin
Member
WACA Member
Forum Posts: 4652
Member Since:
May 2, 2009
sp_UserOfflineSmall Offline
11
August 30, 2017 - 11:09 pm
sp_Permalink sp_Print sp_QuotePost

Gerald,

One reason I can think of is we don’t know if it was applied to all guns another reason could be if it can be removed with the wrong cleaners.

Bob

WACA Life Member---
NRA Life Member----
Cody Firearms member since 1991
Researching the Winchester 1873's


Email: [email protected]

Avatar
Member
WACA Member
Forum Posts: 1927
Member Since:
May 23, 2009
sp_UserOfflineSmall Offline
12
August 31, 2017 - 4:40 pm
sp_Permalink sp_Print sp_QuotePost

1873man said
Gerald,

One reason I can think of is we don’t know if it was applied to all guns another reason could be if it can be removed with the wrong cleaners.

Bob

I would also imagine given much use and wear and exposure to the elements the finish would deteriorate over time exposing the bare metal finish and thus cause the case coloring to be removed.

Not everybody kept there Winchester’s stored in the Closet!

Sincerely,

Maverick

Avatar
Member
WACA Guest
Forum Posts: 482
Member Since:
March 21, 2016
sp_UserOfflineSmall Offline
13
September 1, 2017 - 3:59 am
sp_Permalink sp_Print sp_QuotePost

1873man said
That is factory coated. I’ve seen that on many case colored guns now and it all has the same look to it. Here is another and if you look right behind the loading gate you can see where the coating starts

Bob

lacquer1.jpgImage Enlarger

Good looking 73 receiver!!!!


Winchester Model 1873 44-40 circa 1886

Avatar
New Mexico
Member
WACA Guest
Forum Posts: 1167
Member Since:
December 1, 2012
sp_UserOfflineSmall Offline
14
September 1, 2017 - 4:07 am
sp_Permalink sp_Print sp_QuotePost

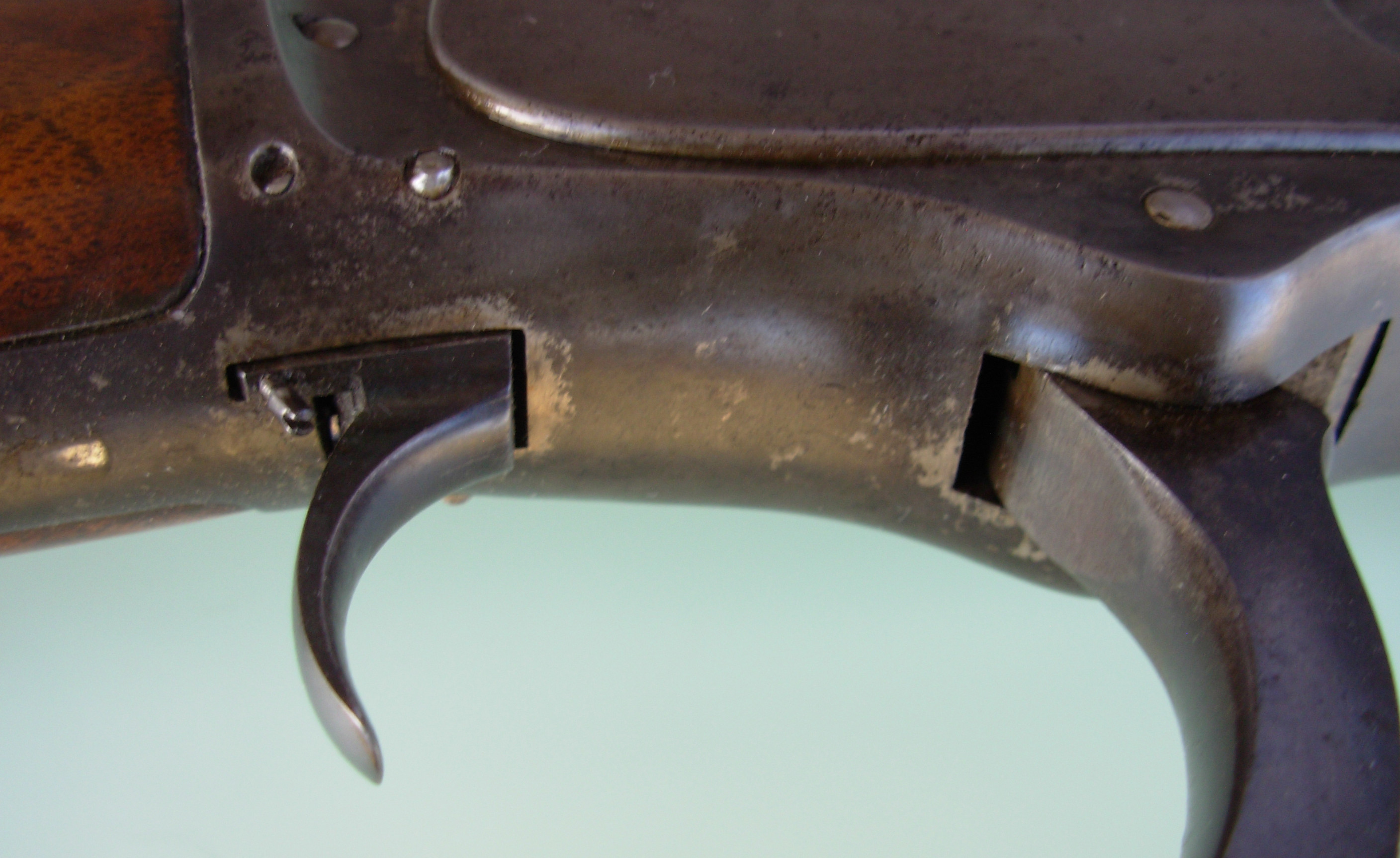

Would that lacquer coating account for traces of case coloring remaining on the edges of protected areas when the rest of the receiver has no cc left?

DSCN0101.JPGImage EnlargerDSCN0103.JPGImage Enlarger

sp_PlupAttachments Attachments


"This is the West, sir. When the legend becomes fact, print the legend."

Avatar
Wisconsin
Member
WACA Member
Forum Posts: 4652
Member Since:
May 2, 2009
sp_UserOfflineSmall Offline
15
September 1, 2017 - 4:14 am
sp_Permalink sp_Print sp_QuotePost

No, when case color wears and ages and finailly looses its color you are left with a silvery finish that resembles nickel plating. When the silvery finish comes off it flakes. Its just in the protected areas is the last places it remains.

Bob

WACA Life Member---
NRA Life Member----
Cody Firearms member since 1991
Researching the Winchester 1873's


Email: [email protected]

Avatar
Wisconsin
Member
WACA Member
Forum Posts: 4652
Member Since:
May 2, 2009
sp_UserOfflineSmall Offline
16
September 1, 2017 - 4:18 am
sp_Permalink sp_Print sp_QuotePost

Kevin,

That gun has the most case of any gun in my collection. The gun is kind of rare, the other side has a monogram.

Bob

WACA Life Member---
NRA Life Member----
Cody Firearms member since 1991
Researching the Winchester 1873's


Email: [email protected]

Avatar
New Mexico
Member
WACA Guest
Forum Posts: 1167
Member Since:
December 1, 2012
sp_UserOfflineSmall Offline
17
September 1, 2017 - 4:19 am
sp_Permalink sp_Print sp_QuotePost

1873man said
No, when case color wears and ages and finailly looses its color you are left with a silvery finish that resembles nickel plating. When the silvery finish comes off it flakes. Its just in the protected areas is the last places it remains.

Bob

Thanks, Bob.  Not a day goes by the we don’t learn a new tidbit here on the WACA forums.


"This is the West, sir. When the legend becomes fact, print the legend."
