Brad, do you want lettered condition or present altered condition. Don
December 30, 2011
Offline
Hi Don
Present condition, or both, if available. Thanks!
March 15, 2020
Offline
Brad, re 1895 Winchester

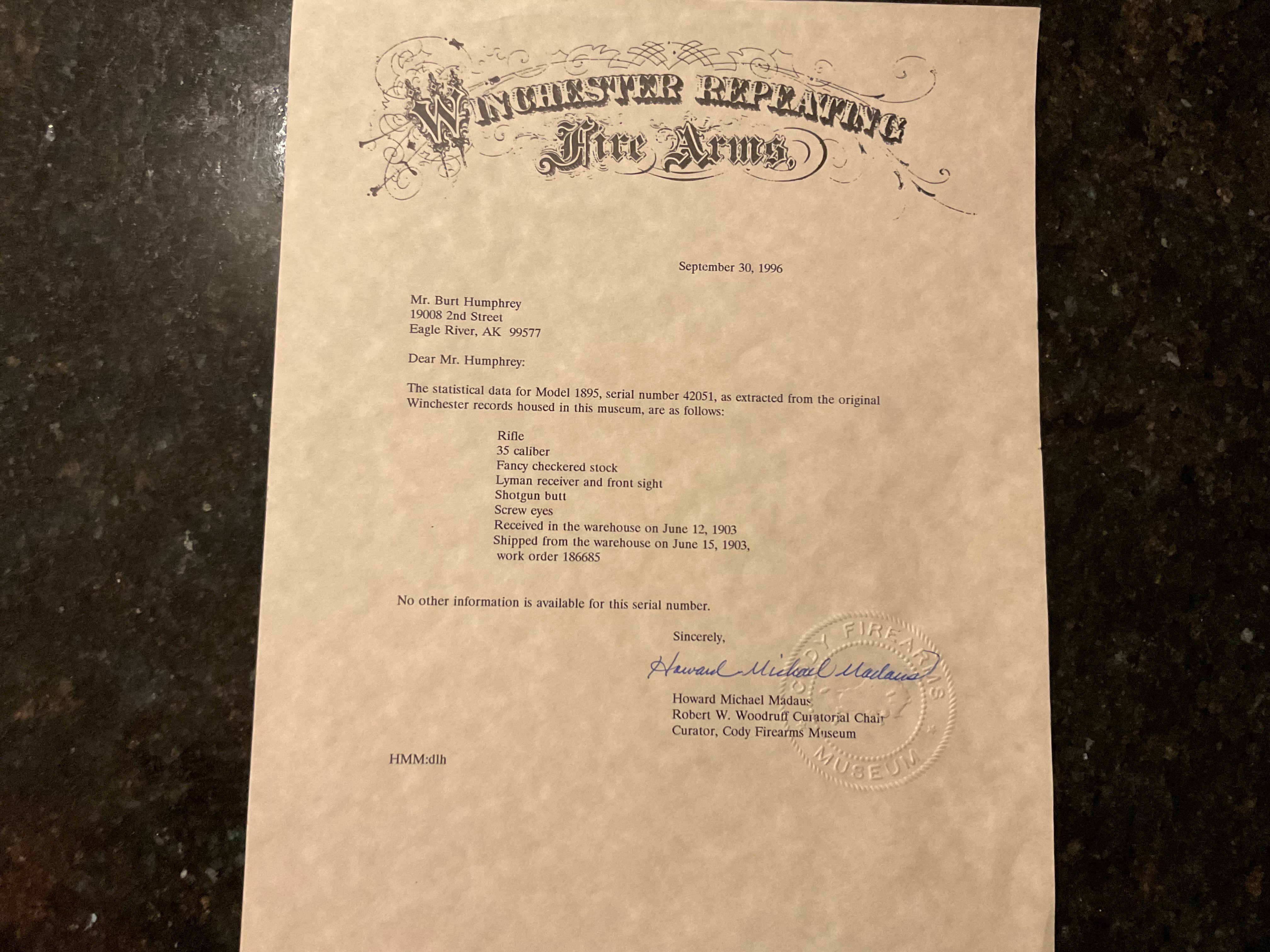

(1) As per attached letter,

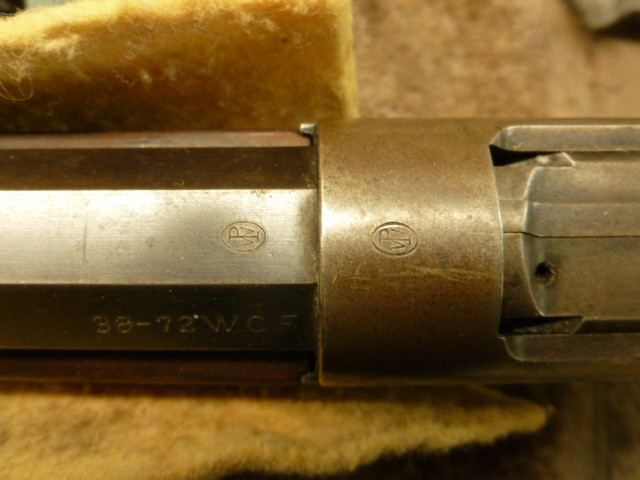

NOW: SN 42125, tang WINCHESTER MODEL 1895, 26″ octagon tapered barrel stamped 38-72 on bottom and left side flat by receiver (rebarrelled),
fancy? front snd rear stock with steel crescent buttplate Lyman no. 3 front sight, Winchester sporting rear sight
(2) SN 93657 B, tang MODEL 1895
-WINCHESTER-
TRADE MARK REG IN U. S. PAT. OFF.
24″ round tapered barrel stamped .30 GOVT. 1906. left side barrel by receiver, also stamped —NICKEL STEEL BARREL—

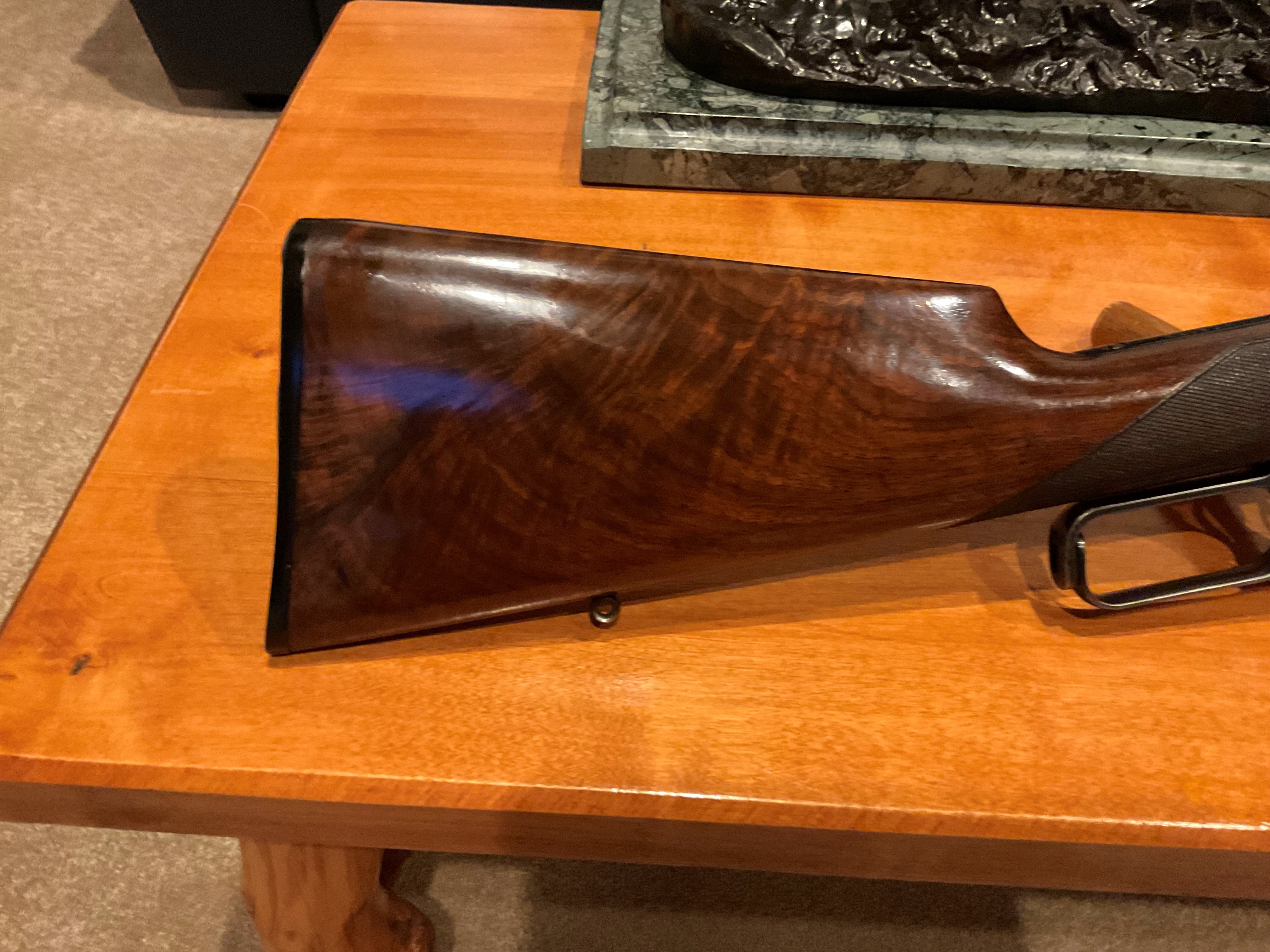

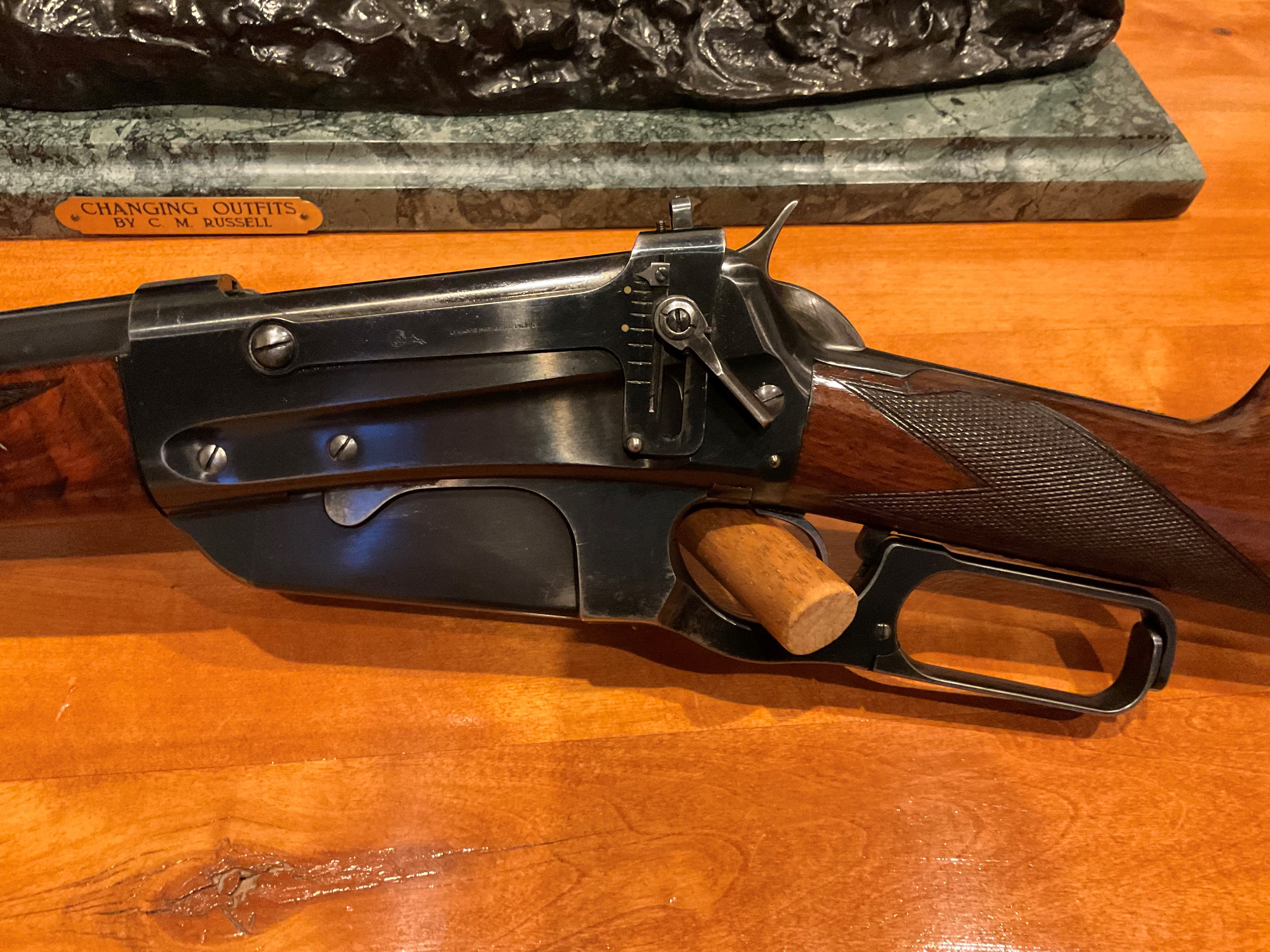

ESPECIALLY FOR SMOKELESS POWDER between matted receiver and rear dovetail blank, Lyman 21 rear sight, Marble Sheard front sight. deluxe checked forearm and shotfgun buttstock with checked metal buttplate .
March 15, 2020
Offline
Obviously I fooled up, the attachments are not for rifle no 2. Don
April 12, 2024
Offline
Hello Brad,
I recently obtained this rifle thought you may be able to use it’s statistics.

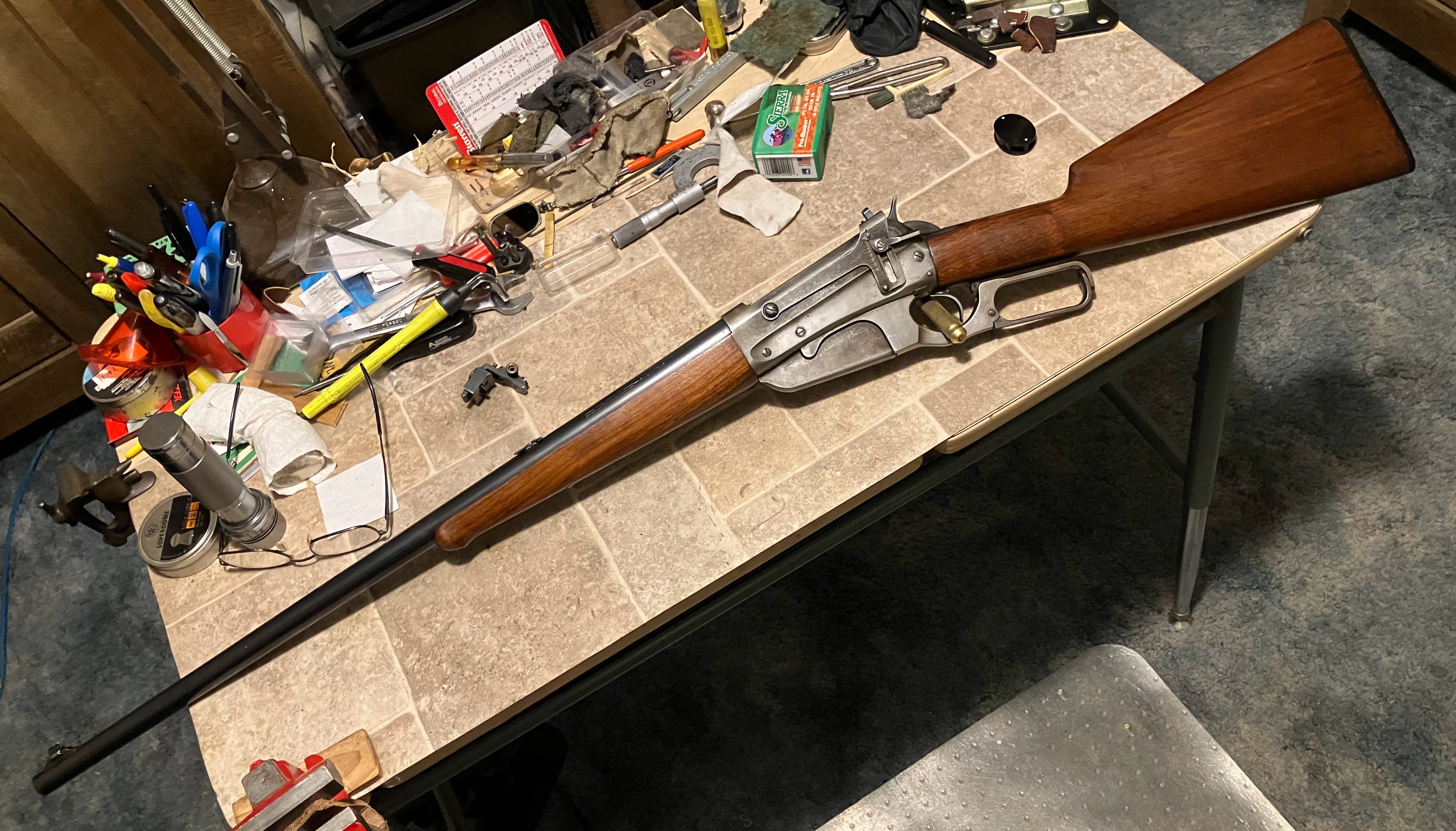

Model 1895, sn 108471, 24″ round barrel, 30-06, Lyman #21, standard rifle, rubber shotgun butt plate, fold up 2 leaf rear dovetail mount sight
I think that’s the pertinent information, if you need anything else let me know.
Mark
July 30, 2026
Offline

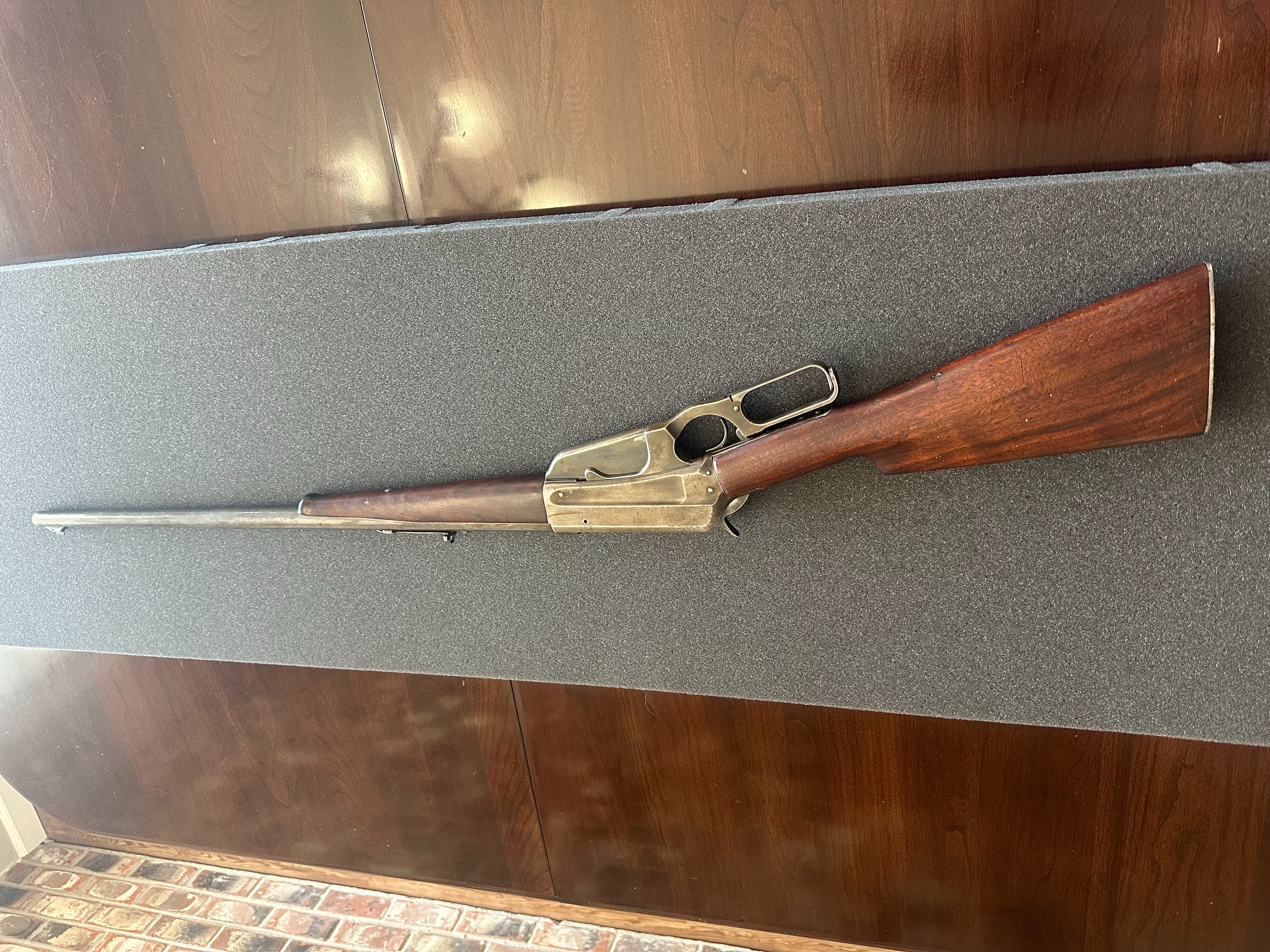

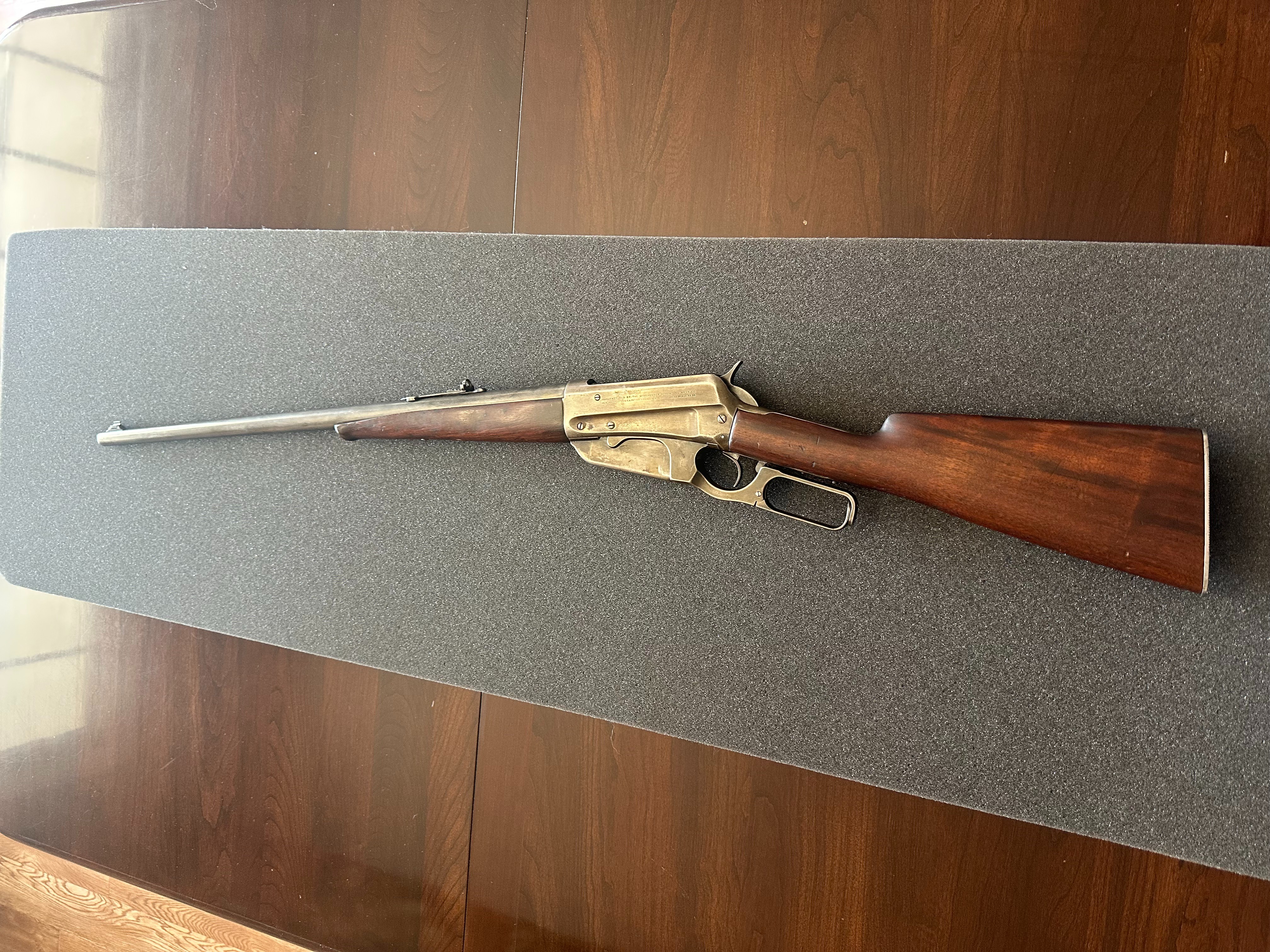

I recently inherited this rifle, hopefully this info is useful. I didn’t know anything about these rifles before getting it so correct me if I’m wrong. It seems like a pretty early 405 judging by the serial number and I’m curious where it puts it with the other documented ones.

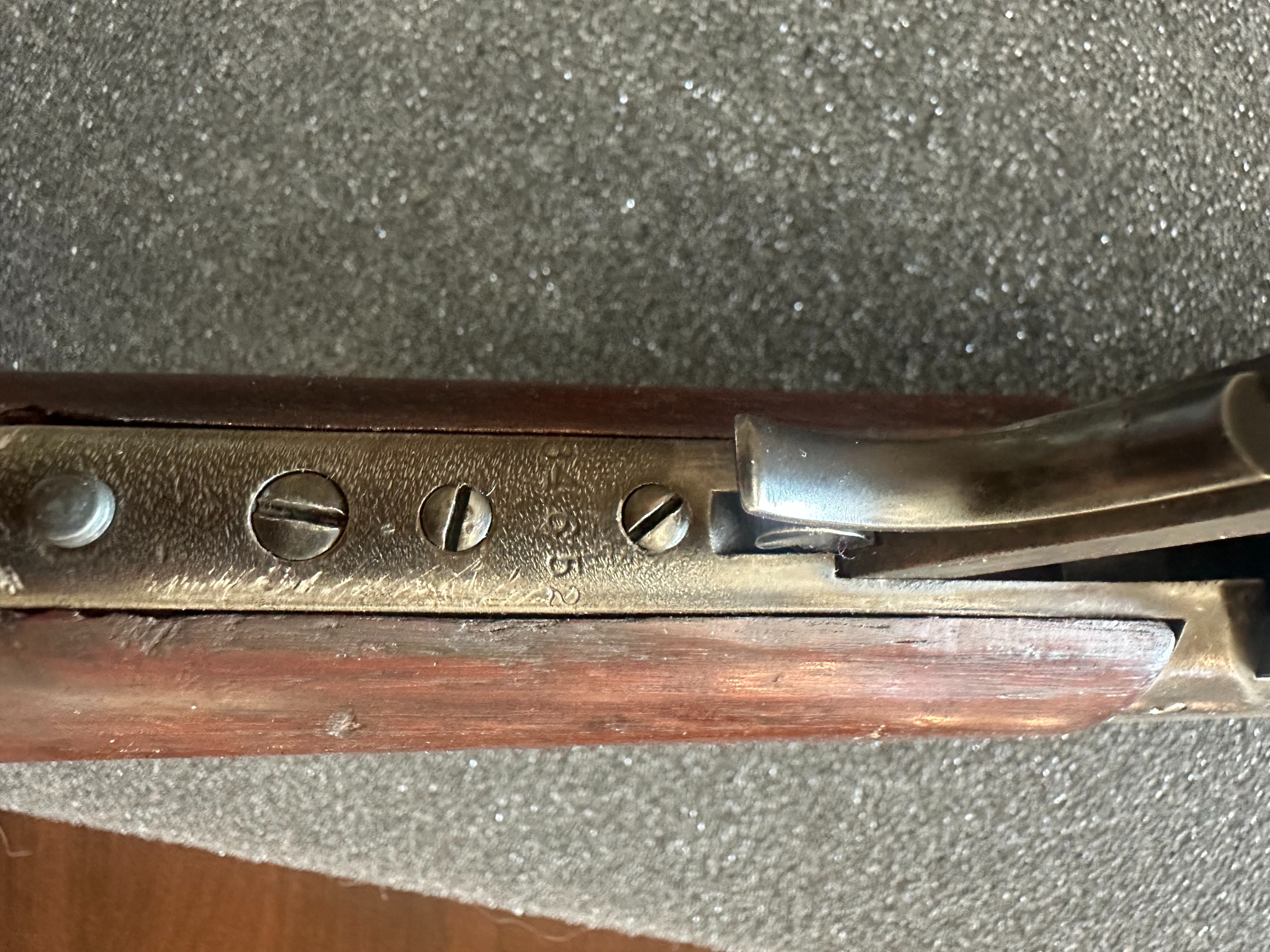

Serial #: 34652
Type: Standard rifle

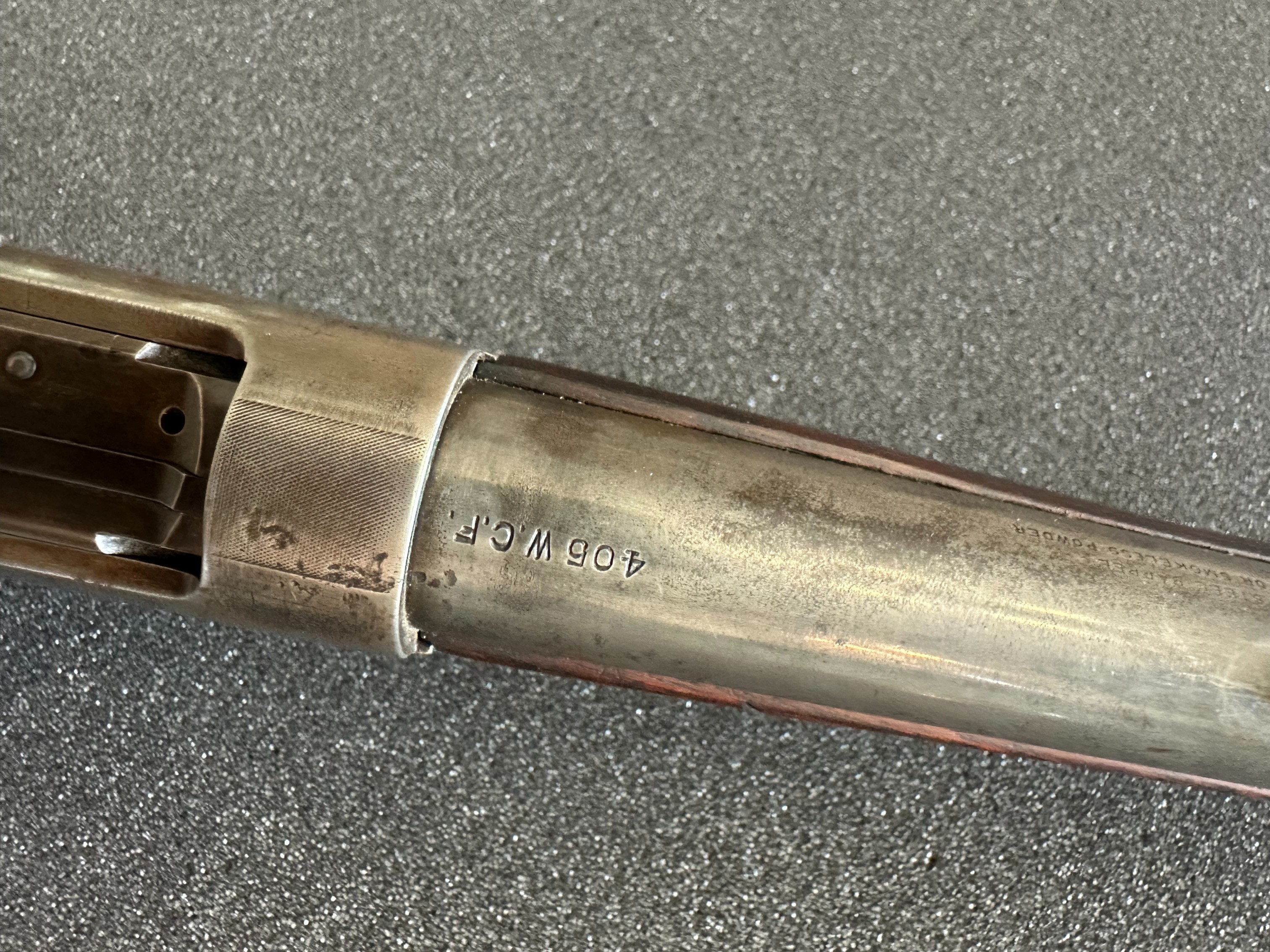

Chamber: .405
Barrel: 24″
Sights: Not sure
Buttplate: Steel shotgun

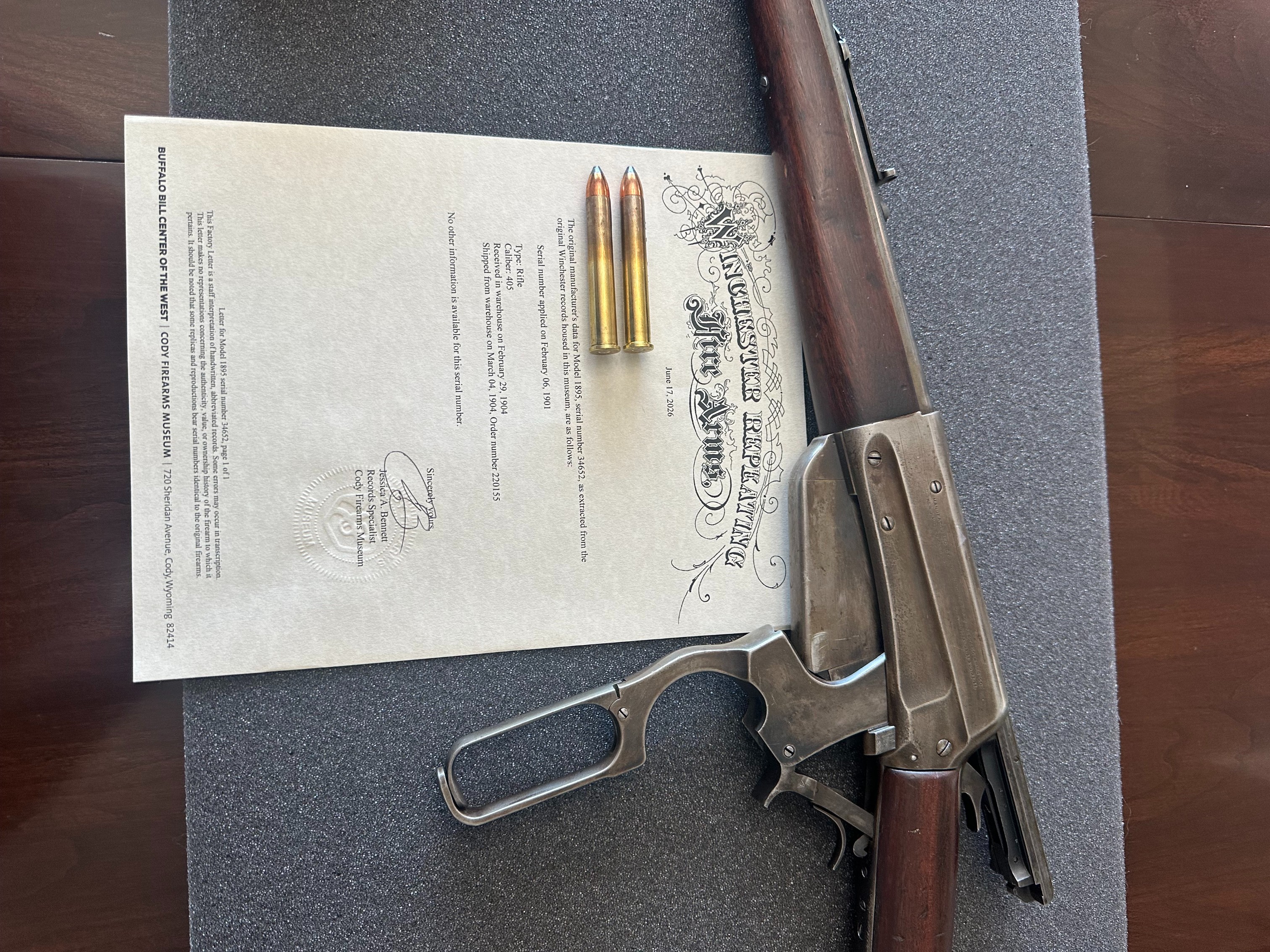

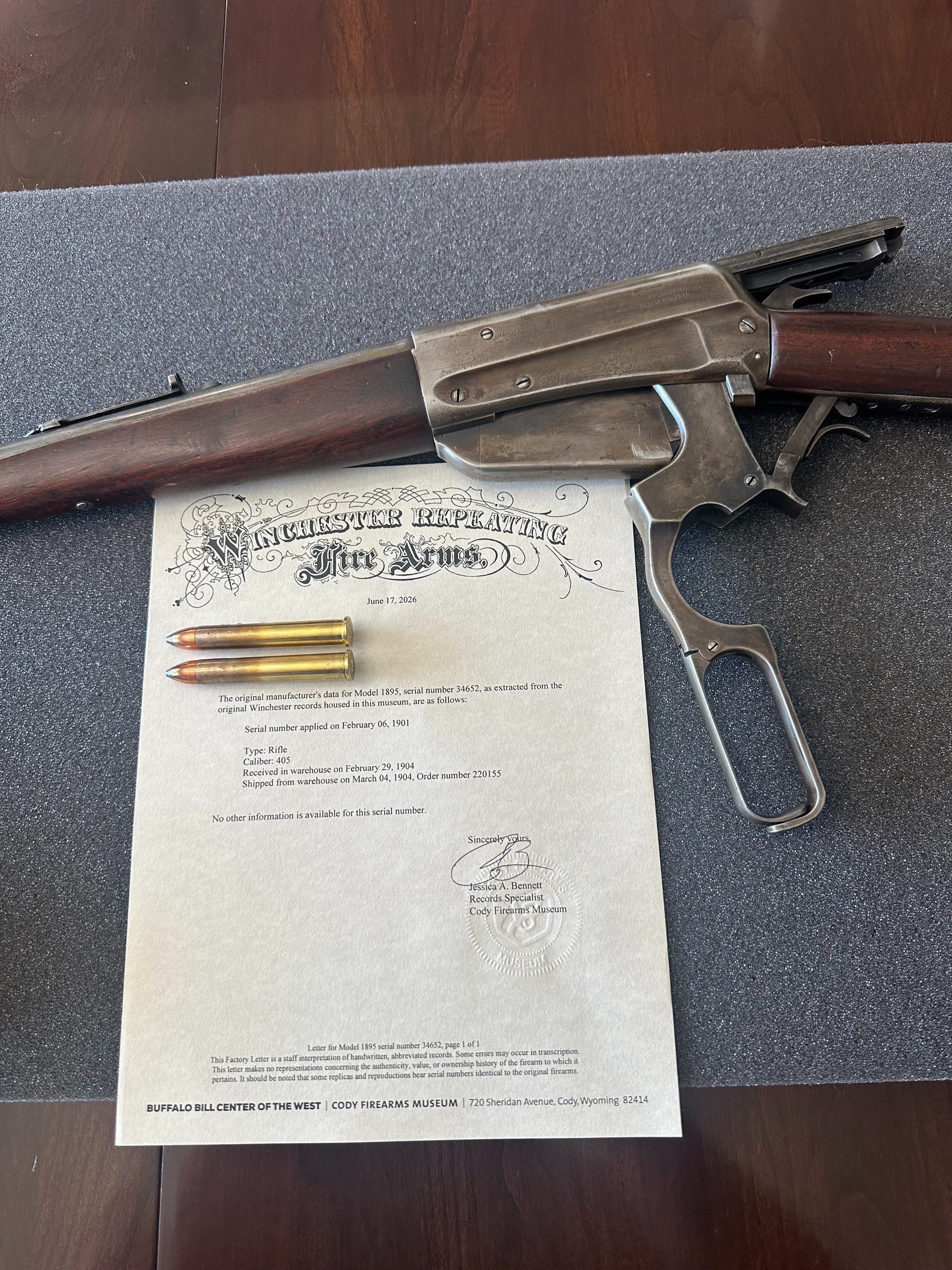

From the factory letter:
Serial number applied Feb. 6, 1901
Received in warehouse Feb. 29, 1904
Shipped from warehouse March 4, 1904
March 31, 2009
Offline
I really like the way you covered your info.
December 30, 2011
Offline
Hi bRud73
Nice inheritance. Thank you for the photos and information.
Yes, 34652 one of the earliest serial numbers for a .405. The very earliest is probably 5496, sn applied in December 1897, but with warehouse dates in March 1904. The earliest warehouse dates seem to be mid-1903.
You might want to double check the serial number applied date with the Records Office. I looked at some other factory letters around that serial number range. I think it might be 1902 instead of 1901.
Brad
March 31, 2009
Offline
So I’m guessing that some receivers sat around for a few years and were given the 405 barrels? I thought that the 405 was introduced in 1905?
April 15, 2005
Offline
Chuck said
So I’m guessing that some receivers sat around for a few years and were given the 405 barrels? I thought that the 405 was introduced in 1905?
1904, but first listed in the 1905 catalog.
WACA Historian & Board of Director Member #6571L
December 9, 2002
Offline
Bert H. said
Chuck said
So I’m guessing that some receivers sat around for a few years and were given the 405 barrels? I thought that the 405 was introduced in 1905?
1904, but first listed in the 1905 catalog.
This is no different in the same Model 95, as the .35 caliber was introduced well over a year before the catalog introduction, as stated in Rob and Brad’s Book.
Tony
March 31, 2009
Offline
Bert H. said
Chuck said
So I’m guessing that some receivers sat around for a few years and were given the 405 barrels? I thought that the 405 was introduced in 1905?
1904, but first listed in the 1905 catalog.
Thanks Bert. A number of Winchester’s firearms came out before they were listed in the catalogs. At least the catalogs that are presently available. I believe that not all of the catalogs were found and copied.
April 15, 2005
Offline
Chuck said
I believe that not all of the catalogs were found and copied.
Chuck,
I do not share that opinion. Below is my current list of known Winchester catalogs from that time period, and it appears to be complete.
Note that they are all in numerical order (as published by Winchester).
Winchester 1885, November Arms & Ammo No. 39
Winchester 1886, April Arms & Metallic Ammo Catalog No. 40
Winchester 1886, October Arms & Metallic Ammo Catalog No. 41
Winchester 1887, January Repeating Arms Co Catalog No. 42
Winchester 1887, June Arms & Ammo No. 43
Winchester 1887, November Arms & Ammo No. 44
Winchester 1889, June Repeating Arms Catalog No. 45
Winchester 1890, February Repeating Arms Catalog No. 46
Winchester 1890, November Repeating Arms Catalog No. 47
Winchester 1891, March Repeating Arms Co. Catalog No. 48
Winchester 1892, July Repeating Arms Company Catalog No. 49
Winchester 1893, February Repeating Arms Co. Catalog No. 50
Winchester 1893, June Repeating Arms Catalog No. 51
Winchester 1894, April Repeating Arms Catalog No. 52
Winchester 1894, November Repeating Arms No. 53
Winchester 1895, February Repeating Arms Catalog No. 54
Winchester 1895, August Repeating Arms Catalog No. 55
Winchester 1896, January Firearms Catalog No. 56
Winchester 1896, June Repeating Arms Catalog With Prices No. 57
Winchester 1896, December Repeating Arms Catalog No. 58
Winchester 1897, March Repeating Arms Co. Catalog No. 59
Winchester 1897, November- Repeating Arms Catalog No. 60
Winchester 1897, Rifle Engraving
Winchester 1898, March Repeating Arms Catalog No. 61
Winchester 1898, October Gun and Ammunition Catalog No. 62
Winchester 1899, February Firearms Catalog No. 63
Winchester 1899, August Repeating Arms Co. Catalog No. 64
Winchester 1900, April Gun Catalog No. 65
Winchester 1900, October Repeating Arms No. 66
Winchester 1901, March Repeating Arms Co. Catalog No. 67
Winchester 1902, January Repeating Arms Co. Catalog No. 68
Winchester 1902, June Firearms Catalog No. 69
Winchester 1903, March Repeating Arms Catalog No. 70
Winchester 1903, Finished Arms Engraving & Carving Catalog
Winchester 1904, June Firearms Catalog No. 71
Winchester 1905, October Rifle, Shotgun & Ammunition Catalog No. 72
Winchester 1907, January Repeating Arms Co. Catalog No. 73
Winchester 1908, March Arms Company Catalog No. 74
Winchester 1909, March Firearms Catalog No. 75
Winchester 1910, June- Repeating Arms Co. Catalog No. 76
Winchester 1910, Rifle Telescope
Winchester 1911, October Rifle and Ammunition Catalog No. 77
Winchester 1913, January Arms Company Catalog No. 78
Winchester 1914, Gun Catalog No. 79
Winchester 1916, Gun & Ammo Catalog & 1917 Rev. Catalog No. 80
Winchester 1918, Catalog No. 81
Winchester 1920, World Standard Guns and Ammunition No. 82
Bert
WACA Historian & Board of Director Member #6571L
March 31, 2009
Offline
Bert, I have basically the same list. I’m sure you have the ones by New Haven Arms started in 1863/5 too. Maverick has a long list of catalogs that are not in the 12 Volume set.
What are the titles for Catalogs 1 through 38?
April 15, 2005
Offline
Chuck said
What are the titles for Catalogs 1 through 38?
I do not have that information. My Winchester catalog collection begins with No. 39 in the year 1885 (coincident with the introduction of the Single Shot model).
WACA Historian & Board of Director Member #6571L
March 31, 2009
Offline
Bert H. said
Chuck said
What are the titles for Catalogs 1 through 38?
I do not have that information. My Winchester catalog collection begins with No. 39 in the year 1885 (coincident with the introduction of the Single Shot model).
Why does that not surprise me.
Is this catalog actually marked #39? The earliest I’ve seen is #43. June 1887, Arms and Ammo. There are many Win Catalogs that are not marked.
April 15, 2005
Offline
Chuck said
Bert H. said
Chuck said
What are the titles for Catalogs 1 through 38?
I do not have that information. My Winchester catalog collection begins with No. 39 in the year 1885 (coincident with the introduction of the Single Shot model).
Why does that not surprise me. Is this catalog actually marked #39? The earliest I’ve seen is #43. June 1887, Arms and Ammo. There are many Win Catalogs that are not marked.
I will have to dig it out of the pile and look at it.
WACA Historian & Board of Director Member #6571L
