WWI & WWII Model 1897/97 Trench Gun Production dates??
Avatar
Bert H.
Kingston, WA
Admin
Forum Posts: 14812
Member Since:
April 15, 2005
sp_UserOfflineSmall Offline
21
March 20, 2023 - 3:57 pm
sp_Permalink sp_Print

Collector Tim said
Bert H. said rnTom,rnrnUnfortunately you have a pair of Fake Trench Guns.  rnrn1. S/N 733016 – manufactured August 1920… well after WW I ended.rnrn2. S/N 805934 – manufactured November 1925… way before WW II began.rnrnWW I Trench Guns were manufactured in the 669000 – 705300 serial range.rnrnWW II Trench Guns were manufactured in the 919600 – 960000 serial range.rnrn rnrnBertrn  rnHi Bert (and others). Just wondering what you consider the best source for serial number dates?  The above ranges don’t seem to match the only source I found so far, which is: https://wheelergunworks.weebly.com/uploads/4/2/7/2/42723859/winchester_1897_shotgun_dates.pdfrnMany thanks. rnTimrn



The serial numbers and dates that I have mentioned were derived from the actual records at the Cody Firearms Museum records office.  98% of the information you will find on the internet is bogus (erroneous), including the website you mentioned.

WACA Historian & Board of Director Member #6571L

Avatar
ERunyon
New Member
WACA Guest
Forum Posts: 2
Member Since:
June 28, 2023
sp_UserOfflineSmall Offline
22
June 28, 2023 - 12:21 am
sp_Permalink sp_Print

Hi all, new here so please bear with me. I’ve received from my fathers extensive collection, a Winchester Model 97 12ga 2 3/4 marked FULL and serial number 935828. It has the US stamp and a flaming bomb stamp on the receiver. Based on my quick research of the serial number only as well as reading here (thank goodness for fellow history buffs!), it appears to be a 1942 manufactured military riot shotgun. Am I correct?

The gun is in good condition, has some patina to it. Thanks in advance!

Avatar
Bert H.
Kingston, WA
Admin
Forum Posts: 14812
Member Since:
April 15, 2005
sp_UserOfflineSmall Offline
23
June 28, 2023 - 6:12 am
sp_Permalink sp_Print

How long is the barrel? A “FULL” marked barrel does not indicate that it is a Riot Gun. Instead, it would be a standard gun.

Can you send pictures of the gun that clearly show the factory markings on the barrel?

Bert – [email protected]

WACA Historian & Board of Director Member #6571L

Avatar
ERunyon
New Member
WACA Guest
Forum Posts: 2
Member Since:
June 28, 2023
sp_UserOfflineSmall Offline
24
June 29, 2023 - 1:50 am
sp_Permalink sp_Print

Bert H. said
How long is the barrel? A “FULL” marked barrel does not indicate that it is a Riot Gun. Instead, it would be a standard gun.

Can you send pictures of the gun that clearly show the factory markings on the barrel?

Bert – [email protected]



28 3/4 inch from tip to receiver. Just sent you pictures of the markings, serial number (E series, apparently?) and the stamp and flaming bomb. Hopefully that helps.

Avatar
G. Anders
Guest
Guests
25
November 22, 2023 - 4:04 am
sp_Permalink sp_Print

Hello, I just watched the “Over There” documentaries Parts 1 – 7 and you can see the Winchester 1897 with the 28 inch barrel being used. I don’t know if that was only in the beginning of WWI, until the trench gun “set up” was fielded.

Avatar
Akshay Singh
Guest
Guests
26
August 13, 2024 - 6:17 pm
sp_Permalink sp_Print

Hi, I have a trench gun with the serial number E 905129. It was probably bought from the army surplus stock after WW II in India. It’s in good condition, so may not have been issued for deployment in the war.
It’s marked CYL and has a WP stamp on top of the barrel and receiver, and just a W below the receiver. Will be glad to know about when it was made. Thanks

Avatar
Bert H.
Kingston, WA
Admin
Forum Posts: 14812
Member Since:
April 15, 2005
sp_UserOfflineSmall Offline
27
August 13, 2024 - 8:47 pm
sp_Permalink sp_Print

Akshay Singh said
Hi, I have a trench gun with the serial number E 905129. It was probably bought from the army surplus stock after WW II in India. It’s in good condition, so may not have been issued for deployment in the war.

It’s marked CYL and has a WP stamp on top of the barrel and receiver, and just a W below the receiver. Will be glad to know about when it was made. Thanks

The serial number identifies it as a June 1938 production Model 97, which is nearly 3-years too early for an authentic WW II Trench Gun.  I suspect that someone took what was originally a standard Riot Gun and converted it to a “Trench” Gun (which would account for its good condition).  In your shoes, I would inspect the bottom of the barrel and verify the 2-digit year number stamped on the barrel.

Bert

WACA Historian & Board of Director Member #6571L

Avatar
Russell G
New Member
WACA Guest
Forum Posts: 1
Member Since:
May 7, 2026
sp_UserOfflineSmall Offline
28
May 7, 2026 - 5:40 pm
sp_Permalink sp_Print

I have a model 1897 Trench Gun Serial #625900 in great shape regional blue looks great no rust or pits. I had the barrel shorten to use in western SSAS matches but not to the point it’s illegal. Gun works great in the way we use them for matches do to the ability to hold the trigger pump firer the gun.

Avatar
Rd1953
New Member
WACA Guest
Forum Posts: 2
Member Since:
August 16, 2026
sp_UserOfflineSmall Offline
29
August 16, 2026 - 6:27 am
sp_Permalink sp_Print

Hello,

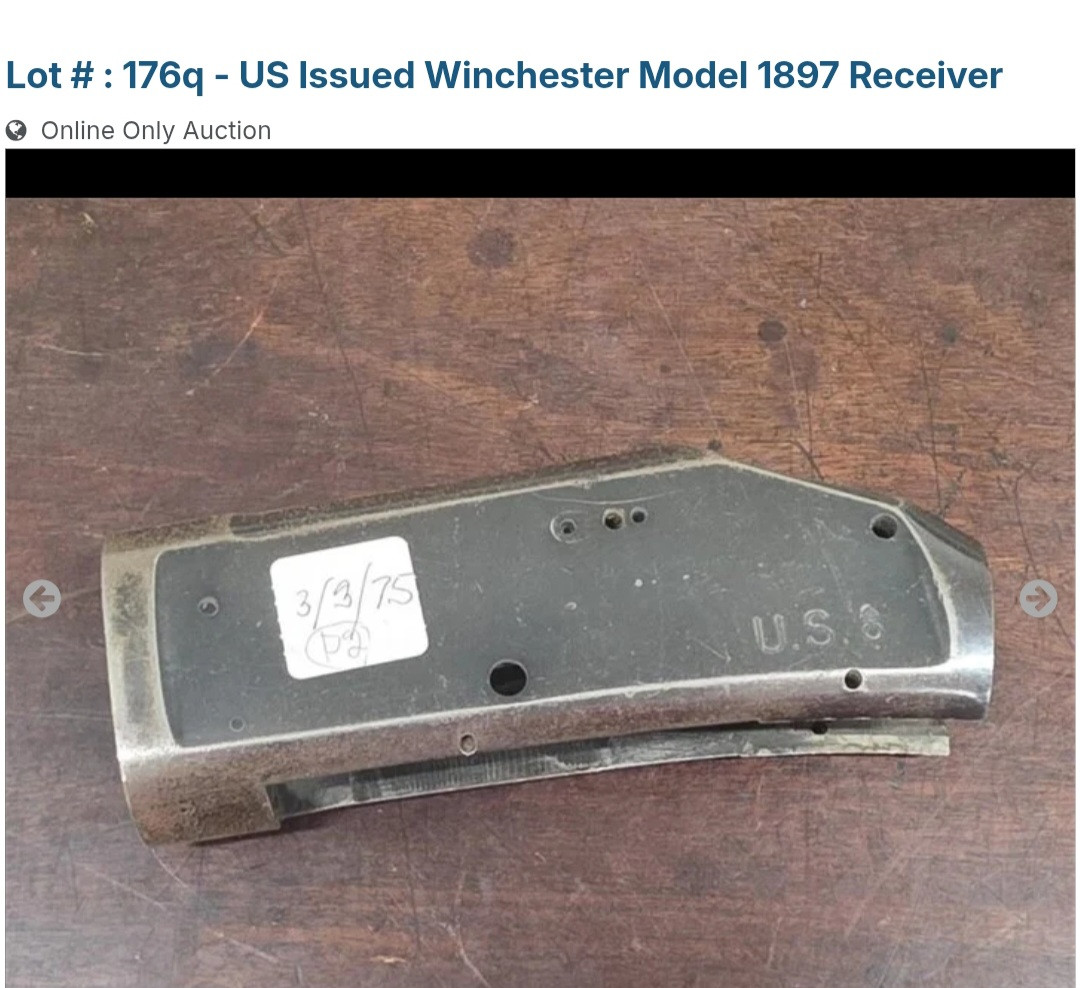

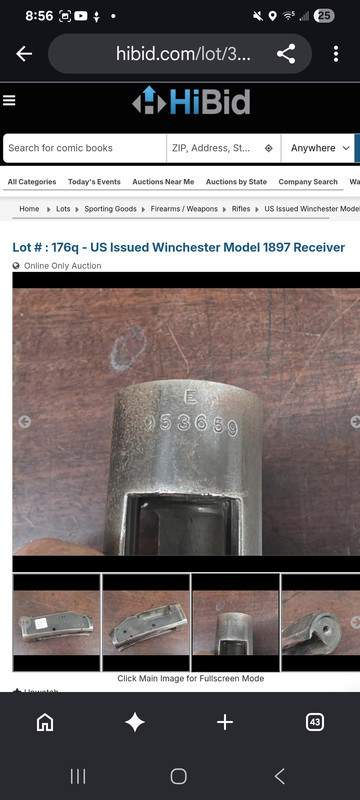

I aqquried a model 97 Winchester receiver serial number E953659. The receiver is in the white. I have a 1942 97 that I was thinking of using as a donor for a clone as I doubt I could find original parts. The cost for a finished clone would be about $2500. Any reccomendations on a project such as this? https://i.postimg.cc/brqKhCDH/Screenshot-20260810-205535-Chrome.jpg

https://i.postimg.cc/KvzHDgnX/Screenshot-20260810-205632-Chrome.jpg

Avatar
Bert H.
Kingston, WA
Admin
Forum Posts: 14812
Member Since:
April 15, 2005
sp_UserOfflineSmall Offline
30
August 16, 2026 - 6:50 am
sp_Permalink sp_Print

Rd1953 said
Hello,
I aqquried a model 97 Winchester receiver serial number E953659. The receiver is in the white. I have a 1942 97 that I was thinking of using as a donor for a clone as I doubt I could find original parts. The cost for a finished clone would be about $2500. Any reccomendations on a project such as this?



The receiver frame you have with S/N 953659 was most likely originally a WW II Trench Gun, and it is actually not “in the white”.  It still has approximately 70% of the factory bluing still on it.  Per the factory records, it was manufactured in February 1943.

Bert

WACA Historian & Board of Director Member #6571L

Avatar
Rd1953
New Member
WACA Guest
Forum Posts: 2
Member Since:
August 16, 2026
sp_UserOfflineSmall Offline
31
August 16, 2026 - 7:01 am
sp_Permalink sp_Print

Thank you Bert for the confirmation. Other than using it for a conversation piece I will use it for a trench gun clone. I think that would be the best use of the receiver and I can enjoy a 97 trench gun. Roger

Avatar
Nodrog
Member
WACA Member
Forum Posts: 7
Member Since:
September 20, 2026
sp_UserOfflineSmall Offline
32
September 20, 2026 - 3:30 am
sp_Permalink sp_Print

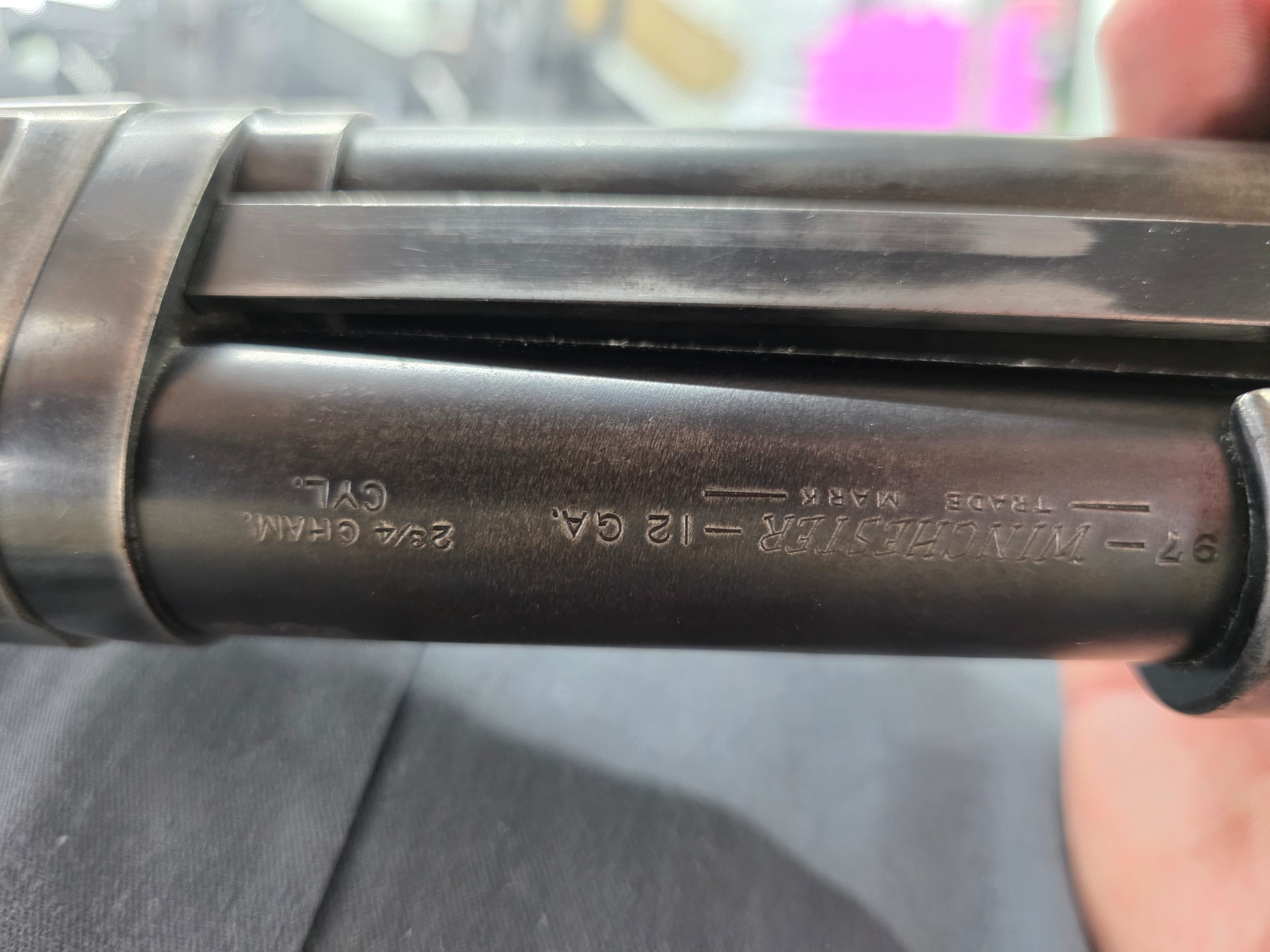

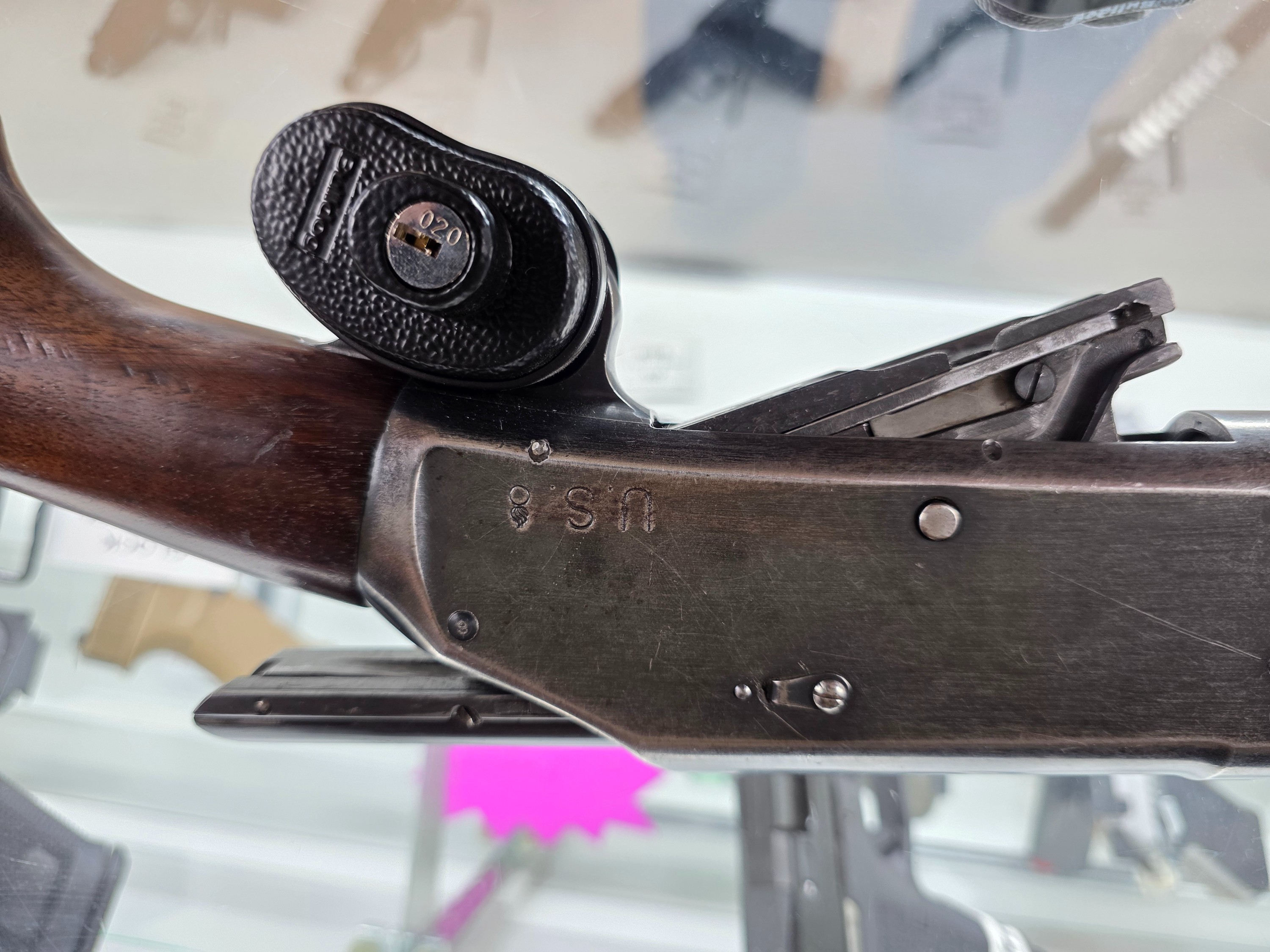

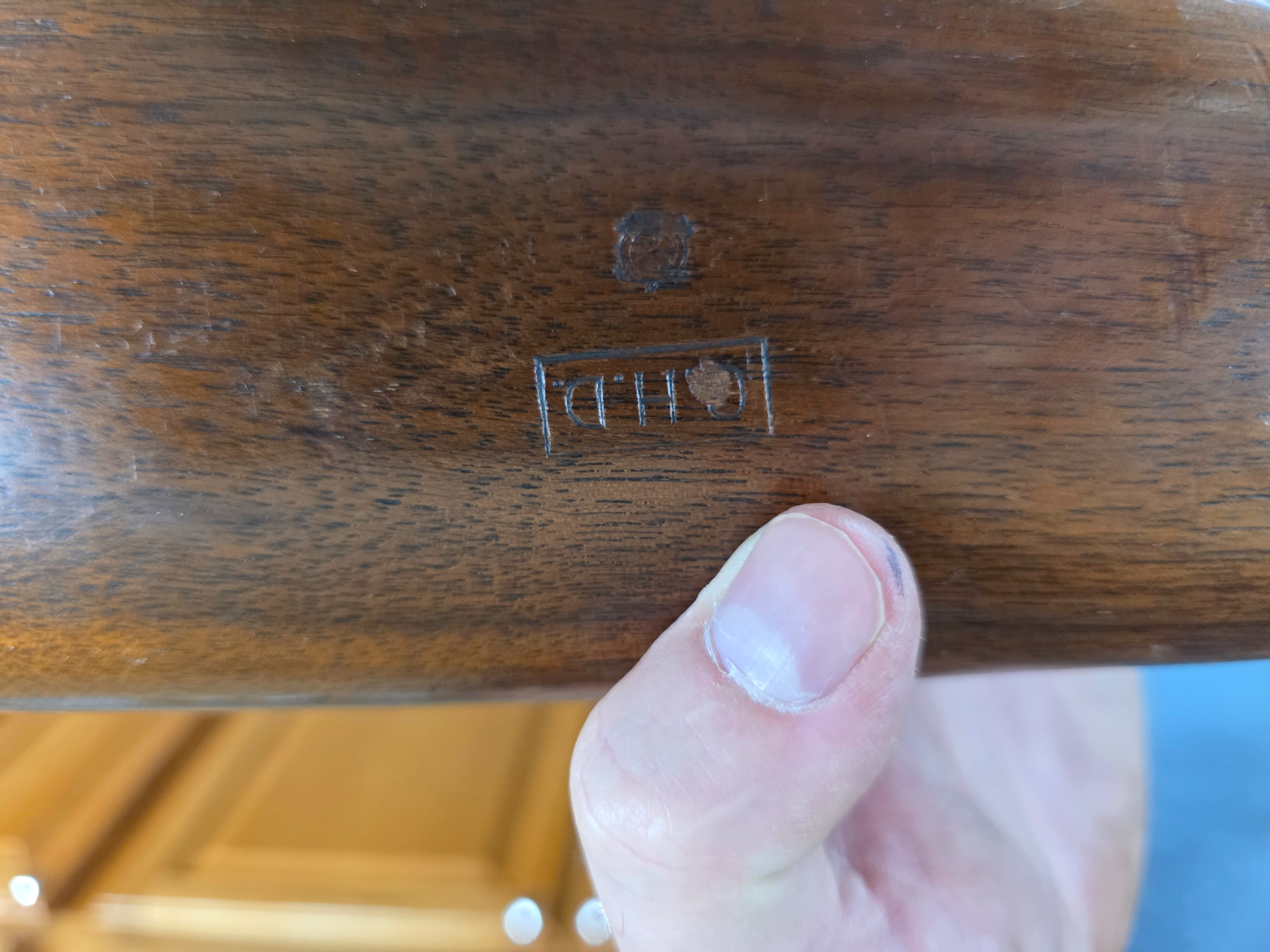

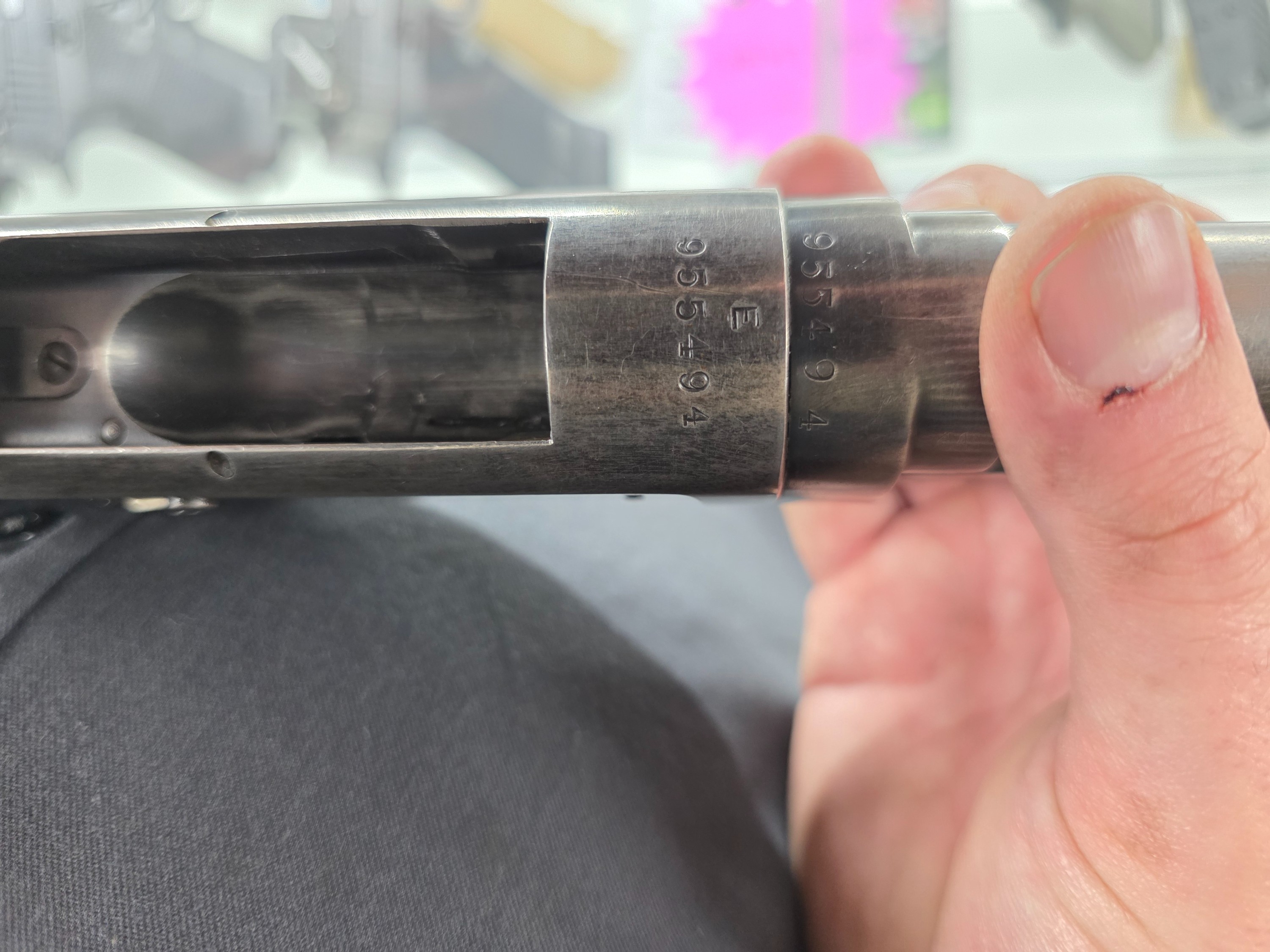

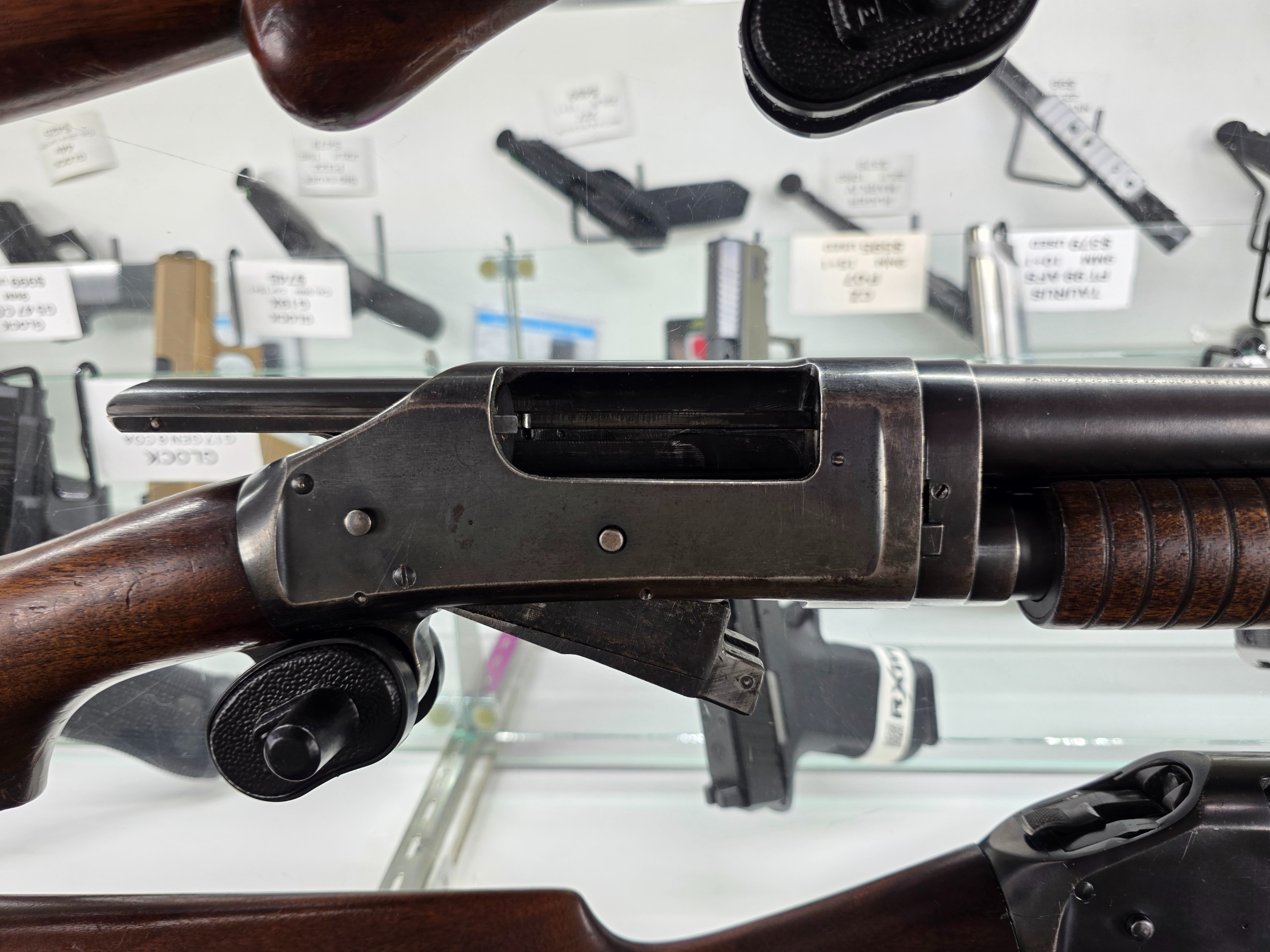

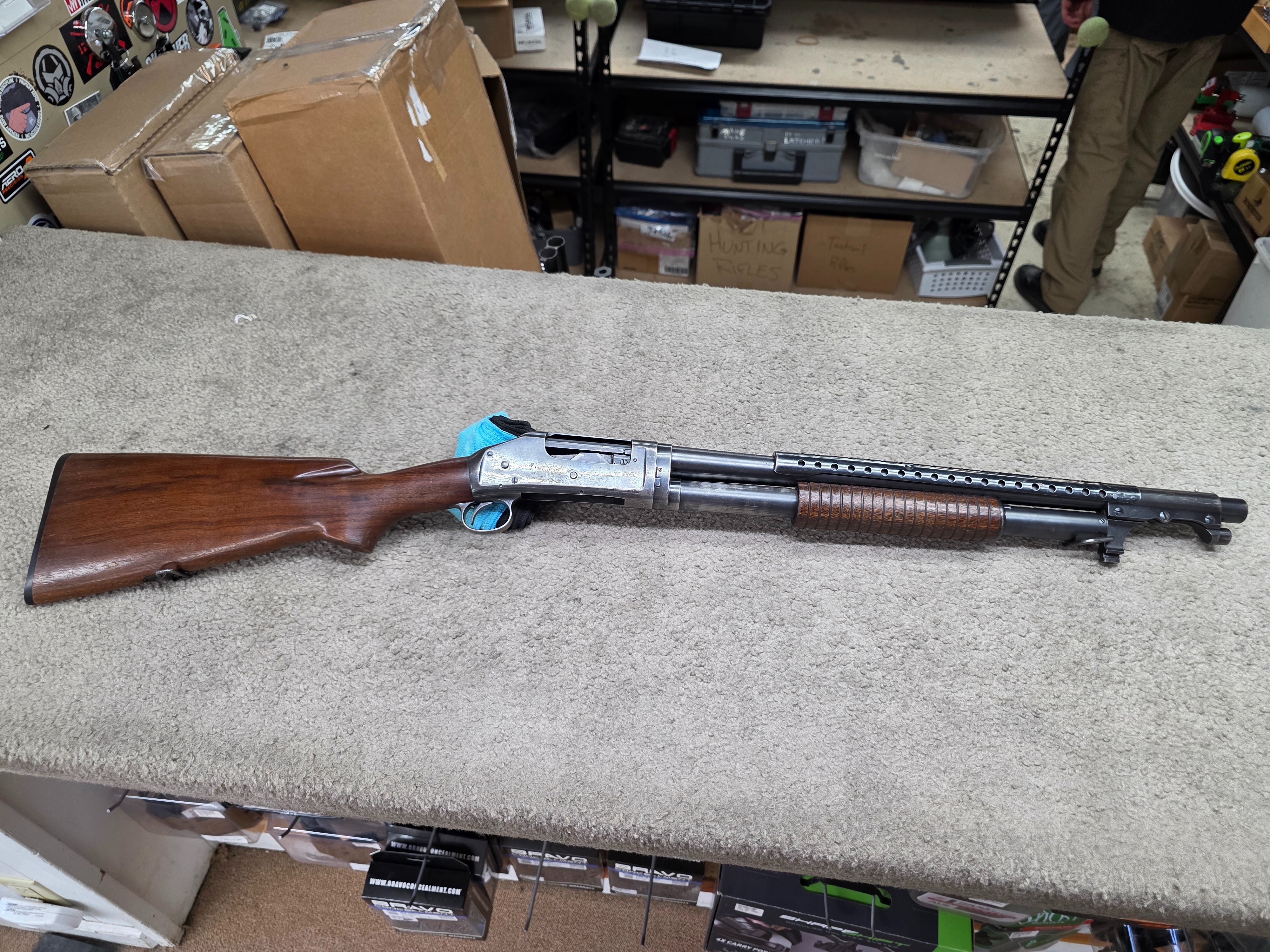

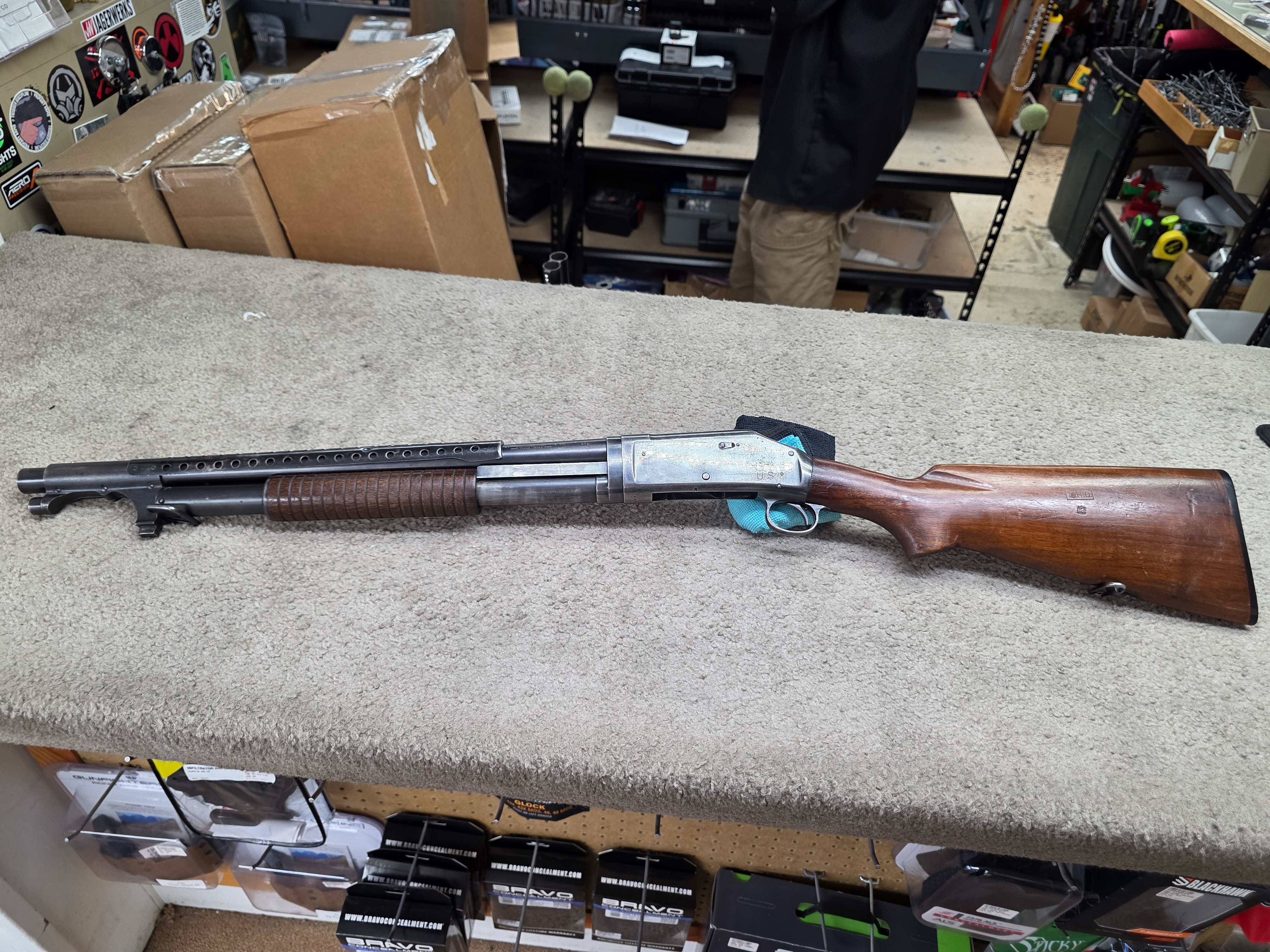

I am looking at purchasing what is supposed to be a Winchester 1897 trench gun. The serial number is E955494. I have pictures that I will post. I would like help verifying it before I purchase it. Thanks!

Avatar
Nodrog
Member
WACA Member
Forum Posts: 7
Member Since:
September 20, 2026
sp_UserOfflineSmall Offline
33
September 20, 2026 - 4:20 am
sp_Permalink sp_Print sp_EditHistory
Avatar
Bert H.
Kingston, WA
Admin
Forum Posts: 14812
Member Since:
April 15, 2005
sp_UserOfflineSmall Offline
34
September 20, 2026 - 7:58 am
sp_Permalink sp_Print

Nodrog said



It appears to be an authentic 1943 production Model 97 Trench Gun.

Bert

WACA Historian & Board of Director Member #6571L

Avatar
Nodrog
Member
WACA Member
Forum Posts: 7
Member Since:
September 20, 2026
sp_UserOfflineSmall Offline
35
September 20, 2026 - 5:45 pm
sp_Permalink sp_Print

Thank you Bert for your help!  Can you give me a ball park price range based on the pictures?

Avatar
Bert H.
Kingston, WA
Admin
Forum Posts: 14812
Member Since:
April 15, 2005
sp_UserOfflineSmall Offline
36
September 20, 2026 - 5:53 pm
sp_Permalink sp_Print

Nodrog said
Thank you Bert for your help!  Can you give me a ball park price range based on the pictures?


$4,500 – $6,000

WACA Historian & Board of Director Member #6571L

Avatar
Nodrog
Member
WACA Member
Forum Posts: 7
Member Since:
September 20, 2026
sp_UserOfflineSmall Offline
37
September 20, 2026 - 6:48 pm
sp_Permalink sp_Print

Bert H. said

Nodrog said
Thank you Bert for your help!  Can you give me a ball park price range based on the pictures?


$4,500 – $6,000


Thank you, I am looking forward to buying it now. Any good books you could recommend would be appreciated. Have a good day!

Avatar
Tom D
Member
WACA Guest
Forum Posts: 134
Member Since:
November 26, 2014
sp_UserOfflineSmall Offline
38
September 20, 2026 - 6:50 pm
sp_Permalink sp_Print

 Nodrog, does the trench gun have a plugged front bead sight on the barrel?

Avatar
Bert H.
Kingston, WA
Admin
Forum Posts: 14812
Member Since:
April 15, 2005
sp_UserOfflineSmall Offline
39
September 20, 2026 - 7:12 pm
sp_Permalink sp_Print

Nodrog said

Bert H. said

Nodrog said
Thank you Bert for your help!  Can you give me a ball park price range based on the pictures?


$4,500 – $6,000


Thank you, I am looking forward to buying it now. Any good books you could recommend would be appreciated. Have a good day!


Bruce N. Canfield’s Complete Guide to United States Military Combat Shotguns: Bruce N. Canfield: 9781931464284: Amazon.com: Books

WACA Historian & Board of Director Member #6571L

Avatar
Bill Hanzel
Ohio
Member
WACA Member
Forum Posts: 468
Member Since:
May 26, 2017
sp_UserOfflineSmall Offline
40
September 21, 2026 - 2:01 am
sp_Permalink sp_Print

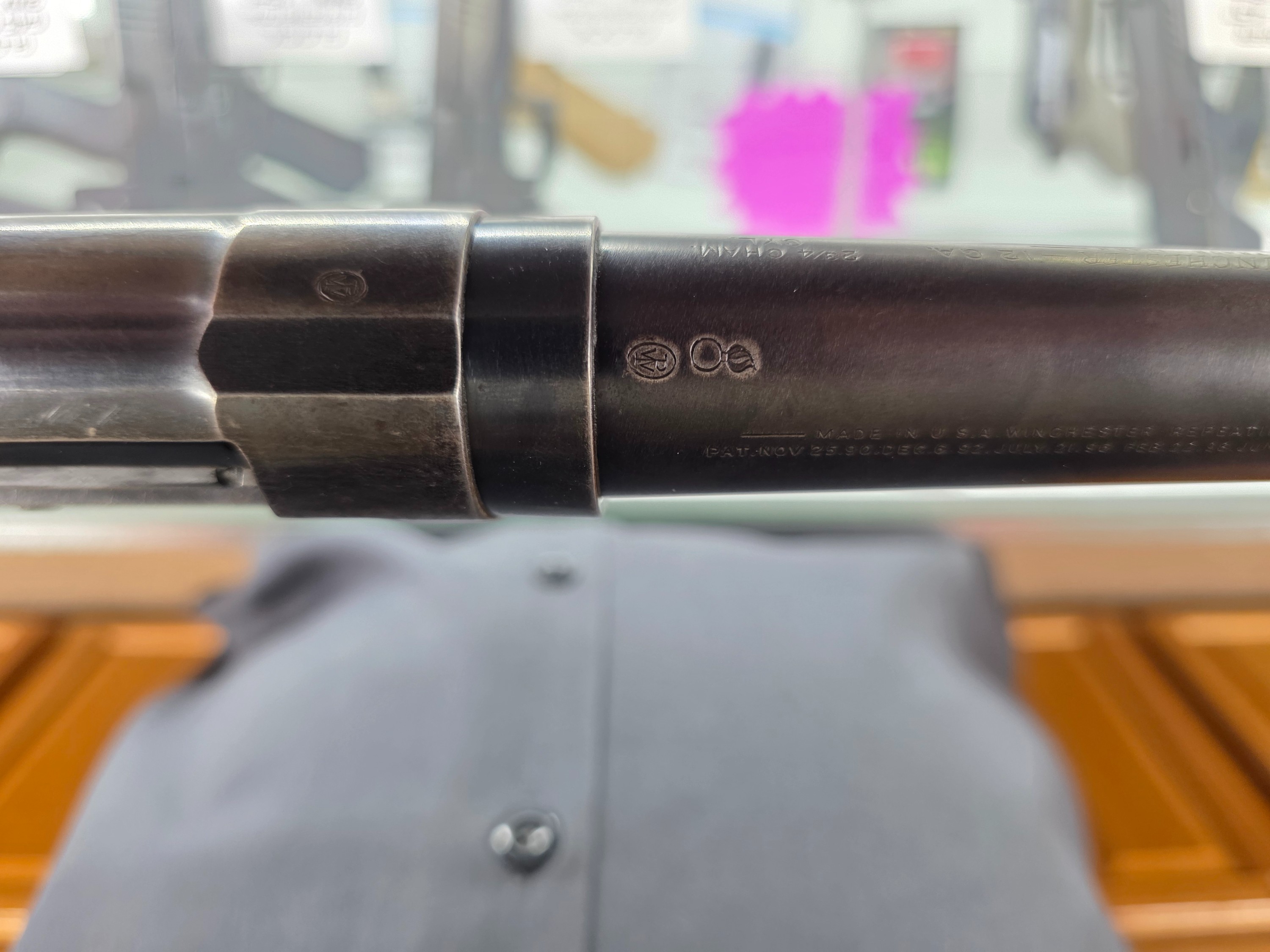

I am no expert but the flames on the barrel flaming bomb look odd
