.257 bullets for stability in a 1-14 twist barrel
Avatar
Zebulon
Texas
Member
WACA Member
Forum Posts: 2031
Member Since:
January 20, 2023
sp_UserOfflineSmall Offline
1
May 26, 2026 - 12:32 am
sp_Permalink sp_Print

I’m about to start loading .250-3000 ammunition again – but this time for shooting in a 1-14 twist, 24″ barrel instead of a 1-10 twist, 18.5″ barrel.  While higher velocities will be possible with 5.5″ more barrel, the slower twist was of concern. My preferred game bullet has been the 100 grain Nosler Partition or Ballistic Tip, or the 100 grain Hornady Spire Point.

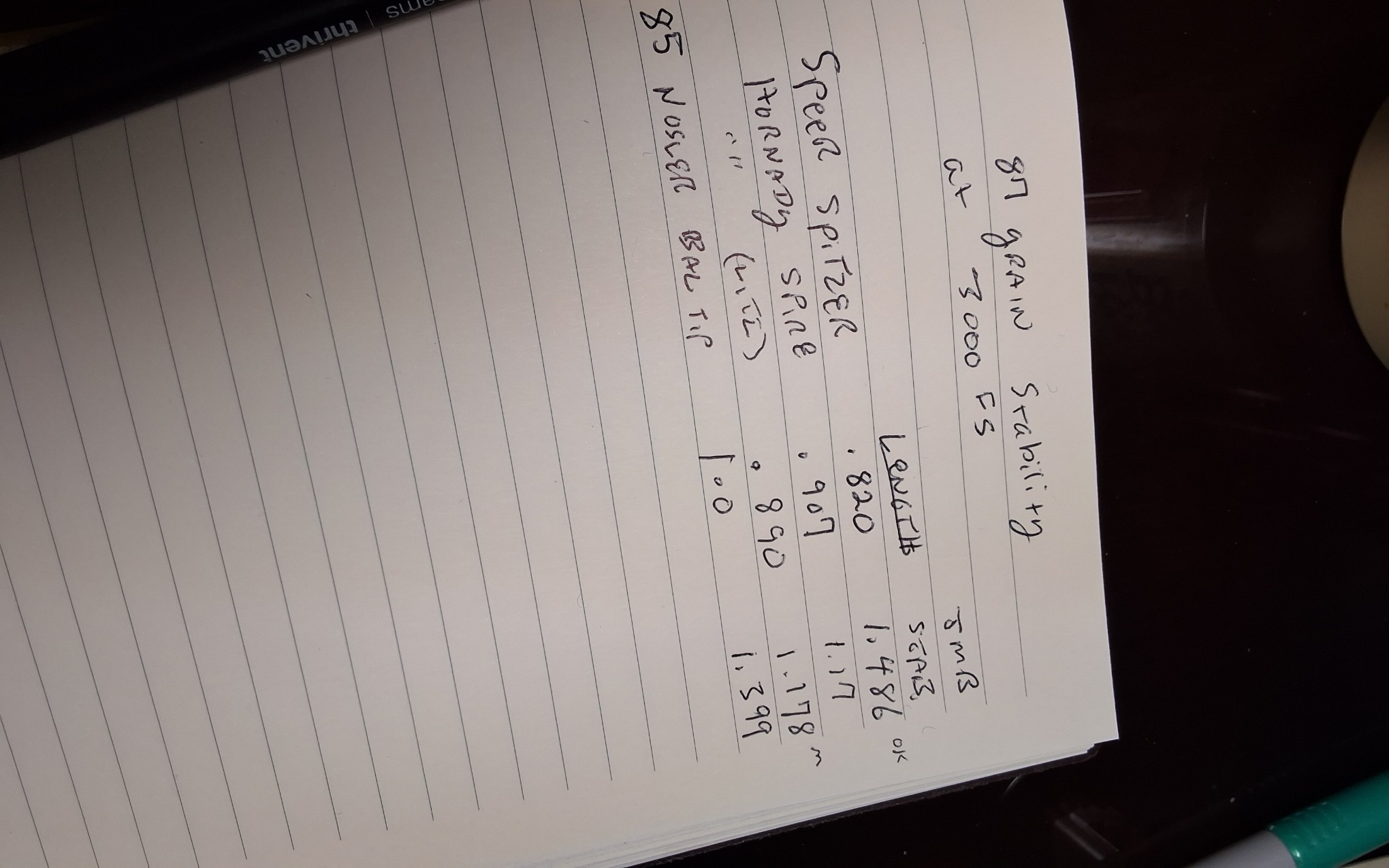

According to JMB’S Web engine for running Miller calculations,  NONE of those can reach stability at an assumed 3,000 foot seconds muzzle velocity, on a Standard Day.

After running repeated calculations with slight changes in projectile length, it appears there are surprisingly few game bullets in current manufacture — all in the 85-87 grain weight range — that will reach the Miller standard for gyroscopic stability.

Surprisingly, while the Speer 87 grain spitzer qualifies,  the Hornady 87 grain Spire Point is marginal. Nosler’s 85 grain Ballistic Tip – which they classify as a varmint bullet — qualifies, although I haven’t got one in hand and may have overstated the length of the plastic tip. 20260525_170228.jpg

sp_PlupAttachments Attachments

- Bill



WACA # 65205; life member, NRA; member, TGCA; member, TSRA; amateur preservationist

"I have seen wicked men and fools, a great many of both, and I believe they both get paid in the end, but the fools first." -- David Balfour, narrator and protagonist of the novel, Kidnapped, by Robert Louis Stevenson.

Avatar
Bert H.
Kingston, WA
Admin
Forum Posts: 14263
Member Since:
April 15, 2005
sp_UserOnlineSmall Online
2
May 26, 2026 - 3:21 am
sp_Permalink sp_Print sp_EditHistory

Bill,

First question… what specifically do you intend to shoot with your 250-3000 (e.g. whitetail deer or something else)?

Second question… at what range (distance) do you intend to shoot it?

I have found that the Sierra 70-grain .257 JSP bullet shoots wonderfully in my 1:14 twist 25-20 S.S.  With careful placed head (ear) or neck shots, it will cleanly kill any deer sized critter.  My Single Shot (low-wall) rifle with its 28-inch barrel likes 12.0 grains of IMR 4198 underneath the Sierra 70 grain JSP bullet.

25 CAL 70 GR Tipped VarmintKing (TVK) – Sierra Bullets

That stated, if I were to specifically hunt deer with a 250-3000 I would probably choose the 75 grain Hornady V-Max bullet.

This link provides some interesting background information concerning the 250-3000 cartridge – .250-3000/.250 Savage (ballisticstudies.com)

Bert

WACA Historian & Board of Director Member #6571L

Avatar
tim tomlinson
Member
WACA Member
Forum Posts: 1131
Member Since:
September 19, 2014
sp_UserOfflineSmall Offline
3
May 26, 2026 - 6:00 am
sp_Permalink sp_Print

Zeb, I’ve been known to cheat a bit and recommend such to you now.  First compare bullets by Berger  with what you wish to use as to length.  Then go  on the Berger website and they have charts for stability of their bullet.  Slow twist can be pushed a bit faster to gain stability to longer yardages.  My bench rifle is in 6mmPPC and has a 1 in 13 twist rate.  It will stabilize at least a 70 gr BTHP Match sierra to  300 yards (farthest for rifles on our ranges).  The 90 gr Berger is marginal at best if pushed on velocity if I recall correctly.   Next, the 300 gr all  copper Barnes spire point in .411 diameter will stabilize to 200 yards in a factory, original 1895 Winchester in .405, but is wildly unstable  at 300 yards.  They are already pushed to their practical max of 2200 fps.  All this is taken on warm days at 700 ft elevation.  Higher elevations allow a bit longer or a bit slower bullets.  Their chart is of course for their bullets, but you can gain insights.  Please also consider Berger uses a longer, more tapered ogive, but overall length takes that in account I THINK.  Try bullets at your range and see.  Warm or hot weather thins the air and allows more stability, similar to higher elevations.  Tim

Avatar
Zebulon
Texas
Member
WACA Member
Forum Posts: 2031
Member Since:
January 20, 2023
sp_UserOfflineSmall Offline
4
May 26, 2026 - 1:01 pm
sp_Permalink sp_Print

Gentlemen,  Thank you both for your useful suggestions.

Bert, nothing larger or tougher than our Whitetail deer – and very likely a doe or, if I had my druthers, a fat, young spike.buck. In short, something for the skillet.

The rifle in question will be tang sighted,  so 200 yards would be a long shot for me at an unwounded animal.

Our club is fortunate to have a couple of 200 yard rifle positions, so I should be able to see if I can still hit a target at that range and whether it goes through the paper sideways or point forward.

Tim,  you’re right to say Graf & Son are the good guys. They had a supply of Hornady brass, the Redding dies I like, and a box of good old, low tech Speer 87 grain spitzers to start off with.

Bert, let me amend my list to include any unlucky Rio Grande gobbler (or hen in Fall, in some counties) that might wander by. For which I need to make up a couple of turkey loads to keep in a pocket. I’ve still got enough 4759 and may have a few 85 grain lead or JFP lying around.

Years ago, in the Eighties, Texas had its first Spring Rio season and I had to borrow a rifle from a serious hunter/reloader friend. A 243 for which he said he’d put up some “turkey loads”. I was a guest on a lease in the Cross Timbers that had flocks of Rios in the hundreds of birds. Beginner’s luck, or a retarded bird, I called up a 22 pound gobbler and nailed him.through the big middle at about 30 yards. My friend’s turkey loads were frangible 80 grain over a big dose of 4350 and it not only killed the tom but field dressed him. It left the breast meat untouched but I didn’t photograph what was left for the books. Ive never borrowed ammunition since.

- Bill



WACA # 65205; life member, NRA; member, TGCA; member, TSRA; amateur preservationist

"I have seen wicked men and fools, a great many of both, and I believe they both get paid in the end, but the fools first." -- David Balfour, narrator and protagonist of the novel, Kidnapped, by Robert Louis Stevenson.

Avatar
Bo Rich
Ohio
Member
WACA Member
Forum Posts: 248
Member Since:
August 8, 2024
sp_UserOfflineSmall Offline
5
May 26, 2026 - 1:22 pm
sp_Permalink sp_Print

Zebulon,  My Model 70, a Transition .250/3000 Standard grade rifle would shot 100 grain bullets  accurately.  I even shot some decent groups with 117 grain Sierras!  I can push them a little faster out of my Model 70!  Now, my Model 99 R also with a 24 inch barrel, and the same twist as the Model 70.  However it does not shoot 100 grain bullets very accurately.  I think it is because I keep the pressure a bit lower when I load for the Model 99. If you can get 3,000 FPS with a 100 grain bullet accuracy will improve.  I use the 87 grain bullet out of my Savage 99 R.  Very accurate, and plenty of power for a White tail deer.

Avatar
Zebulon
Texas
Member
WACA Member
Forum Posts: 2031
Member Since:
January 20, 2023
sp_UserOfflineSmall Offline
6
May 26, 2026 - 3:31 pm
sp_Permalink sp_Print

Good morning, Bo. Thanks for the information.  Because the caliber in pre-64 Model 70s is hard to get, I’ve had no experience with it and assumed the 250 version had  a 1-10 twist, not 1-14.

While the Savage action is stout, I don’t think they heat treated them for +50k psi until the company started chambering for 243 and 308, late in life. My EG was made in ’47 and has condition.

While I’ve seen people push Ruger 77s to 3000 fs with 100 grain bullets,  I never felt the need. (Actually, mine was reamed with a short chamber and I got hard bolt lift with far less Olin 760 than I saw published in reputable manuals.)

If I can get a Speer cup-and-core 87 grain spitzer up to 3000 with traditional pressures, that would serve all my needs for the gun.

My varminting needs are served by a 1948 Model 70 that was customized with a heavy 26″ SAKO 22-250 barrel and fitted with a post-’53 Supergrade stock, by H. H. Nagel of San Antonio. Like a Heinz 57 hound, it has no pedigree but it hunts.

- Bill



WACA # 65205; life member, NRA; member, TGCA; member, TSRA; amateur preservationist

"I have seen wicked men and fools, a great many of both, and I believe they both get paid in the end, but the fools first." -- David Balfour, narrator and protagonist of the novel, Kidnapped, by Robert Louis Stevenson.

Avatar
Bo Rich
Ohio
Member
WACA Member
Forum Posts: 248
Member Since:
August 8, 2024
sp_UserOfflineSmall Offline
7
May 26, 2026 - 6:02 pm
sp_Permalink sp_Print

Zebulon,  The 87 grain Speer bullet at 3000 will serve you very well.  I have talked to  a old timer who told me that he killed deer quicker with a .250/3000, and the 87 grain bullet.  Then He did with the .257 Roberts, and a heavier bullet.  It kinda makes some sense when you think about it.

Avatar
Zebulon
Texas
Member
WACA Member
Forum Posts: 2031
Member Since:
January 20, 2023
sp_UserOfflineSmall Offline
8
May 26, 2026 - 6:25 pm
sp_Permalink sp_Print

It does make sense. I killed.most of my Whitetails with a Ruger 77RSI 250-3000 and all of them dropped like they were electrocuted, but they were all our Texana subspecies in Central Texas, a big one field dressing a hundred pounds.  100 grain stuff, probably not making more than 2600 fs out of thst carbine barrel. Super accurate, though.

Later, when I got the chance to hunt in the South Texas brush country and then got on a lease in the West Texas rolling plains, the deer were giants by comparison and I used a 30/06 with premium Winchester 180 grain Ballistic Silvertip.

Now I just want some good, mild venison,  afternoon hunts in mild weather that don’t tax my arthritis, and a light-kicking, unscoped rifle I can carry all by myself.

My 25/06 days are past me.

- Bill



WACA # 65205; life member, NRA; member, TGCA; member, TSRA; amateur preservationist

"I have seen wicked men and fools, a great many of both, and I believe they both get paid in the end, but the fools first." -- David Balfour, narrator and protagonist of the novel, Kidnapped, by Robert Louis Stevenson.

Avatar
Louis Luttrell
Winchester, VA
Member
WACA Member
Forum Posts: 1448
Member Since:
November 5, 2014
sp_UserOfflineSmall Offline
9
May 26, 2026 - 10:09 pm
sp_Permalink sp_Print sp_EditHistory

Zebulon said
Good morning, Bo. Thanks for the information.  Because the caliber in pre-64 Model 70s is hard to get, I’ve had no experience with it and assumed the 250 version had  a 1-10 twist, not 1-14.

Hi Zeb-

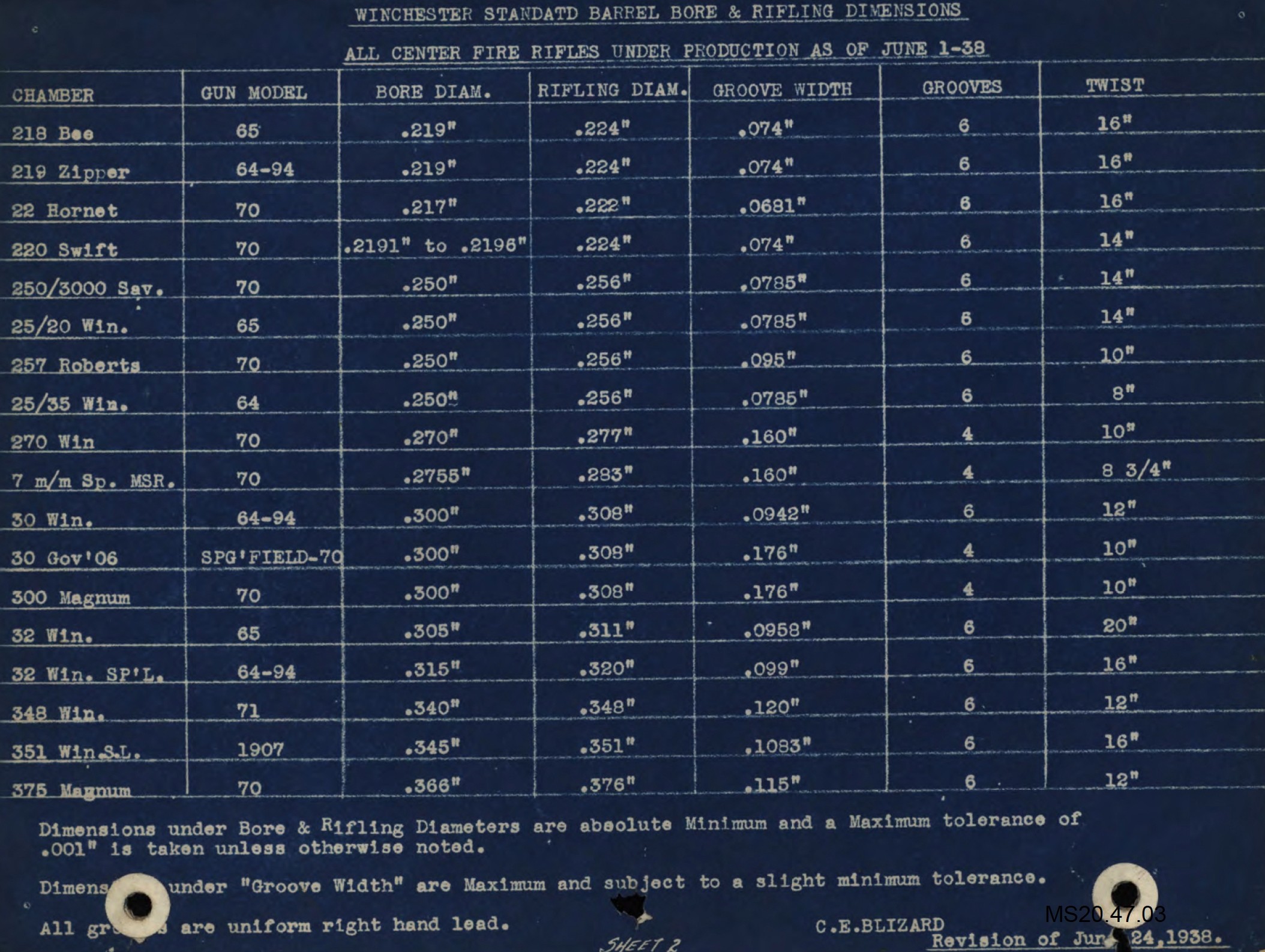

Just for your reference, this 1938 blueprint shows the bore specs for Winchester’s Models 54 and 70 in 250-3000 Savage.  One in 14″ twist. They didn’t change it before dropping the chambering in 1949…


Best,

Lou

sp_PlupAttachments Attachments

WACA 9519; Studying Pre-64 Model 70 Winchesters


Avatar
Chuck
Member
WACA Member
Forum Posts: 6676
Member Since:
March 31, 2009
sp_UserOfflineSmall Offline
10
May 26, 2026 - 11:47 pm
sp_Permalink sp_Print

I have no experience with this caliber.  Have any of you tried a flat base bullet?  These have more sidewall to grab the rifling.  These helped me stabilize a couple of bullets.

Avatar
Zebulon
Texas
Member
WACA Member
Forum Posts: 2031
Member Since:
January 20, 2023
sp_UserOfflineSmall Offline
11
May 27, 2026 - 1:20 am
sp_Permalink sp_Print

Louis Luttrell said

Zebulon said
Good morning, Bo. Thanks for the information.  Because the caliber in pre-64 Model 70s is hard to get, I’ve had no experience with it and assumed the 250 version had  a 1-10 twist, not 1-14.

Hi Zeb-
Just for your reference, this 1938 blueprint shows the bore specs for Winchester’s Models 54 and 70 in 250-3000 Savage.  One in 14″ twist. They didn’t change it before dropping the chambering in 1949…

Best,
Lou


How did I know you would be along with the Horse’s Mouth chart?  You’re a much better resource than Gemini because Gemini doesn’t have all your stuff. Thanks, once again.

- Bill



WACA # 65205; life member, NRA; member, TGCA; member, TSRA; amateur preservationist

"I have seen wicked men and fools, a great many of both, and I believe they both get paid in the end, but the fools first." -- David Balfour, narrator and protagonist of the novel, Kidnapped, by Robert Louis Stevenson.

Avatar
Zebulon
Texas
Member
WACA Member
Forum Posts: 2031
Member Since:
January 20, 2023
sp_UserOfflineSmall Offline
12
May 27, 2026 - 2:30 am
sp_Permalink sp_Print

Chuck said
I have no experience with this caliber.  Have any of you tried a flat base bullet?  These have more sidewall to grab the rifling.  These helped me stabilize a couple of bullets.


Chuck,  The prior experience I’ve had with the 250-3000 Savage cartridge is fairly long but narrow. I loaded, shot, and hunted with only one rifle so chambered but did so quite a lot.  My little full-stocked carbine had a 1-10 twist barrel, which would stabilize any .257 bullet from 60 grains all the way up to 120 grains, although the case ran short of powder capacity for anything over 100 grains, which I mostly used. I will say I did not load boattail bullets, as a rule.

That rifle is the reason I question whether “overstabilization” is a phenomenon of any concern at the rotational velocities developed by practical sporting rifles. The most accurate bullet — the one with which I shot the smallest subminute 100 yard groups from benchrest was a 75 grain varmint bullet. Yet 100 grain Silvertip factory ammunition would routinely stay between .85 and 1.15″ when tested at 100 yards, as long as i did my part and didn’t overheat the skinny little barrel. From a 6.5 pound carbine!  Maybe a difference could have been seen at 200+ yards.

The 250 Savage, as popular as it was before the 243 WCF cancelled its ticket (and the 257 Roberts’ ticket as well) was handicapped by the short, (e.g. 20″) slow-twist barrels Savage put on several variations of the Model 99. Winchester adopted the twist along with the cartridge but put it in the Model 70, most of which had the 24″ barrel necessary to get muzzle velocity to 3000 fs. I expect the carbines weren’t shot at very long ranges, enough to draw complaints.

Now that I have access to a 200 yard range, I suppose I could see what it took to destabilize bullets at that distance but … this rifle isn’t tapped for scopes. I’ve got a Marble tang on order, which should reach me the same day the rifle shows up.

It must be my contrarian nature to deal with Forties and Fifties rifles, ammunition, and  issues that have long since been resolved by their modern counterparts — Exhibit A could be the .25 Creedmore. However, in the course of trading a lot of rifles after hunting with them, I’ve killed Whitetailed deer with a 6mm Remington, 243 Winchester, 30 Winchester, 308, 30-06, 270, 280, 7mm magnum, and nothing killed them quicker than the 250 Savage. It had by far the mildest recoil and report and was easy to shoot accurately. That is why I’m drawn back to it.

- Bill



WACA # 65205; life member, NRA; member, TGCA; member, TSRA; amateur preservationist

"I have seen wicked men and fools, a great many of both, and I believe they both get paid in the end, but the fools first." -- David Balfour, narrator and protagonist of the novel, Kidnapped, by Robert Louis Stevenson.

Avatar
Anthony
Member
WACA Member
Forum Posts: 1598
Member Since:
December 9, 2002
sp_UserOfflineSmall Offline
13
May 27, 2026 - 10:41 am
sp_Permalink sp_Print

Lou,

That’s a nice way to inform the masses on Zeb’s question, on the rate of twist, for the .250-3000 caliber, as the factory blue prints you put up, help us to compare the barrel twists with several other calibers.

Very interesting.



Tony

Avatar
Zebulon
Texas
Member
WACA Member
Forum Posts: 2031
Member Since:
January 20, 2023
sp_UserOfflineSmall Offline
14
May 27, 2026 - 1:02 pm
sp_Permalink sp_Print

Morning, Tony.  PM me re the newlyweds, when you get a chance.

Bill

- Bill



WACA # 65205; life member, NRA; member, TGCA; member, TSRA; amateur preservationist

"I have seen wicked men and fools, a great many of both, and I believe they both get paid in the end, but the fools first." -- David Balfour, narrator and protagonist of the novel, Kidnapped, by Robert Louis Stevenson.

Avatar
Louis Luttrell
Winchester, VA
Member
WACA Member
Forum Posts: 1448
Member Since:
November 5, 2014
sp_UserOfflineSmall Offline
15
May 27, 2026 - 4:53 pm
sp_Permalink sp_Print sp_EditHistory

Tony-

That bore specification blueprint is in the McCracken Library on-line digital archives for all the World to see (if you can find it)… Wink

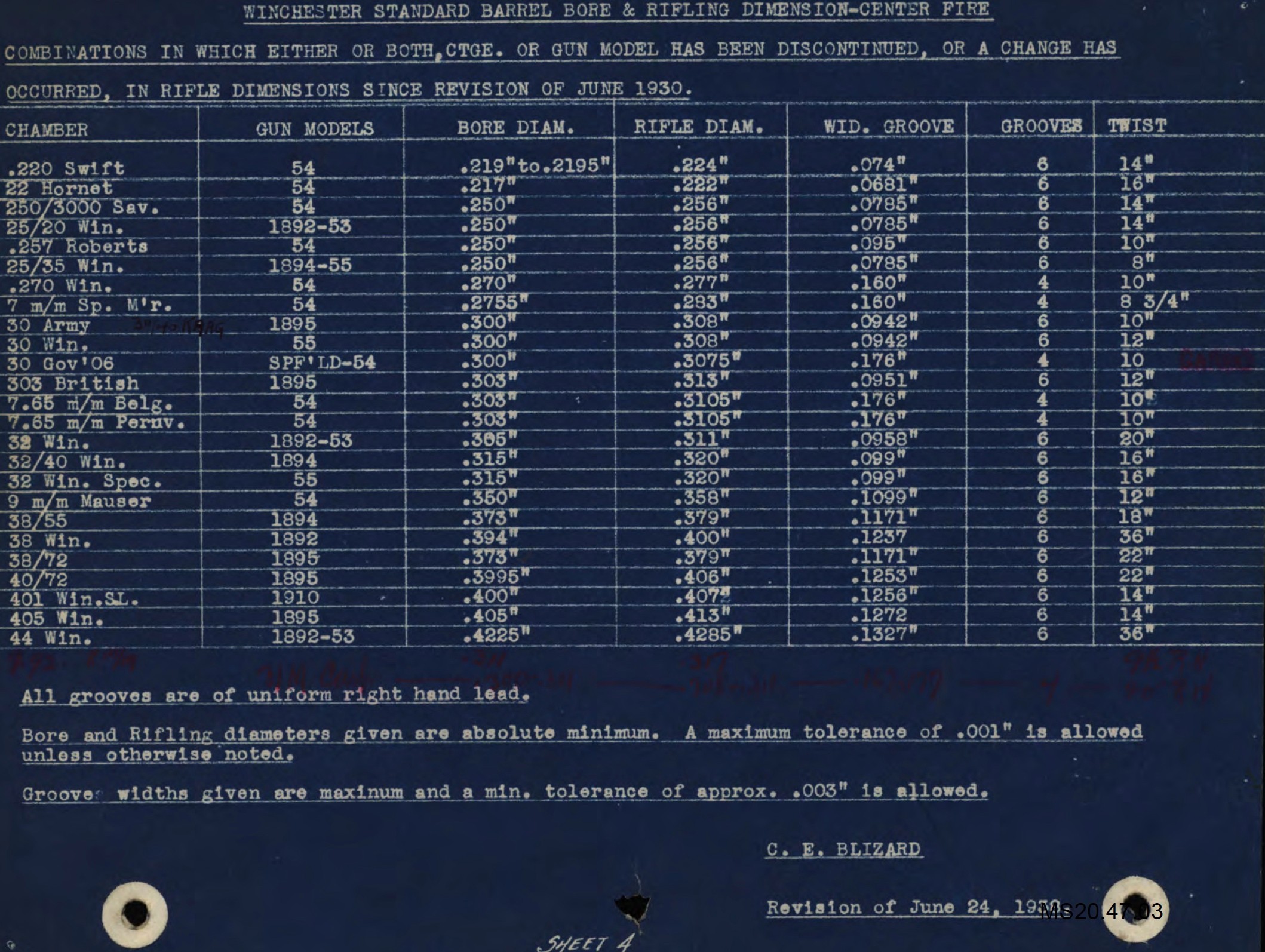

For M54/70 fans, this is an earlier table from 1930 that gives the specs on all the M54 chamberings including the 7.65 M/M and 9 M/M, along with all the other centerfire cartridges Winchester was making barrels for at the time.


Lou

WACA 9519; Studying Pre-64 Model 70 Winchesters


Avatar
Bert H.
Kingston, WA
Admin
Forum Posts: 14263
Member Since:
April 15, 2005
sp_UserOnlineSmall Online
16
May 27, 2026 - 5:01 pm
sp_Permalink sp_Print

Lou,

What is the earliest dated revision of that blueprint drawing?

Bert

WACA Historian & Board of Director Member #6571L

Avatar
Louis Luttrell
Winchester, VA
Member
WACA Member
Forum Posts: 1448
Member Since:
November 5, 2014
sp_UserOfflineSmall Offline
17
May 28, 2026 - 2:35 am
sp_Permalink sp_Print

Hi Bert-

I honestly don’t know…

This came from my trolling the McCracken digital library for M70 related stuff…  I’m sure you noticed that I “oversimplified” my description, as the second pic is actually a 1938 extraction of centerfire calibers that had been discontinued since the 1930 version.  Still it showed the M54 bore specifications from 1930, which is why I posted it…

I wish the McCracken library had the time/personnel to make their holdings useful/accessible… Insofar as I can tell it’s hopeless unless you have the time (and influence) to be permitted to go through the MS20 (WRACO records) yourself…  If only there were a knowledgeable Winchester “historian” who could take a Sabbatical and spend a year bringing order to what (I think) is a disorganized mess… Cry

Lou

WACA 9519; Studying Pre-64 Model 70 Winchesters


Avatar
DEEREHART
Member
WACA Member
Forum Posts: 77
Member Since:
August 25, 2009
sp_UserOfflineSmall Offline
18
May 28, 2026 - 3:15 am
sp_Permalink sp_Print

Louis Luttrell said
Hi Bert-
I honestly don’t know…
This came from my trolling the McCracken digital library for M70 related stuff…  I’m sure you noticed that I “oversimplified” my description, as the second pic is actually a 1938 extraction of centerfire calibers that had been discontinued since the 1930 version.  Still it showed the M54 bore specifications from 1930, which is why I posted it…
I wish the McCracken library had the time/personnel to make their holdings useful/accessible… Insofar as I can tell it’s hopeless unless you have the time (and influence) to be permitted to go through the MS20 (WRACO records) yourself…  If only there were a knowledgeable Winchester “historian” who could take a Sabbatical and spend a year bringing order to what (I think) is a disorganized mess…
Lou


Lou

I see what you did there…..historian…Sabbatical….research, Old White Bearded one.  LaughLaugh

Bert are you listening?

Doug

Avatar
Bert H.
Kingston, WA
Admin
Forum Posts: 14263
Member Since:
April 15, 2005
sp_UserOnlineSmall Online
19
May 28, 2026 - 3:56 am
sp_Permalink sp_Print

DEEREHART said

Louis Luttrell said
Hi Bert-
I honestly don’t know…
This came from my trolling the McCracken digital library for M70 related stuff…  I’m sure you noticed that I “oversimplified” my description, as the second pic is actually a 1938 extraction of centerfire calibers that had been discontinued since the 1930 version.  Still it showed the M54 bore specifications from 1930, which is why I posted it…
I wish the McCracken library had the time/personnel to make their holdings useful/accessible… Insofar as I can tell it’s hopeless unless you have the time (and influence) to be permitted to go through the MS20 (WRACO records) yourself…  If only there were a knowledgeable Winchester “historian” who could take a Sabbatical and spend a year bringing order to what (I think) is a disorganized mess…
Lou


Lou
I see what you did there…..historian…Sabbatical….research, Old White Bearded one.
Bert are you listening?
Doug


I got that hint… but I am not biting on it!Yell

WACA Historian & Board of Director Member #6571L

Avatar
Louis Luttrell
Winchester, VA
Member
WACA Member
Forum Posts: 1448
Member Since:
November 5, 2014
sp_UserOfflineSmall Offline
20
May 28, 2026 - 2:42 pm
sp_Permalink sp_Print

Bert-

If they’d let me into the Library every day from Dec 1 through Mar 31st and give me complete access to all the MS20 boxes, I’d consider spending a Winter in Cody…  Laugh

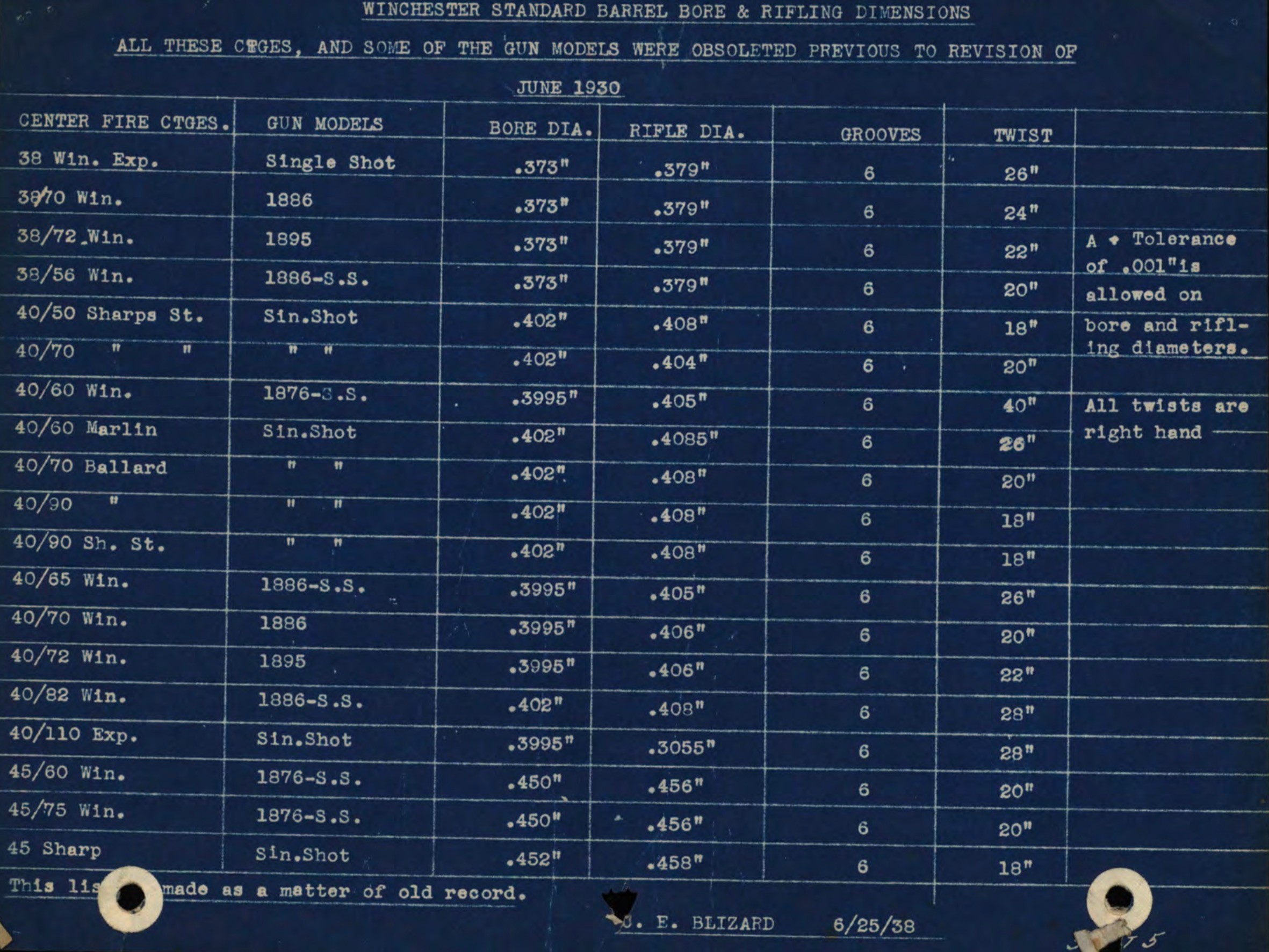

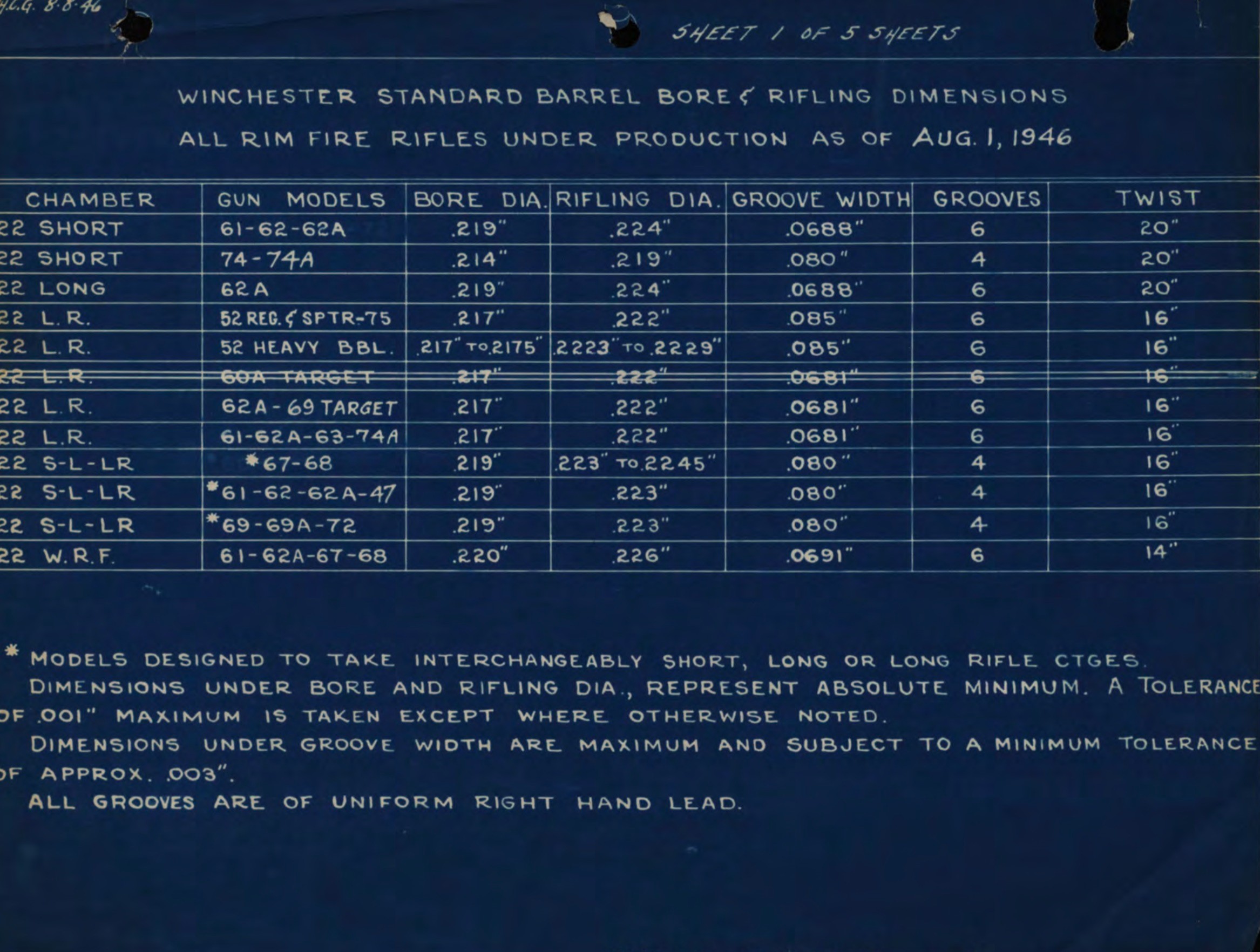

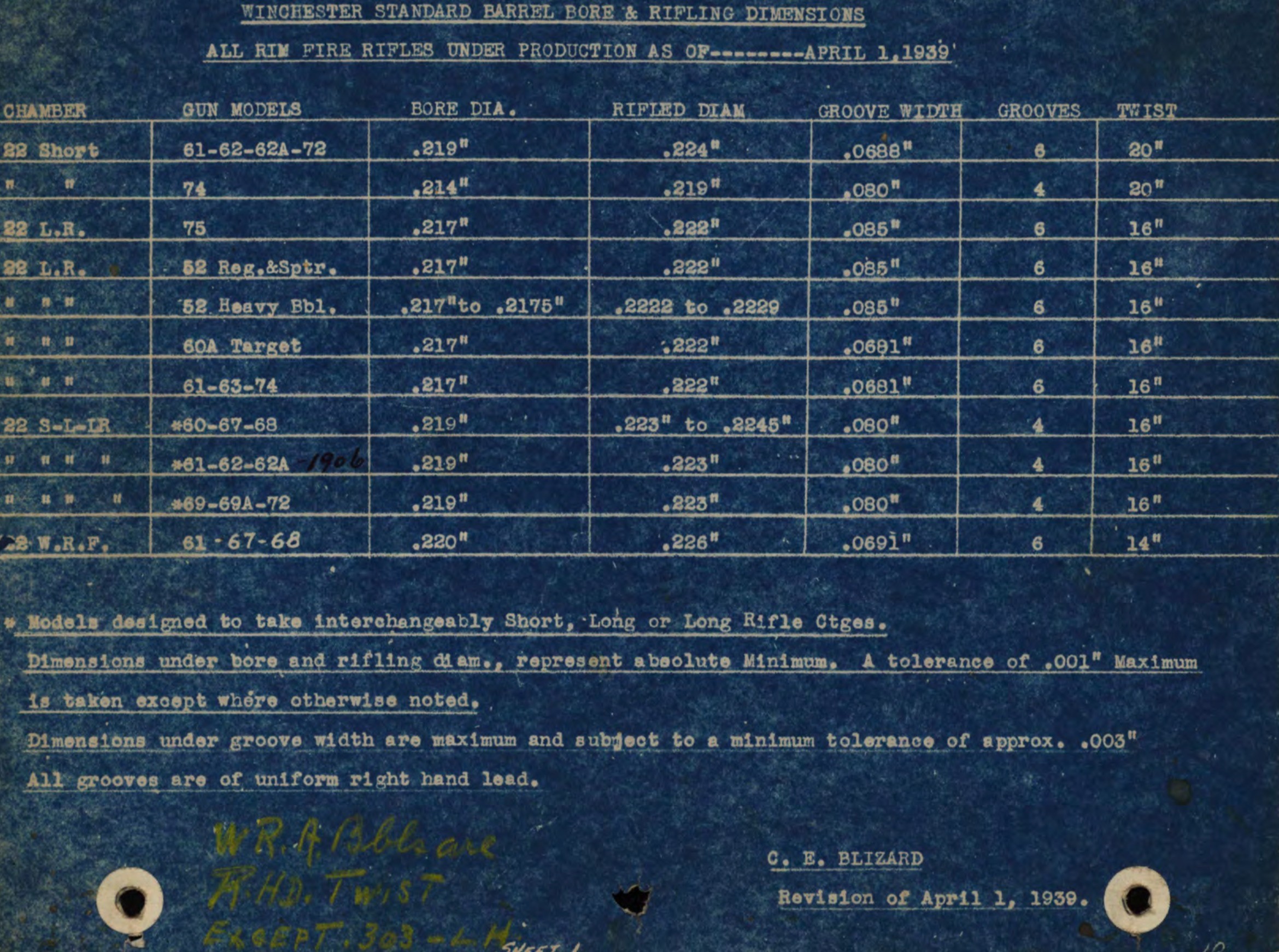

FWIW… These aren’t older”, they’re from the same 1938-39 set of documents as the other two pages, but they cover the bore specs on some of the “obsolete” cartridges and some rimfire models.  These are buried in a scanned stack of ammunition test barrel blueprints where you might not think to look…  Just ran across them one day.


Hope this helps…

Lou

WACA 9519; Studying Pre-64 Model 70 Winchesters
