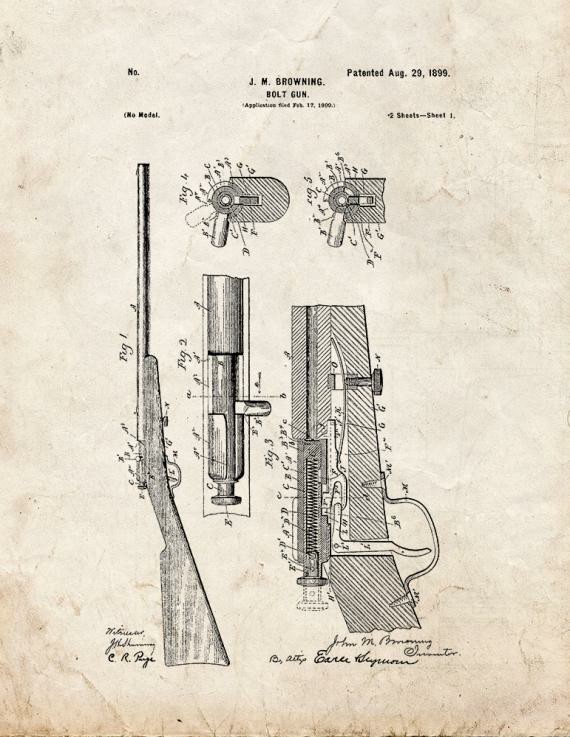

Ran across this late night the other day.
Vince
Southern Oregon
NRA member
Fraternal Order of Eagles
“There is but one answer to be made to the dynamite bomb and that can best be made by the Winchester rifle.”
Teddy Roosevelt
December 31, 2012
Offline
Vince said
Ran across this late night the other day.

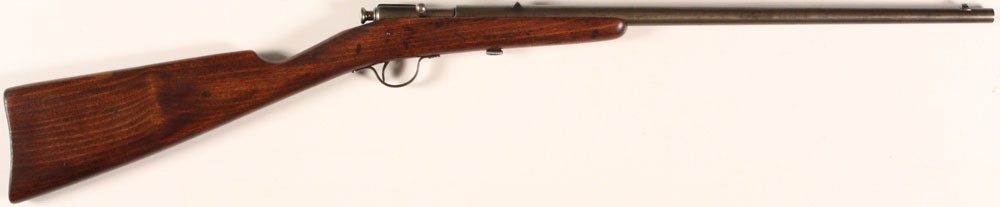

I added this to my pictures. I just won a real nice M1900 on Wards Auction and am waiting for delivery. Nice ones are very scarce and I paid a lot for this rifle, but the book values on these are way high. Pics when I get it. Thanks, Big Larry
November 1, 2013
Offline
Never realized it was Browning design, and think this is the simplest sear/trigger arrangement I’ve ever seen on a bolt action. Never had one of these in my hands, but from the drawing I gather it has to be cocked by pulling back on the striker; right?
July 17, 2012
Offline
clarence said
Never realized it was Browning design, and think this is the simplest sear/trigger arrangement I’ve ever seen on a bolt action. Never had one of these in my hands, but from the drawing I gather it has to be cocked by pulling back on the striker; right?
Yep, it was a Browning design and the action basis for the subsequent models 1902, 1904, 58, 59, 60, 67 and 68. A simple, long-lasting design, typical of Browning.
Yes, it is cocked by pulling back on the striker.
Here is the full, printable patent (with the patent number as referenced by George Watrous of Winchester) http://pdfpiw.uspto.gov/.piw?PageNum=0&docid=00632094&IDKey=6CE4BD37EFFC&HomeUrl=http%3A%2F%2Fpatft.uspto.gov%2Fnetahtml%2FPTO%2Fpatimg.htm
Best Regards,
WACA Life Member #6284 - Specializing in Pre-64 Winchester .22 Rimfire
July 17, 2012
Offline
Vince, thanks for stirring the pot with the image, it has been a little slow here in the backwater Winchester .22 rim fire section.
Sometimes the USPTO site can be a little snarky on viewing and printing the .tiff files so I have included the .jpgs of all 7 pages here for easier reference.
Best Regards,
WACA Life Member #6284 - Specializing in Pre-64 Winchester .22 Rimfire
November 1, 2013
Offline
JWA said
Yes, it is cocked by pulling back on the striker.Best Regards,
Not something I’d like, but for a boy’s rifle, and a starter one at that, an excellent idea.
June 5, 2015
Offline
Thanks J
The full patient is going in my gun room. It will be read. Thanks again.
Vince
Southern Oregon
NRA member
Fraternal Order of Eagles
“There is but one answer to be made to the dynamite bomb and that can best be made by the Winchester rifle.”
Teddy Roosevelt
Does anyone have this image in a high resolution for me to print a custom hanging (for texelprintstore.com shipping)? Thank you!
May 23, 2009
Offline
https://patents.google.com/patent/US632094?oq=632%2c094
Here is a link for where you can download a high quality .PDF of the patent. All the old patents are considered public domain and being easily found by a google search. It helps to know the patent number.
FYI. There is a guy on Ebay that is printing a lot of these old patent on older looking and/or aged paper.
So I wouldn’t go paying a bunch of money for one of these patent image drawings. These ebay guys often remove the patent number. I don’t have a clue why they would do that sometimes, as it wouldn’t really matter.
Sincerely,
Maverick
WACA #8783 - Checkout my Reloading Tool Survey!
https://winchestercollector.org/forum/winchester-research-surveys/winchester-reloading-tool-survey/
