Winchester 30-30 Lever Action Pre 19??
sp_NewTopic Add Topic
Avatar
Chief 3302
Guest
WACA Guest
1
November 16, 2021 - 8:18 pm
sp_Permalink sp_Print sp_QuotePost

What is the significance of a pre 19?? lever action receiver?

How do you identify these particular rifles ?

Avatar
Kingston, WA
Admin
Forum Posts: 10626
Member Since:
April 15, 2005
sp_UserOfflineSmall Offline
2
November 17, 2021 - 3:35 am
sp_Permalink sp_Print sp_QuotePost

Pre-1964, and it directly relates to the material type and machining process that were used.

The serial number is the easiest way to determine if it is a Pre-1964 or a Post-1963 production receiver frame.  S/N 2600011 was the last Pre-1964.  S/N 2700000 was the first Post-1963.  All serial numbers in the 2600012 – 2699999 were skipped (not used).

In addition to the S/N, the physical configuration (location) of the screws used to assemble the receiver frame are noticeably different (see the attached pictures).

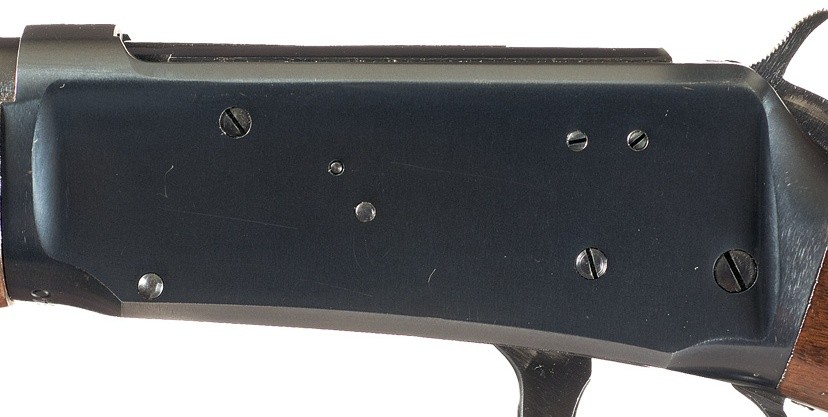

Pre-1964

Pre-64-receiver.jpgImage Enlarger

Post-1963

Post-63-receiver-frame-2865496.jpgImage Enlarger

Bert

WACA 6571L, Historian & Board of Director Member

Avatar
Chief 3302
Guest
WACA Guest
3
December 15, 2021 - 9:41 pm
sp_Permalink sp_Print sp_QuotePost

So Bert, I m still confused. My receiver looks like the pre 1964 but my 7 digit serial number starts with 3479xxx. The numbers dont jive with the picture.

Help(?)

Chief 3302

Avatar
Kingston, WA
Admin
Forum Posts: 10626
Member Since:
April 15, 2005
sp_UserOfflineSmall Offline
4
December 18, 2021 - 2:03 am
sp_Permalink sp_Print sp_QuotePost

Chief 3302 said
So Bert, I m still confused. My receiver looks like the pre 1964 but my 7 digit serial number starts with 3479xxx. The numbers dont jive with the picture.

Help(?)

Chief 3302

You will need to send pictures of your Model 94 to me so that I can attempt to determine what is amiss.

Bert – [email protected]

WACA 6571L, Historian & Board of Director Member
