Winchester 1873 Carbine early rifle HELP
Avatar
tigertrout
Member
WACA Guest
Forum Posts: 4
Member Since:
November 20, 2010
sp_UserOfflineSmall Offline
1
February 27, 2019 - 3:27 am
sp_Permalink sp_Print sp_EditHistory

DSC_0021.jpegImage Enlarger

DSC_0022.jpegImage Enlarger
DSC_0023.jpegImage Enlarger
DSC_0024.jpegImage Enlarger



DSC_0018-1.jpegImage Enlarger

DSC_0019.jpegImage Enlarger

DSC_0016.jpegImage Enlarger

DSC_0017.jpegImage Enlarger

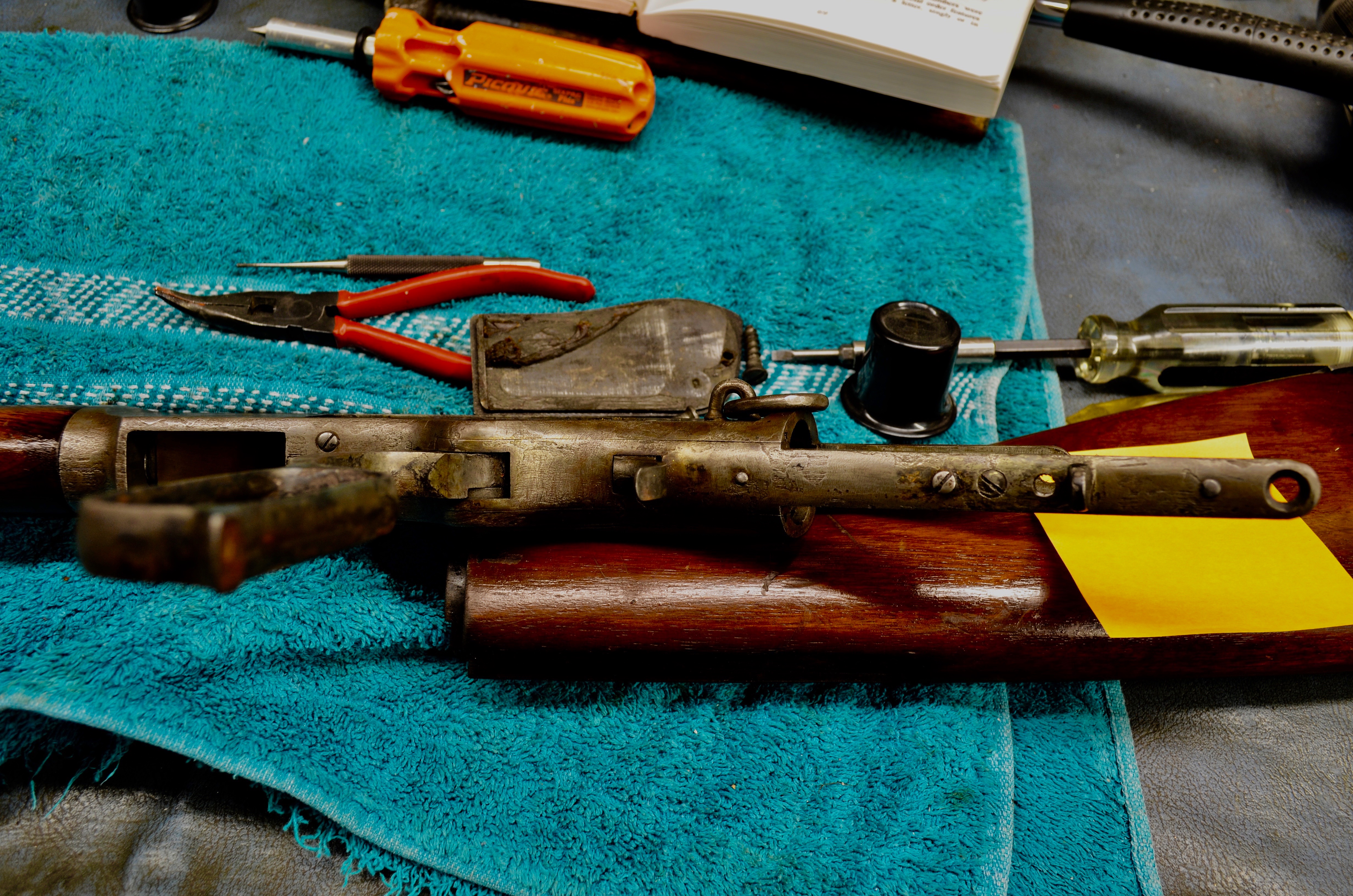

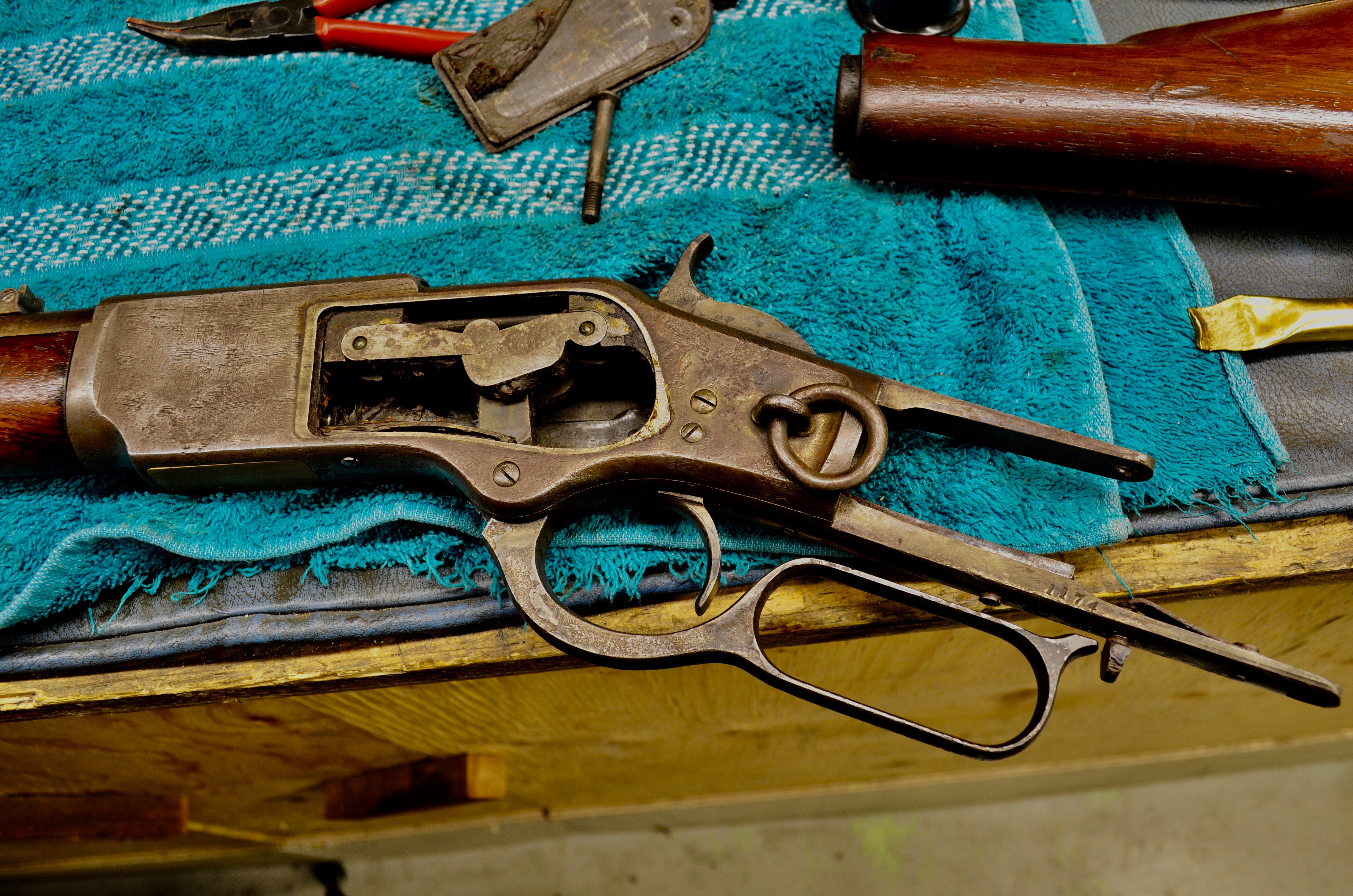

I have acquired an early (pre serial number 28,000, or at least it appears that early) 1873, carbine, in very poor condition, other than the minty bore that is. it has the early dust cover and early trigger and sear combined.

The serial number is not visible, My question to the Winchester gods is, can I narrow down the date of manufacture using the assembly number on the lower tang…….? (1178)

any help is appreciated.

Sean

sp_PlupAttachments Attachments
Avatar
TR
Member
WACA Member
Forum Posts: 1880
Member Since:
June 4, 2017
sp_UserOfflineSmall Offline
2
February 27, 2019 - 3:51 am
sp_Permalink sp_Print

 Sean, The answer is no. T/R

Avatar
1873man
Wisconsin
Member
WACA Member
Forum Posts: 4703
Member Since:
May 2, 2009
sp_UserOfflineSmall Offline
3
February 27, 2019 - 3:52 am
sp_Permalink sp_Print

Sean,

Assemble numbers have no relation to the serial number. A trained eye can sometimes read a number only from seeing a partial number. If you take some very clear pictures of the serial number in high resolution with a light from different angles I might be able pick them out. The last option is using crime lab acid to bring the number out. The only issue with that is the area of the serial number has to be polished.

Bob

WACA Life Member---
NRA Life Member----
Cody Firearms member since 1991
Researching the Winchester 1873's


Email: [email protected]

Avatar
TR
Member
WACA Member
Forum Posts: 1880
Member Since:
June 4, 2017
sp_UserOfflineSmall Offline
4
February 27, 2019 - 1:53 pm
sp_Permalink sp_Print

 Sean, If you can’t pull the serial number with crime lab acid you can get some idea of the serial number range by features, if the gun is complete and original. Jim Gordan’s books give good pictures of the various changes to the model 73 and at what s/n range they occurred. If you post good pictures of the entire gun  the Forum will help. T/R

Avatar
tigertrout
Member
WACA Guest
Forum Posts: 4
Member Since:
November 20, 2010
sp_UserOfflineSmall Offline
5
February 27, 2019 - 2:53 pm
sp_Permalink sp_Print

I will attempt to post some pics a bit later but trust me when I say poor condition as in acid corrosion I mean it.

but het we can give it a shot. no pun intended.

Avatar
1873man
Wisconsin
Member
WACA Member
Forum Posts: 4703
Member Since:
May 2, 2009
sp_UserOfflineSmall Offline
6
February 27, 2019 - 5:00 pm
sp_Permalink sp_Print

Also include a pictures of the gun.

Bob

WACA Life Member---
NRA Life Member----
Cody Firearms member since 1991
Researching the Winchester 1873's


Email: [email protected]

Avatar
tigertrout
Member
WACA Guest
Forum Posts: 4
Member Since:
November 20, 2010
sp_UserOfflineSmall Offline
7
February 27, 2019 - 11:13 pm
sp_Permalink sp_Print

Ok pics have been added any help would be appreciated.



thx Sean

Avatar
1873man
Wisconsin
Member
WACA Member
Forum Posts: 4703
Member Since:
May 2, 2009
sp_UserOfflineSmall Offline
8
February 27, 2019 - 11:26 pm
sp_Permalink sp_Print

Sean,

Where the serial number is suppose to be has been filed a fair bit but you might still lift a serial number. Do you have any history of how this gun came to look like it does?

Bob

WACA Life Member---
NRA Life Member----
Cody Firearms member since 1991
Researching the Winchester 1873's


Email: [email protected]

Avatar
1873man
Wisconsin
Member
WACA Member
Forum Posts: 4703
Member Since:
May 2, 2009
sp_UserOfflineSmall Offline
9
February 27, 2019 - 11:28 pm
sp_Permalink sp_Print

This is what a lifted serial number looks like.

Bob

IMAG0133.jpgImage Enlarger

sp_PlupAttachments Attachments
WACA Life Member---
NRA Life Member----
Cody Firearms member since 1991
Researching the Winchester 1873's


Email: [email protected]

Avatar
TR
Member
WACA Member
Forum Posts: 1880
Member Since:
June 4, 2017
sp_UserOfflineSmall Offline
10
February 28, 2019 - 12:23 am
sp_Permalink sp_Print

 Sean, The oval thumbprint dust cover was used from approximately 10,000 s/n to the end of the first model. If it is “original” to the gun then it was most likely  made from late 1875 to early 79. T/R
