Tang Screw For Winchester 1894 Pistol Grip
sp_NewTopic Add Topic
Avatar
Member
WACA Guest
Forum Posts: 182
Member Since:
January 13, 2010
sp_UserOfflineSmall Offline
1
February 24, 2024 - 10:54 pm
sp_Permalink sp_Print sp_QuotePost

I have not been able to locate a tang screw for a Model 1894 Winchester with a pistol grip. I have a Lyman tang peep on it right now and want to take it off and replace the rear tang sight screw with a large head replacement tang screw. Does anyone know of one. I have checked Amazon, Ebay and any other site that claims to have Winchester parts, but haven’t found anything…



thanks for any help…

Avatar
Member
WACA Member
Forum Posts: 70
Member Since:
June 1, 2023
sp_UserOfflineSmall Offline
2
February 24, 2024 - 11:31 pm
sp_Permalink sp_Print sp_QuotePost

I have purchased the longer screw required by the pistol grip 1894 rifles from eBay seller Apertures-N-More, who may not list them, but had them nevertheless.  It’s worth asking him.

BRP

Avatar
Troutdale, OR
Member
WACA Member
Forum Posts: 1912
Member Since:
June 26, 2013
sp_UserOfflineSmall Offline
3
February 25, 2024 - 3:28 am
sp_Permalink sp_Print sp_EditHistory sp_QuotePost

Looks like Winchester Bob has them in stock for $10 each.  Not an original, but quality repros.

https://winchesterbob.com/?page_id=68

Don

Avatar
Member
WACA Member
Forum Posts: 4600
Member Since:
March 31, 2009
sp_UserOfflineSmall Offline
4
February 25, 2024 - 5:06 pm
sp_Permalink sp_Print sp_QuotePost

Shrapnel said
I have not been able to locate a tang screw for a Model 1894 Winchester with a pistol grip. I have a Lyman tang peep on it right now and want to take it off and replace the rear tang sight screw with a large head replacement tang screw. Does anyone know of one. I have checked Amazon, Ebay and any other site that claims to have Winchester parts, but haven’t found anything…



thanks for any help…



By large head do you mean the thicker one?  Do you know the length?

Avatar
Member
WACA Guest
Forum Posts: 182
Member Since:
January 13, 2010
sp_UserOfflineSmall Offline
5
February 25, 2024 - 9:07 pm
sp_Permalink sp_Print sp_QuotePost

Chuck said

Shrapnel said

I have not been able to locate a tang screw for a Model 1894 Winchester with a pistol grip. I have a Lyman tang peep on it right now and want to take it off and replace the rear tang sight screw with a large head replacement tang screw. Does anyone know of one. I have checked Amazon, Ebay and any other site that claims to have Winchester parts, but haven’t found anything…



thanks for any help…



By large head do you mean the thicker one?  Do you know the length?



Not thicker, but larger diameter to fill the screw head in the tang.

Avatar
Member
WACA Guest
Forum Posts: 182
Member Since:
January 13, 2010
sp_UserOfflineSmall Offline
6
February 25, 2024 - 10:17 pm
sp_Permalink sp_Print sp_QuotePost

deerhunter said
Looks like Winchester Bob has them in stock for $10 each.  Not an original, but quality repros.

https://winchesterbob.com/?page_id=68

Don



Thanks, I’m trying to navigate through his don’t call me, but call me for inventory messages to see if I can get one…

Avatar
Member
WACA Member
Forum Posts: 4600
Member Since:
March 31, 2009
sp_UserOfflineSmall Offline
7
February 25, 2024 - 11:18 pm
sp_Permalink sp_Print sp_QuotePost

Chuck said

Shrapnel said

Shrapnel said

Not thicker, but larger diameter to fill the screw head in the tang.



Pirkle says all Winchester stock bolts are the same head size diameter, 11/32″, but they come in different lengths.  He says the bolt should be 1-47/64″. Plus or minus 1/32″.  I’m not sure if a pistol grip would have a different length?  My first reply I was thinking of the bolts for the tang site.

Avatar
Northern edge of the D/FW Metromess
Member
WACA Member
Forum Posts: 5050
Member Since:
November 7, 2015
sp_UserOfflineSmall Offline
8
February 26, 2024 - 9:09 pm
sp_Permalink sp_Print sp_QuotePost
Life Member TSRA, Endowment Member NRA
BBHC Member, TGCA Member
Smokeless powder is a passing fad! -Steve Garbe
I hate rude behavior in a man. I won't tolerate it. -Woodrow F. Call, Lonesome Dove
Some of my favorite recipes start out with a handful of depleted counterbalance devices.-TXGunNut
Presbyopia be damned, I'm going to shoot this thing! -TXGunNut
Avatar
Member
WACA Member
Forum Posts: 602
Member Since:
March 14, 2022
sp_UserOfflineSmall Offline
9
February 26, 2024 - 11:17 pm
sp_Permalink sp_Print sp_EditHistory sp_QuotePost

I bought a few from Homestead last fall but gave them away as they’re repro’s and have a flat spot on the top. Easily spotted as a repro. Didn’t look right. Ok for shooters. Just fyi.

 Rick C



Avatar
Member
WACA Member
Forum Posts: 1097
Member Since:
December 21, 2006
sp_UserOfflineSmall Offline
10
February 27, 2024 - 4:46 pm
sp_Permalink sp_Print sp_QuotePost

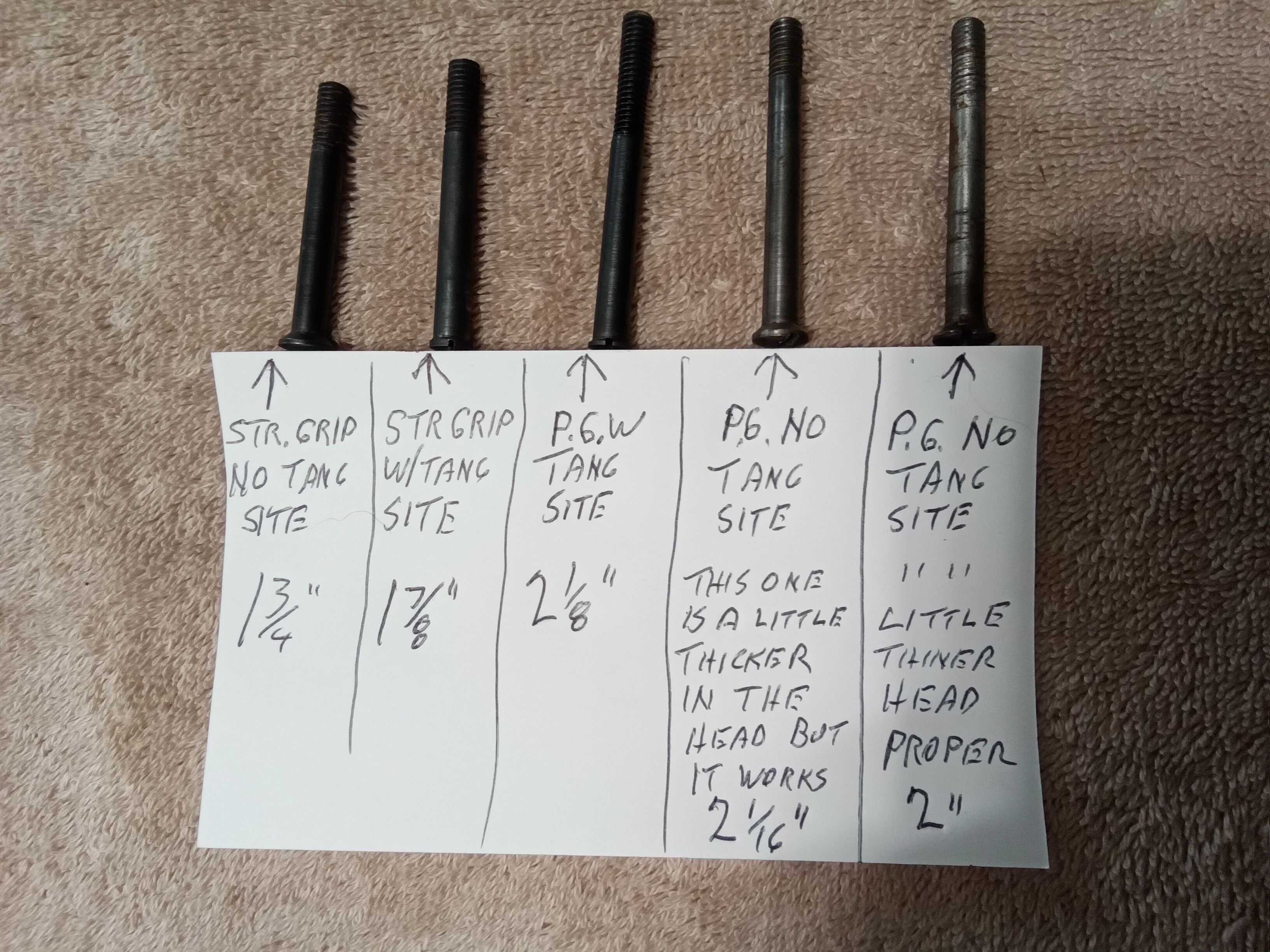

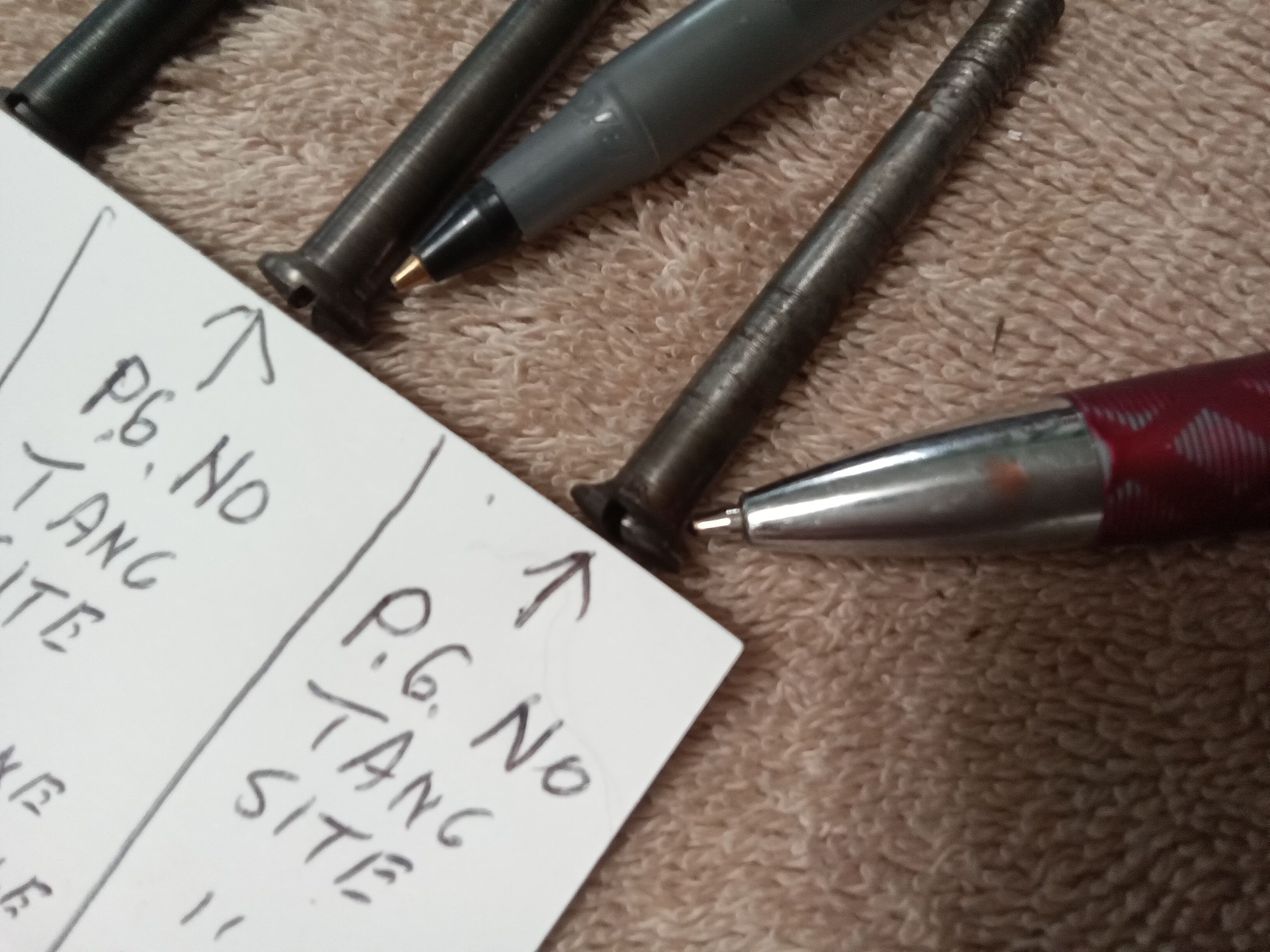

Here Ya’ go, the one on the far right is the one You want.  20240227_114131.jpgImage Enlarger20240227_114058.jpgImage Enlarger  Hope this helps.  Unfortunatly I don’t have a spare to part with.

sp_PlupAttachments Attachments

W.A.C.A. life member, Marlin Collectors Assn. charter and life member, C,S.S.A. member and general gun nut.

Avatar
Member
WACA Guest
Forum Posts: 182
Member Since:
January 13, 2010
sp_UserOfflineSmall Offline
11
February 29, 2024 - 6:11 pm
sp_Permalink sp_Print sp_QuotePost

TXGunNut said
https://homesteadparts.com/shop/tang-screw-pistol-grip-winchester-1892-1894-p-1380.html?cPath=1_10



See if this is what you’re hunting.





Mike



I think this is it, I ordered it…



Thanks for the link

Avatar
Member
WACA Member
Forum Posts: 602
Member Since:
March 14, 2022
sp_UserOfflineSmall Offline
12
February 29, 2024 - 6:17 pm
sp_Permalink sp_Print sp_QuotePost

Keep us posted. Will wait to hear your feedback on it before I order one for inventory.

 Rick C
