Short magazine carbine forends
Avatar
rogertherelic
Santa Clara, CA
Member
WACA Member
Forum Posts: 935
Member Since:
January 27, 1992
sp_UserOfflineSmall Offline
1
June 5, 2020 - 2:11 pm
sp_Permalink sp_Print

While cleaning a couple of 92 and 94 carbines with shorter than standard magazines, I noticed that the magazine tube hole in the forend is drilled at an angle.  This slight angle causes the magazine tube to contact the bottom of the barrel to allow for the magazine plug to have a locking point.  Each magazine length has a different angle drilled in the forend.  Just another notation of Winchester’s ingenuity.  If this topic been discussed before, I missed that topic.  Roger B.

Avatar
1892takedown
South Texas
Member
WACA Member
Forum Posts: 1113
Member Since:
March 20, 2010
sp_UserOfflineSmall Offline
2
June 6, 2020 - 2:56 am
sp_Permalink sp_Print

A lot of times on 1/2 mag carbines the end of the forearm will be marked as such.



Carbine-Forearm-Half-Mag-Marking.JPGImage Enlarger

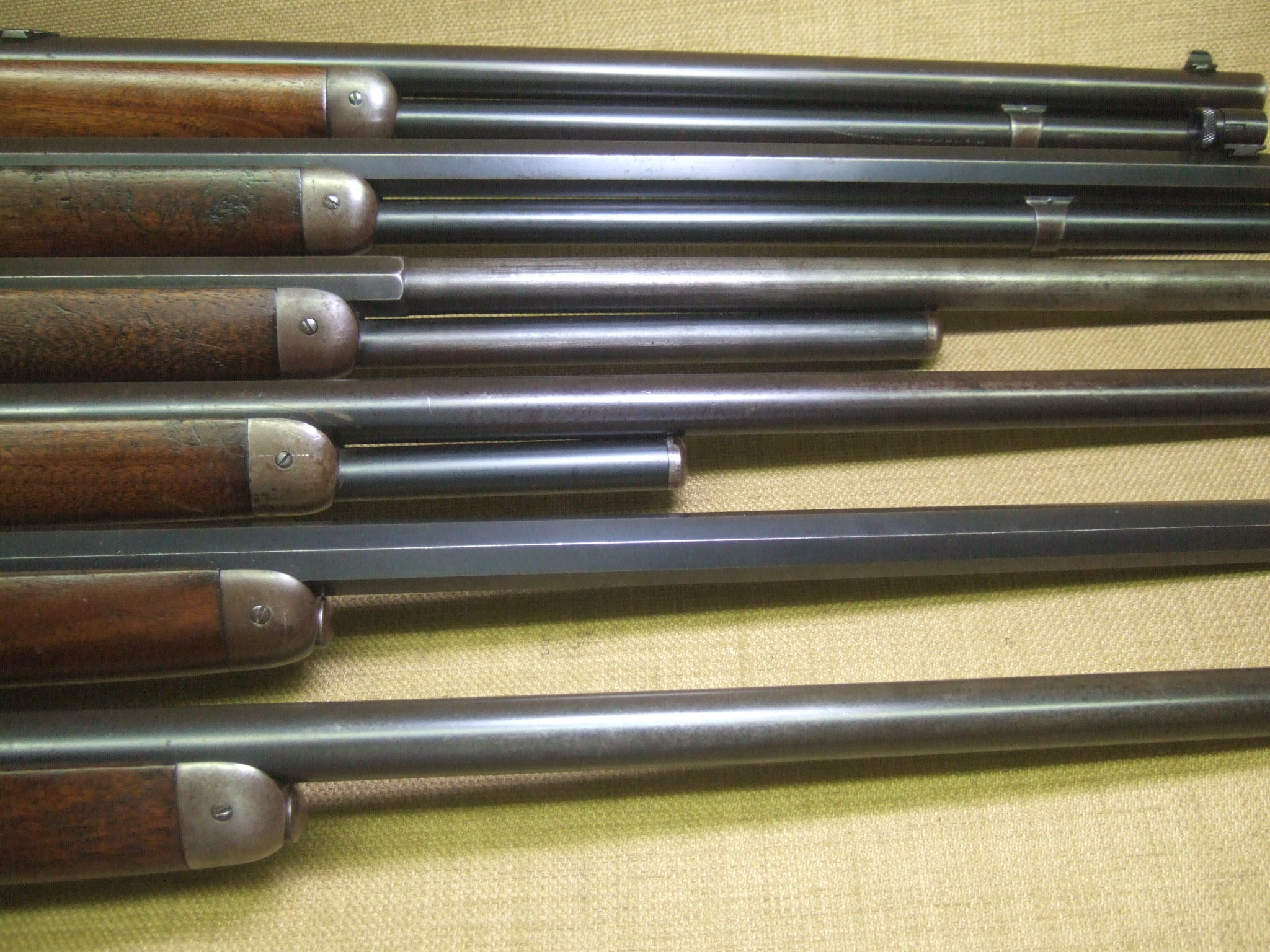

You find variations in forearm caps on rifles as well.  Its suspected the angle of the magazine tube inlet in the wood also varies on magazine tubes long than a button magazine and shorter than 3/4 or 7/8 magazine rifles.



forearm-cap-010.JPGImage Enlarger

forearm-cap-002.JPGImage Enlarger


1892takedown @sbcglobal.net ......NRA Endowment Life Member.....WACA Member

"God is great.....beer is good.....and people are crazy"... Billy Currington
