Another Model 70 9MM
Avatar
dane62
Aroostook County Maine
Member
WACA Guest
Forum Posts: 330
Member Since:
April 20, 2011
sp_UserOfflineSmall Offline
1
March 15, 2023 - 10:21 am
sp_Permalink sp_Print
Avatar
seewin
Member
WACA Member
Forum Posts: 496
Member Since:
March 12, 2008
sp_UserOfflineSmall Offline
2
March 15, 2023 - 2:33 pm
sp_Permalink sp_Print

Did you notice that the proofmarks don’t match? Also, the caliber stamping looks questionable to me. Compare the caliber stamping to the ones in Rule’s book.

Steve

Avatar
clarence
NY
Member
Restricted
Forum Posts: 7119
Member Since:
November 1, 2013
sp_UserOfflineSmall Offline
3
March 15, 2023 - 5:51 pm
sp_Permalink sp_Print sp_EditHistory

Standard abbreviation for “millimeter” since creation of the metric system has always been “MM” or “mm.”  So why the slash mark?

Avatar
Louis Luttrell
Winchester, VA
Member
WACA Member
Forum Posts: 1257
Member Since:
November 5, 2014
sp_UserOfflineSmall Offline
4
March 15, 2023 - 6:38 pm
sp_Permalink sp_Print

Dana-

IMHO that one is not right.  Proofs don’t match, barrel roll markings (left/right) were not made with Winchester dies, caliber stamp is wrong, and I don’t think the ramp stippling is correct either.  I’d bet the under barrel caliber stamp is wrong too… Add to all that, according to my records S/N 20011 was a 30 GOV’T’06 Standard Rifle when Dave Morris (Frontier Guns) sold it via Guns International in 2021… Wink

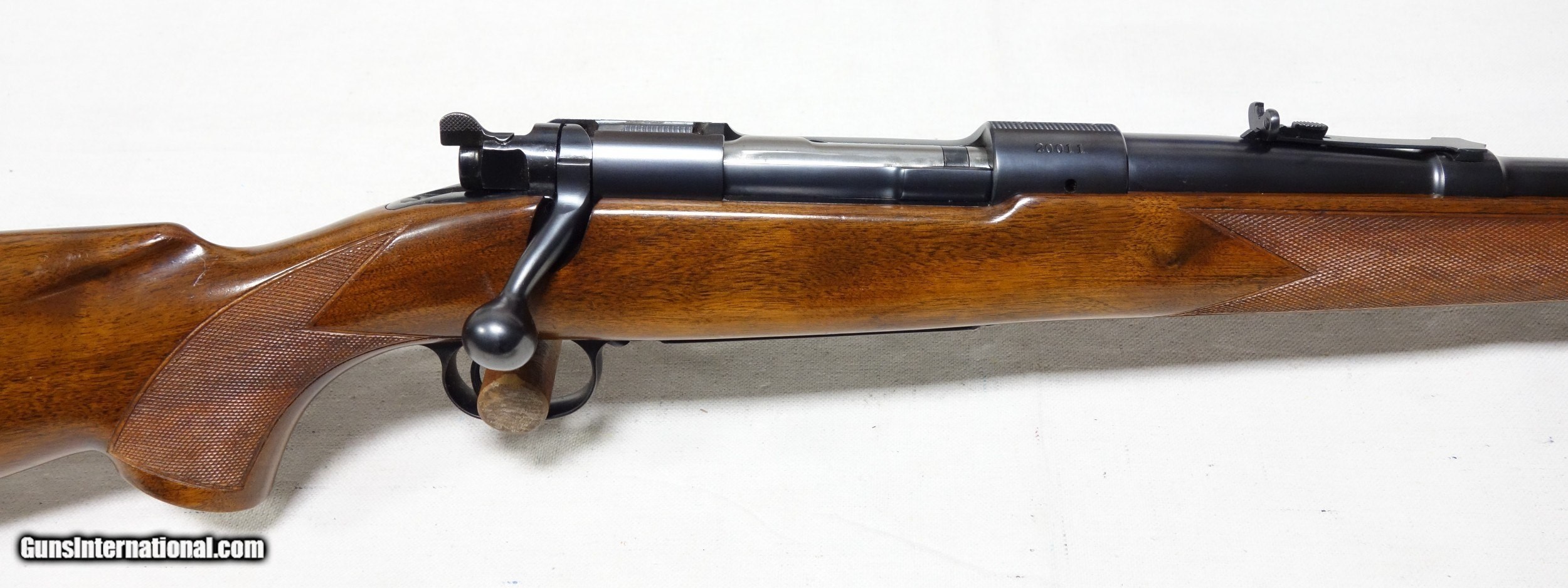

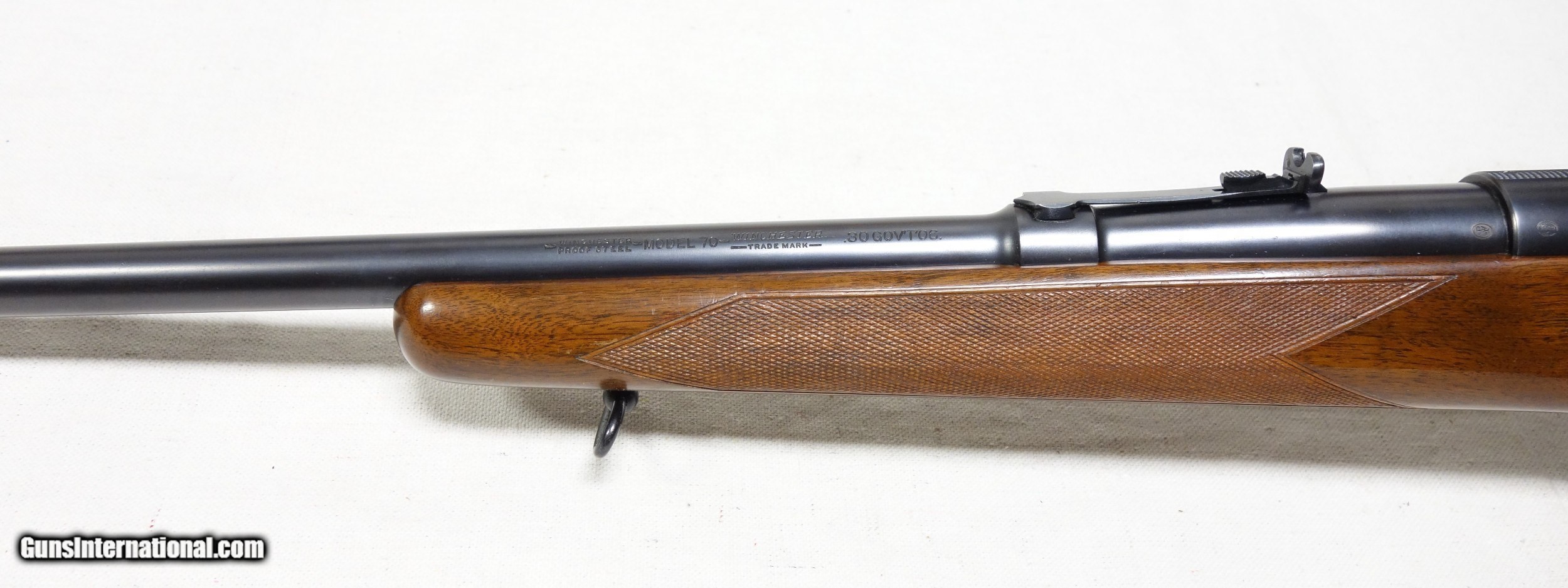

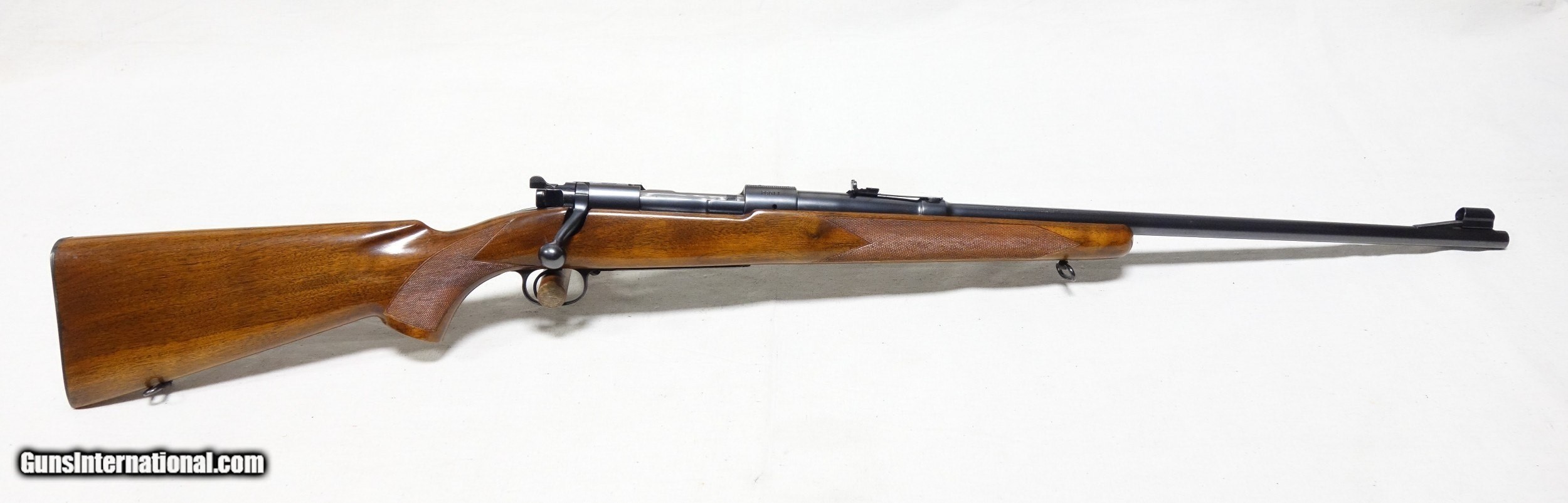

Here are some pics of S/N 20011 as a 30 GOV’T’06.  You’ll note that it was a type I-2 (no pin in the bolt sleeve) back then too:

20011-1.jpgImage Enlarger20011-2.jpgImage Enlarger20011-3.jpgImage Enlarger

Clarence-

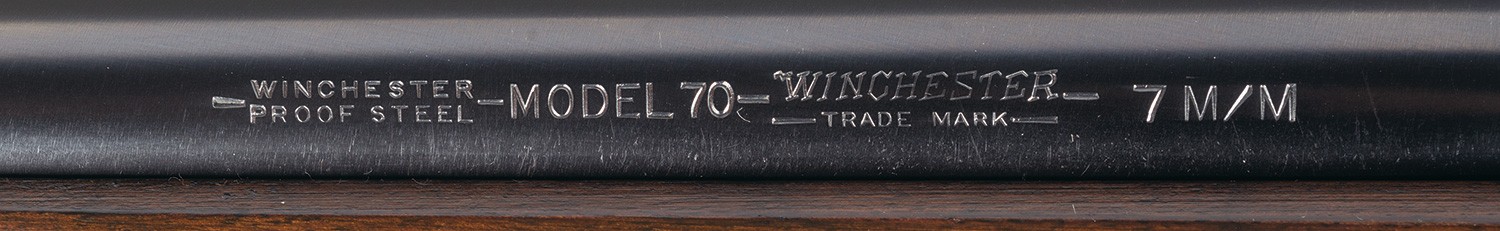

Winchester apparently didn’t adhere to the “MM” abbreviation for M70 caliber stamps, for whatever reason.  I know all 9 M/M and 7.65 M/M barrels are suspect, but the marking used for the somewhat more common 7×57 Mauser chambering was 7 M/M.  This one, Carbine S/N 66220, pictured in Whitaker’s book is probably correct:

66220-Caliber-Stamp.jpgImage Enlarger

Be Careful Out There…

Lou

sp_PlupAttachments Attachments

WACA 9519; Studying Pre-64 Model 70 Winchesters


Avatar
seewin
Member
WACA Member
Forum Posts: 496
Member Since:
March 12, 2008
sp_UserOfflineSmall Offline
5
March 15, 2023 - 6:39 pm
sp_Permalink sp_Print

I have no idea why Winchester used the slash mark. I do know that the mark Winchester used was longer and the 9 was a slightly different font, at least based on the Rule pictures, and that is assuming they are original. They used the same slash on the 7mm and 7.65mm.

Steve

Avatar
clarence
NY
Member
Restricted
Forum Posts: 7119
Member Since:
November 1, 2013
sp_UserOfflineSmall Offline
6
March 15, 2023 - 7:08 pm
sp_Permalink sp_Print

Louis Luttrell said Add to all that, according to my records S/N 20011 was a 30 GOV’T’06 Standard Rifle when Dave Morris (Frontier Guns) sold it via Guns International in 2021…


What a shame!  And I was hoping it would be “the model 70 you build a collection off of.”  I like to start at the top.

Avatar
dane62
Aroostook County Maine
Member
WACA Guest
Forum Posts: 330
Member Since:
April 20, 2011
sp_UserOfflineSmall Offline
7
March 16, 2023 - 9:54 am
sp_Permalink sp_Print

Lou,

Thank You for the info on these rifles.

Dana
