1873 Finger, Carrier, and Mainspring Adjustments per the 1875 Catalog
Avatar
Cliff
Ft.Worth, Texas
Member
WACA Guest
Forum Posts: 142
Member Since:
March 16, 2018
sp_UserOfflineSmall Offline
1
August 21, 2018 - 9:25 pm
sp_Permalink sp_Print

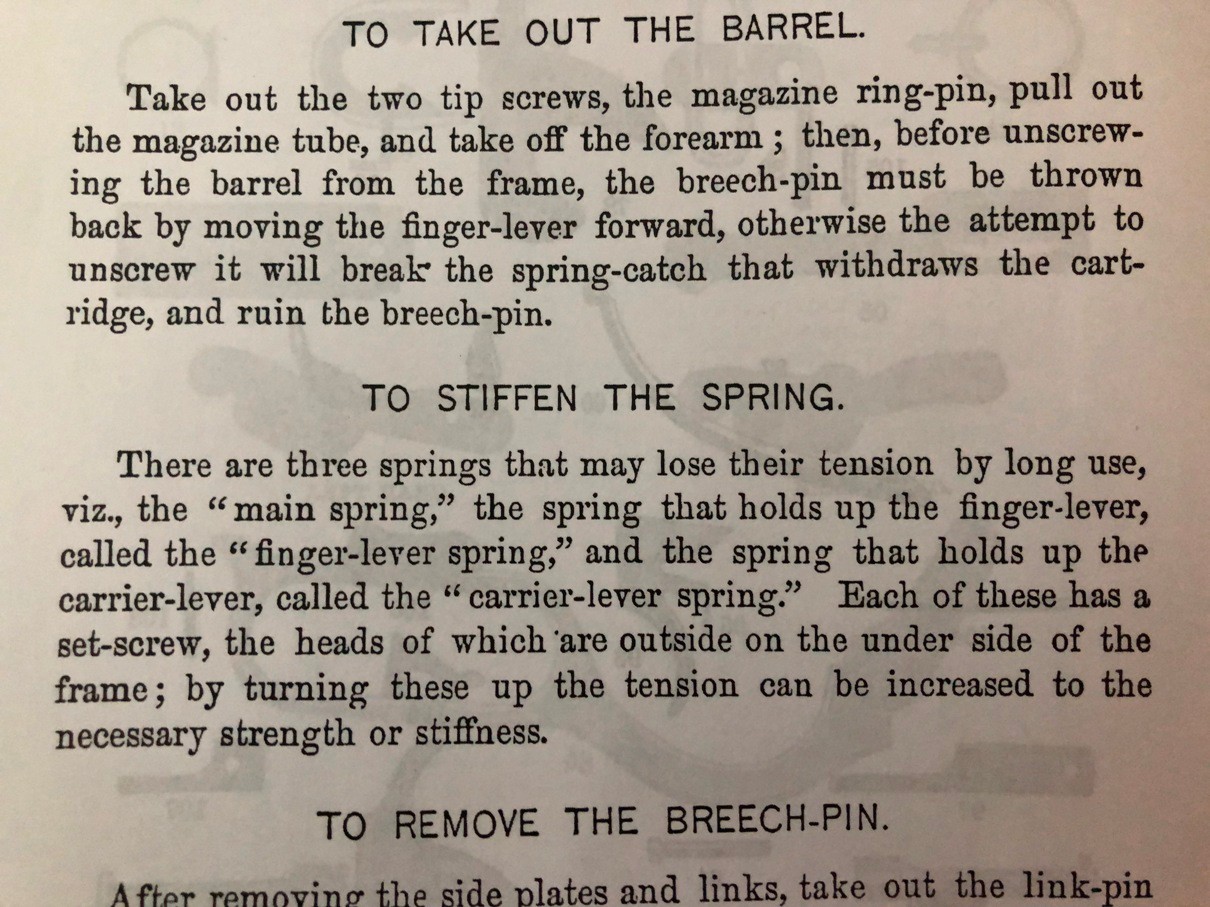

We had a discussion awhile back about the 2 screws that hold the carrier and lever springs in an 1873. The  discussion was about whether these screws were adjustments or only to secure the springs to the frame. I had mentioned that I had read that they were adjustments per an early Winchester catalog. I purchased a reproduction of an 1875 Winchester catalog and indeed, they are clearly meant to be adjusted for necassary strength and stiffness.  Same for the mainspring screw. I have attached a picture of that page from the catalog. Thanks, Cliff


sp_PlupAttachments Attachments
Avatar
Maverick
Member
WACA Member
Forum Posts: 2042
Member Since:
May 23, 2009
sp_UserOfflineSmall Offline
2
August 22, 2018 - 2:02 am
sp_Permalink sp_Print

Yeah but I do imagine at some point the set screws could no longer be turned any further to fix these types of problems. Both the Henry & Model 66 also has these screws, so in 1875 it was not a new problem for Winchester. But its neat to me to see how extensively they had learned so much in a relatively short amount of time. I also imagine in all certainty the guns back then saw way more use than anything the average gun owner does today.

Sincerely,

Maverick

Avatar
Chuck
Member
WACA Member
Forum Posts: 5854
Member Since:
March 31, 2009
sp_UserOfflineSmall Offline
3
August 22, 2018 - 4:14 am
sp_Permalink sp_Print

I really don’t see a “problem”.  If you keep these tight all the time you will, over time, loose any adjustment and have to replace the springs.  I have each of the 4 guns that have these adjusting screws and none of them are tightened all the way.  Since I have not owned these guns since the 1860’s and 1870’s I can’t say the springs are the ones that came from the factory.  I have never shot my Henry or 66 but I do shoot my 73 and 76 so I know these are adjusted correctly.

Avatar
Maverick
Member
WACA Member
Forum Posts: 2042
Member Since:
May 23, 2009
sp_UserOfflineSmall Offline
4
August 23, 2018 - 2:25 am
sp_Permalink sp_Print

The problems of today are not the same as those in 1875 either. I mean I doubt you take your Winchester out everyday on horseback or in your wagon everywhere you go. While riding through the sand, dirt, rain and snow.

Sincerely,

Maverick

Avatar
Chuck
Member
WACA Member
Forum Posts: 5854
Member Since:
March 31, 2009
sp_UserOfflineSmall Offline
5
August 23, 2018 - 5:00 pm
sp_Permalink sp_Print

Maverick said
The problems of today are not the same as those in 1875 either. I mean I doubt you take your Winchester out everyday on horseback or in your wagon everywhere you go. While riding through the sand, dirt, rain and snow.

Sincerely,

Maverick

Maverick you are right.  Most of us today could set these once and be done with it.  I think that most of these screws that are found all the way in are because hardly nobody knows what their real purpose was. I’m sure there were guns that got shot a lot and these were adjusted as necessary.  If it’s loose you must tighten it ???

Avatar
TXGunNut
Northern edge of the D/FW Metromess
Member
WACA Member
Forum Posts: 6439
Member Since:
November 7, 2015
sp_UserOfflineSmall Offline
6
August 26, 2018 - 4:11 am
sp_Permalink sp_Print

Sometimes I wonder if the craftsmen and designers 140 years ago expected the guns on their bench to be operational today. A bit extreme, maybe, but it’s a possibility. Adjustments to allow for wear, parts lists and diagrams, instructions for repair and adjustment. Boggles the mind.



Mike

Life Member TSRA, Endowment Member NRA
BBHC Member, TGCA Board Member
Smokeless powder is a passing fad! -Steve Garbe
I hate rude behavior in a man. I won't tolerate it. -Woodrow F. Call, Lonesome Dove
Some of my favorite recipes start out with a handful of depleted counterbalance devices.-TXGunNut
Presbyopia be damned, I'm going to shoot this thing! -TXGunNut
Avatar
Maverick
Member
WACA Member
Forum Posts: 2042
Member Since:
May 23, 2009
sp_UserOfflineSmall Offline
7
August 27, 2018 - 11:05 pm
sp_Permalink sp_Print

TXGunNut said
Sometimes I wonder if the craftsmen and designers 140 years ago expected the guns on their bench to be operational today. A bit extreme, maybe, but it’s a possibility. Adjustments to allow for wear, parts lists and diagrams, instructions for repair and adjustment. Boggles the mind.



Mike

I don’t think they expected it. I think like most of us today, I doubt they looked past their own lifetime.

Sincerely,

Maverick
