Lyman #6 sight question.
Avatar
Kev18
Canada
Member
WACA Guest
Forum Posts: 83
Member Since:
April 7, 2020
sp_UserOfflineSmall Offline
1
August 30, 2020 - 1:37 am
sp_Permalink sp_Print

Might be a dumb question but  i bought a lyman 6 sight from a forum member and was wondering if there is a specific way to mount it?

I put the flat top sight the with white triangle facing the shooter but the deep V notch has a concave in it that seems like it should be facing backwards toward the shooter but it isnt.

Does anyone have a picture of the sight mounted?

Avatar
jschaal
Member
WACA Guest
Forum Posts: 103
Member Since:
December 12, 2012
sp_UserOfflineSmall Offline
2
August 30, 2020 - 3:09 am
sp_Permalink sp_Print

Should look like81CC999E-5647-4EB9-96B0-A5CABEE42826.jpeg

Avatar
pdog72
Wyoming - Gods Country
Member
WACA Member
Forum Posts: 1285
Member Since:
January 26, 2011
sp_UserOfflineSmall Offline
3
August 30, 2020 - 3:11 am
sp_Permalink sp_Print

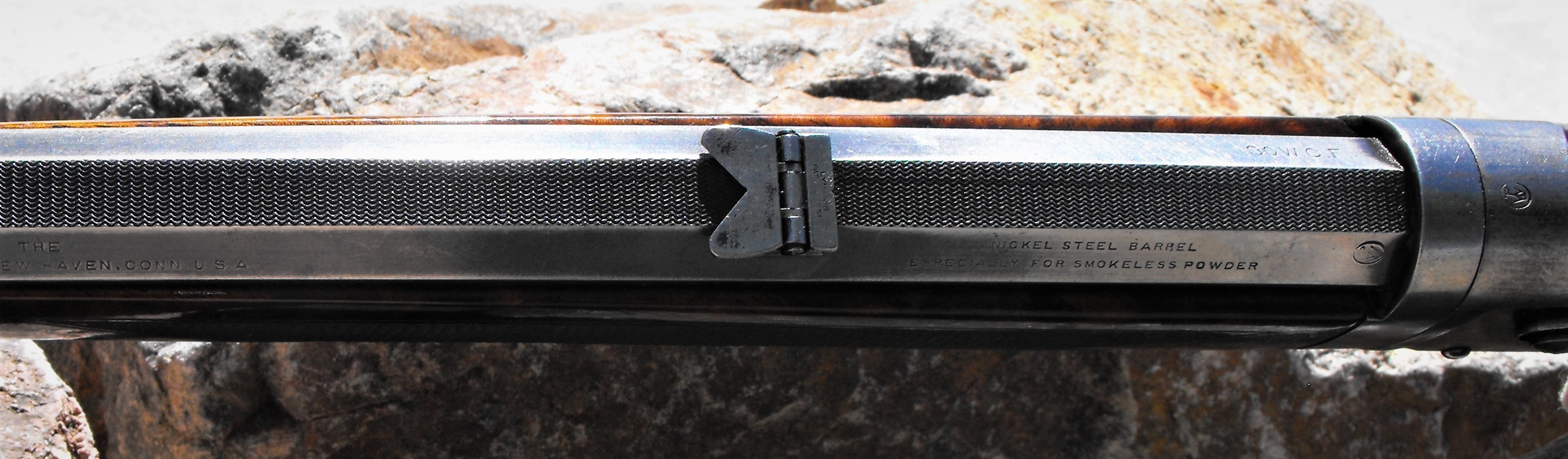

Sounds like you have the orientation correct. That’s how the sight is made. Here’s a few pics.



sp_PlupAttachments Attachments

                                                                               ~Gary~


Avatar
clarence
NY
Member
Restricted
Forum Posts: 7119
Member Since:
November 1, 2013
sp_UserOfflineSmall Offline
4
August 30, 2020 - 3:13 am
sp_Permalink sp_Print

What would be the purpose of the white triangle if the shooter couldn’t see it?

Avatar
jschaal
Member
WACA Guest
Forum Posts: 103
Member Since:
December 12, 2012
sp_UserOfflineSmall Offline
5
August 30, 2020 - 3:18 am
sp_Permalink sp_Print

You can use either the triangle or the v notch, or fold them both flat and use a tang sight.

Avatar
1873man
Wisconsin
Member
WACA Member
Forum Posts: 4698
Member Since:
May 2, 2009
sp_UserOfflineSmall Offline
6
August 30, 2020 - 3:21 am
sp_Permalink sp_Print sp_EditHistory

clarence said
What would be the purpose of the white triangle if the shooter couldn’t see it?

The white triangle is facing you. I added some arrows to some of Gary’s pictures to show the sights direction on the gun.

Bob


sp_PlupAttachments Attachments
WACA Life Member---
NRA Life Member----
Cody Firearms member since 1991
Researching the Winchester 1873's


Email: [email protected]

Avatar
clarence
NY
Member
Restricted
Forum Posts: 7119
Member Since:
November 1, 2013
sp_UserOfflineSmall Offline
7
August 30, 2020 - 3:28 am
sp_Permalink sp_Print sp_EditHistory

jschaal said
You can use either the triangle or the v notch, or fold them both flat and use a tang sight.

The MAIN purpose of this sight–to get out of the way.  Unless maybe you’re a jacker; when this sight came on the market, jacking was still legal in many states.  In fact where I live, where there are many lakes & rivers, jacking on water was almost the definition of deer hunting until almost WWI.

Avatar
Kev18
Canada
Member
WACA Guest
Forum Posts: 83
Member Since:
April 7, 2020
sp_UserOfflineSmall Offline
8
August 30, 2020 - 2:40 pm
sp_Permalink sp_Print

Its weird that they added a concave on the front of the V sight… Almsot seems like it should be facing the shooter. It had me confused.

Avatar
1873man
Wisconsin
Member
WACA Member
Forum Posts: 4698
Member Since:
May 2, 2009
sp_UserOfflineSmall Offline
9
August 30, 2020 - 3:05 pm
sp_Permalink sp_Print

Kev18 said
Its weird that they added a concave on the front of the V sight… Almsot seems like it should be facing the shooter. It had me confused.

Its just like every sporting sight Winchester and other manufactures make. The concave side is away from the shooter otherwise you would get glare from the curved surface.

Bob

WACA Life Member---
NRA Life Member----
Cody Firearms member since 1991
Researching the Winchester 1873's


Email: [email protected]

Avatar
Chuck
Member
WACA Member
Forum Posts: 5810
Member Since:
March 31, 2009
sp_UserOfflineSmall Offline
10
August 30, 2020 - 4:50 pm
sp_Permalink sp_Print

These are cool sights.  Just be careful with these.  If they are binding up when you try to move them they can easily break.  These are often found with one of the smaller swivels cracked or broken. Some times the piece that has the 2 smaller swivels may even be missing.  Maybe swivel isn’t the right word but hopefully you understand..

Avatar
Kev18
Canada
Member
WACA Guest
Forum Posts: 83
Member Since:
April 7, 2020
sp_UserOfflineSmall Offline
11
August 30, 2020 - 4:55 pm
sp_Permalink sp_Print

Thanks for the help. I was trying out sights for my 86.

I have alot of original sights. I have the one it came with which is the flip up ladder sight, a 2 leaf express and a Lyman that il use now with my tang sight.

Also have the Lyman tang that I bought awhile ago new online.

So far I took my tang sight off and can just throw it on whenever I feel like it, in the field if need be. I keep a little tool kit handy to tighten the mounting screw.
