Lyman 48wJS
Avatar
clarence
NY
Member
Restricted
Forum Posts: 7119
Member Since:
November 1, 2013
sp_UserOfflineSmall Offline
21
September 12, 2024 - 3:21 pm
sp_Permalink sp_Print sp_EditHistory

Louis Luttrell said

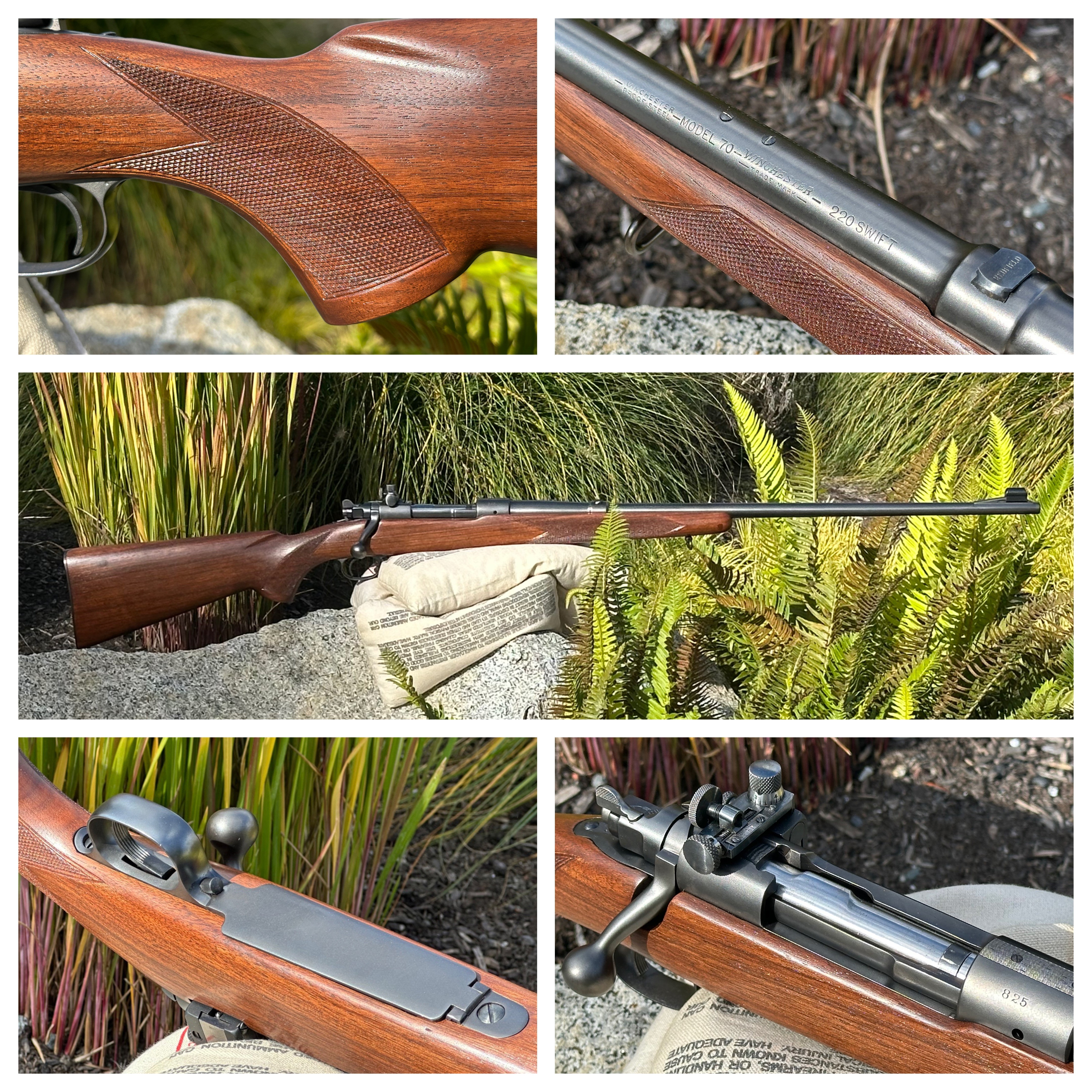

When it comes to scoping this rifle, a 220 Swift, while keeping the Lyman 48 receiver sight, one could consider mounting a pre-war Lyman Targetspot (or early STS or Junior Targetspot), Fecker, or even early Unertl, using a Lyman type BK code cross dovetail block in the barrel dovetail and Lyman type U code (0.185″ high) block on the front receiver ring.  The receiver block is the same thing used on M54/70 Target rifles and the long scope sits high enough to clear the receiver sight.  No added non-factory holes.  This doesn’t quite give the 7.2″ spacing between mounts to yield exactly 1/4 minute click adjustments, but it’s certainly close enough for praire dogs.

So that rear sight slot is actually good for something!  Extremely clean & neat mounting installation I guess I haven’t seen before–in fact, I like it better than the usual twin brl blocks.  Maybe not best for the yard-long Super TS & Programmer class of optics, but for more modest scopes, just right.  Slight spacing variance no handicap in respect to practical shooting.

Avatar
Louis Luttrell
Winchester, VA
Member
WACA Member
Forum Posts: 1265
Member Since:
November 5, 2014
sp_UserOfflineSmall Offline
22
September 12, 2024 - 4:24 pm
sp_Permalink sp_Print

Hi Clarence-

The only “downside” to that approach is that you get only 6″ spacing between the front/rear mounts.  You need about 7.2″ to get those micrometer adjustable mounts to produce 1/4 MOA clicks. That’s why a lot of these rifles got two D&T holes added to the top of the barrel a little forward of the barrel boss/rear sight dovetail.

Of course the setup is a little “fragile” with that long scope supported at two points only 6″ apart, but heck, it’s a varmint rifle, and as I tried to illustrate it can be perfectly period on a 1930s M54/70. Laugh Shoots pretty well too…


Best,

Lou

sp_PlupAttachments Attachments

WACA 9519; Studying Pre-64 Model 70 Winchesters


Avatar
clarence
NY
Member
Restricted
Forum Posts: 7119
Member Since:
November 1, 2013
sp_UserOfflineSmall Offline
23
September 12, 2024 - 6:51 pm
sp_Permalink sp_Print

Louis Luttrell said
The only “downside” to that approach is that you get only 6″ spacing between the front/rear mounts.  You need about 7.2″ to get those micrometer adjustable mounts to produce 1/4 MOA clicks. That’s why a lot of these rifles got two D&T holes added to the top of the barrel a little forward of the barrel boss/rear sight dovetail.

Of course the setup is a little “fragile” with that long scope supported at two points only 6″ apart, but heck, it’s a varmint rifle, and as I tried to illustrate it can be perfectly period on a 1930s M54/70. Laugh Shoots pretty well too…

6″ spacing was an “approved” alternative during the time Win was making the A & B model scopes, with charts for both spacings included in the catalog; 1 point (no clicks, which I dislike anyway) equaled .10″ movement, vs .078″ for the wider spacing.  6″ spacing was also used for A5s mounted on ’03 Spfds by USMC armorers during WW I.  The Win scopes were shorter than newer ones like the Fecker, but still, the arrangement is workable if you don’t drop your rifle too often.
