Hello everyone.
Several months ago, I started a post regarding a Winchester – Hotchkiss 1883 sporting rifle that I acquired. The rifle is currently with Mark Douglas who will be performing restoration services and a re-barreling.
I am a novice when it comes to all the details about Winchester rifles. I will need to replace the front sight which is not original. The rear sight that came with the rifle is of a ladder configuration.
I assume that the original site would have been a blade but was wondering if a Beech site could possibly be an option to use. I shoot my rifles recreationally and I hunt with them. I’ve never used a Beech sight, and I was wondering if it would be a good option to try in this situation.
Thanks in advance.
May 2, 2009
Offline
A Beach would be a sight you would use with a tang sight and you definitely don’t want it on a gun that is used in the woods. They are very delicate. I’m not familiar with a Hotchkiss, is the front sight dovetailed into the barrel or is it on a ramp?
Bob
WACA Life Member--- NRA Life Member---- Cody Firearms member since 1991 Researching the Winchester 1873's
Email: [email protected]
October 14, 2024
Offline
Hi Bob thanks for your response. As far as I can tell, the front sight should be dovetailed. Here’s a link to my other thread:
Thanks for your input regarding the delicate nature of the Beech sight. Obviously not a good choice for PA deer hunting.
October 14, 2024
Offline
PS. Is it Beech or Beach?
May 2, 2009
Offline

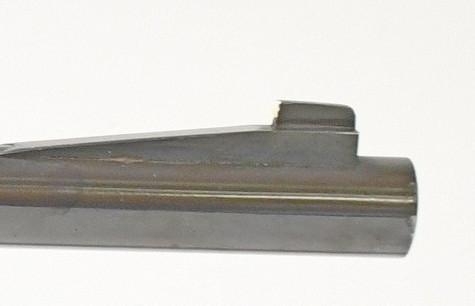

It does not look like you have a dovetail on the front. Its a ramp sight but I’m not sure how its attached. I edited a photo from your posts and lightened it up. Its spelled Beach at least Winchester spelled it that way in their catalogs.
Bob
WACA Life Member--- NRA Life Member---- Cody Firearms member since 1991 Researching the Winchester 1873's
Email: [email protected]
October 14, 2024
Offline
The barrel that was on the rifle was a replacement done at some point in its life. It did not have any Winchester markings, and it would not chamber a 45-70 cartridge.
September 22, 2011
Offline
kevindpm61 said
PS. Is it Beech or Beach?
Beach.
May 2, 2009
Offline
So your replacing the barrel?
Bob
WACA Life Member--- NRA Life Member---- Cody Firearms member since 1991 Researching the Winchester 1873's
Email: [email protected]
November 9, 2008
Offline

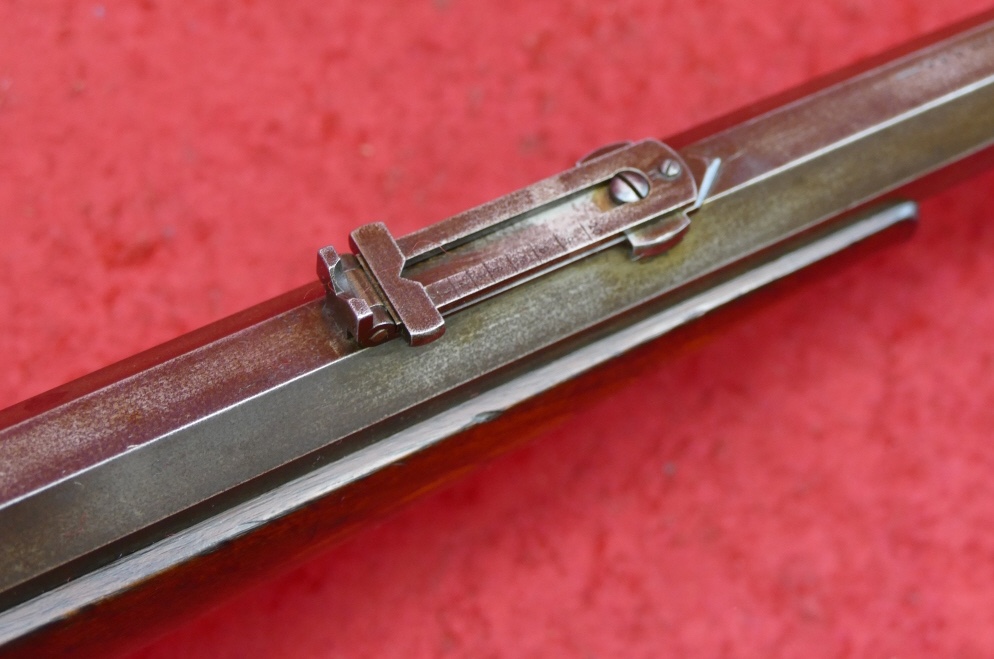

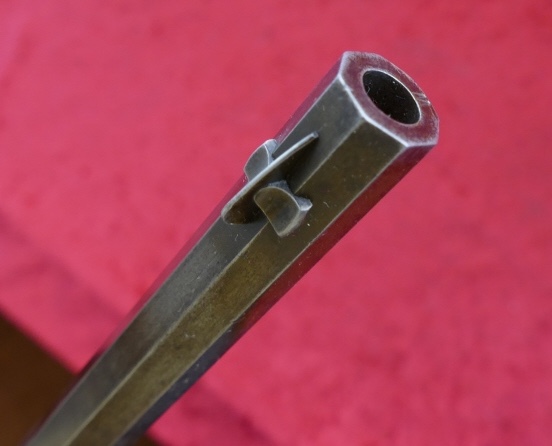

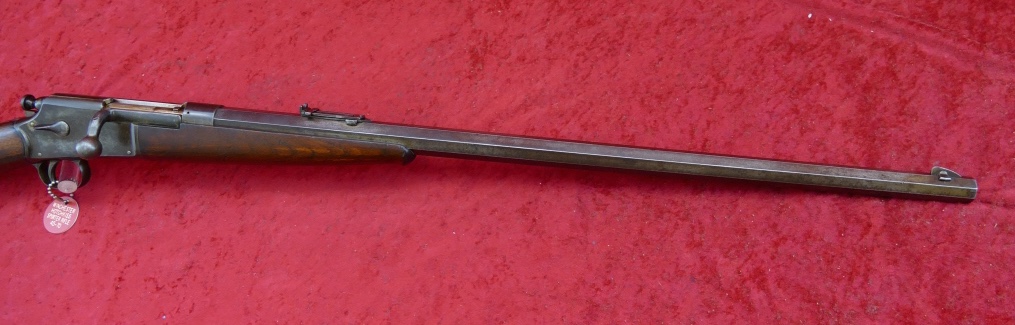

This is a sporting rifle I have, with a sporting Leif and rocky mountain front. The same sights that were offered on the 1876
October 14, 2024
Offline
Mark will be replacing the barrel to bring her back to the original configuration. She letters as originally having a 28-inch round barrel. Apparently, Mark has had a job of it trying to find somebody to replicate the contour and rifling twist.
Thanks for the pics of your rifle CJ. I like the turned down bolt handle.
March 31, 2009
Offline
Mark will be replacing the barrel to bring her back to the original configuration. She letters as originally having a 28-inch round barrel. Apparently, Mark has had a job of it trying to find somebody to replicate the contour and rifling twist.
Thanks for the pics of your rifle CJ. I like the turned down bolt handle.

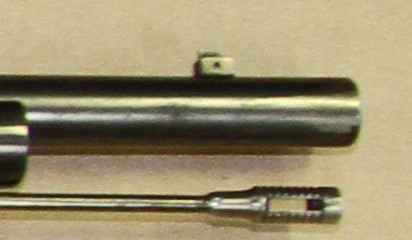

I don’t have a commercial Hotchkiss but here is what the Military front sight looks like. Rifle and carbine used the same front sight.
If you use a barrel with a front dovetail you could use the Beach. Usually it is just a blade.
