Are these sights correct for a 1927 Model 1894??
Avatar
James Barron
Member
WACA Member
Forum Posts: 7
Member Since:
June 22, 2016
sp_UserOfflineSmall Offline
1
July 22, 2019 - 11:21 am
sp_Permalink sp_Print

I was wondering if anyone can tell me if these sights are correct for a 1927 30WCF S/N#1012321 Saddle Ring Carbine Model 1894. Have do some research but still not sure so i thought i would ask.

Sorry can’t upload photos for some reason.

It has a Marbles Flexible Tang Sight and an adjustable rear Rifle Sight the front sight is a blade.

If anyone can help me get the photos up it will make it a lot easier.

Cheers

Avatar
1873man
Wisconsin
Member
WACA Member
Forum Posts: 4698
Member Since:
May 2, 2009
sp_UserOfflineSmall Offline
2
July 22, 2019 - 1:45 pm
sp_Permalink sp_Print

James,

 You can email the sights to me and I can post them. Below is my email

Bob

WACA Life Member---
NRA Life Member----
Cody Firearms member since 1991
Researching the Winchester 1873's


Email: [email protected]

Avatar
1873man
Wisconsin
Member
WACA Member
Forum Posts: 4698
Member Since:
May 2, 2009
sp_UserOfflineSmall Offline
3
July 22, 2019 - 11:31 pm
sp_Permalink sp_Print

James, Here are your pictures,

Bob

IMG_3211-002.jpgIMG_3212-002.jpgIMG_3214-002.jpgIMG_3215-002.jpgIMG_3216-002.jpgIMG_3217-002.jpg

sp_PlupAttachments Attachments
WACA Life Member---
NRA Life Member----
Cody Firearms member since 1991
Researching the Winchester 1873's


Email: [email protected]

Avatar
James Barron
Member
WACA Member
Forum Posts: 7
Member Since:
June 22, 2016
sp_UserOfflineSmall Offline
4
July 23, 2019 - 3:24 am
sp_Permalink sp_Print

Thankyou Bob. Much Appreciated.

Avatar
1873man
Wisconsin
Member
WACA Member
Forum Posts: 4698
Member Since:
May 2, 2009
sp_UserOfflineSmall Offline
5
July 23, 2019 - 4:19 am
sp_Permalink sp_Print

James,

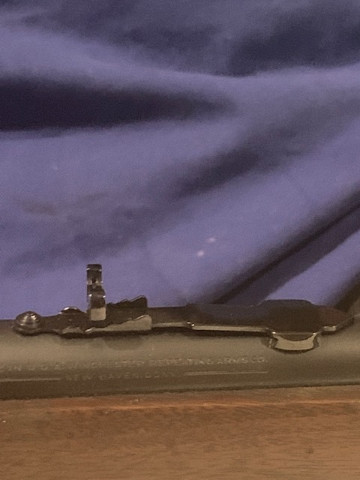

The barrel sights have been changed. The rear barrel sight would normally be a Sporting Leaf and the front sight blade looks to be taller than normal and was just a plain blade.

Bob

WACA Life Member---
NRA Life Member----
Cody Firearms member since 1991
Researching the Winchester 1873's


Email: [email protected]

Avatar
Big Larry
Member
WACA Member
Forum Posts: 2549
Member Since:
December 31, 2012
sp_UserOfflineSmall Offline
6
July 23, 2019 - 5:35 pm
sp_Permalink sp_Print

James Barron said
I was wondering if anyone can tell me if these sights are correct for a 1927 30WCF S/N#1012321 Saddle Ring Carbine Model 1894. Have do some research but still not sure so i thought i would ask.

Sorry can’t upload photos for some reason.

It has a Marbles Flexible Tang Sight and an adjustable rear Rifle Sight the front sight is a blade.

If anyone can help me get the photos up it will make it a lot easier.

Cheers

James, I have a near mint 44A rear sight correct for your rifle. Not cheap. Send me a PM if interested.  Big Larry

Avatar
Chuck
Member
WACA Member
Forum Posts: 5810
Member Since:
March 31, 2009
sp_UserOfflineSmall Offline
7
July 23, 2019 - 9:21 pm
sp_Permalink sp_Print

1873man said
James, Here are your pictures,

Bob

IMG_3211-002.jpgIMG_3212-002.jpgIMG_3214-002.jpgIMG_3215-002.jpgIMG_3216-002.jpgIMG_3217-002.jpg

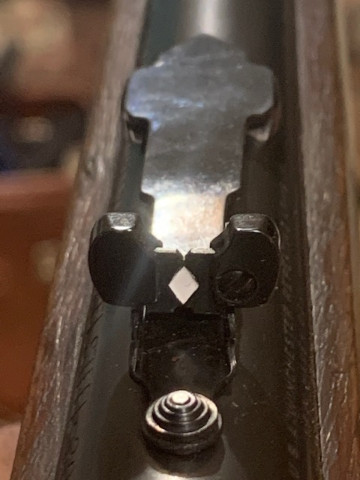

The rear barrel sight looks like a King sight to me especially the elevator.  King started business in 1913. King and Sheard were bought out by Lyman later in the 1900’s.   Are these original to the gun, probably not.  Are they of the period I would say possibly.

Avatar
James Barron
Member
WACA Member
Forum Posts: 7
Member Since:
June 22, 2016
sp_UserOfflineSmall Offline
8
July 26, 2019 - 12:15 pm
sp_Permalink sp_Print

Thanks everyone for your help.
