#44A Carbine Sight Variations
sp_NewTopic Add Topic
Avatar
Member
WACA Member
Forum Posts: 348
Member Since:
July 31, 2005
sp_UserOfflineSmall Offline
1
April 2, 2024 - 5:36 pm
sp_Permalink sp_Print sp_QuotePost

I have been looking at what Winchester calls “carbine” sights.  The earliest type was used on the 1866 and 1873 carbines and has a short leaf.  There is no adjustable slide.  See illustration from catalog.

carbine-10.pngImage Enlarger

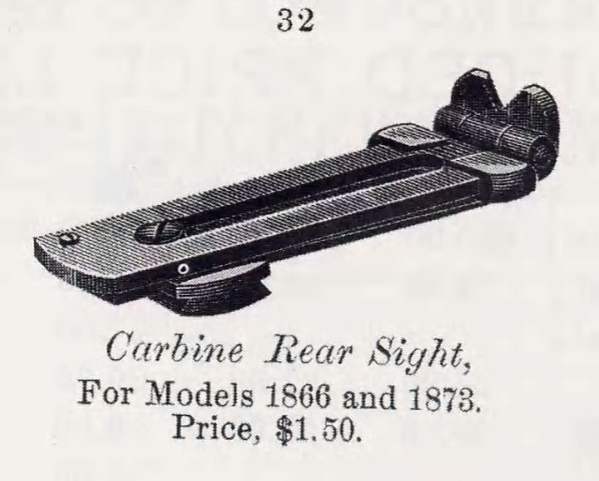

The type that Madis calls the #44A first shows up in the April 1, 1882 catalog.  It has a longer leaf with adjustable slide.  No range marks on the leaf.

carbine-11.pngImage Enlarger



An updated variation shows up in the January 1, 1884 catalog.  Range marks go from 2-9.  This variation may be marked 1873 but not all were.  Note the V notch on the leaf and slide.

carbine-12.jpgImage Enlarger1873-carbine-01.JPGImage Enlarger

Sometime early in the 20th century the range marks on the leaf were changed.  I can’t find a catalog illustration showing this change.

1873-carbine-04.JPGImage Enlarger



The catalogue #79 of 1914 shows the leaf and slider with a small U notch

1873-carbine-05.JPGImage Enlarger



There are other carbine sight variations marked 1876 that are longer but similar looking to the #44A.  These variations are not mentioned in the Madis Sight Book.   More knowledge just brings more questions…

sp_PlupAttachments Attachments

I call myself a collector as it sounds better than hoarder

Avatar
Kingston, WA
Admin
Forum Posts: 10848
Member Since:
April 15, 2005
sp_UserOfflineSmall Offline
2
April 3, 2024 - 12:19 am
sp_Permalink sp_Print sp_QuotePost

 Bill.

The longer version was listed as a “Sporting Leaf sight”, and they were used on the Model 1876, Single Shot, and Model 1886 rifles.

Bert

WACA Historian & Board of Director Member #6571L

Avatar
Northeast Washington
Member
WACA Member
Forum Posts: 198
Member Since:
July 3, 2020
sp_UserOfflineSmall Offline
3
April 3, 2024 - 12:25 am
sp_Permalink sp_Print sp_QuotePost

The French WWI contract 94’s also had the carbine sight… range was in meters.

Image Enlarger

Avatar
Member
WACA Member
Forum Posts: 348
Member Since:
July 31, 2005
sp_UserOfflineSmall Offline
4
April 3, 2024 - 3:09 pm
sp_Permalink sp_Print sp_QuotePost

Bert H. said
 Bill.

The longer version was listed as a “Sporting Leaf sight”, and they were used on the Model 1876, Single Shot, and Model 1886 rifles.

Bert



Bert,  it appears I was looking at variations of the sporting leaf sights and thinking they were different models.  So much to learn…

IMG_5545.JPGImage Enlarger1876-carbine-01-1.jpgImage Enlarger

sp_PlupAttachments Attachments

I call myself a collector as it sounds better than hoarder
