1894 Sights Question
sp_NewTopic Add Topic
Avatar
Member
WACA Member
Forum Posts: 42
Member Since:
March 12, 2023
sp_UserOfflineSmall Offline
1
May 1, 2025 - 5:08 pm
sp_Permalink sp_Print sp_QuotePost

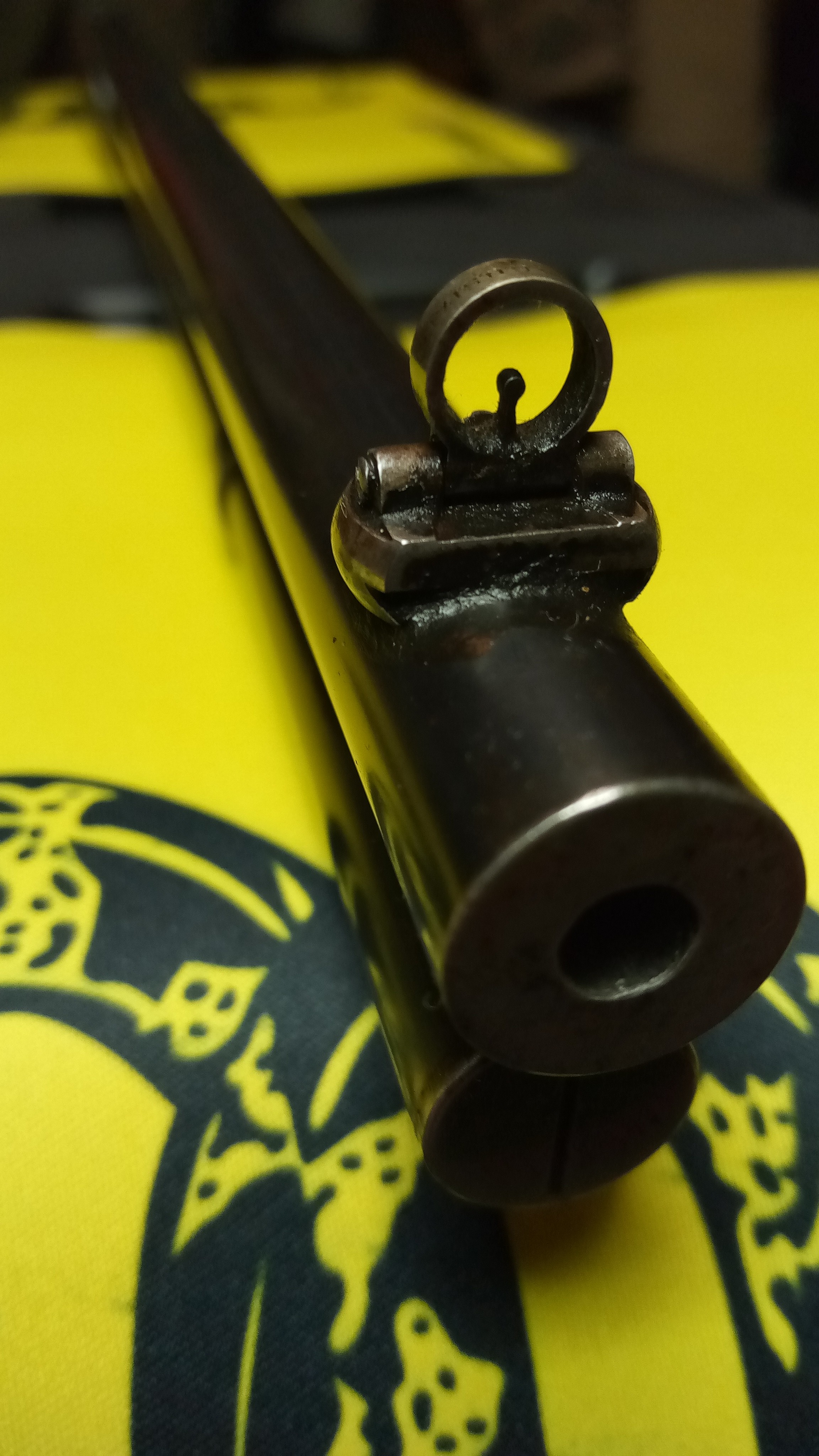

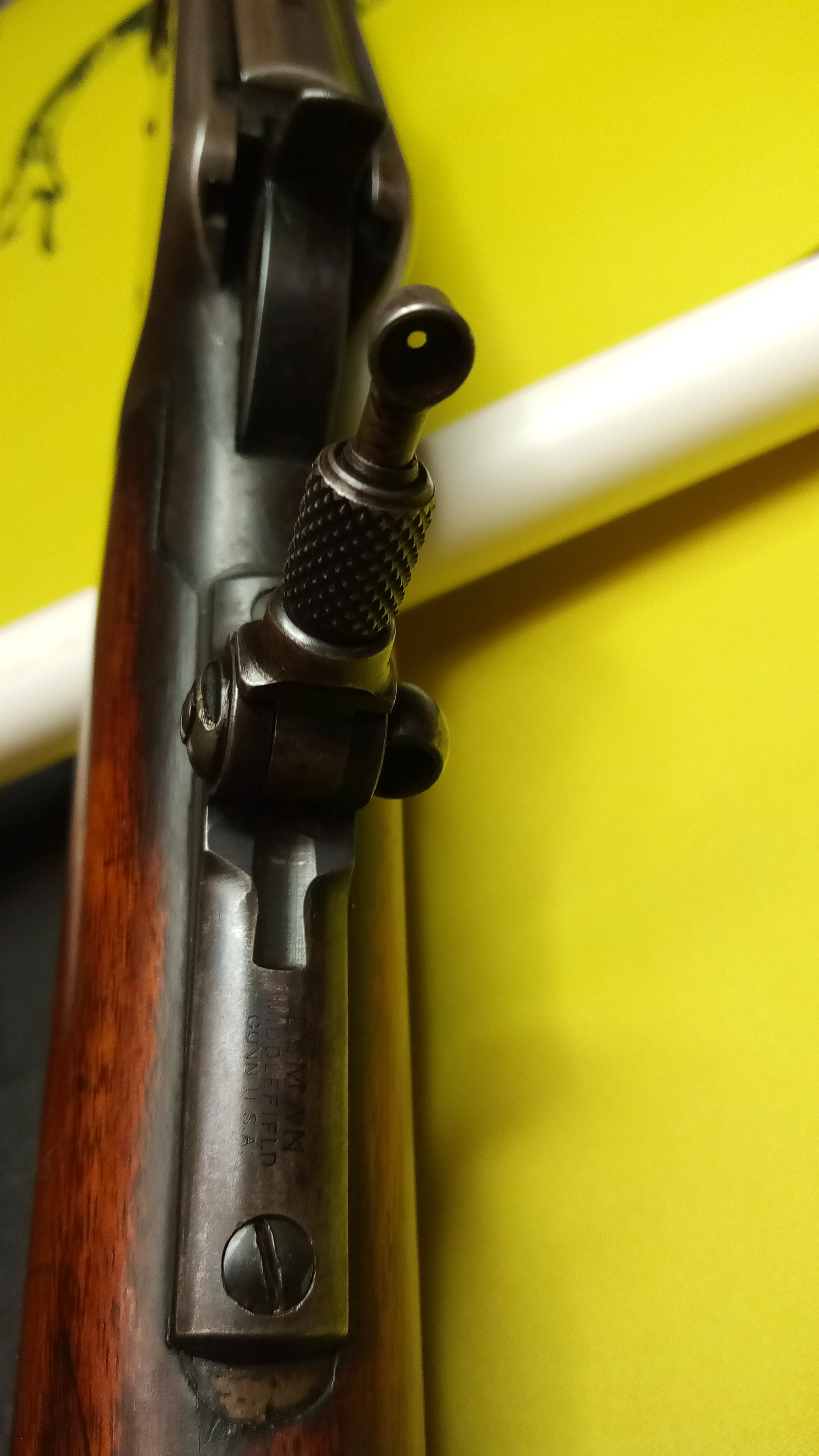

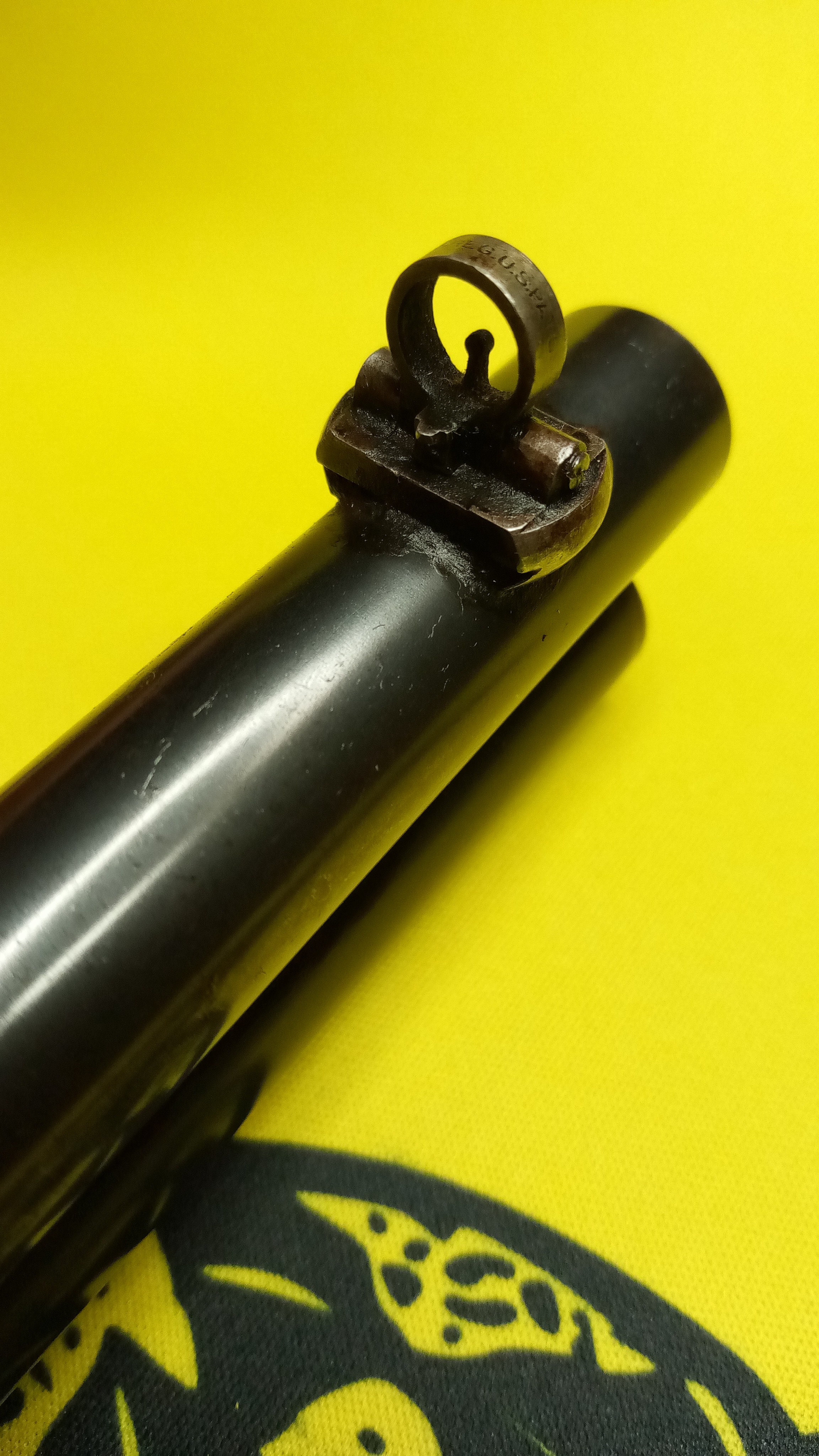

1917 vintage Model 1894 rifle in .25-35 WCF with a Lyman #5 front sight and Lyman #1 tang sight (flip-up aperture). Rear barrel dovetail is blanked. Does anyone know if these sights were available as factory options during this time or were they likely added later? I’m thinking that the Lyman #1 tang sight might be from an earlier timeframe before they moved on to the threaded aperture design.

Thanks,

Gus



IMG_20250501_112146.jpgImage EnlargerIMG_20250501_111857.jpgImage EnlargerIMG_20250501_112558.jpgImage EnlargerIMG_20250501_112427.jpgImage Enlarger

Avatar
Kingston, WA
Admin
Forum Posts: 12565
Member Since:
April 15, 2005
sp_UserOfflineSmall Offline
2
May 1, 2025 - 5:22 pm
sp_Permalink sp_Print sp_QuotePost

Gus,

The odds are very high that the Lyman sights were installed by a past owner.  If Winchester had installed (special order) a Lyman tang sight, it would have been a No. 1A (or a No. 2A) versus the older No. 1 that is currently on your rifle.  The 1A and 2A tang sights superseded the No. 1 and No. 2 sights approximately 10-years before your rifle was manufactured.  What is the serial number on this rifle?

Bert

WACA Historian & Board of Director Member #6571L

Avatar
Member
WACA Member
Forum Posts: 42
Member Since:
March 12, 2023
sp_UserOfflineSmall Offline
3
May 1, 2025 - 5:26 pm
sp_Permalink sp_Print sp_QuotePost

Bert,

Ser# 854745

Thanks,

Gus

Avatar
Kingston, WA
Admin
Forum Posts: 12565
Member Since:
April 15, 2005
sp_UserOfflineSmall Offline
4
May 1, 2025 - 5:52 pm
sp_Permalink sp_Print sp_QuotePost

Green River Gus said
Bert,

Ser# 854745

Thanks,

Gus

I do not (yet) have that s/n documented in the survey.  Can you please provide the details (or pictures) of the complete configuration.

Per the PR records, early May 1917.

Thanks,

Bert

WACA Historian & Board of Director Member #6571L

Avatar
Member
WACA Member
Forum Posts: 42
Member Since:
March 12, 2023
sp_UserOfflineSmall Offline
5
May 1, 2025 - 6:04 pm
sp_Permalink sp_Print sp_QuotePost

Bert,

I submitted the info under the 1894 Research Survey page a few days ago. It’s on page 3 of the thread. I’ll send some photos shortly for your reference.

Thanks,

Gus

Avatar
Kingston, WA
Admin
Forum Posts: 12565
Member Since:
April 15, 2005
sp_UserOfflineSmall Offline
6
May 1, 2025 - 6:08 pm
sp_Permalink sp_Print sp_QuotePost

Green River Gus said
Bert,

I submitted the info under the 1894 Research Survey page a few days ago. It’s on page 3 of the thread. I’ll send some photos shortly for your reference.

Thanks,

Gus

Thanks… I must have missed seeing it, but will go find it now.Cool

WACA Historian & Board of Director Member #6571L

Avatar
Member
WACA Member
Forum Posts: 42
Member Since:
March 12, 2023
sp_UserOfflineSmall Offline
7
May 1, 2025 - 6:25 pm
sp_Permalink sp_Print sp_QuotePost

Bert,

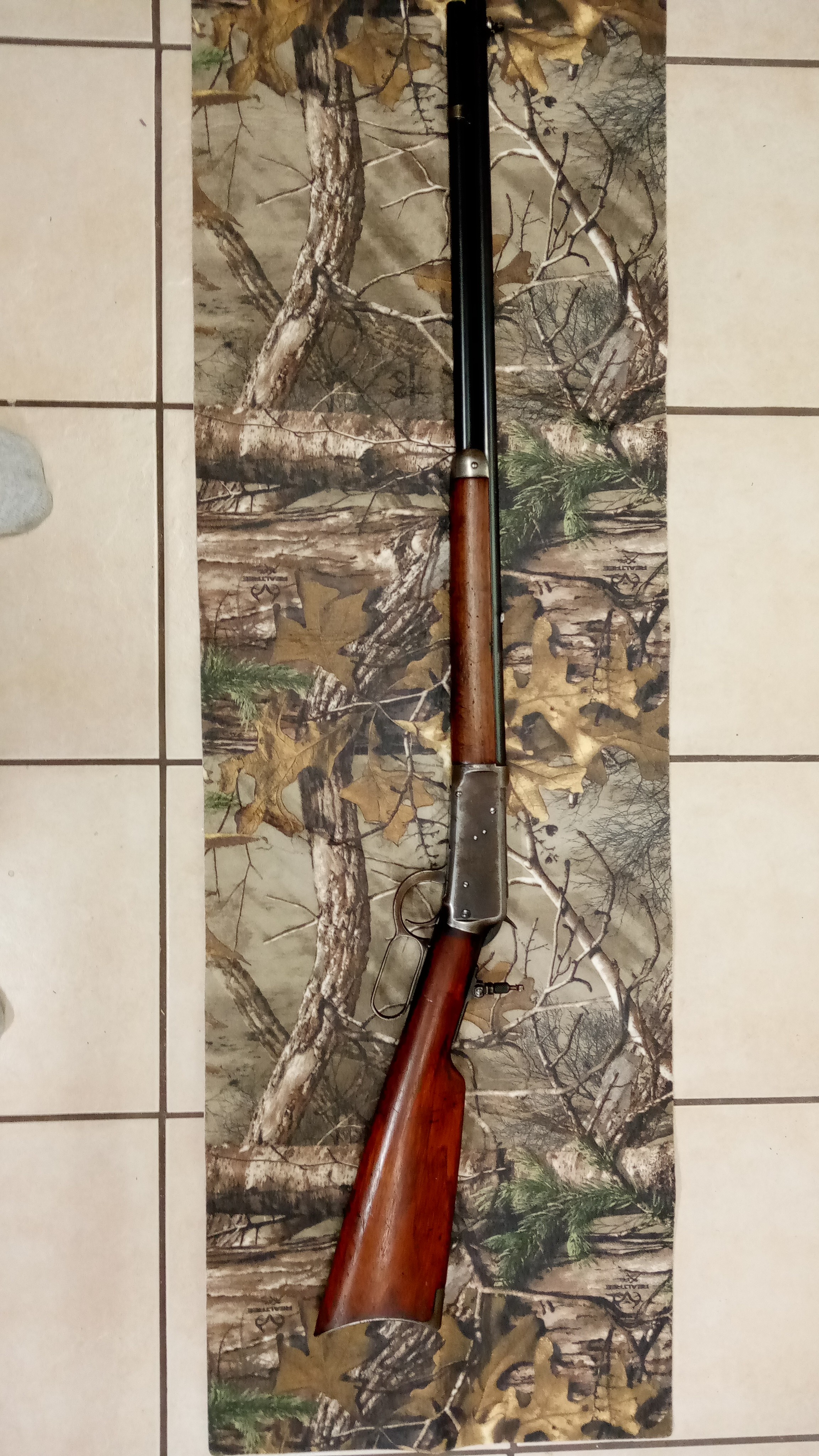

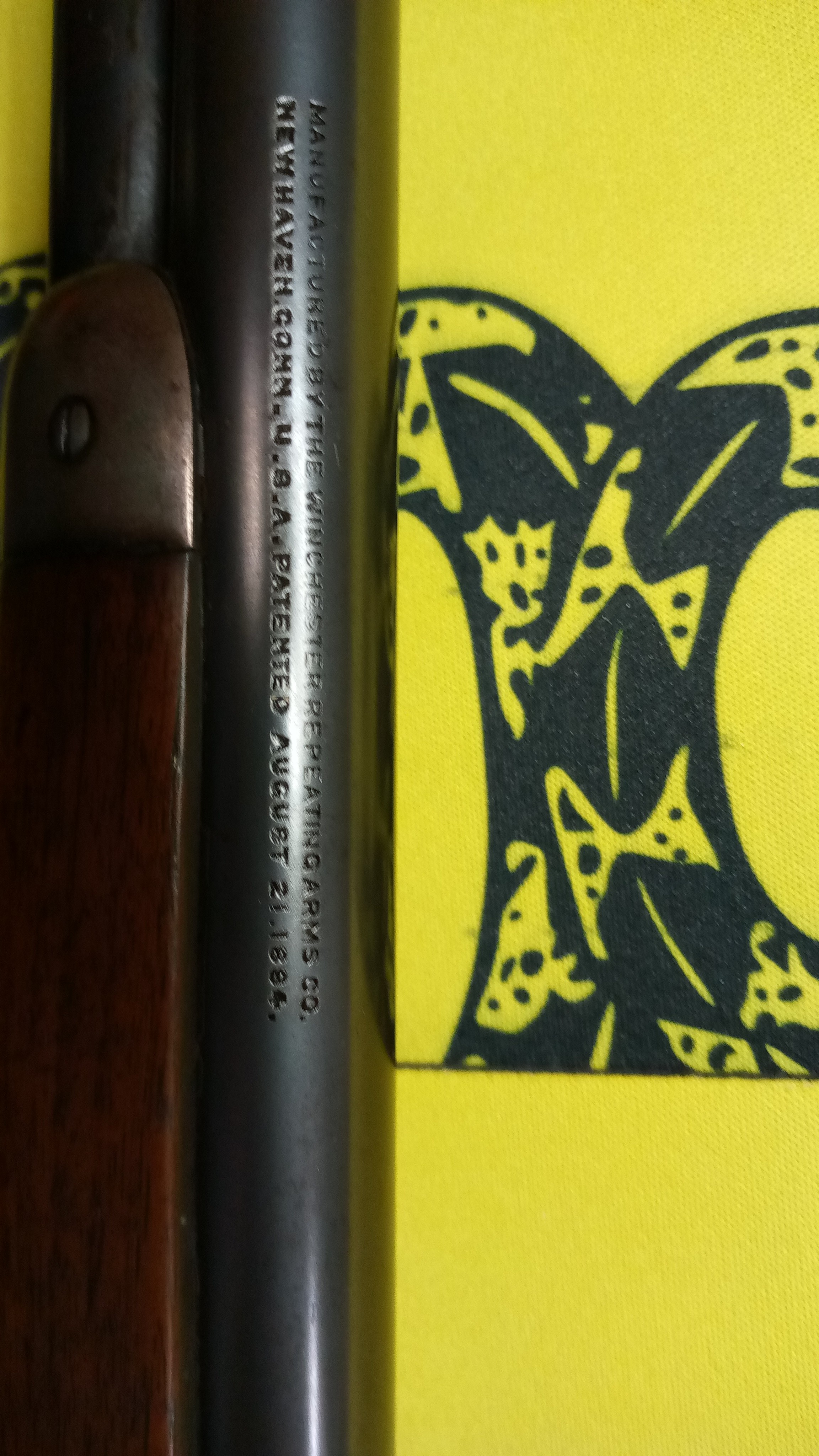

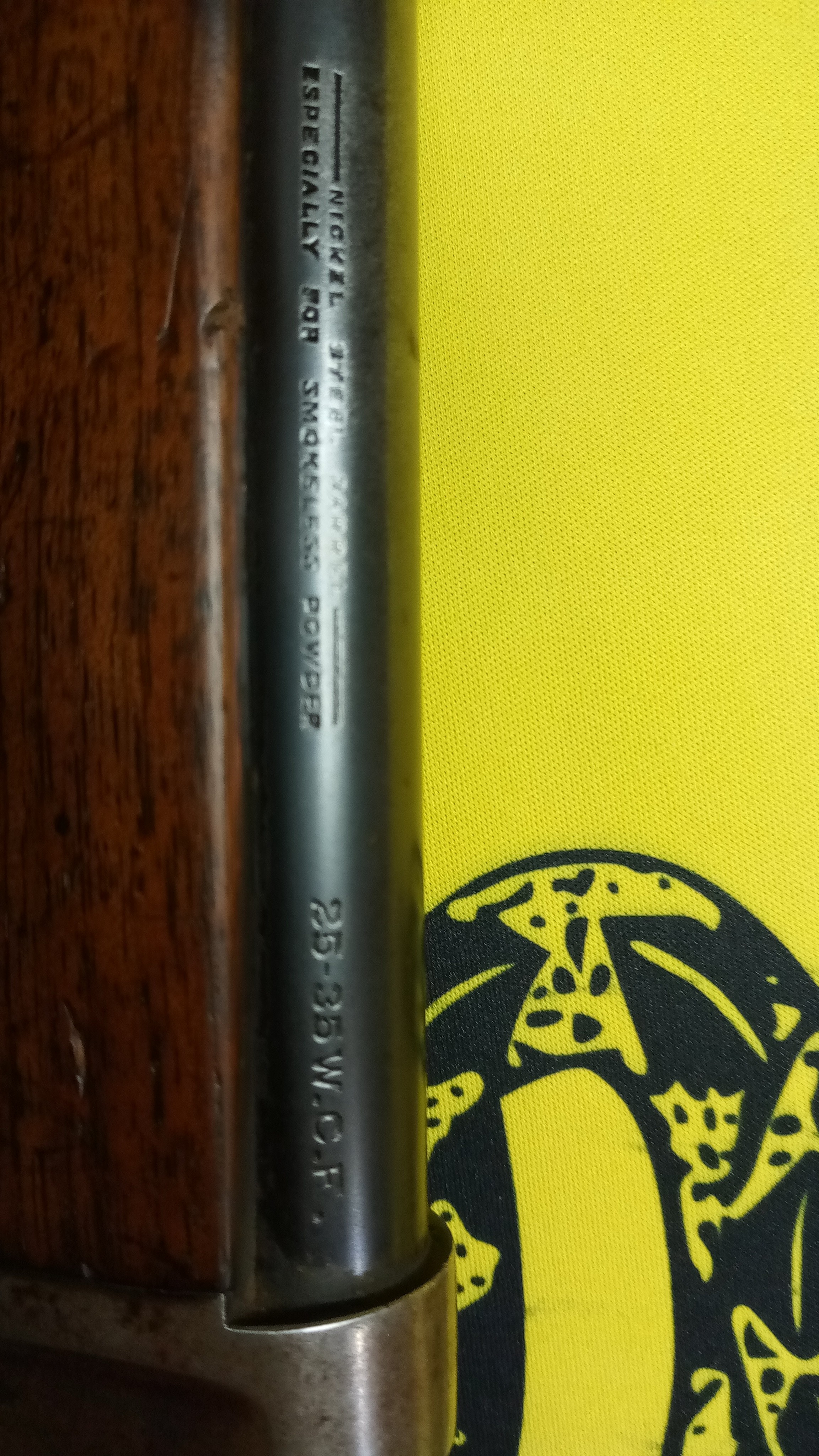

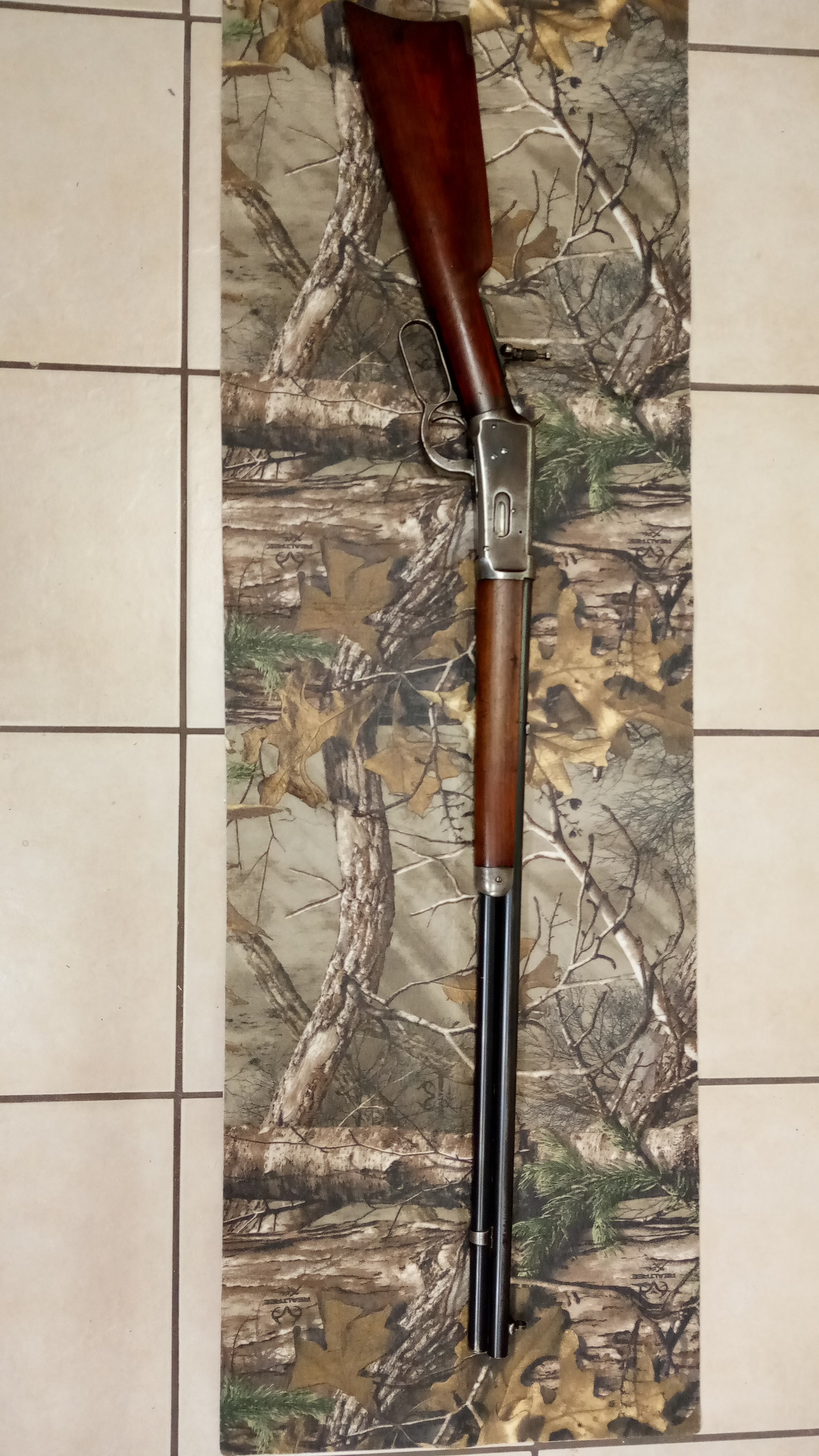

Photos of subject rifle. I appreciate all your help.

Thanks,

Gus



IMG_20250501_131144.jpgImage EnlargerIMG_20250501_130955.jpgImage EnlargerIMG_20250501_131208.jpgImage EnlargerIMG_20250501_131021.jpgImage Enlarger

Avatar
Kingston, WA
Admin
Forum Posts: 12565
Member Since:
April 15, 2005
sp_UserOfflineSmall Offline
8
May 1, 2025 - 6:32 pm
sp_Permalink sp_Print sp_QuotePost

Green River Gus said
Bert,

Photos of subject rifle. I appreciate all your help.

Thanks,

Gus



IMG_20250501_131144.jpgImage EnlargerIMG_20250501_130955.jpgImage EnlargerIMG_20250501_131208.jpgImage EnlargerIMG_20250501_131021.jpgImage Enlarger



Thanks, a standard Sporting Rifle in decent condition with upgraded sights.

WACA Historian & Board of Director Member #6571L
