Winchester Model 1894 Receiver color variation
Avatar
Richard Pike
Member
WACA Member
Forum Posts: 94
Member Since:
September 14, 2016
sp_UserOfflineSmall Offline
1
February 23, 2019 - 7:50 pm
sp_Permalink sp_Print

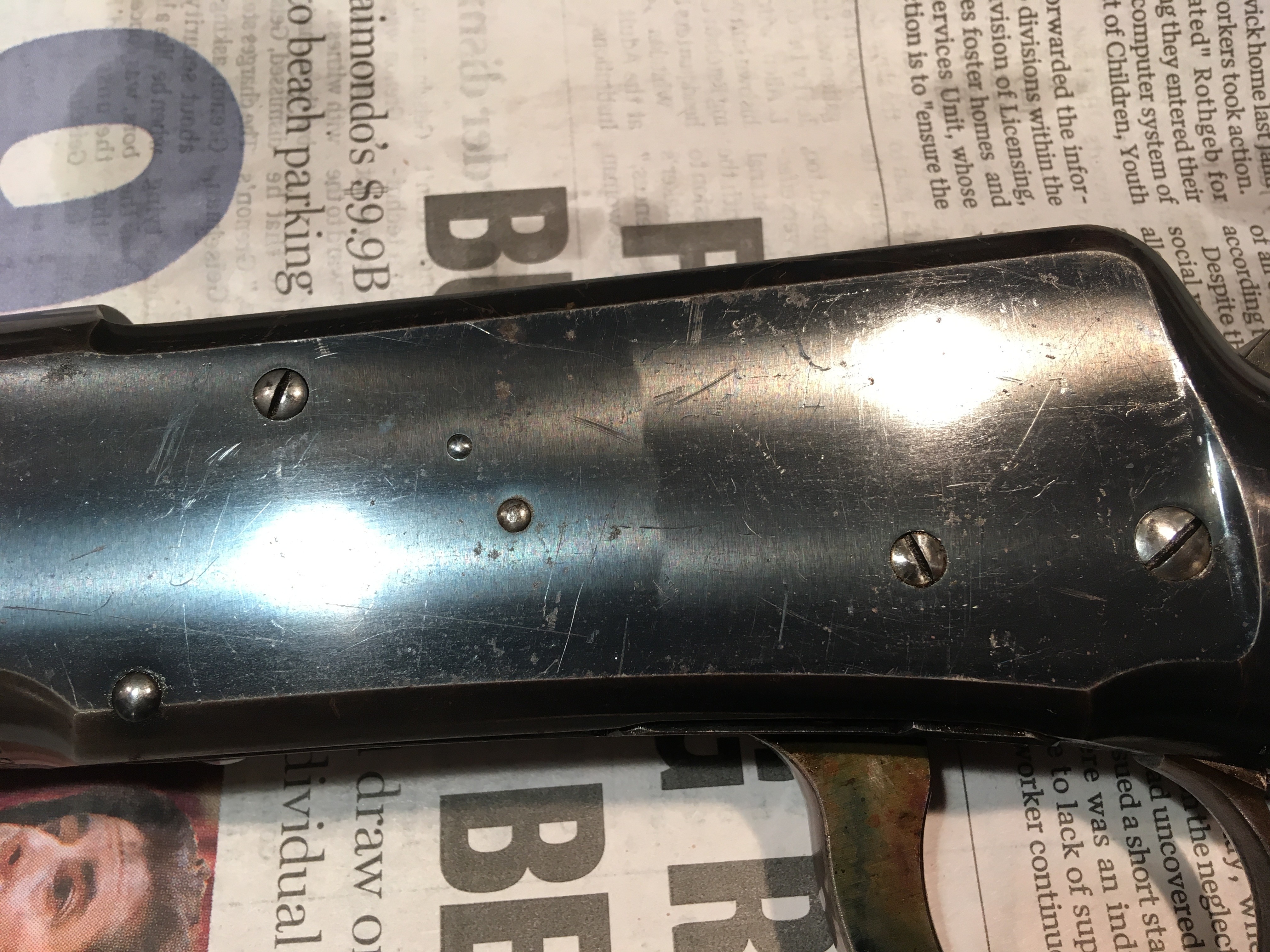

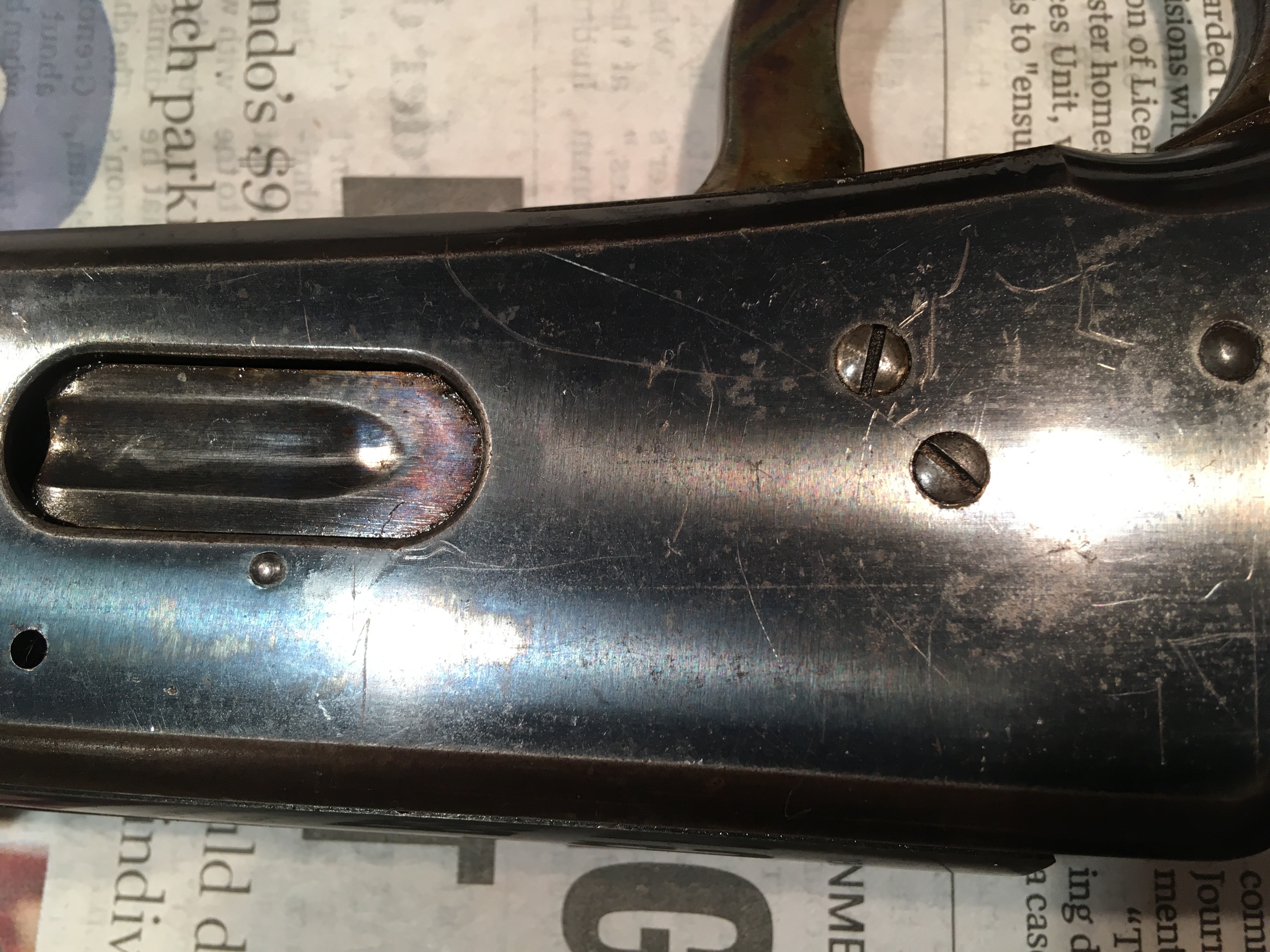

I just purchased a Winchester Model 1894 through Gun Broker. It was described as “untouched” form an Estate. However as I inspected it I noticed a distinct line running through the bluing on the receiver. More clearly on one side and less clearly on the loading gate side. I have attached pictures.

Anybody have an explanation for this, or have seen this before?[Image Can Not Be Found]IMG_1333.JPGImage Enlarger

IMG_1334.JPGImage Enlarger

sp_PlupAttachments Attachments
Avatar
deerhunter
Troutdale, OR
Member
WACA Member
Forum Posts: 2713
Member Since:
June 26, 2013
sp_UserOnlineSmall Online
2
February 23, 2019 - 10:29 pm
sp_Permalink sp_Print

Richard Pike said
I just purchased a Winchester Model 1894 through Gun Broker. It was described as “untouched” form an Estate. However as I inspected it I noticed a distinct line running through the bluing on the receiver. More clearly on one side and less clearly on the loading gate side. I have attached pictures.

Anybody have an explanation for this, or have seen this before?[Image Can Not Be Found]IMG_1333.JPGImage Enlarger

IMG_1334.JPGImage Enlarger


Those look like factory polishing marks to me.  A good thing when determining originality of the bluing on a receiver.

Avatar
TR
Member
WACA Member
Forum Posts: 1880
Member Since:
June 4, 2017
sp_UserOfflineSmall Offline
3
February 23, 2019 - 10:39 pm
sp_Permalink sp_Print

 Richard, The color and finish looks good and original, nice gun from the little bit I can see. I think when the factory buffed the receiver they went two different directions. On colt SAA’s they do that around the front sight, they call it feathering. I’m sure a 94 collector can shed some light on the subject. T/R

Avatar
Chuck
Member
WACA Member
Forum Posts: 5873
Member Since:
March 31, 2009
sp_UserOfflineSmall Offline
4
February 24, 2019 - 7:53 pm
sp_Permalink sp_Print

TR said
 Richard, The color and finish looks good and original, nice gun from the little bit I can see. I think when the factory buffed the receiver they went two different directions. On colt SAA’s they do that around the front sight, they call it feathering. I’m sure a 94 collector can shed some light on the subject. T/R

Actually they buffed the receiver in 4 directions.  Some years ago I had the chance to look at the finest gun that I have ever seen. Each side of the receiver had 4 distinct squares where it was polished in alternating horizontal and vertical directions showing the buff marks.

Avatar
Eagle
NE OREGON
Member
WACA Guest
Forum Posts: 538
Member Since:
July 8, 2016
sp_UserOfflineSmall Offline
5
February 24, 2019 - 10:54 pm
sp_Permalink sp_Print

Agree with all the above…I have two rifles with the same marks…factory polishing marks. Now you can be sure that it was not reblued or it would not have those marks.
