I’m assuming this one has been cut, but thought I’d post pics here to get opinions.
The round barrel measure 23” (the odd number length was my first red flag).
<img decoding="async" src="
View post on imgur.com” width=”3000″ alt=”
” /> <img decoding="async" src="
View post on imgur.com” width=”3024″ alt=”
” /> <img decoding="async" src="
View post on imgur.com” width=”1923″ alt=”
” /> <img decoding="async" src="
View post on imgur.com” width=”1627″ alt=”
” /> <img decoding="async" src="
View post on imgur.com” width=”1982″ alt=”
” />
July 8, 2016
Offline
Judging by the placement of the mag holder and front site I would say it’s been shortened and the barrel has been re-dovetailed for the front site. Is your last picture of the gun in question? I would say not with the matted barrel and forend wood.
September 21, 2016
Offline
The last pic is part of my profile “signature?”.
Its a model 71 deluxe long tang with a roll matted barrel. The forearm wood grain is pretty amazing on it, no doubt to accent the barrel feature.
March 20, 2009
Offline
Good morning,

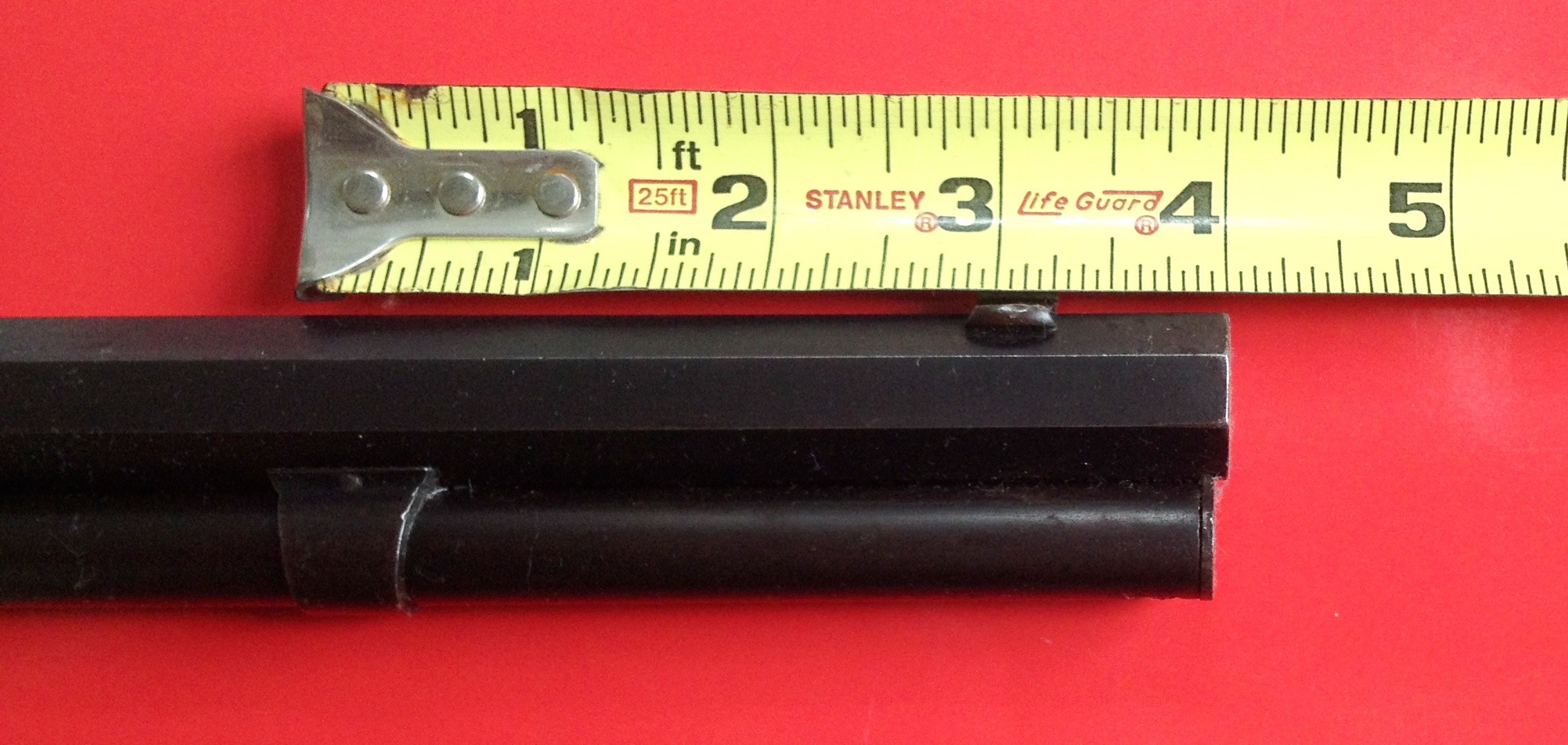

Absolutely cut down! Regardless of the barrel length, or style, the front sight and magazine retaining band should be positioned as in the attached photos.
Michael
Model 1892 / Model 61 Collector, Research, Valuation
December 21, 2006
Offline
I can’t tell by the pics but that gun may not necessarily been shortened, even though the site and the magazine band seem to be misplaced I believe they made 6, 23″ rifles that letter, I had an engraved one, and who knows how many they made after. I would have to do all the measurements on it and check the machining to form an opinion. What ser# range and is it a short 8 3/8″ forestock, what cal. , does it have a tang site?
W.A.C.A. life member, Marlin Collectors Assn. charter and life member, C,S.S.A. member and general gun nut.
September 21, 2016
Offline
twobit said
Good morning,Absolutely cut down! Regardless of the barrel length, or style, the front sight and magazine retaining band should be positioned as in the attached photos.
Michael
Michael, thank you for the clear pictures.
So is it safe to say that all sporting rifle configuration 1894s have a retaining band that is (3 5/8” ?) on center from the face of the muzzle, even in special order lengths?
September 21, 2016
Offline
Henry Mero said
I can’t tell by the pics but that gun may not necessarily been shortened, even though the site and the magazine band seem to be misplaced I believe they made 6, 23″ rifles that letter, I had an engraved one, and who knows how many they made after. I would have to do all the measurements on it and check the machining to form an opinion. What ser# range and is it a short 8 3/8″ forestock, what cal. , does it have a tang site?
The serial number is 563530.
I’ll get better measurements tonight for reference.
I imagine it’s been cut, but I’m not an 1894 efficianado by any stretch.
All input and insight is appreciated!
thanks
March 20, 2009
Offline
Joel Goodrich said
The serial number is 563530.
I’ll get better measurements tonight for reference.
I imagine it’s been cut, but I’m not an 1894 efficianado by any stretch.
All input and insight is appreciated!
thanks
Joel,
That is correct. I have 2 of those 6, 23 inch barreled 1894’s but each has a shorter than full length magazine!! I have a few 22 inch, full length magazine 1892’s and 1894’s and the magazine retaining ring is positioned as shown in the photos.
Michael
Michael
Model 1892 / Model 61 Collector, Research, Valuation
June 4, 2017
Online
I bought a 1894 23″ barrel deluxe from one of my wife’s relatives at deer camp in Michigan’s U.P. It was 1/2 octagon, full magazine, pistol grip, SB, checkered, 30WCF, and all original. S/N 183894 lettered correct and I like a fool sold during a weak moment to a fellow 94 collector. I can’t tell from my old photo’s how long the forearm was, it’s been over ten years and I can’t remember. T/R
