Upper tang marking on my 1894 Spruce Gun
Avatar
deerhunter
Troutdale, OR
Member
WACA Member
Forum Posts: 2713
Member Since:
June 26, 2013
sp_UserOfflineSmall Offline
1
May 5, 2019 - 2:08 am
sp_Permalink sp_Print sp_EditHistory

I was comparing the upper tang markings on a couple of my 1894 carbines.  According to Renneberg’s Model 94 book, both are in the serial number range to have the Type 4 tang marking.  Both are essentially the same as far as the content goes, but my Spruce gun (serial number 849681) has a little bit different font style that my other 1894 carbine (serial number 832405).  I thought this was a little strange.  I’m assuming there were some variations in the roll dies that were being used?  Or did I discover a new style tang marking?

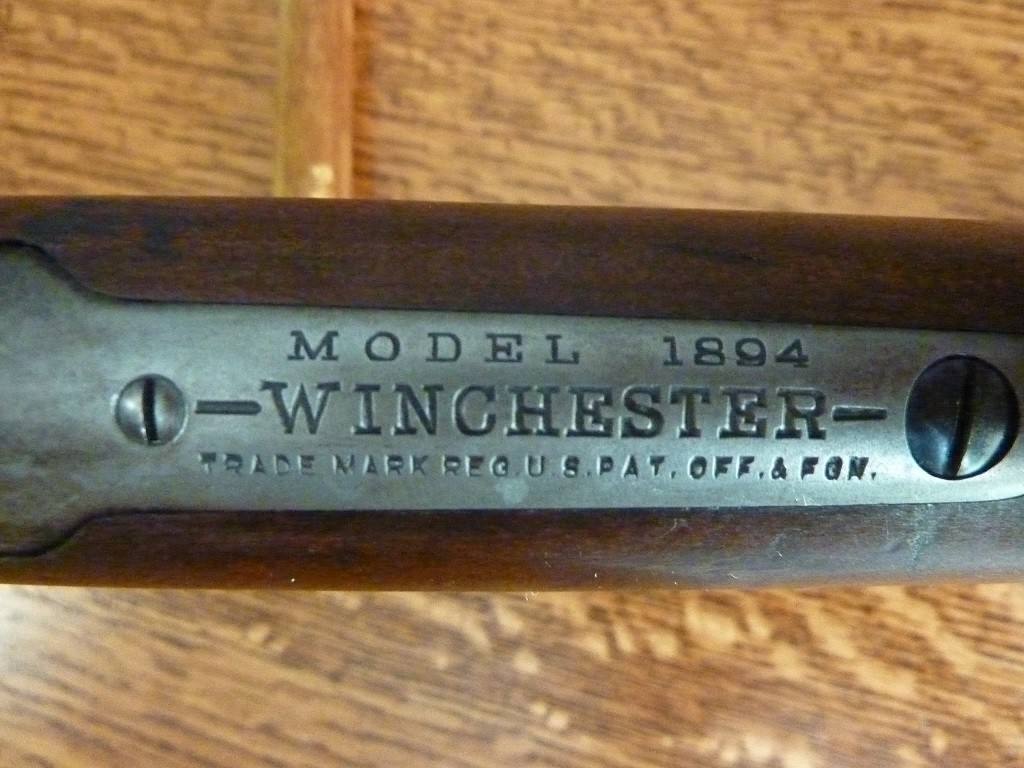

Here is the tang marking on my 1894 Spruce gun serial number 849681:

P1070323.JPGImage Enlarger

Here is the tang marking on my 1894 carbine serial number 832405:

P1070194.JPGImage Enlarger

Don

sp_PlupAttachments Attachments
Avatar
Bert H.
Kingston, WA
Admin
Forum Posts: 12987
Member Since:
April 15, 2005
sp_UserOnlineSmall Online
2
May 19, 2019 - 6:01 am
sp_Permalink sp_Print

Don,

Winchester employed a fair number of people in their Tool & Die shop, and each one of them had their own set of tools for cutting the dies.  Accordingly, no two dies in the same series were physically identical.  Both of your Carbines have the Type-4 series marking.

Bert

WACA Historian & Board of Director Member #6571L
