Rear Sight? / Pop Quiz!
Avatar
Maverick
Member
WACA Member
Forum Posts: 2042
Member Since:
May 23, 2009
sp_UserOfflineSmall Offline
1
July 31, 2018 - 12:39 am
sp_Permalink sp_Print sp_EditHistory

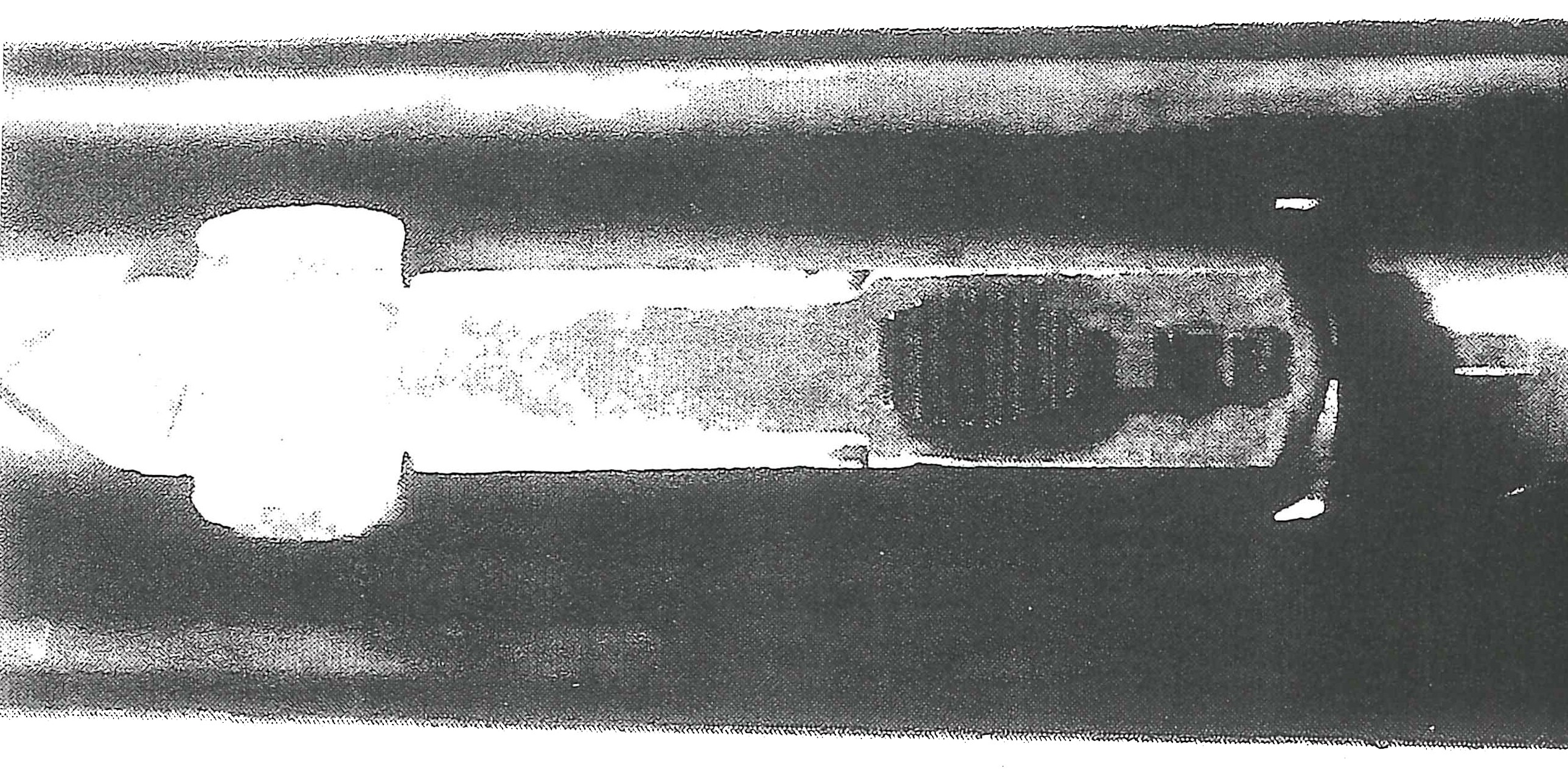

RearSight.jpgImage Enlarger

I know this is not a good picture but thought I’d get opinions anyway!

What model & type of rear sight is this?

And what model Winchester would it go to?

Sincerely,

Maverick

(P.S. I’m pretty sure I already Know but wanted opinions and figured it’d be a little fun to ask everybody!)

sp_PlupAttachments Attachments
Avatar
Tedk
Member
WACA Member
Forum Posts: 754
Member Since:
August 27, 2014
sp_UserOfflineSmall Offline
2
July 31, 2018 - 1:25 am
sp_Permalink sp_Print

22G and 3C elevator.

M70, M71, M54, M92; M94 and others.

“If you can’t convince them, confuse them”

President Harry S. Truman

Avatar
1873man
Wisconsin
Member
WACA Member
Forum Posts: 4703
Member Since:
May 2, 2009
sp_UserOfflineSmall Offline
3
July 31, 2018 - 2:15 am
sp_Permalink sp_Print sp_EditHistory

Its not a 22G, its the early 66/73 sporting rear sight with a 3C elevator

Bob

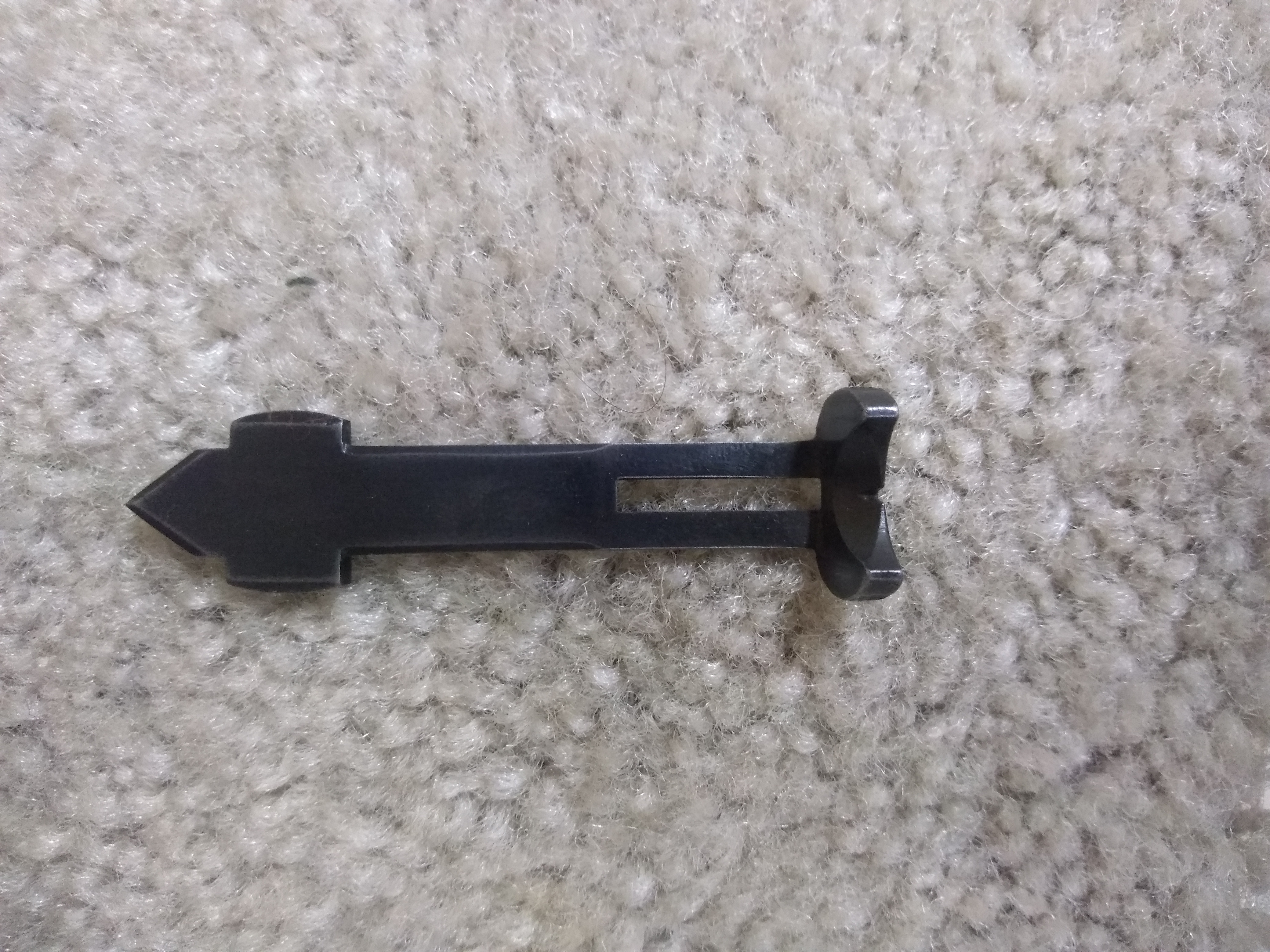

Here is the sight.

IMG_20180730_211900793.jpgImage Enlarger

sp_PlupAttachments Attachments
WACA Life Member---
NRA Life Member----
Cody Firearms member since 1991
Researching the Winchester 1873's


Email: [email protected]

Avatar
Maverick
Member
WACA Member
Forum Posts: 2042
Member Since:
May 23, 2009
sp_UserOfflineSmall Offline
4
July 31, 2018 - 2:53 am
sp_Permalink sp_Print

Bob,

Do you know when the 3C elevator started being produced?

Maverick

Avatar
1873man
Wisconsin
Member
WACA Member
Forum Posts: 4703
Member Since:
May 2, 2009
sp_UserOfflineSmall Offline
5
July 31, 2018 - 3:21 am
sp_Permalink sp_Print

Maverick,

Near as I can figure it showed up in the 1929 catalog on the 22f sight for the 54.

Bob

WACA Life Member---
NRA Life Member----
Cody Firearms member since 1991
Researching the Winchester 1873's


Email: [email protected]

Avatar
Maverick
Member
WACA Member
Forum Posts: 2042
Member Since:
May 23, 2009
sp_UserOfflineSmall Offline
6
July 31, 2018 - 3:31 am
sp_Permalink sp_Print

The sporting rear sight would also fit a 76, would it not?

Maverick

Avatar
1873man
Wisconsin
Member
WACA Member
Forum Posts: 4703
Member Since:
May 2, 2009
sp_UserOfflineSmall Offline
7
July 31, 2018 - 3:41 am
sp_Permalink sp_Print

I would imagine the 76 had them since they were produced in the same time frame. It has the standard 3/8″ dovetail .

Bob

WACA Life Member---
NRA Life Member----
Cody Firearms member since 1991
Researching the Winchester 1873's


Email: [email protected]

Avatar
win4575
Montana
Member
WACA Member
Forum Posts: 700
Member Since:
November 2, 2009
sp_UserOfflineSmall Offline
8
July 31, 2018 - 3:43 am
sp_Permalink sp_Print

Bob is correct regarding both the sight and the elevator.  The 3C was first offered as a special for some rear sights in 1929.  It was later used as the standard elevator on the model 64 and the model 94.  The Madis book mentions that there were three different variations made.
