Question About Pre 64 Model 70 Feathertweight Stocks
sp_NewTopic Add Topic
Avatar
Member
WACA Guest
Forum Posts: 838
Member Since:
March 23, 2010
sp_UserOfflineSmall Offline
1
February 27, 2024 - 10:18 pm
sp_Permalink sp_Print sp_QuotePost

 Were all the stocks on pre 64 Featherweight stocks checkered?Was looking at a picture of one today, that did not have a checkered stock.From what I understand, it was made in the last year of the pre 64 era,1963.

Avatar
Member
WACA Member
Forum Posts: 513
Member Since:
August 27, 2014
sp_UserOfflineSmall Offline
2
February 27, 2024 - 10:30 pm
sp_Permalink sp_Print sp_QuotePost

All pre64 FWT stocks were checkered

Avatar
Member
WACA Guest
Forum Posts: 838
Member Since:
March 23, 2010
sp_UserOfflineSmall Offline
3
February 29, 2024 - 2:46 pm
sp_Permalink sp_Print sp_QuotePost

 Thanks for that information,Tedk.

Avatar
Winchester, VA
Member
WACA Member
Forum Posts: 976
Member Since:
November 5, 2014
sp_UserOfflineSmall Offline
4
February 29, 2024 - 4:12 pm
sp_Permalink sp_Print sp_EditHistory sp_QuotePost

Hi 28 gauge-

As Ted said, all pre-64 M70 Featherweight stocks were checkered.  All lack the hole in the underside of the fore arm used for the barrel bedding screw on standard contour barrels, and most have holes drilled beneath the butt plate (ostensibly to save weight).  Of course they are all inlet for the Featherweigght barrel contour. That said, the Featherweight stocks were made in three “flavors” depending on period of manufacture:

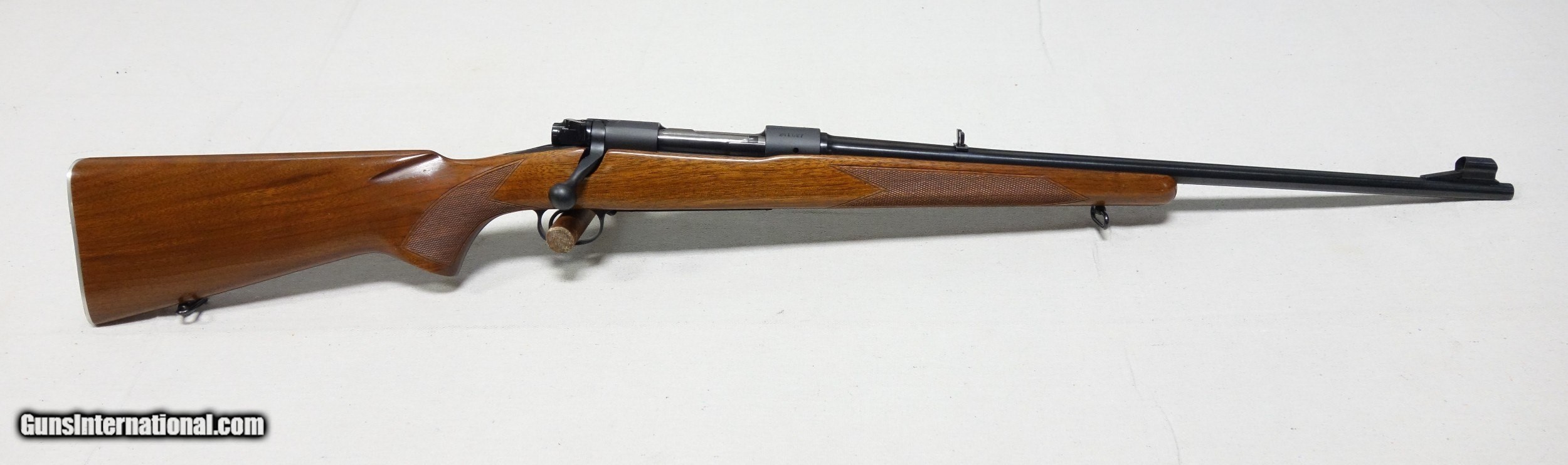

(1952 – roughly 1958): Hand checkered, aluminum butt plate.  Both low comb and Monte Carlo.

00.jpegImage Enlarger00-1.jpegImage Enlarger



(roughly 1958 – roughly 1961): Hand checkered, plastic butt plate.  Nearly all, if not all, Monte Carlo comb.

00-2.jpegImage Enlarger



(roughly 1961 – 1963): Narrow panel machine cut checkering, plastic butt plate.  All Monte Carlo.

01.jpegImage Enlarger



The exception is the 264 WIN MAGNUM Featherweight Westerner (1962-1963).  These all had the Monte Carlo stock with machine checkering, but came with a factory installed ventilated red Winchester recoil pad.

00-3.jpegImage Enlarger



These period differences can help identify rifles with replaced stocks.

Best,

Lou

sp_PlupAttachments Attachments

WACA 9519; Studying Pre-64 Model 70 Winchesters


Avatar
Texas
Member
WACA Member
Forum Posts: 216
Member Since:
January 20, 2023
sp_UserOfflineSmall Offline
5
February 29, 2024 - 4:51 pm
sp_Permalink sp_Print sp_QuotePost

Well said, Lou and the photos are worth a thousand words.

I would add something that is more apparent when the machine checkered rifles are actually in hand to examine.:

In order to accommodate the inability of Winchester’s then new cbeckering machines to follow more than a very slightly radiused contour, the shapes of the Model 70 pistol grip and forearm were noticeably flattened, both on the standard and Featherweight stocks.

To my eye, it was this flattening that made those end-of-the-bolt versions of the rifle less graceful and more awkward looking, rather than the diminished  checkering panels, although the latter didn’t help.

The difference is more apparent in both feel and appearance, particularly at the forearm, when shouldering the earlier and then the final version of the stock.

- Bill



WACA # 65205; Life Member, National Rifle Association; amateur preservationist

"I have seen wicked men and fools, a great many of both, and I believe they both get paid in the end, but the fools first." -- David Balfour, narrator and protagonist of the novel, Kidnapped, by Robert Louis Stevenson.

Avatar
NY
Member
WACA Member
Forum Posts: 6380
Member Since:
November 1, 2013
sp_UserOfflineSmall Offline
6
March 1, 2024 - 1:28 am
sp_Permalink sp_Print sp_QuotePost

Louis Luttrell said
(1952 – roughly 1958): Hand checkered, aluminum butt plate.  Both low comb and Monte Carlo.

00.jpegImage Enlarger00-1.jpegImage Enlarger

Even on these earlier ones, there no shaping of the PG–look just about the way they left the band-saw.
