Model 1894 1X Markings
sp_NewTopic Add Topic
Avatar
Member
WACA Guest
Forum Posts: 3
Member Since:
April 8, 2012
sp_UserOfflineSmall Offline
1
May 27, 2023 - 3:23 pm
sp_Permalink sp_Print sp_QuotePost

We have a Model 1894 rifle with 1X markings above the serial number 4342 and on the lower frame in front of the trigger. What is the meaning of these markings? Duplicate serial number??

Avatar
Kingston, WA
Admin
Forum Posts: 10609
Member Since:
April 15, 2005
sp_UserOfflineSmall Offline
2
May 27, 2023 - 6:12 pm
sp_Permalink sp_Print sp_QuotePost

It is very unlikely that the markings you describe have anything to do with a duplicate serial number.  Winchester did not begin using the “X” suffix to identify a duplicate serial number until the early 1940s (Model 94 serial numbers > 1261000).

Can you post (or send me) pictures of the markings on your Model 1894?

Bert – [email protected]

WACA 6571L, Historian & Board of Director Member

Avatar
Member
WACA Guest
Forum Posts: 3
Member Since:
April 8, 2012
sp_UserOfflineSmall Offline
3
May 27, 2023 - 6:29 pm
sp_Permalink sp_Print sp_QuotePost

Thanks Bert. I just emailed the pictures to you.

Avatar
Kingston, WA
Admin
Forum Posts: 10609
Member Since:
April 15, 2005
sp_UserOfflineSmall Offline
4
May 27, 2023 - 6:35 pm
sp_Permalink sp_Print sp_QuotePost

Here are the pictures.

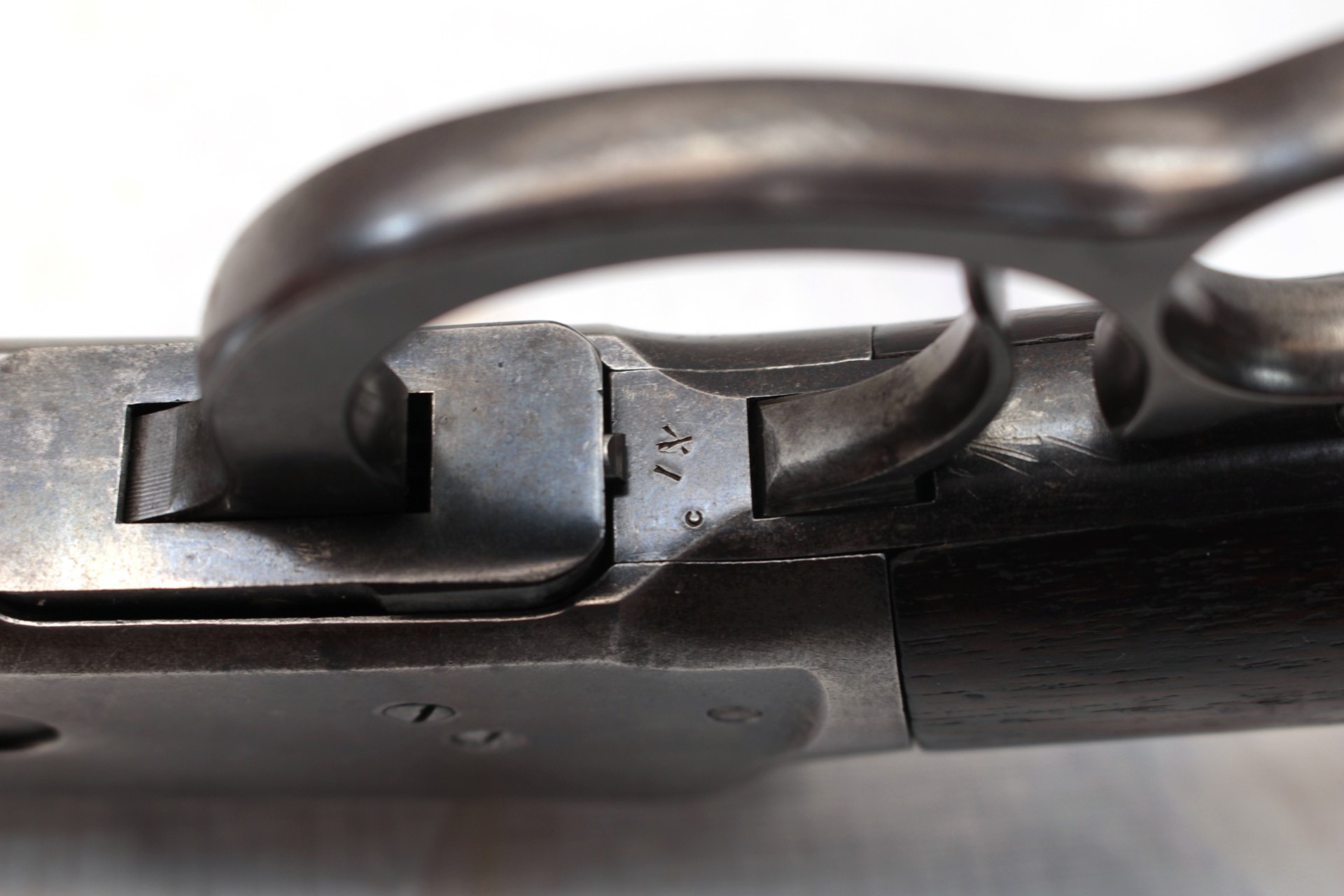

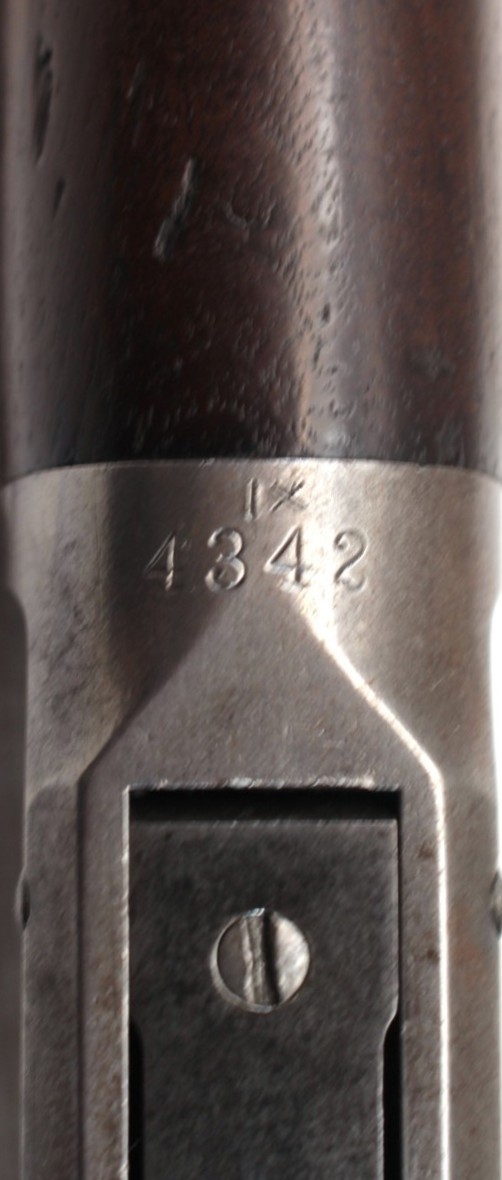

thumbnail_IMG_8121.jpgImage Enlarger4342.jpgImage Enlarger

As I suspected, neither marking is indicative of a duplicate serial number.  I do not believe that the “1X” marking is factory original. Why or who applied it is a mystery.

The marking in front of the trigger also does not appear to be factory applied, though it is in the same location that Winchester inspectors did (on later production guns) stamp their marks.

Based on what I can see, both markings are extraneous to the rifle.  Which caliber is it?  Is it a First or a Second Model?

Bert

sp_PlupAttachments Attachments

WACA 6571L, Historian & Board of Director Member

Avatar
Member
WACA Guest
Forum Posts: 3
Member Since:
April 8, 2012
sp_UserOfflineSmall Offline
5
May 27, 2023 - 7:18 pm
sp_Permalink sp_Print sp_QuotePost

Thanks a lot Bert. Caliber is 32-40. barrel is 26″ full octagon, full magazine. We aren’t sure how to tell the difference between first & second model.

Avatar
Member
WACA Member
Forum Posts: 225
Member Since:
March 15, 2020
sp_UserOfflineSmall Offline
6
May 27, 2023 - 8:49 pm
sp_Permalink sp_Print sp_QuotePost

Have you considered this is Roman numeral 9? Where are the other 8. Don

Avatar
Kingston, WA
Admin
Forum Posts: 10609
Member Since:
April 15, 2005
sp_UserOfflineSmall Offline
7
May 27, 2023 - 9:03 pm
sp_Permalink sp_Print sp_EditHistory sp_QuotePost

fredh46 said
Thanks a lot Bert. Caliber is 32-40. barrel is 26″ full octagon, full magazine. We aren’t sure how to tell the difference between first & second model.

Based on the fact that it is a 32-40, it is a Second Model.

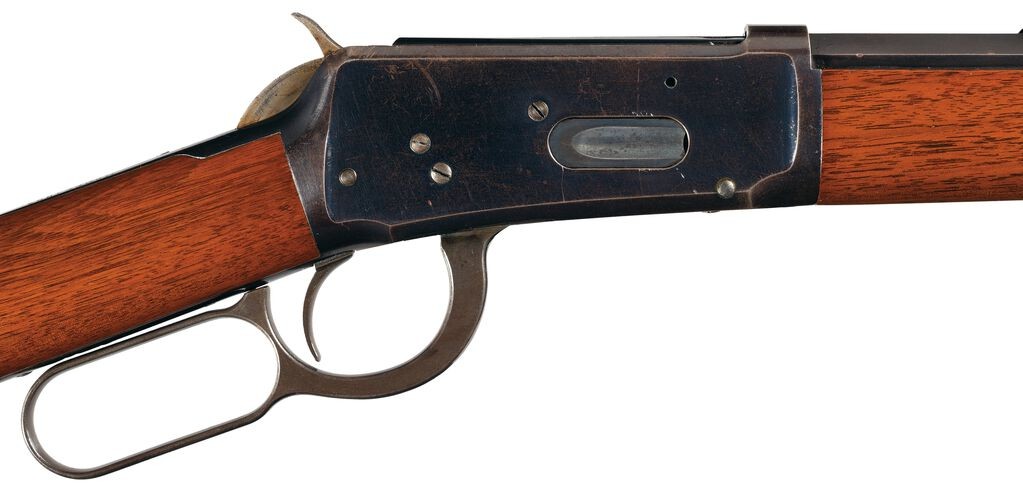

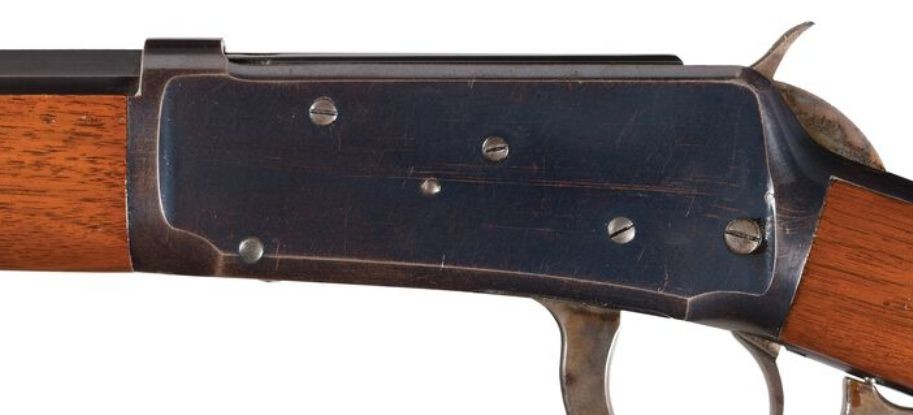

This is what a First Model looks like…

Receiver-RS-196.jpgImage EnlargerReciever-LS-196.jpgImage Enlarger

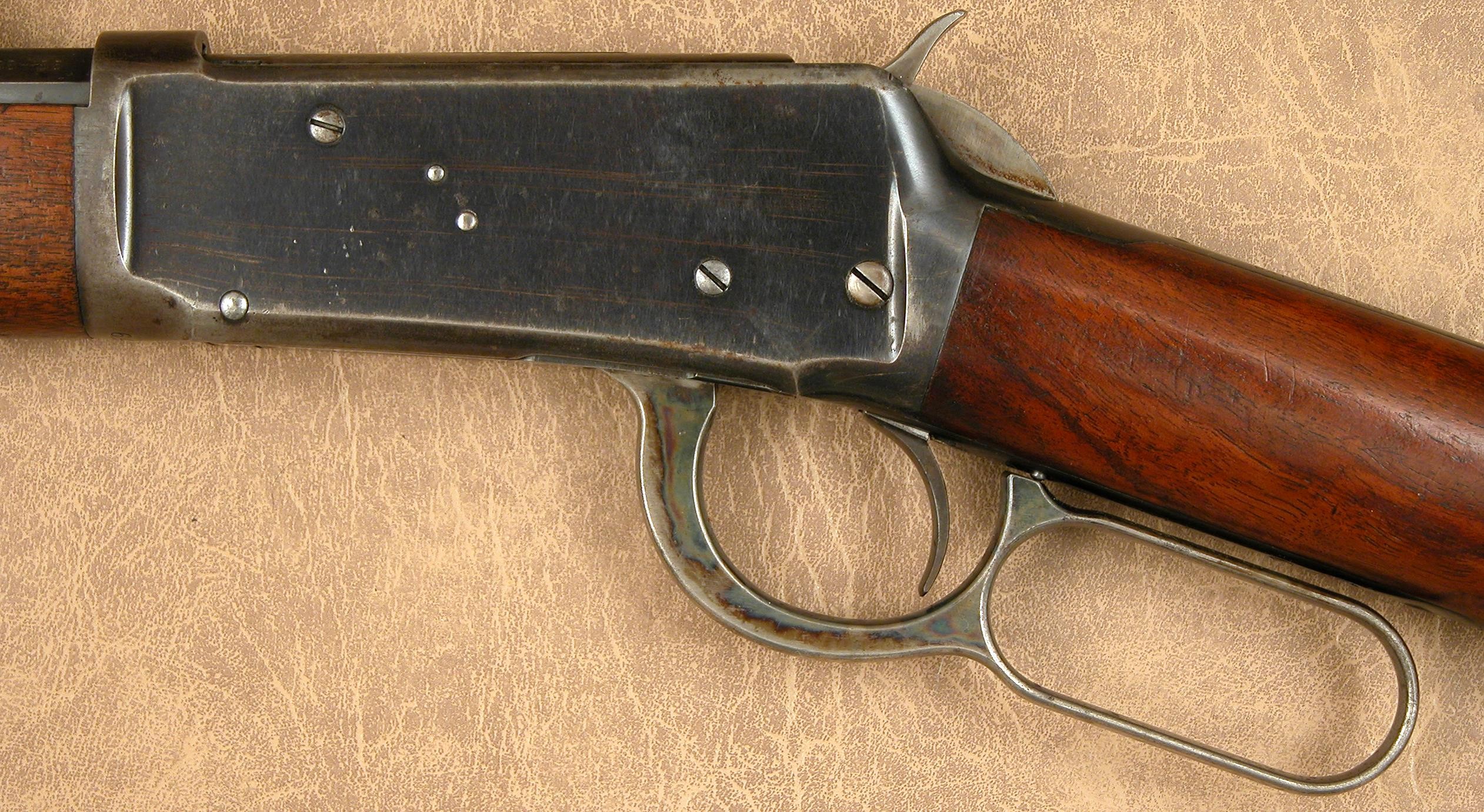

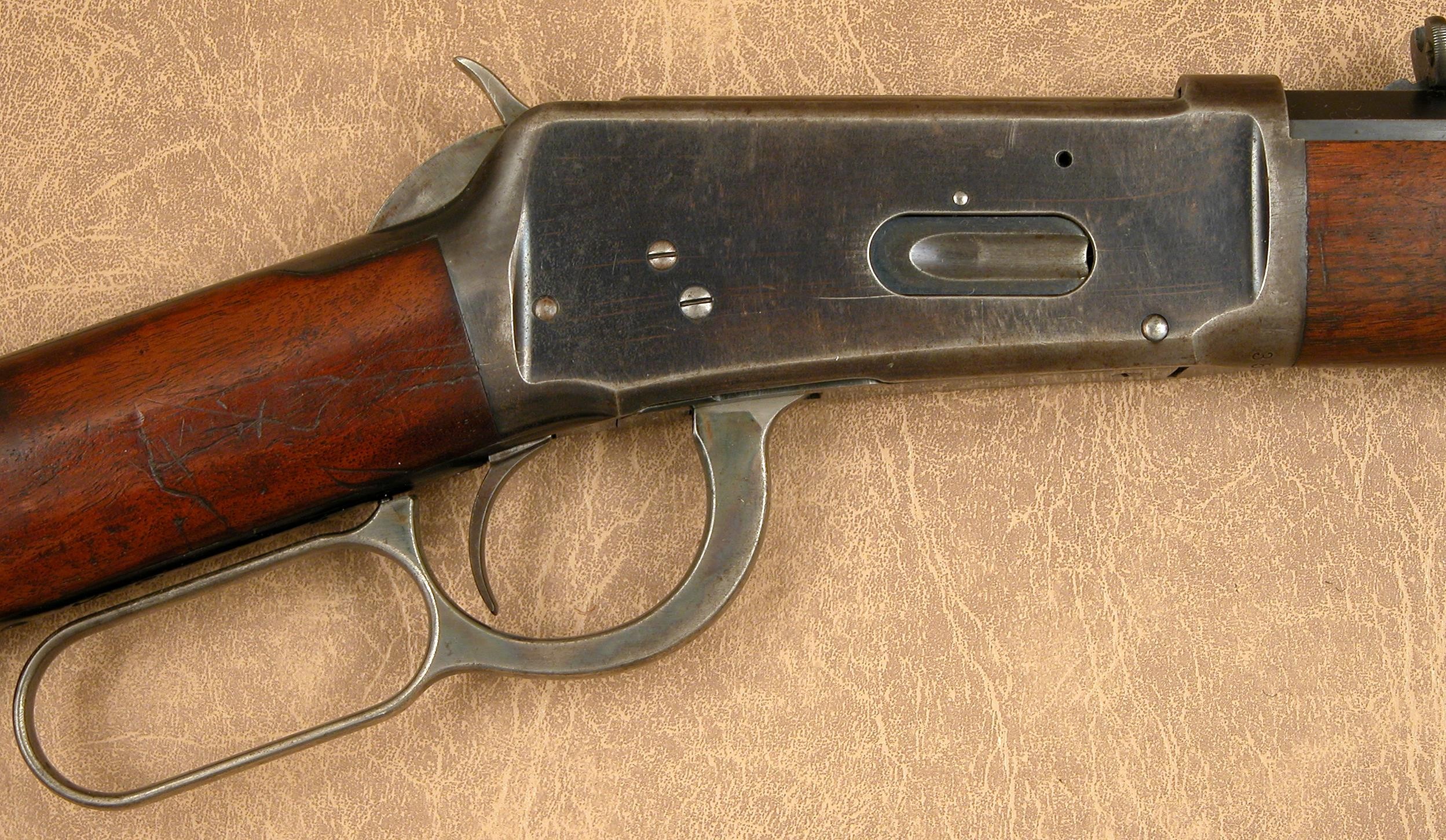

And this is what a Second Model looks like…

2nd-Model-3559-L.jpgImage Enlarger2nd-Model-3559-R.jpgImage Enlarger





Note that the screw locations are different.

WACA 6571L, Historian & Board of Director Member

Avatar
Member
WACA Member
Forum Posts: 308
Member Since:
December 19, 2006
sp_UserOfflineSmall Offline
8
May 28, 2023 - 2:13 am
sp_Permalink sp_Print sp_QuotePost

Bert’s pictures of the left side of both the First and Second Models are perfect examples of the forging marks found on those guns.

A little more subtle on the right side.

Very nice Bert.

Avatar
Member
WACA Member
Forum Posts: 541
Member Since:
February 17, 2022
sp_UserOfflineSmall Offline
9
May 28, 2023 - 12:18 pm
sp_Permalink sp_Print sp_QuotePost

Interesting mark, appears to have been to struck using a very small cold chisel. One consideration would be that given the age of that rifle it is a mans “mark” so to speak. just mt 2 cents.
