Lower tang marks
sp_NewTopic Add Topic
Avatar
Tulsa, OK
Member
WACA Member
Forum Posts: 6
Member Since:
September 28, 2018
sp_UserOfflineSmall Offline
1
September 28, 2021 - 1:23 pm
sp_Permalink sp_Print sp_EditHistory sp_QuotePost

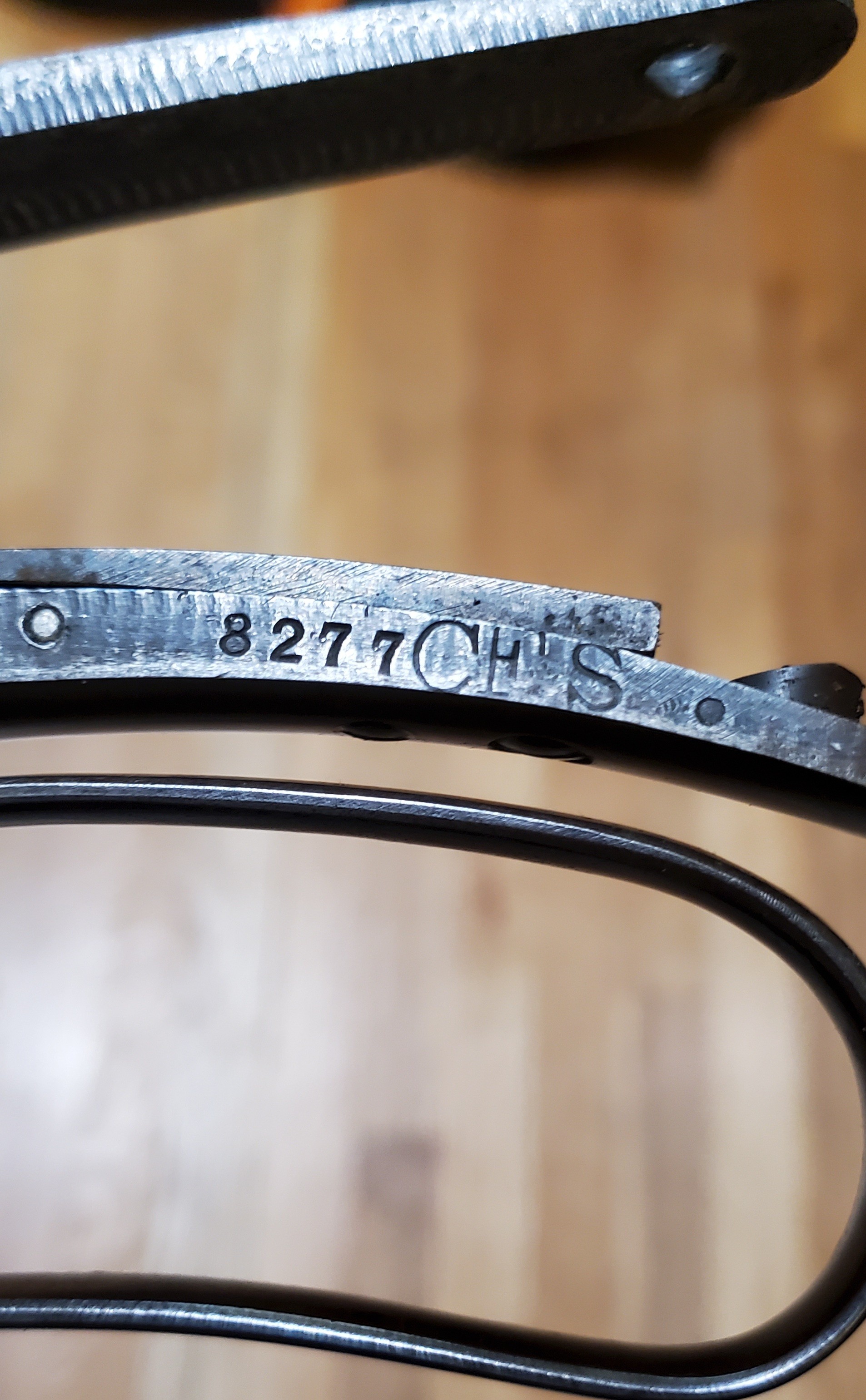

Deluxe.jpgImage EnlargerLower-tang.jpgImage EnlargerGood morning all,

I just acquired a nice M-1894 in 30 WCF with several special order features.

The Factory Letter indicates it left the warehouse in 1899.

It’s not a Deluxe lightweight because it’s a 24″ half octagonal.

Button mag described in the letter as a half mag.

Pistol grip with correct grip cap.

Letter says it was only checked on the forearm, not the grip.

Steel shotgun butt.

Select wood.

Standard trigger.

Traces of the original checkering remain on the forearm but I’m sure it was some kid with a knife, while bored in the woods, decided to heavy up about 10%. Grrrr.

Traces of the original case coloring remain on the hammer and lever.

My question is, does anybody know what the lower tang stamps indicate?

Thank you in advance for sharing your knowledge.

Mitch

sp_PlupAttachments Attachments
Avatar
Wisconsin
Member
WACA Member
Forum Posts: 4268
Member Since:
May 2, 2009
sp_UserOnlineSmall Online
2
September 28, 2021 - 1:27 pm
sp_Permalink sp_Print sp_QuotePost

Mitch

What are the lower tang marks? I don’t see a picture.

Bob

WACA Life Member---
NRA Life Member----
Cody Firearms member since 1991
Researching the Winchester 1873's


Email: [email protected]

Avatar
Tulsa, OK
Member
WACA Member
Forum Posts: 6
Member Since:
September 28, 2018
sp_UserOfflineSmall Offline
3
September 28, 2021 - 1:28 pm
sp_Permalink sp_Print sp_QuotePost

Just edited the post to include the pics, sorry…reload the post.

Avatar
Wisconsin
Member
WACA Member
Forum Posts: 4268
Member Since:
May 2, 2009
sp_UserOnlineSmall Online
4
September 28, 2021 - 1:31 pm
sp_Permalink sp_Print sp_QuotePost

Now the pictures are there, You have a 4 digit assembly number. The “CF” is “Custom Fit” and the “S” is for Shotgun butt. The assembly number should also be on the top of the stock under the upper tang and on the inside of the butt plate.

Bob

WACA Life Member---
NRA Life Member----
Cody Firearms member since 1991
Researching the Winchester 1873's


Email: [email protected]

Avatar
Tulsa, OK
Member
WACA Member
Forum Posts: 6
Member Since:
September 28, 2018
sp_UserOfflineSmall Offline
5
September 28, 2021 - 4:17 pm
sp_Permalink sp_Print sp_QuotePost

Thanks for the insight.

I looked at the hidden surfaces of the stock around the tang area and could not make out anything.

I have not yet removed the buttplate.

If you noticed, the toe of the buttstock was chipped at one time and somebody merely bent that portion of the buttplate to cover the missing wood.

So old and worn and fit the stock so nice that the seller thought it was factory correct. Ha ha.

She had a broken ejector upon arrival.

I found a correct, used replacement ejector on Ebay and now she cycles just fine!

Still fairly accurate at 50 yards.

Thanks again!

Avatar
Member
WACA Member
Forum Posts: 228
Member Since:
March 15, 2020
sp_UserOfflineSmall Offline
6
September 28, 2021 - 6:39 pm
sp_Permalink sp_Print sp_QuotePost

I am learning about Winchester letters. I have an 1885 with CF on the lower tang. The letter says nickel butt plate, plain trigger, among other things. The gun is also fitted with nickel receiver, set trigger, 2 leaf folding rear sight, tapered barrel, no groove in receiver, low wall thick side. When 2500 guns were built every day the employee only noted a few obvious features. I believe this gun was intended for use of a tang sight as well as open sights. Don

Avatar
South Texas
Member
WACA Member
Forum Posts: 1041
Member Since:
March 20, 2010
sp_UserOfflineSmall Offline
7
September 29, 2021 - 3:48 am
sp_Permalink sp_Print sp_QuotePost

HuntFish918 said
Thanks for the insight.

I looked at the hidden surfaces of the stock around the tang area and could not make out anything.

I have not yet removed the buttplate.

Most of the 1894 & 1892’s that Ive seen will have the assembly number from the lower tang stamped in the wood under the buttplate, and sometimes but not always (either not marked or buttplate has been changed out) included on the toe of the buttplate.   The wood will normally be stamped with a “94” for 1894 or “92” for 1892, below that is usually a stamp like a “T”, then the assembly number.


1892takedown @sbcglobal.net ......NRA Endowment Life Member.....WACA Member

"God is great.....beer is good.....and people are crazy"... Billy Currington

Avatar
Tulsa, OK
Member
WACA Member
Forum Posts: 6
Member Since:
September 28, 2018
sp_UserOfflineSmall Offline
8
September 29, 2021 - 4:38 pm
sp_Permalink sp_Print sp_QuotePost

I managed to get enough time to pull the buttplate and sure enough…stamped exactly as you indicated.

Please see attached pics.

Thanks again for all the sharing of knowledge!

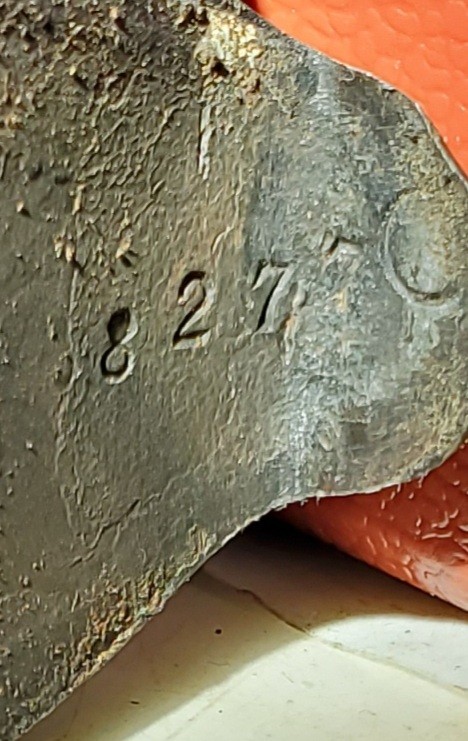

Mitchbuttstock.jpgImage Enlargerbuttplate.jpgImage Enlarger
