Late production M70 National Match.
sp_NewTopic Add Topic
Avatar
NY
Member
Restricted
Forum Posts: 7119
Member Since:
November 1, 2013
sp_UserOfflineSmall Offline
1
May 10, 2020 - 12:48 am
sp_Permalink sp_Print sp_QuotePost

Is it possible white-line plastic butt-plates were used on the last of this model?  Seems unbelievable to me, but the gun in question is otherwise almost mint.

Avatar
Winchester, VA
Member
WACA Member
Forum Posts: 1216
Member Since:
November 5, 2014
sp_UserOfflineSmall Offline
2
May 10, 2020 - 3:24 pm
sp_Permalink sp_Print sp_QuotePost

Hi Clarence-

Do you mean like the post-63 M70 target rifles?  Do you have a serial number or a photo?

Like you, my initial reaction would be NO… The National Match was last cataloged in 1959 (so missing from the 1960-63 catalogs).  I happen to have a very late National Match with a 1961 serial number (S/N 506314) that appears to me to be all correct (clip slot receiver, NM ramped barrel, etc).  That suggests to me that a few may have been built up even after they were dropped (to get rid of NM barrels and stocks???).  It has the regular checkered steel marksman butt plate.

Best,

Lou

WACA 9519; Studying Pre-64 Model 70 Winchesters


Avatar
NY
Member
Restricted
Forum Posts: 7119
Member Since:
November 1, 2013
sp_UserOfflineSmall Offline
3
May 10, 2020 - 5:38 pm
sp_Permalink sp_Print sp_QuotePost

Louis Luttrell said

Do you mean like the post-63 M70 target rifles?

Well, maybe that’s what it actually is, rather than NM.  Other than the BP, is there some obvious difference between them?

Avatar
Winchester, VA
Member
WACA Member
Forum Posts: 1216
Member Since:
November 5, 2014
sp_UserOfflineSmall Offline
4
May 10, 2020 - 6:32 pm
sp_Permalink sp_Print sp_QuotePost

Hi Clarence-

I don’t keep post-63 M70 photos, but scrounging the internet a little I’ll try to illustrate the post-63 butt pads.

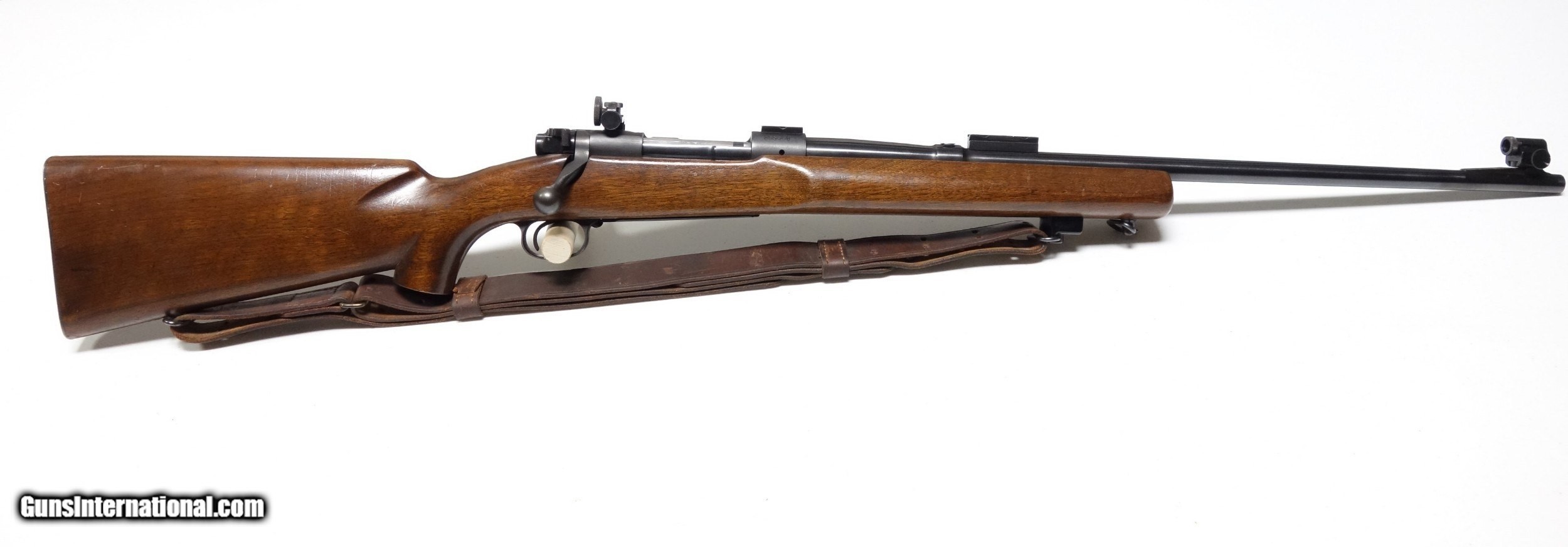

First, this is a pretty nice PRE-64 National Match rifle from 1953 (S/N 255001).  Note the standard weight barrel with low integral front sight ramp.  Stock is typical Marksman with checkered metal butt only the stock is inlet for the standard barrel contour:

255001.jpgImage Enlarger

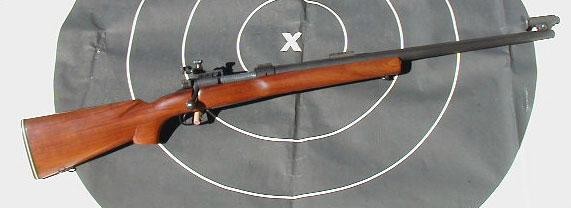

Below are a couple of internet photos of POST-63 M70 target rifles.  The barrels are straight taper medium heavy contour (like the pre-64 targets).  The actions are post-63 (no Mauser type extractor) and the S/Ns would be >700,000.  Resolution’s not great I think you can get a sense of the butt pads the factory put on these.  They are actually rubber pads (not plastic) with white line spacers.  I suspect they were made for Winchester by Pachmayr, who made the ventilated white line pads the factory put on late pre-64 hunting rifles like the 300 WIN MAGNUMs:

Post-63-M70-Target.jpgImage EnlargerPost-63-M70-Target-2.jpgImage Enlarger

A serial number from the gun you looked at would probably clear things up.  Hope this helps… Smile

Lou

sp_PlupAttachments Attachments

WACA 9519; Studying Pre-64 Model 70 Winchesters


Avatar
NY
Member
Restricted
Forum Posts: 7119
Member Since:
November 1, 2013
sp_UserOfflineSmall Offline
5
May 10, 2020 - 7:07 pm
sp_Permalink sp_Print sp_QuotePost

Thanks for photos, Lou. They confirm it’s really a Target model–no front sight ramp at all, only a block.  Can’t get ser. no., but is 700,000 the cut off between pre- & post- ’64 production?

Avatar
Winchester, VA
Member
WACA Member
Forum Posts: 1216
Member Since:
November 5, 2014
sp_UserOfflineSmall Offline
6
May 10, 2020 - 9:57 pm
sp_Permalink sp_Print sp_QuotePost

Hi Clarence-

The conventional wisdom (Roger’s book) says that there were 581,471 pre-64 M70 receivers made in regular production.  My understanding is that the factory made the jump to 700,000 when they went to the post-63 design (so there aren’t any M70 receivers numbered between 581,472 and 699,999).

After the GCA68 passed, of course, Winchester serial numbers had the “G” prefix added, but before that the numbers were just numbers. Smile

Best,

Lou

WACA 9519; Studying Pre-64 Model 70 Winchesters
