Early Model 64 not set up for reciever sight
Avatar
Paul H
Member
WACA Member
Forum Posts: 67
Member Since:
July 22, 2018
sp_UserOfflineSmall Offline
1
March 31, 2026 - 8:12 pm
sp_Permalink sp_Print

IMG_0802.pngImage Enlarger

IMG_0803.pngImage Enlarger

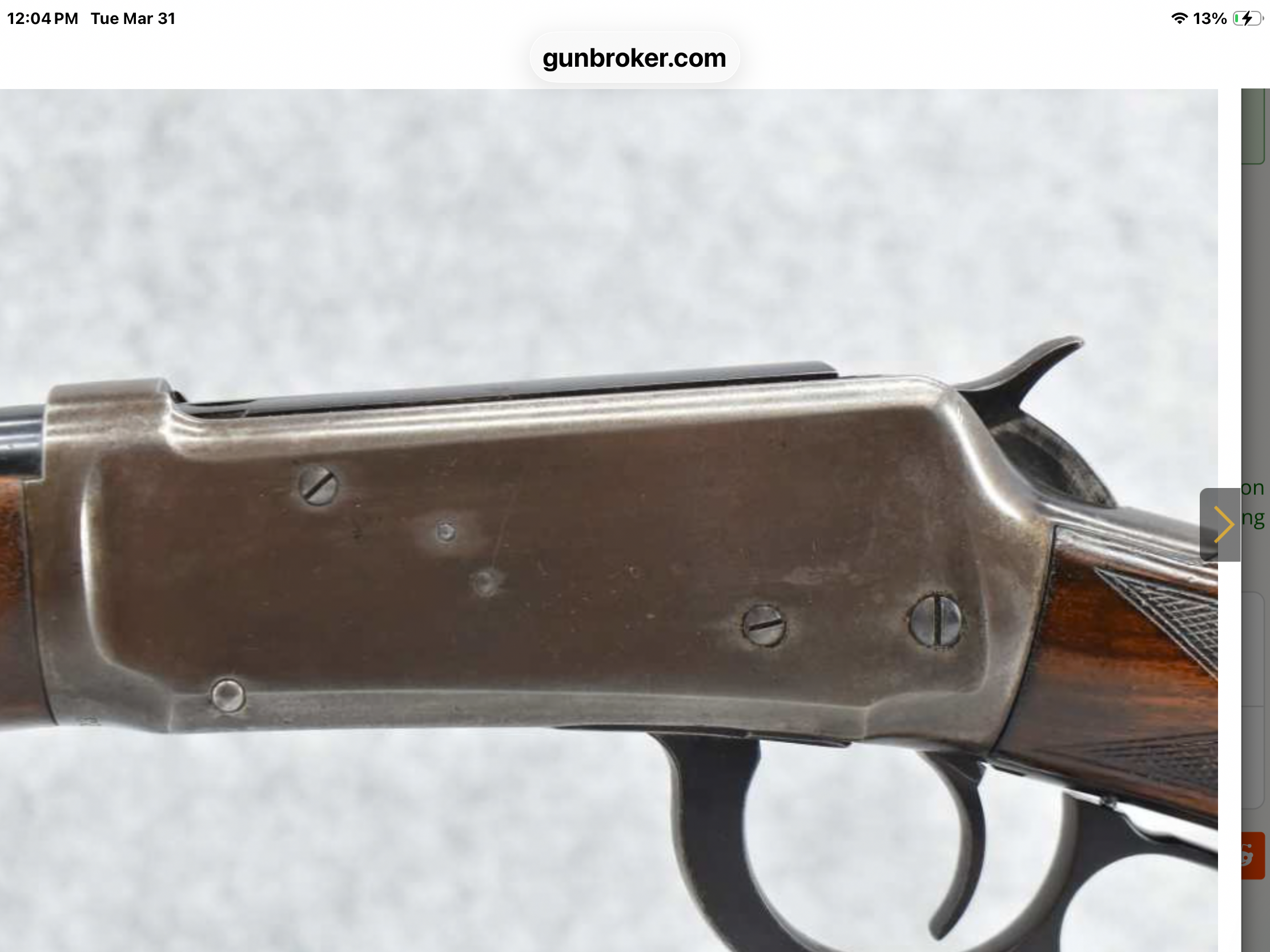

Recent acquisition with some questions for the forum. About what year and/or serial number did Winchester begin production of the model 64?? I’m thinking this one is near the front of the pack—what do any of you think? I’ve read somewhere that a few of the early models weren’t set up — drilled and tapped for the reciever peeps. Thanks for your attention to this matter.  PH

sp_PlupAttachments Attachments
Avatar
Zebulon
Texas
Member
WACA Member
Forum Posts: 1797
Member Since:
January 20, 2023
sp_UserOfflineSmall Offline
2
March 31, 2026 - 9:54 pm
sp_Permalink sp_Print

Paul, the first thing I would do is ask Bert to verify the date of manufacture. I am no expert but it is my understanding production of the Model 64 began about July 5, 1932 according to the Polishing Room records;  and drilling and tapping the left receiver wall became a standard feature in August, 1933.

- Bill



WACA # 65205; life member, NRA; member, TGCA; member, TSRA; amateur preservationist

"I have seen wicked men and fools, a great many of both, and I believe they both get paid in the end, but the fools first." -- David Balfour, narrator and protagonist of the novel, Kidnapped, by Robert Louis Stevenson.

Avatar
Burt Humphrey
Member
WACA Member
Forum Posts: 647
Member Since:
April 1, 2005
sp_UserOfflineSmall Offline
3
March 31, 2026 - 10:06 pm
sp_Permalink sp_Print

Paul H said
Recent acquisition with some questions for the forum. About what year and/or serial number did Winchester begin production of the model 64?? I’m thinking this one is near the front of the pack—what do any of you think? I’ve read somewhere that a few of the early models weren’t set up — drilled and tapped for the reciever peeps. Thanks for your attention to this matter.  PH

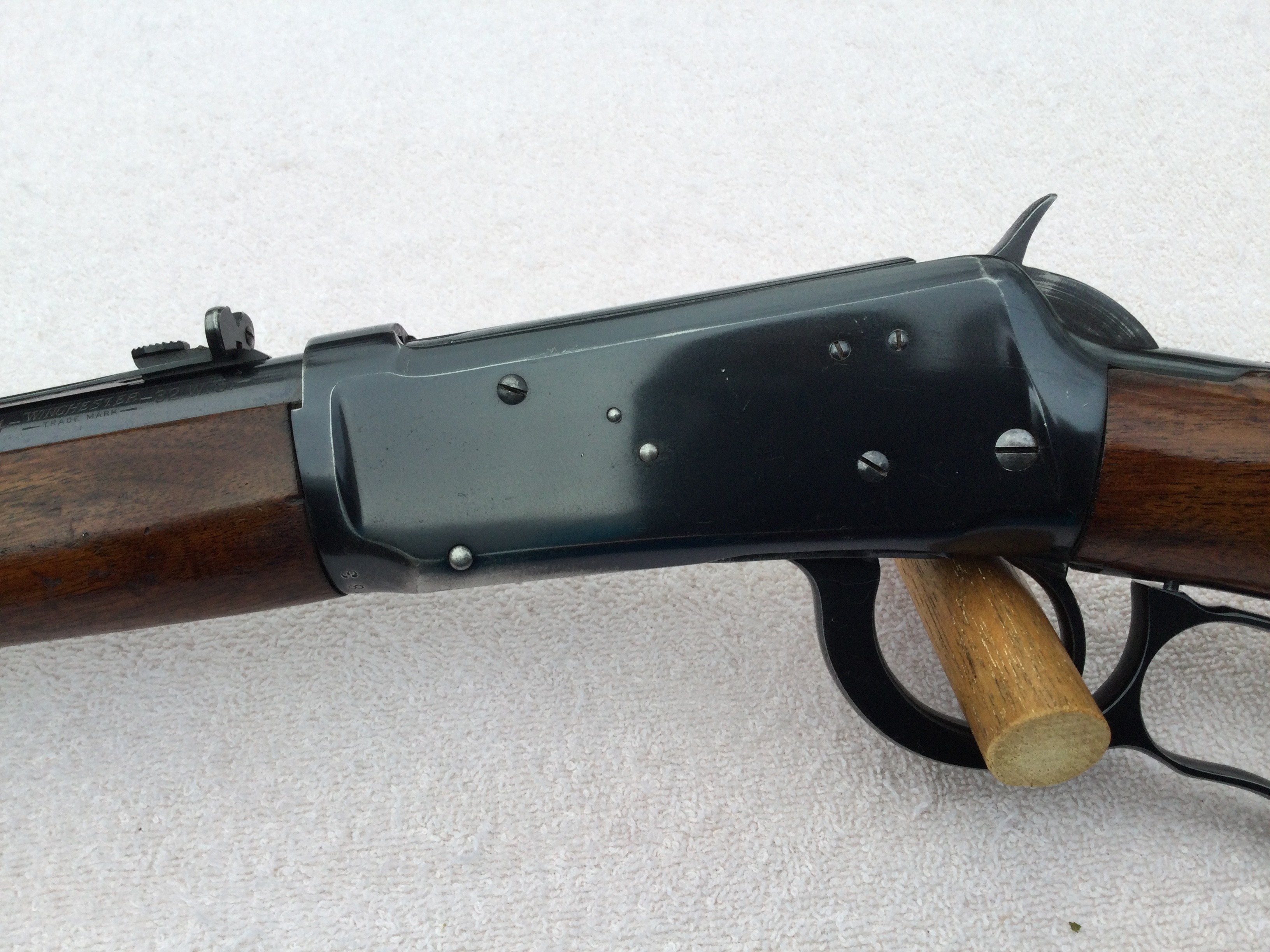

This has been discussed many times here on the Forum – early 64’s were not drilled and tapped as shown in Pauls example. Later they were drilled and tapped as per this example. Bert will probably chime in on exactly when this transition was made.

646.JPGImage Enlarger

sp_PlupAttachments Attachments


Avatar
Steven Gabrielli
LI NY
Member
WACA Member
Forum Posts: 422
Member Since:
August 14, 2021
sp_UserOnlineSmall Online
4
March 31, 2026 - 10:50 pm
sp_Permalink sp_Print

Early ones were not drilled and tapped unless the customer ordered it.
