Correct sight for model 94 y. 1935
Avatar
SteveM
Guest
Guests
1
October 21, 2017 - 12:56 am
sp_Permalink sp_Print

Hi- I just picked up a model 94 w/ serial 1093712 and the only thing that looks like it might not be original is the rear sight. Also, should the front sight have a ring on it? Looks like there’s a groove where a ring would snap/slide on but I’m not sure.

Thanks in advance.

Avatar
Bert H.
Kingston, WA
Admin
Forum Posts: 13996
Member Since:
April 15, 2005
sp_UserOnlineSmall Online
2
October 21, 2017 - 2:00 am
sp_Permalink sp_Print

Steve,

The front sight ramp should have longitudinal grooves on each side of it to allow a hood to be installed over the top of the sight. The standard rear sight was one of the 22-series sporting sights. You did not specify if you have a Sporting Rifle, or a Sporting Carbine, and each used a difference variation of the 22 series sights. Which caliber is your Model 94?

Bert

WACA Historian & Board of Director Member #6571L

Avatar
SteveM
Guest
Guests
3
October 21, 2017 - 3:06 am
sp_Permalink sp_Print

Thanks for the reply. It’s a .30-30 carbine.

Avatar
Bert H.
Kingston, WA
Admin
Forum Posts: 13996
Member Since:
April 15, 2005
sp_UserOnlineSmall Online
4
October 21, 2017 - 6:44 am
sp_Permalink sp_Print

SteveM said
Thanks for the reply. It’s a .30-30 carbine.

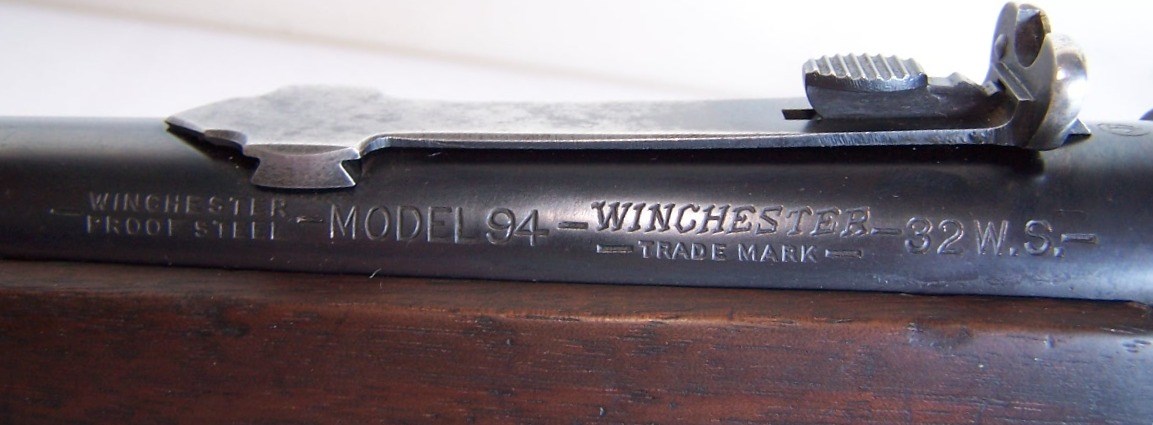

You need a 22-G with the 3C elevator.

Bert

1082935-MODEL-94-PROOF-STEEL-32-W.S.--1.jpgImage Enlarger

sp_PlupAttachments Attachments

WACA Historian & Board of Director Member #6571L

Avatar
Big Larry
Member
WACA Guest
Forum Posts: 2578
Member Since:
December 31, 2012
sp_UserOfflineSmall Offline
5
October 21, 2017 - 3:26 pm
sp_Permalink sp_Print

My # 1100457 PR 1, 1936, transitional, is just about drippy mint, and has a M22-E rear sight. with the 3C elevator. One of my highly prized carbines. Big Larry

Avatar
SteveM
Guest
Guests
6
October 21, 2017 - 5:21 pm
sp_Permalink sp_Print

Thank you again. It looks like I have the correct sight but it may be a little newer than the rest of the gun. I appreciate your time.
