February 24, 2019
Offline

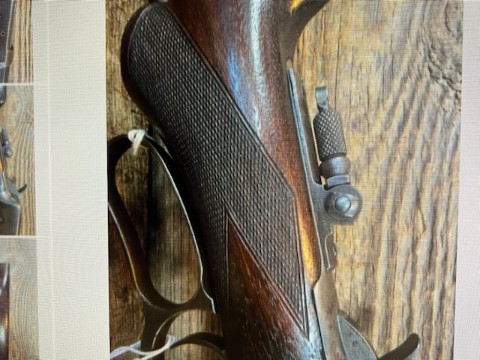

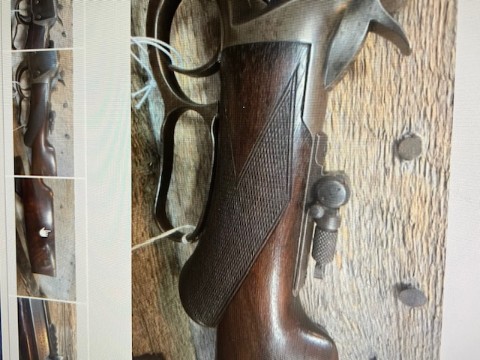

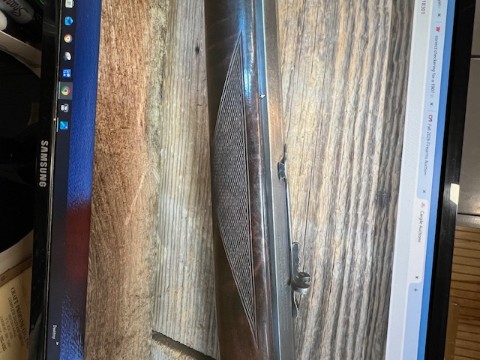

I know this is a poor picture but I was wondering if this checkering looks correct for a 1907 model 1894?
September 22, 2011
Offline
Yes.
April 15, 2005
Offline
What does the checkering on the forend stock look like?
I personally do not believe the checkering on the pistol grip is factory original.
Bert
WACA Historian & Board of Director Member #6571L
February 24, 2019
Offline

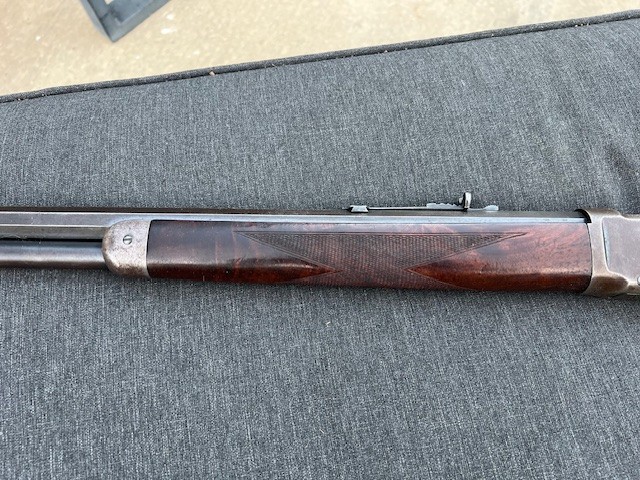

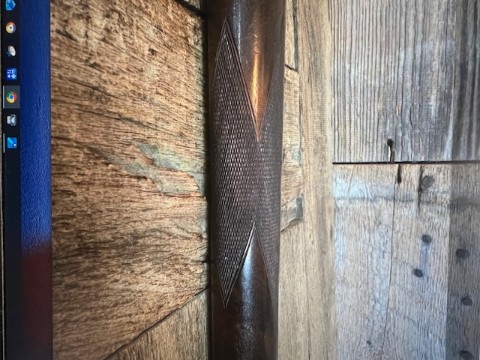

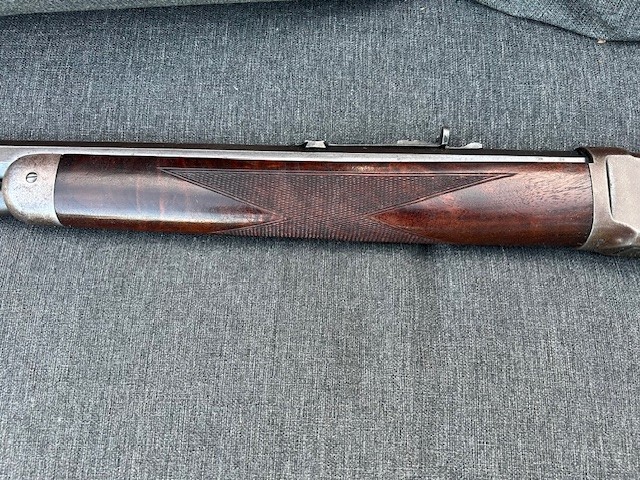

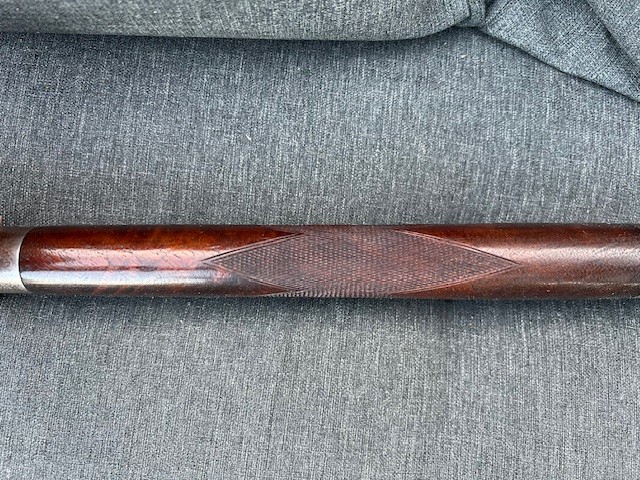

pictures of forend
April 15, 2005
Offline

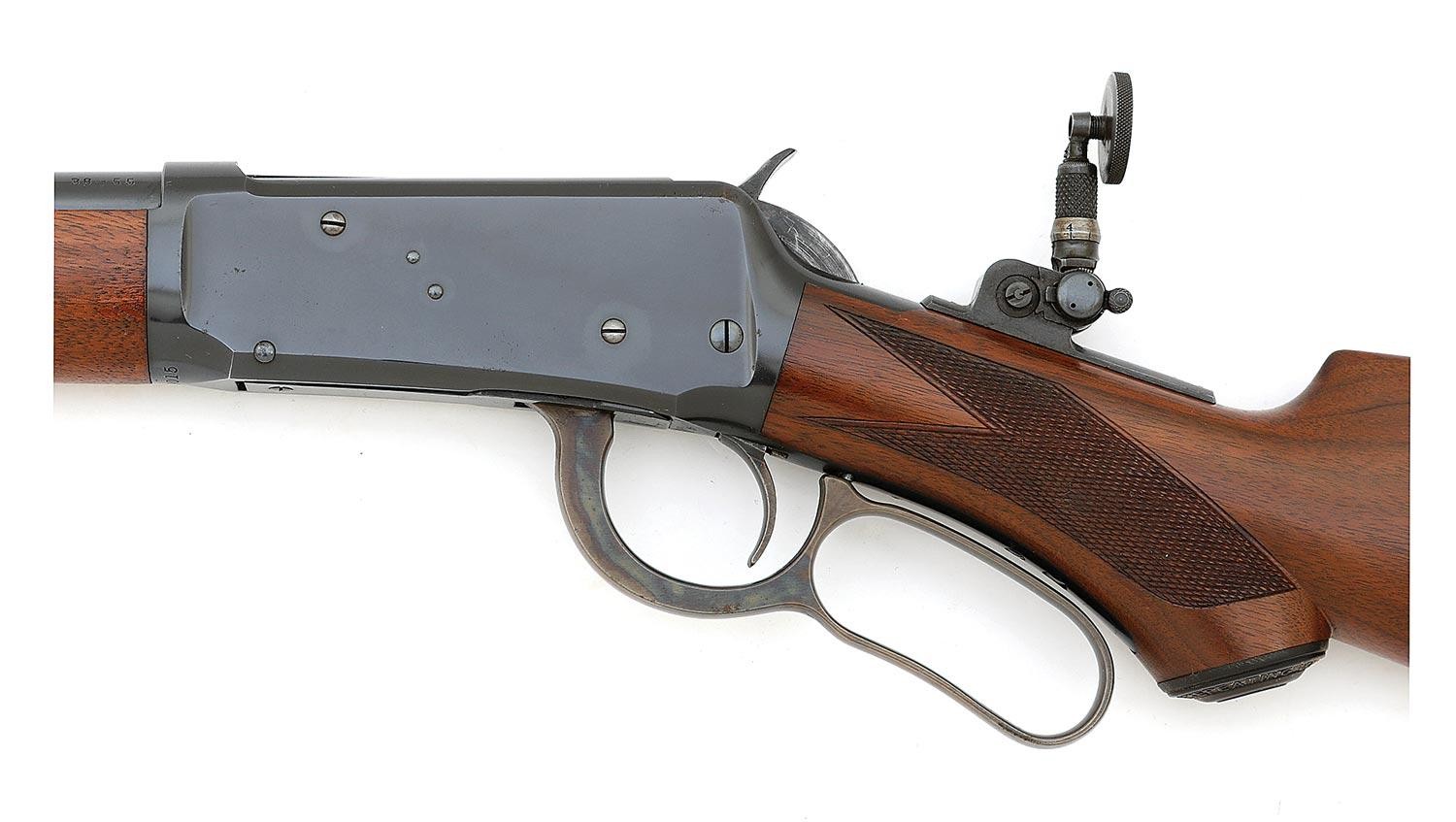

Please add a clear 90-degree side view picture of the pistol grip area like this example;
Bert
WACA Historian & Board of Director Member #6571L
February 24, 2019
Offline
The rifle has deluxe wood and everything looks to have the same wear. Wood to metal fitment looks pretty good. Chambered in .32w.s.
December 9, 2002
Offline
The title could be changed, as it suggests a M-1907 rifle was the subject, and not the year of mfg.
Tony
February 24, 2019
Offline
Sorry Bert this is the best I can do right now.

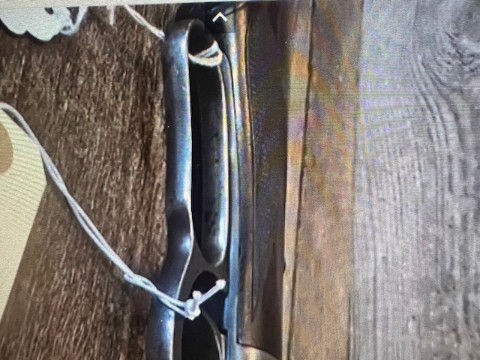

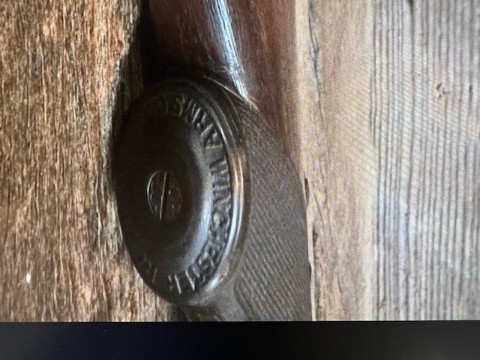

opposite side of grip and a poor pic of the bottom side
February 24, 2019
Offline
one more
April 15, 2005
Offline

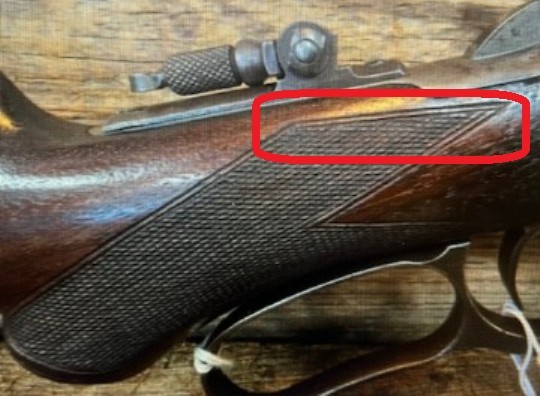

The checkering pattern on your Model 1894 does not exactly match the H-pattern found on verified factory original specimens from the same time period.
Specifically, the area that I have hi-lighted in your picture and mine.
Your rifle…

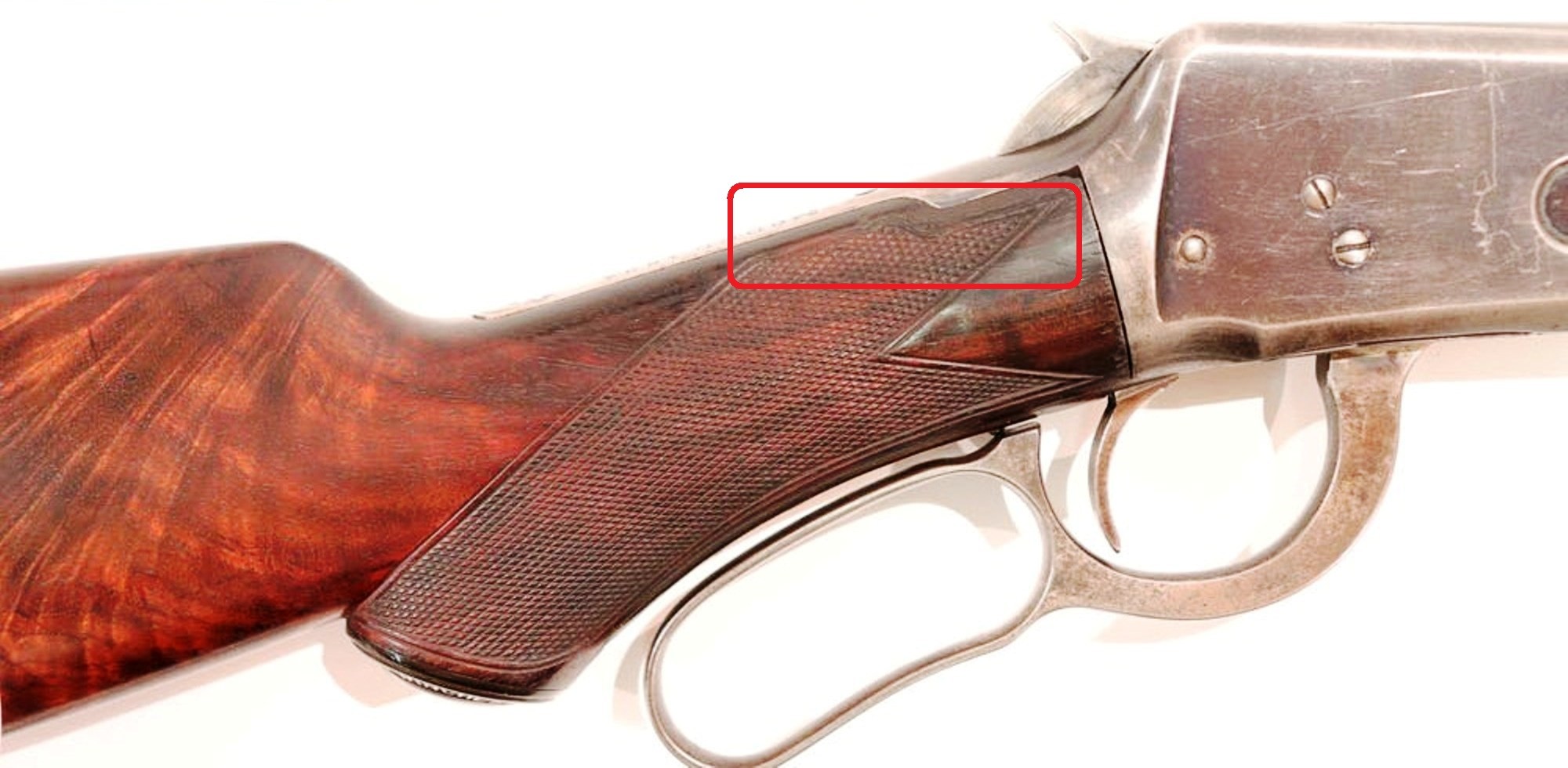

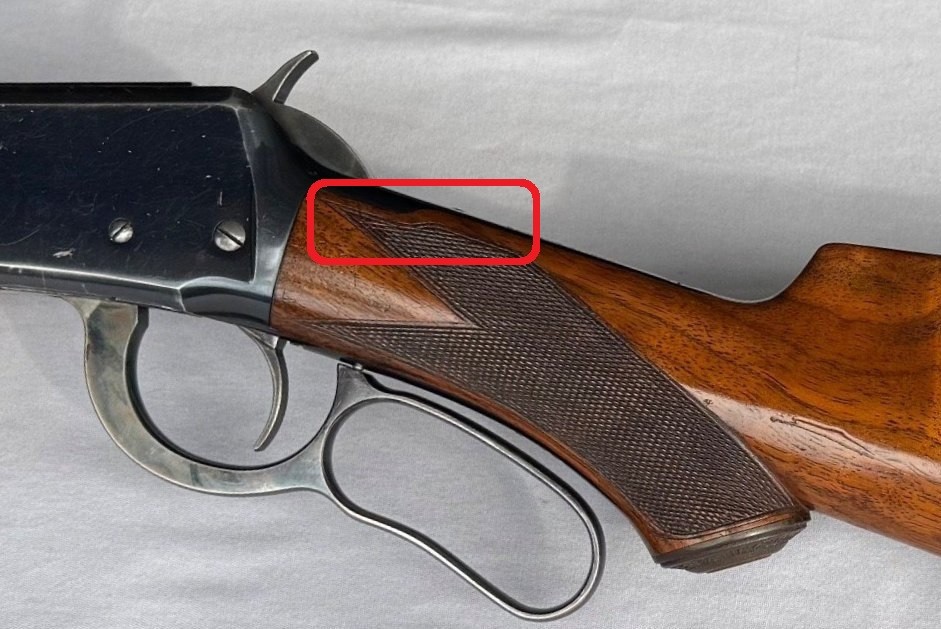

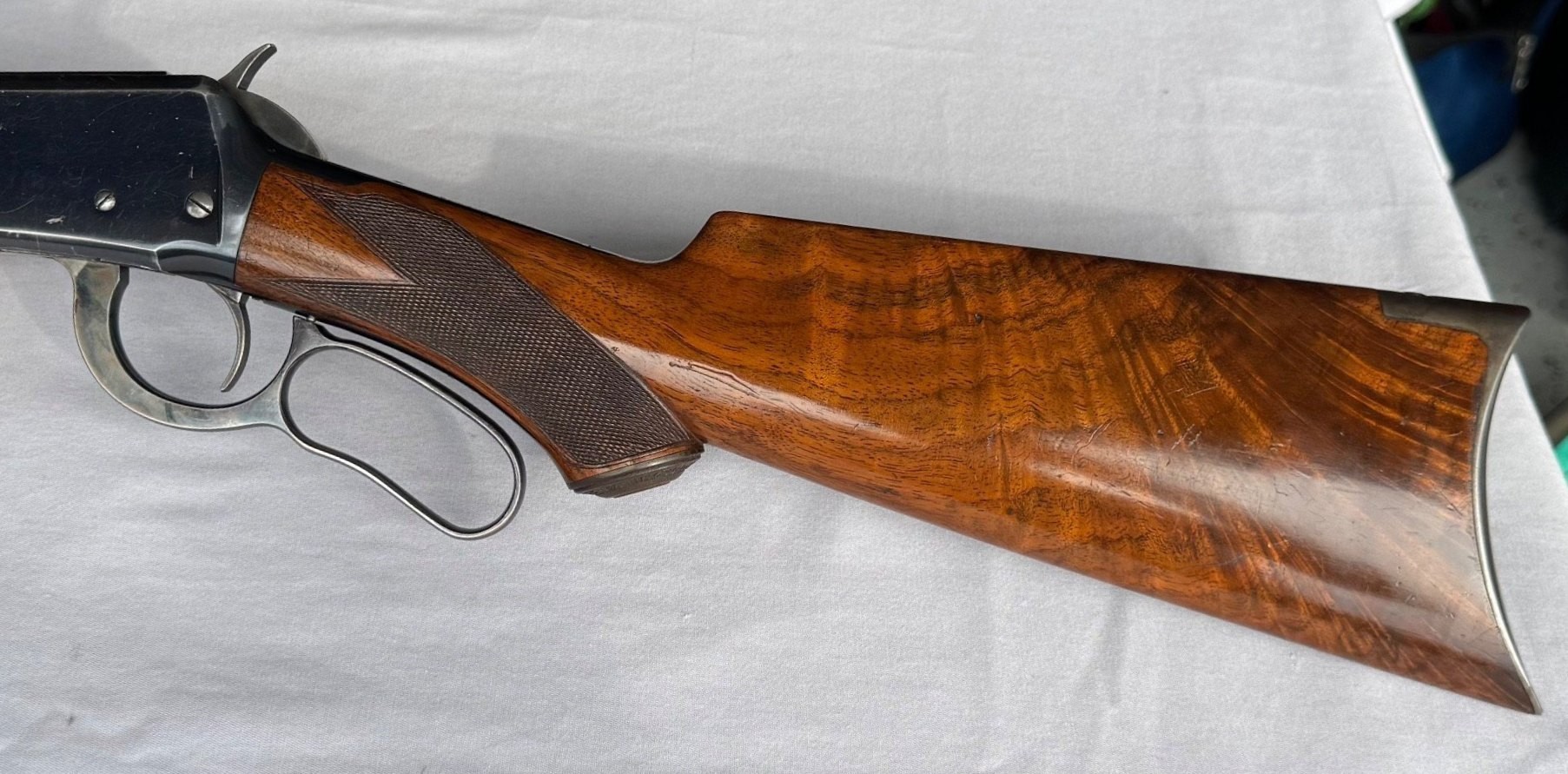

Verified factory examples…
Bert
WACA Historian & Board of Director Member #6571L
February 24, 2019
Offline
Thanks for the info Bert.
Robert
September 22, 2011
Offline
Bert H. said
The checkering pattern on your Model 1894 does not exactly match the H-pattern found on verified factory original specimens from the same time period.
Specifically, the area that I have hi-lighted in your picture and mine.
Your rifle…Verified factory examples…
Bert
I agree with this assessment. At first, it appeared to be a pistol grip with checkering, but the subtle differences…. Do you think it was a plain pistol grip rifle and checkering happened later? I imagine it’s just beyond the range in which factory letters are available?
February 24, 2019
Offline
I’ll take some better pictures once I have it. Thanks
July 8, 2012
Offline
The pistol grip looks like the I checkering pattern, but the forend is not a factory pattern.
April 15, 2005
Offline
tionesta1 (AL) said
The pistol grip looks like the I checkering pattern, but the forend is not a factory pattern.

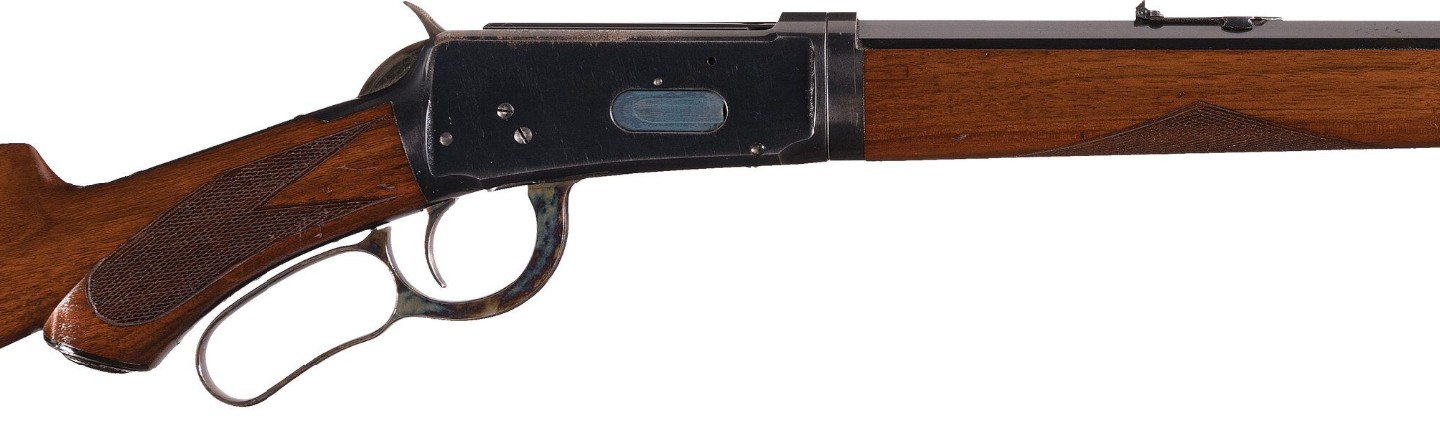

This is factory I-pattern on a pistol grip… noticeably less total coverage.
Bert
WACA Historian & Board of Director Member #6571L
February 24, 2019
Offline
I thought the forend looked correct for a full deluxe rifle and the pistol grip looked like a cross between the I and H pattern. The wood looks to be upgraded to deluxe. I’ll have it in my hands this evening. Maybe kill a deer with it later this season.
February 24, 2019
Offline

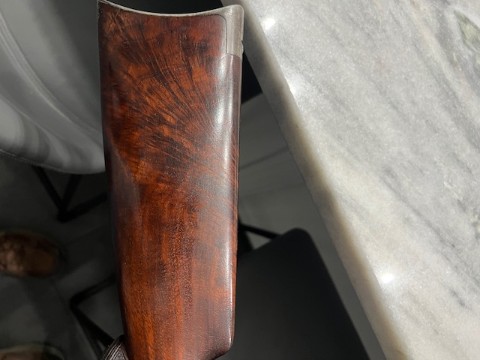

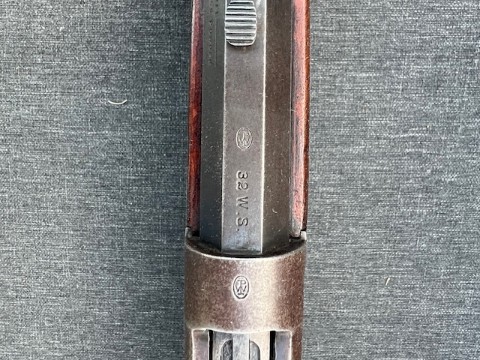

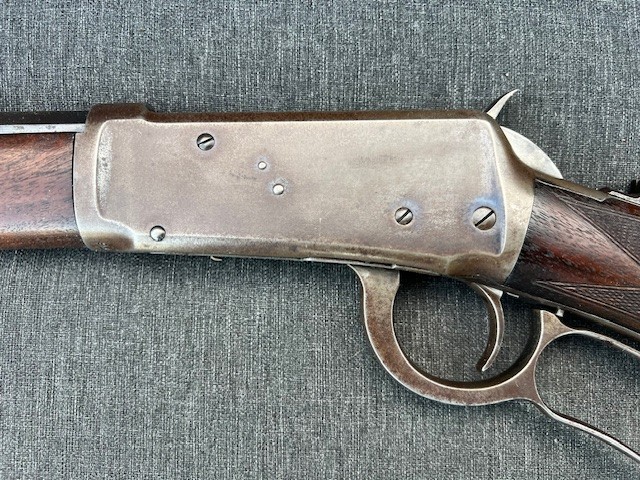

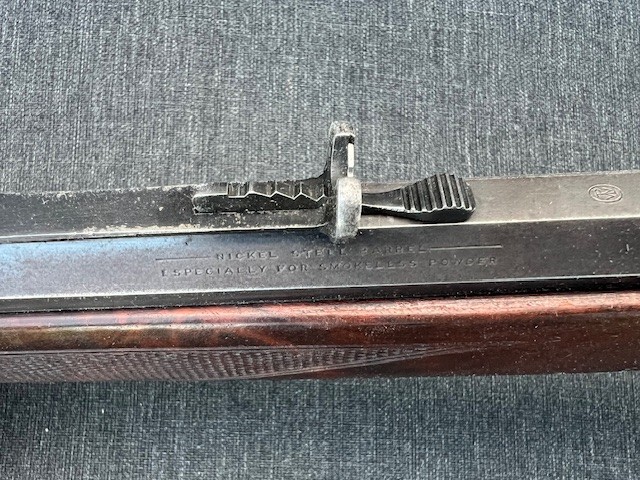

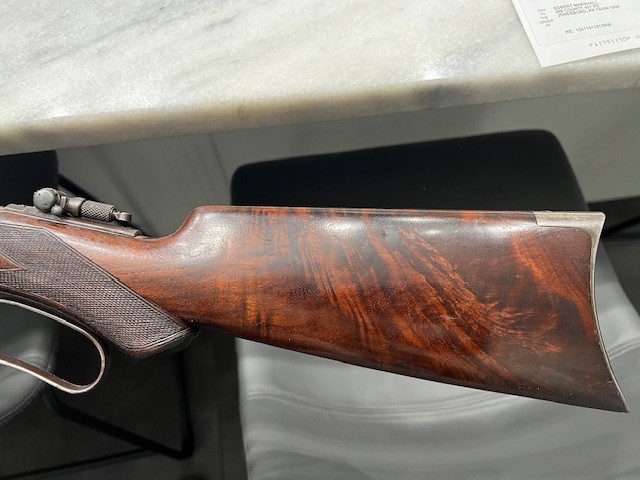

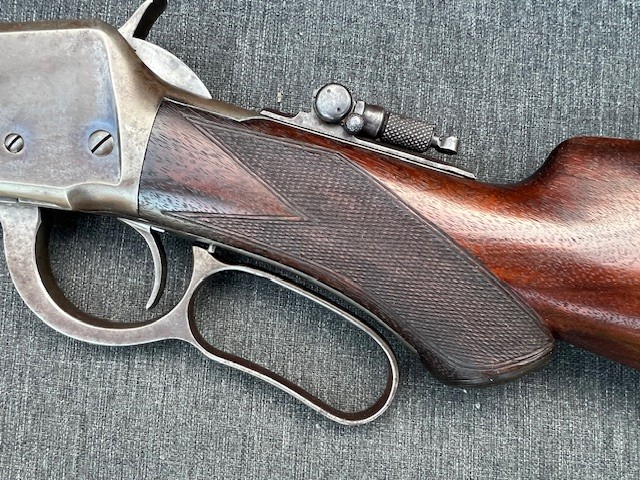

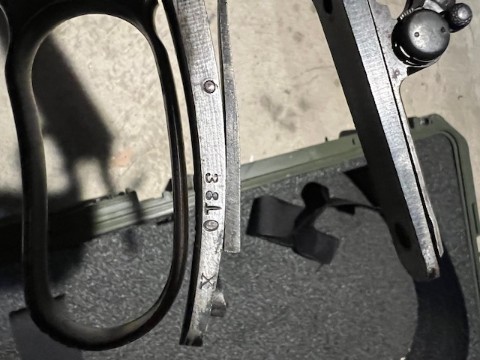

I picked up this rifle yesterday afternoon. It looks better in person but it does have a toe repair that was not mentioned. Here are some more pic’s
April 15, 2005
Offline
It appears to have a slightly modified version of the factory H-pattern checkering on the pistol grip of the stock. In viewing your latest pictures, it does appear to be factory work. Is the serial number early enough to get a CFM letter for it?
Bert
WACA Historian & Board of Director Member #6571L
February 24, 2019
Offline
sn# 359876 just misses getting a CFM letter I beleive.
April 15, 2005
Offline
R.Marshall said
sn# 359876 just misses getting a CFM letter I beleive.
It does just miss the mark.
Based on my research survey, I am now of the opinion that your rifle is 100% factory original. The picture below is a snap-shot of my survey file. It appears that Winchester made a small batch of similar rifles in that serial range.
Bert
WACA Historian & Board of Director Member #6571L
