Exposed spring tang sight
sp_NewTopic Add Topic
Avatar
Member
WACA Guest
Forum Posts: 81
Member Since:
March 1, 2009
sp_UserOfflineSmall Offline
1
January 23, 2013 - 11:08 am
sp_Permalink sp_Print sp_QuotePost

Hello,

does anyone know how you can tell the difference between the Winchester exposed spring tang sight and the one made by axtell a few years ago.

John k.

Avatar
Wisconsin
Member
WACA Member
Forum Posts: 4255
Member Since:
May 2, 2009
sp_UserOfflineSmall Offline
2
January 23, 2013 - 12:19 pm
sp_Permalink sp_Print sp_QuotePost

John,

Some of Axtell’s were marked but other than that you have to look at workmanship and bluing color.

Bob

WACA Life Member---
NRA Life Member----
Cody Firearms member since 1991
Researching the Winchester 1873's


Email: [email protected]

Avatar
Member
WACA Guest
Forum Posts: 6
Member Since:
May 2, 2022
sp_UserOfflineSmall Offline
3
May 3, 2022 - 6:07 am
sp_Permalink sp_Print sp_QuotePost

I hate to believe that Axtell, the only company that could make accurate reproductions of the originals, is no longer in business.

I’m not up to speed on all of the other shops, so it’s possible that they’re all doing the same thing. I recall visiting the old Axtell store, which I believe was in Washington. It was a small establishment where everyone smoked, and when the door was opened, the smoke simply rolled out.

Avatar
Member
WACA Member
Forum Posts: 1686
Member Since:
June 4, 2017
sp_UserOfflineSmall Offline
4
May 3, 2022 - 12:23 pm
sp_Permalink sp_Print sp_QuotePost

  I don’t know about the exposed spring tang sights, but the thick base graduated and vernier had a lot of differences from original. Knurling on disc and screw, machine cuts in lower base, the placement of the number on the spring, and the size off the elevation numbers on the staff were very different. You can see these differences at a glance. Axtell did have a blue that was close and with a little aging would pass. T/R

Avatar
Member
WACA Member
Forum Posts: 338
Member Since:
July 31, 2005
sp_UserOfflineSmall Offline
5
May 4, 2022 - 4:03 pm
sp_Permalink sp_Print sp_QuotePost

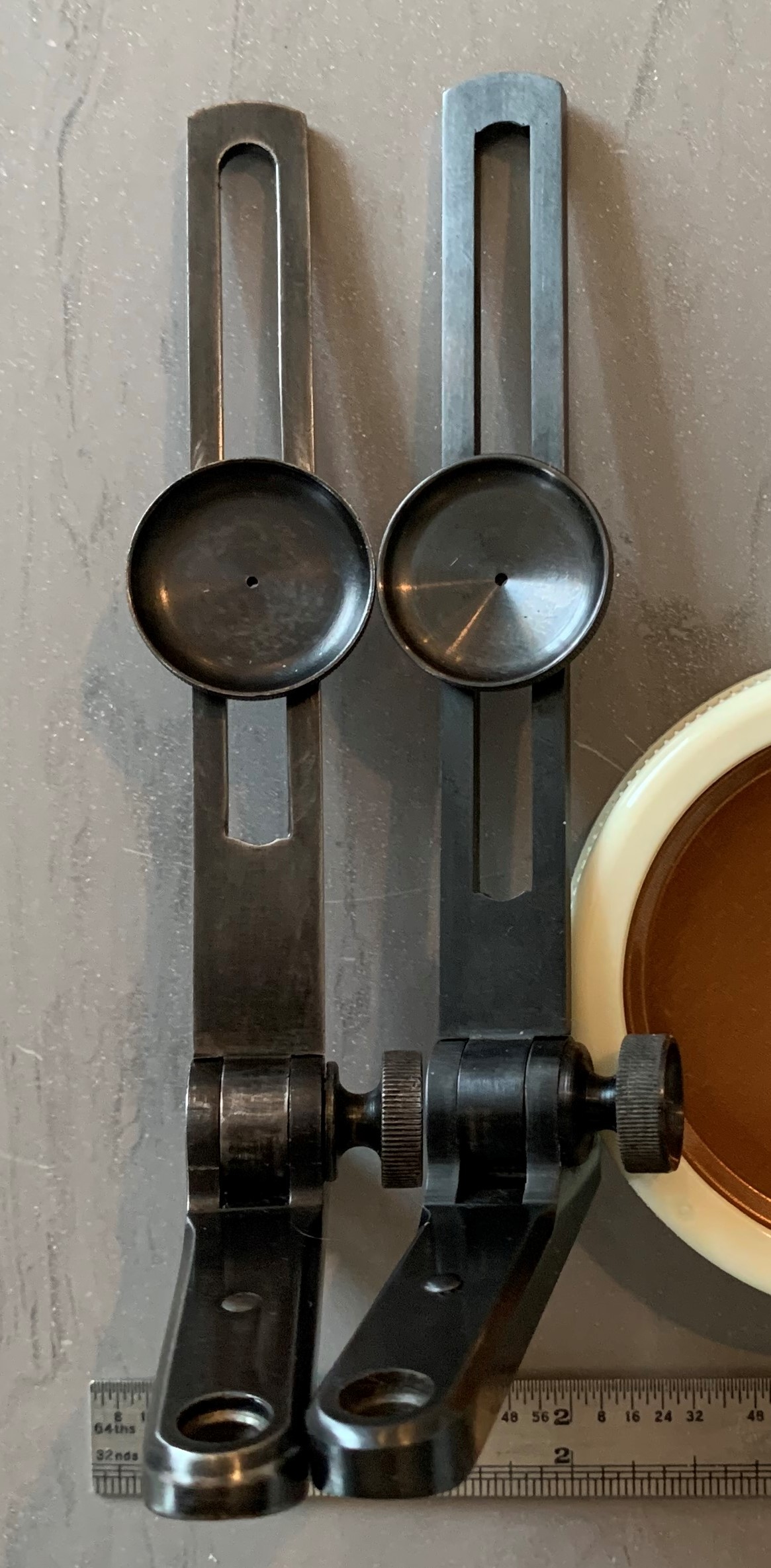

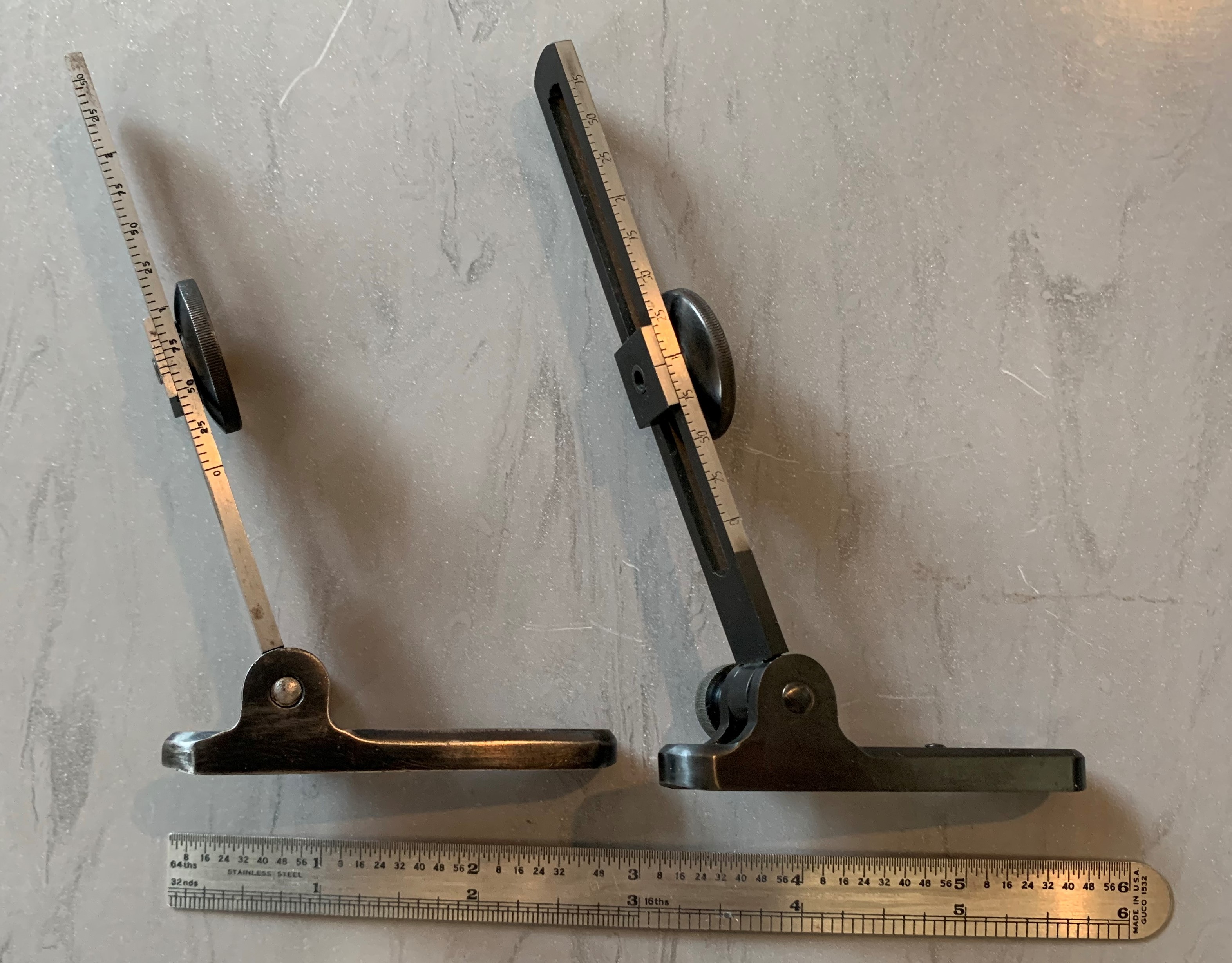

I happen to have both an Axtell and original thick base graduated peep sight in my collection.  Here are a few comparison photos.  See TR’s comments above.

First few photos original on left, Axtell on right.

IMG_4554.JPGImage EnlargerIMG_4555.JPGImage EnlargerIMG_4556.JPGImage Enlarger

sp_PlupAttachments Attachments

I call myself a collector as it sounds better than hoarder

Avatar
Member
WACA Member
Forum Posts: 338
Member Since:
July 31, 2005
sp_UserOfflineSmall Offline
6
May 4, 2022 - 4:05 pm
sp_Permalink sp_Print sp_QuotePost

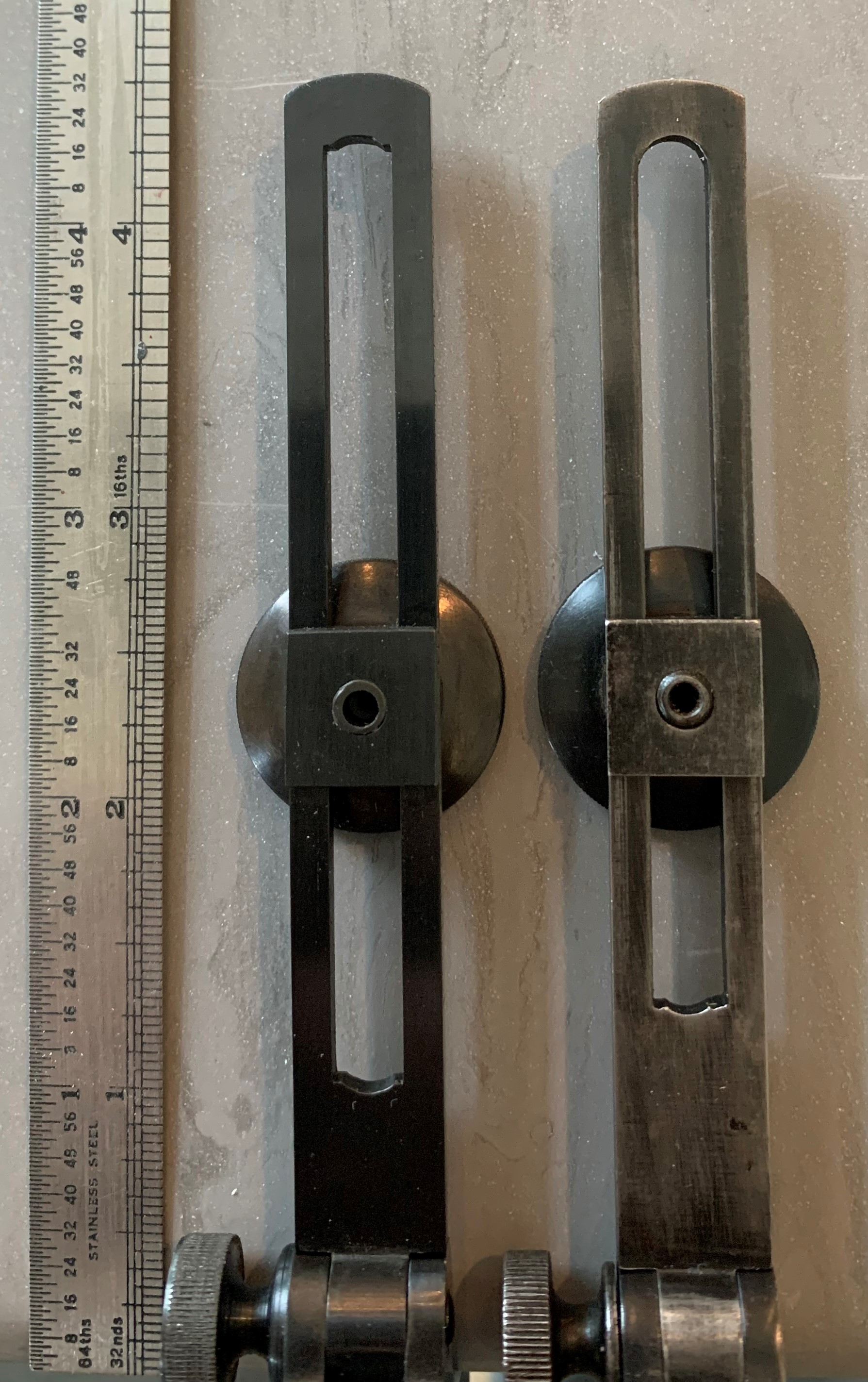

A few more photos comparting original vs. Axtell graduated peep sight.  Original is now on right, Axtell on left.

IMG_4557.JPGImage EnlargerIMG_4559.JPGImage Enlarger

sp_PlupAttachments Attachments

I call myself a collector as it sounds better than hoarder

Avatar
Member
WACA Member
Forum Posts: 1686
Member Since:
June 4, 2017
sp_UserOfflineSmall Offline
7
May 4, 2022 - 4:20 pm
sp_Permalink sp_Print sp_QuotePost

 Bill,

 Nice pictures, very educational. Thanks!

                                      Tom
