Model 1894, SN 100955 (applied Nov 1900)

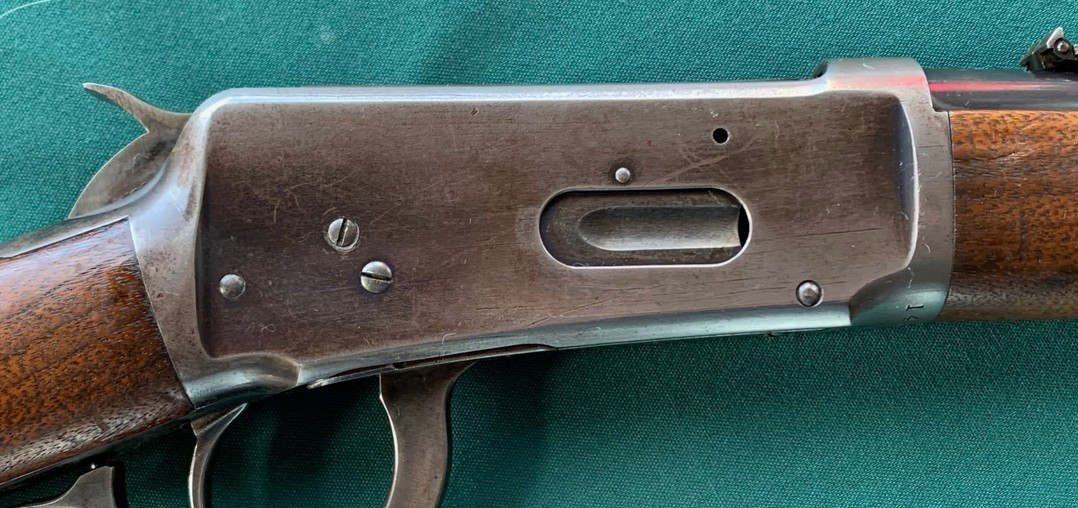

For years, I thought the hole was due to a missing screw/stud (see picture), but I’ve looked at other 94s and they all have the same ‘missing’ piece.  What was the purpose of that hole, assuming it was intentional?94-SRC.jpgImage Enlarger

sp_PlupAttachments Attachments
Avatar
TXGunNut
Northern edge of the D/FW Metromess
Member
WACA Member
Forum Posts: 6448
Member Since:
November 7, 2015
sp_UserOnlineSmall Online
2
February 10, 2025 - 4:26 pm
sp_Permalink sp_Print sp_EditHistory

The hole is used to access a pin during disassembly/assembly of components inside the receiver.



Mike

Life Member TSRA, Endowment Member NRA
BBHC Member, TGCA Board Member
Smokeless powder is a passing fad! -Steve Garbe
I hate rude behavior in a man. I won't tolerate it. -Woodrow F. Call, Lonesome Dove
Some of my favorite recipes start out with a handful of depleted counterbalance devices.-TXGunNut
Presbyopia be damned, I'm going to shoot this thing! -TXGunNut
Avatar
sb
Member
WACA Member
Forum Posts: 471
Member Since:
November 8, 2011
sp_UserOfflineSmall Offline
3
February 10, 2025 - 4:27 pm
sp_Permalink sp_Print

winchester73 said
Model 1894, SN 100955 (applied Nov 1900)

For years, I thought the hole was due to a missing screw/stud (see picture), but I’ve looked at other 94s and they all have the same ‘missing’ piece.  What was the purpose of that hole, assuming it was intentional?94-SRC.jpgImage Enlarger



That hole is used in the  disassembly process.   It is used to remove the pin that connects the bolt & lever

Avatar
winchester73
Somewhere along Tobacco Road, North Carolina
Member
WACA Member
Forum Posts: 5
Member Since:
March 20, 2005
sp_UserOfflineSmall Offline
4
February 10, 2025 - 4:42 pm
sp_Permalink sp_Print

Ahhhh, makes perfect sense, thanks!

This was handed down from my grandfather, he was in the insurance business and found it in the vault of a failed bank (probably in the 50’s, most likely NYC).

Avatar
mark minnillo
Member
WACA Guest
Forum Posts: 229
Member Since:
January 28, 2016
sp_UserOfflineSmall Offline
5
February 10, 2025 - 5:05 pm
sp_Permalink sp_Print

winchester73 said
Model 1894, SN 100955 (applied Nov 1900)

For years, I thought the hole was due to a missing screw/stud (see picture), but I’ve looked at other 94s and they all have the same ‘missing’ piece.  What was the purpose of that hole, assuming it was intentional?94-SRC.jpgImage Enlarger

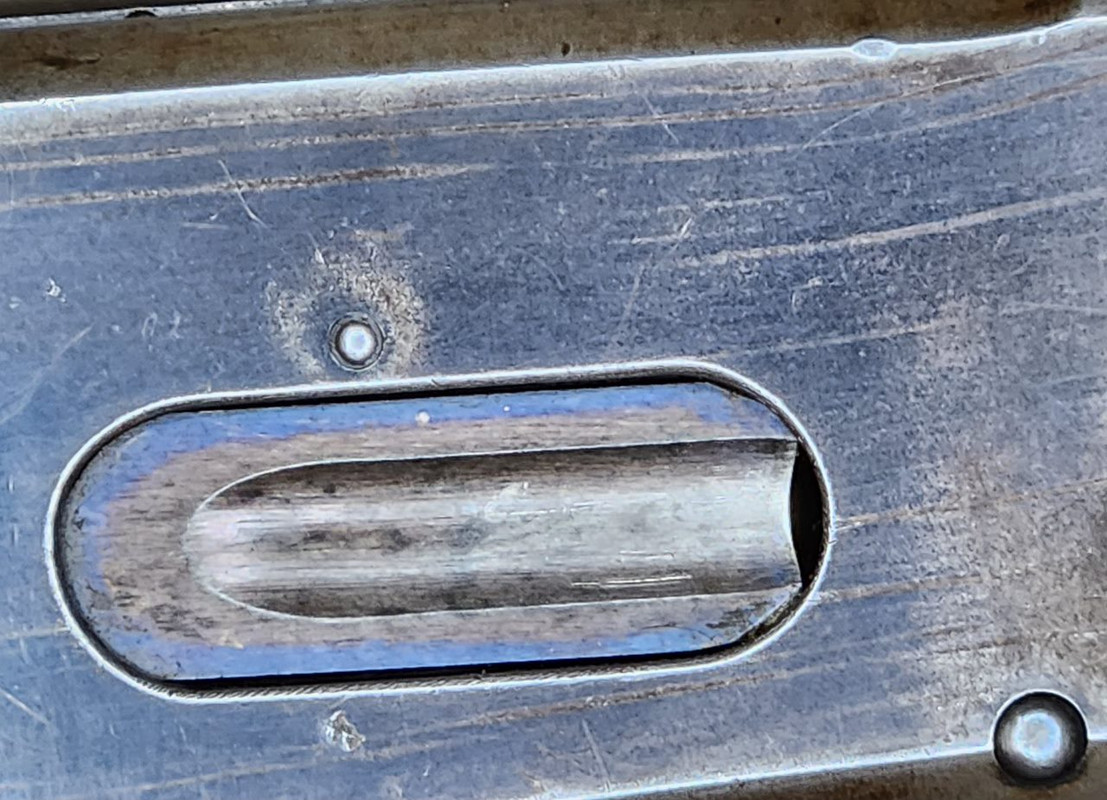

Not all. This is the receiver of a 1907 1894 rifle that somehow left the factory without the lever pin removal hole.

Image Enlarger
