https://www.dropbox.com/s/9jv38avl7f8xja8/IMG_2144.jpg?dl=0
Hello,

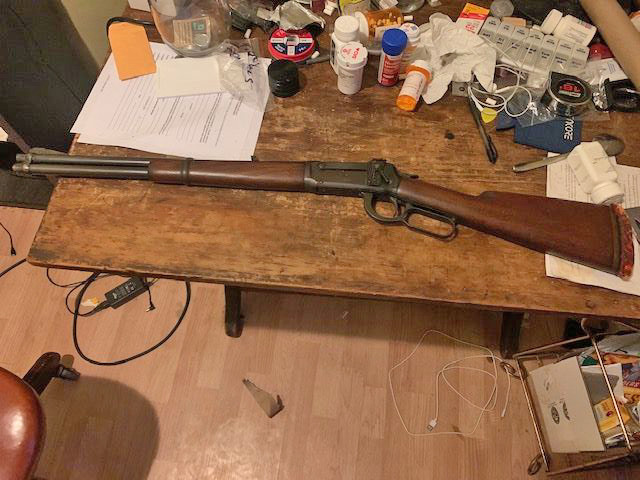

I recently reunited with my father’s 94 from 1927. I have looked around and don’t see any rifles with the features of this one. I know it has been modified (at the very least, buttstock has been cut down). It has an 18′ barrel and Lyman peep site. I am curious as to originality. The front and rear site look different than what I have found (flip-down rear dovetail, ramp front site) and the barrel band/front sight fitting all look very different than I have seen for that year/model. Please pardon the messy bench pics as it is currently disassembled for cleaning. I would like to know what features are stock and what model this may be. Pics to come as I figure out how to upload here
Thank you!
Robert
[Image Can Not Be Found]
Hello Robert,
The single picture you provided a URL to does not contain enough detail to comment on your questions.
The barrel should be 20-inchs in length.
Bert
WACA Historian & Board of Director Member #6571L
Sorry, ,my post was pending moderation (first post) and I couldn’t post more.
https://www.dropbox.com/s/t1wtpk10q7tppjq/IMG_2165.jpg?dl=0
https://www.dropbox.com/s/tzvxsjwwz8pucf8/IMG_2168.jpg?dl=0
Regarding the barrel length, is it possible the barrel has been cut down? I haven’t seen a front sight like this, though I am not that knowledgeable!
Robert Daniels said
Regarding the barrel length, is it possible the barrel has been cut down? I haven’t seen a front sight like this, though I am not that knowledgeable!
The barrel has positively been cut (shortened), and neither the front or the rear sight is factory original.
WACA Historian & Board of Director Member #6571L
Bert H. said The barrel has positively been cut (shortened), and neither the front or the rear sight is factory original.
But the silver lining to these problems is that you’ve got a Lyman #21 rcvr. sight worth $250-300. Enough, if you sold it on ebay, to replace the buttstock.
Thank you both so much! The rifle being my fathers, I will not be selling at this point. The butt stock has my dad’s initials carved in, so wont be replacing that either. How would you address the stock? The recoil pad is trashed, and the LOP is too short for me. Should I have a gunsmith install some spacers and new recoil pad? Alternately, I thought about just replacing the pad and using the lace-up leather pads that fit over to get some length? Ultimately, I will only be shooting it occasionally for old time sake.
Robert Daniels said Alternately, I thought about just replacing the pad and using the lace-up leather pads that fit over to get some length?
Good idea–if you did that, there’d be no need to replace the old pad. I’ve seen some very good looking lace-on pads, but don’t know who made them; not Uncle Mike’s!
I was thinking of replacing the old pad with something somewhat period correct. It will still be too short so was maybe thinking I would use the leather pad over the old one. I would want a shorter one so as not to hide my dad’s (and my) initials.
https://www.dropbox.com/s/4bwkm2xbzy9bbhi/IMG_2143.HEIC?dl=0
Hello Robert,
I recently picked up a Winchester highwall, someone had cut the stock to 12″ and refitted the metal but plate. I purchased one of these nice leather pads, added another pad inside and now have a LOP of 13 1/2″. It looks very nice on the old 1885
Online
I think the real silver lining here is you want to preserve your father’s carbine- and shoot it now and then. Given the carbine was your fathers – and you will not sell it – I think it is cool that the barrel has been shortened. He surely did this for a reason – perhaps to make it even easier to handle in the woods? And as Clarence mentioned, the Lyman No. 21 receiver sight is a bonus. I would stick the lace-up pad on and enjoy the carbine. Looks like a fine hunting piece to me
If you need the LOP longer place a piece of something then put the pad on. The piece doesn’t need to be attached as the lace up pad will hold it in place.
Thanks everyone. I took the rifle to a gunsmith who will replace the pad (the rubber was breaking down and dissolving ) and fixing and issue with the hammer/trigger. I should have it back in a week or two and looking forward to shooting it for the first time in 40 yrs! Thanks again for all the info and advice.
