1894 Assembly Numbers
sp_NewTopic Add Topic
Avatar
South Texas
Member
WACA Member
Forum Posts: 1094
Member Since:
March 20, 2010
sp_UserOfflineSmall Offline
21
October 13, 2023 - 10:57 pm
sp_Permalink sp_Print sp_QuotePost

Ive not seen one marked with 2/3 mag or 3/4 mag on a carbine forearm.  The reason for the 1/2 mag designation on carbine forearms is because the angle of the magazine tube bore is steeper, allowing the end of the magazine tube and cap to engage the barrel.  You may be able to get by with a standard carbine forearm for 2/3 or 3/4 mags as the magazine runs parallel to the barrel over a longer distance.  Just a guess.

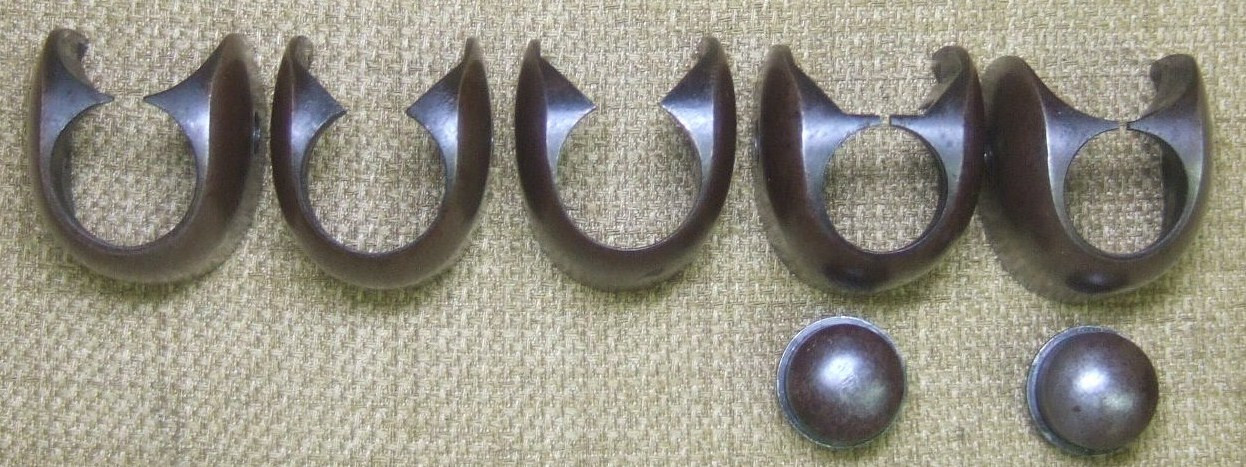

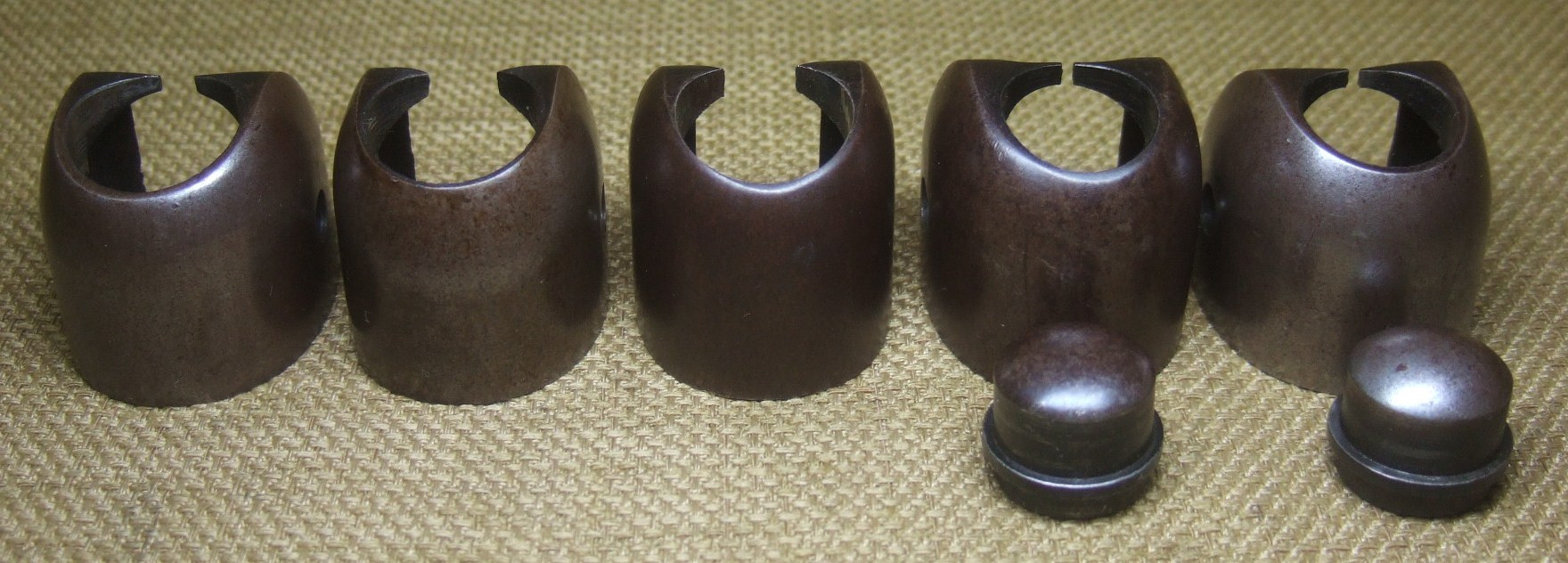

Havent ever seen a rifle forearm marked with the 1/2 mag, and probably wouldnt expect to, the wood appears the same, the forearm cap is different, the angle of the magazine tube bore would be the same for standard and button mag rifles.  For 2/3 or 3/4 mag rifles, I suspect it could be a bit different bore angle, not sure.  Below are some pics of forearm caps they are milled to accommodate the various magazine lengths or angles.

L-R:  RBFM, OBFM, OB2/3M, OBBM, RBBM

forearm-cap-010.JPGImage Enlargerforearm-cap-019.JPGImage Enlarger



Kind of like old  Bert, I dont make it a habit looking for stuff, but curiosity oftentimes outweighs the risk.  Youd be surprised what you sometimes find.

sp_PlupAttachments Attachments


1892takedown @sbcglobal.net ......NRA Endowment Life Member.....WACA Member

"God is great.....beer is good.....and people are crazy"... Billy Currington

Avatar
Kingston, WA
Admin
Forum Posts: 12601
Member Since:
April 15, 2005
sp_UserOnlineSmall Online
22
October 13, 2023 - 11:15 pm
sp_Permalink sp_Print sp_QuotePost

1892takedown said


Kind of like old Bert, I don’t make it a habit looking for stuff, but curiosity oftentimes outweighs the risk.  You’d be surprised what you sometimes find.



Chris,

It must be something in the Hartman gene pool! Laugh

Bert (the other Hartman)

WACA Historian & Board of Director Member #6571L

Avatar
South Texas
Member
WACA Member
Forum Posts: 1094
Member Since:
March 20, 2010
sp_UserOfflineSmall Offline
23
October 13, 2023 - 11:35 pm
sp_Permalink sp_Print sp_QuotePost

LOL!!!

The way I look at it, if your not tinkering your not learning.  No guts, no glory.

Chris


1892takedown @sbcglobal.net ......NRA Endowment Life Member.....WACA Member

"God is great.....beer is good.....and people are crazy"... Billy Currington

Avatar
Kingston, WA
Admin
Forum Posts: 12601
Member Since:
April 15, 2005
sp_UserOnlineSmall Online
24
October 13, 2023 - 11:41 pm
sp_Permalink sp_Print sp_QuotePost

1892takedown said
LOL!!!

The way I look at it, if your not tinkering your not learning.  No guts, no glory.

Chris

That has been my philosophy as well…  In fact, just last night I was taking apart a Pre-C, a “C”, a “D”, and an “E” series Model 1897 to see what I could learn about the variants.  Winchester certainly made a boat-load of changes to the Model 1897 during its 60-year production run!

WACA Historian & Board of Director Member #6571L
