1892 scope mounts
Avatar
eddixon
Member
WACA Guest
Forum Posts: 26
Member Since:
October 12, 2025
sp_UserOfflineSmall Offline
1
October 19, 2025 - 12:38 am
sp_Permalink sp_Print

This may or may not be a popular question here, but does anyone make no drill scope mounts for the 1892 ? will mounts for a 1894 work? i have a 92 44-40 that i would like to put a scope on but want to be able to add the scope and mounts without harming the gun. i know these are collectors guns and this may not be a popular thing to do but just wondering if anyone has done it.

Avatar
rogertherelic
Santa Clara, CA
Member
WACA Member
Forum Posts: 990
Member Since:
January 27, 1992
sp_UserOfflineSmall Offline
2
October 19, 2025 - 2:50 am
sp_Permalink sp_Print sp_EditHistory

Someone did, I have one.  It mounts on the left side of the receiver.  You remove some of the existing screws/plugs and use the screws that came with the mount to install the rail on the left side of the receiver.  I found it detracted from sleek appearance of the 1892 an never used it.  I will look through my parts and take some pictures when I find it. I have held on to it because it is the only one I have ever seen and I collect the unusual.  RDB

Avatar
rogertherelic
Santa Clara, CA
Member
WACA Member
Forum Posts: 990
Member Since:
January 27, 1992
sp_UserOfflineSmall Offline
3
October 20, 2025 - 3:56 pm
sp_Permalink sp_Print

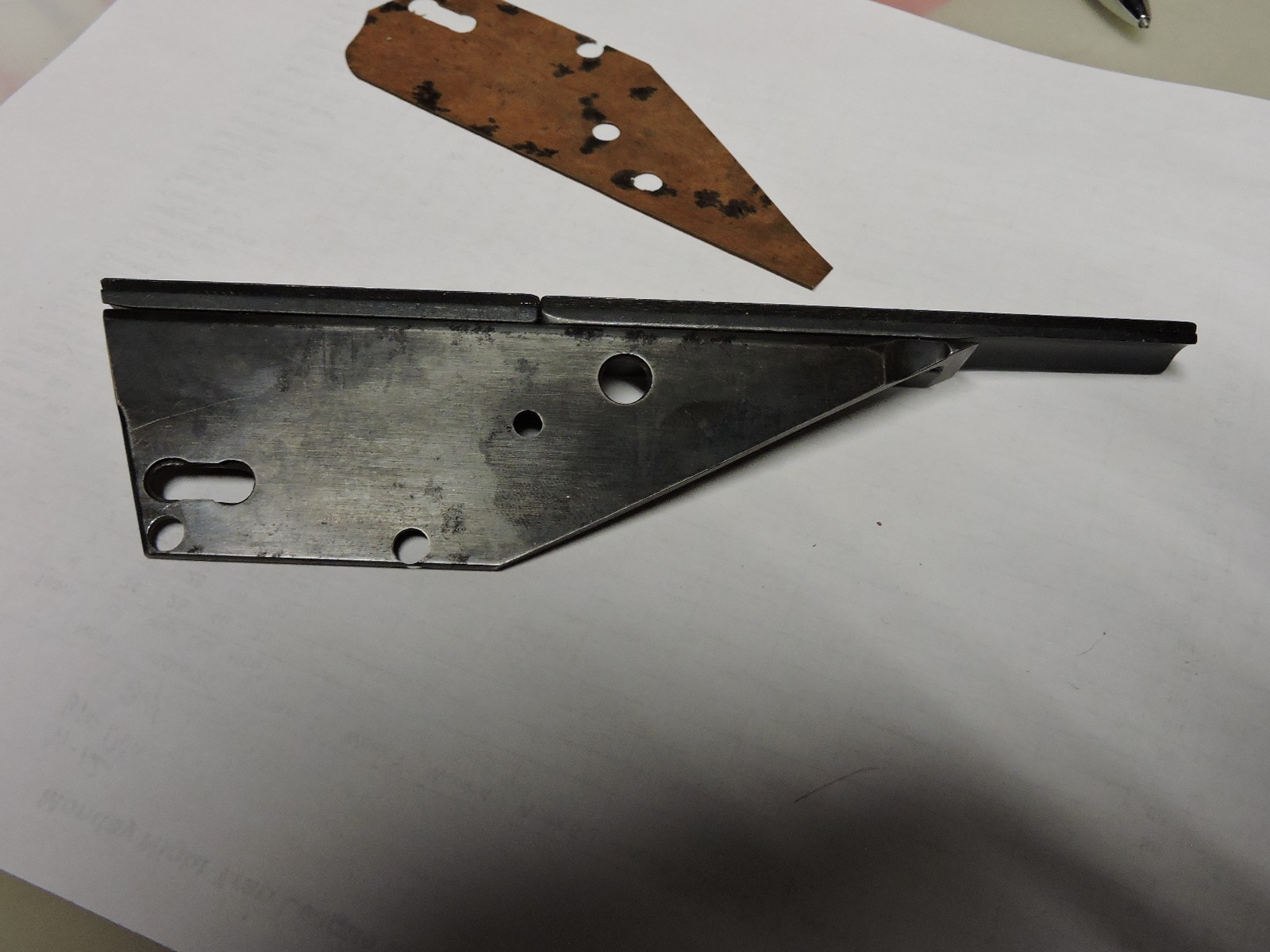

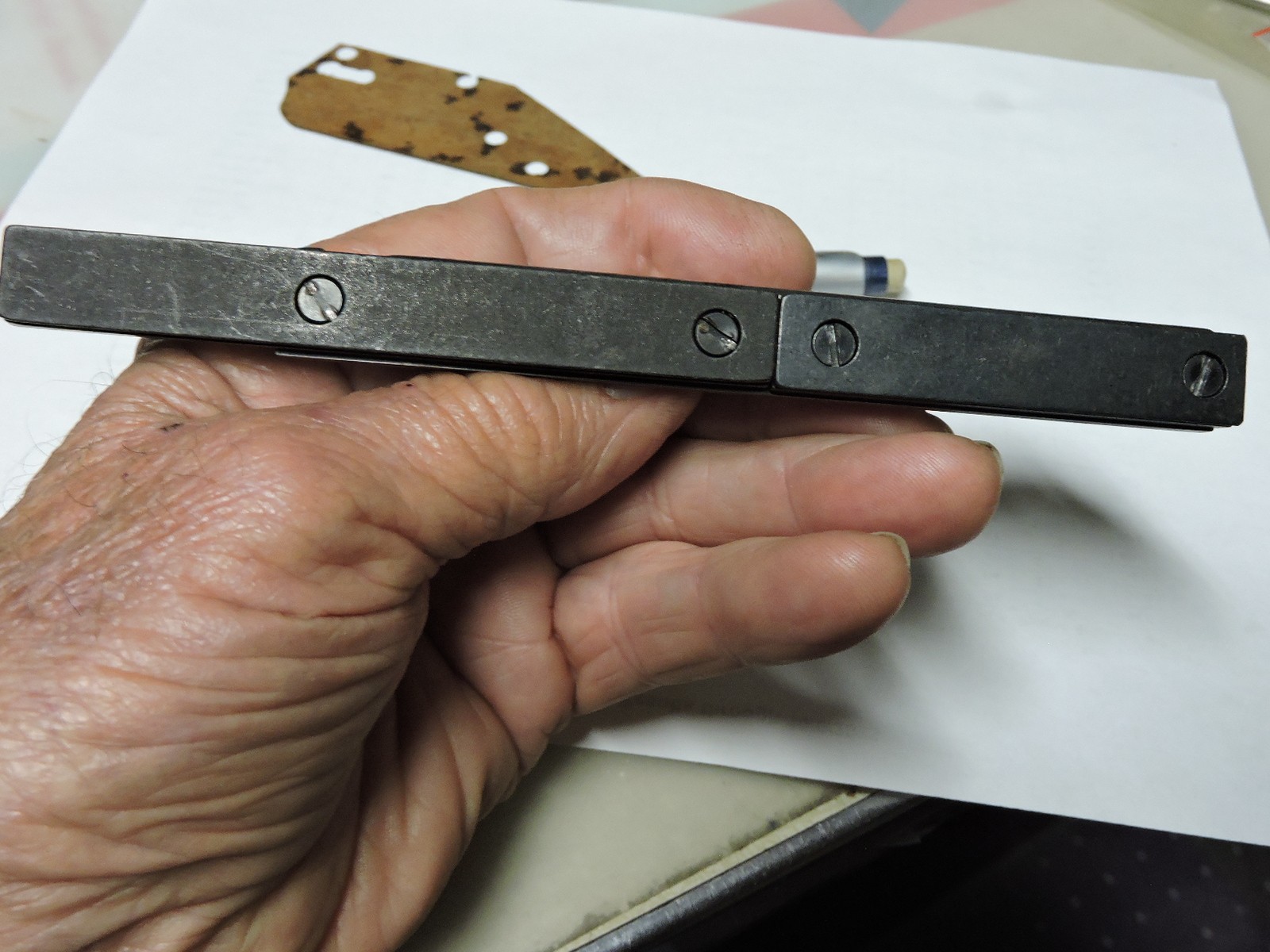

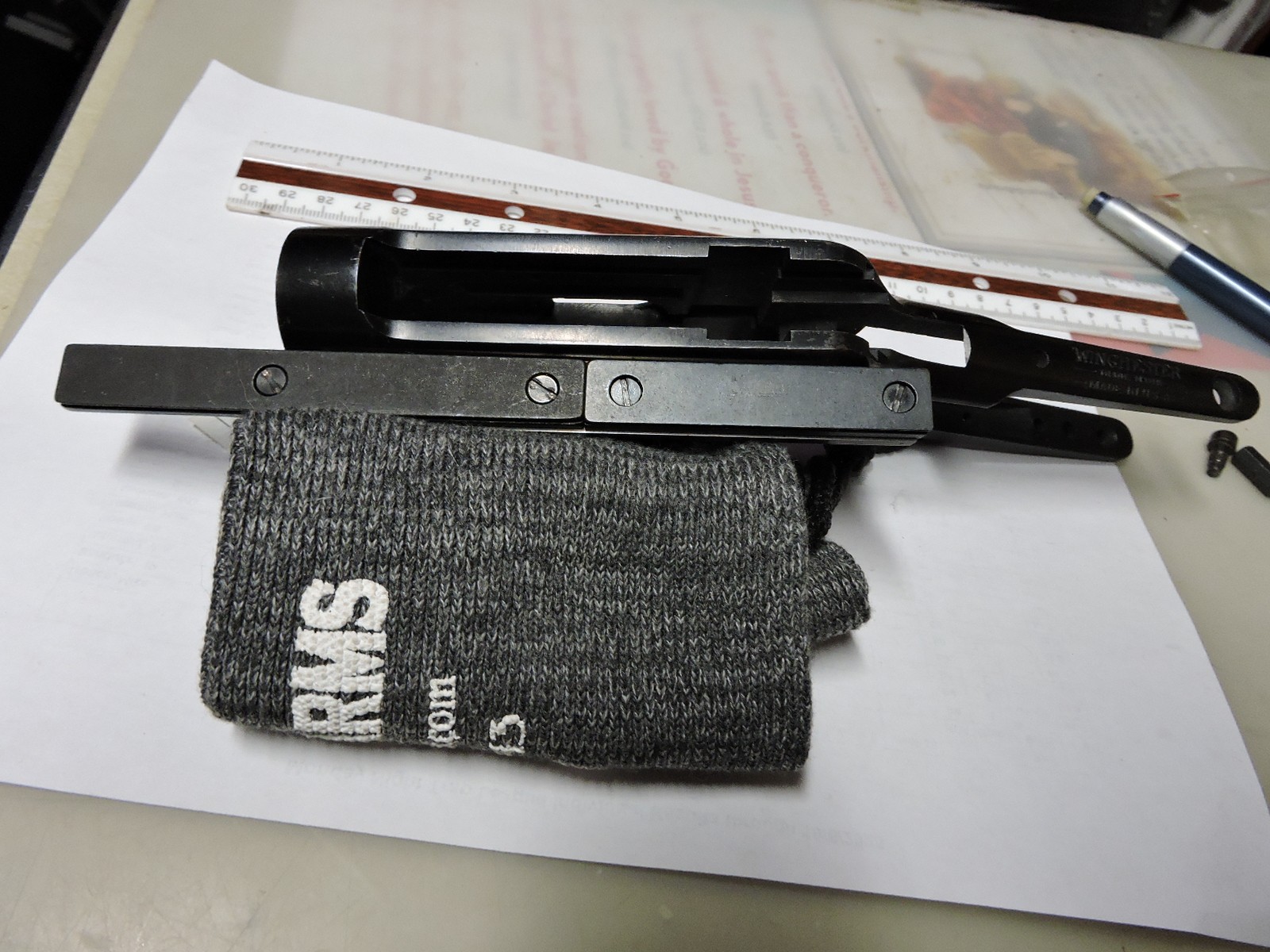

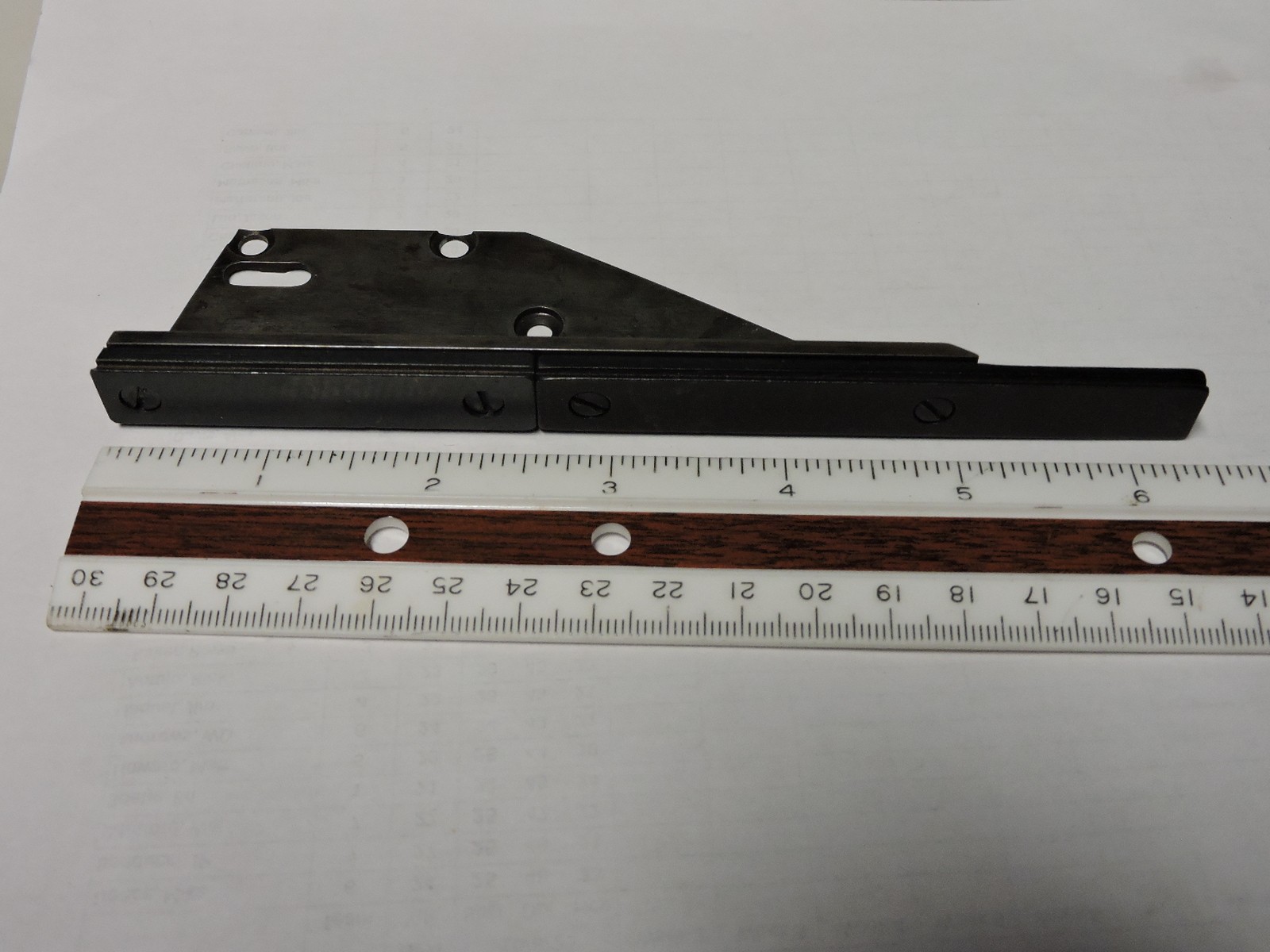

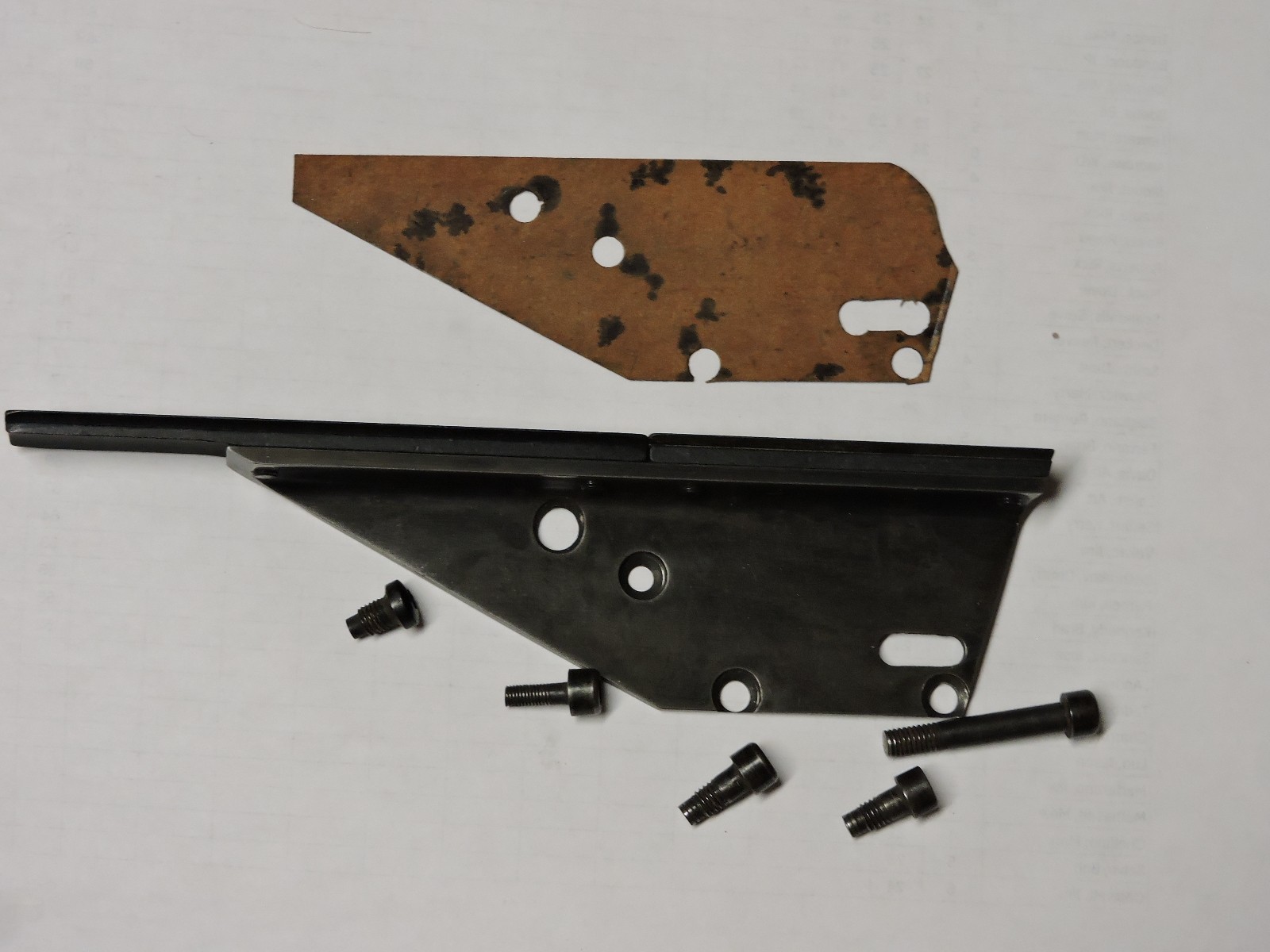

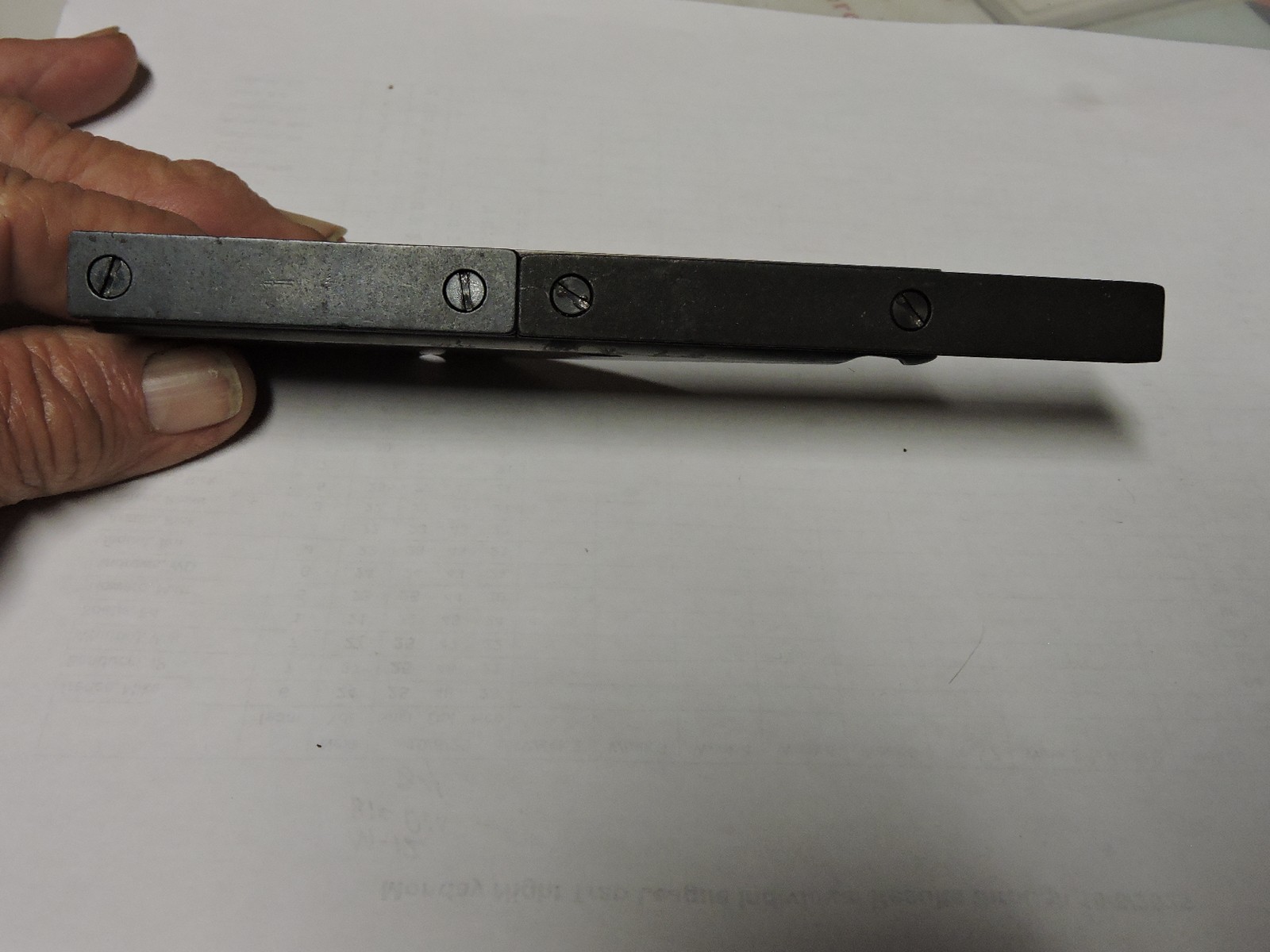

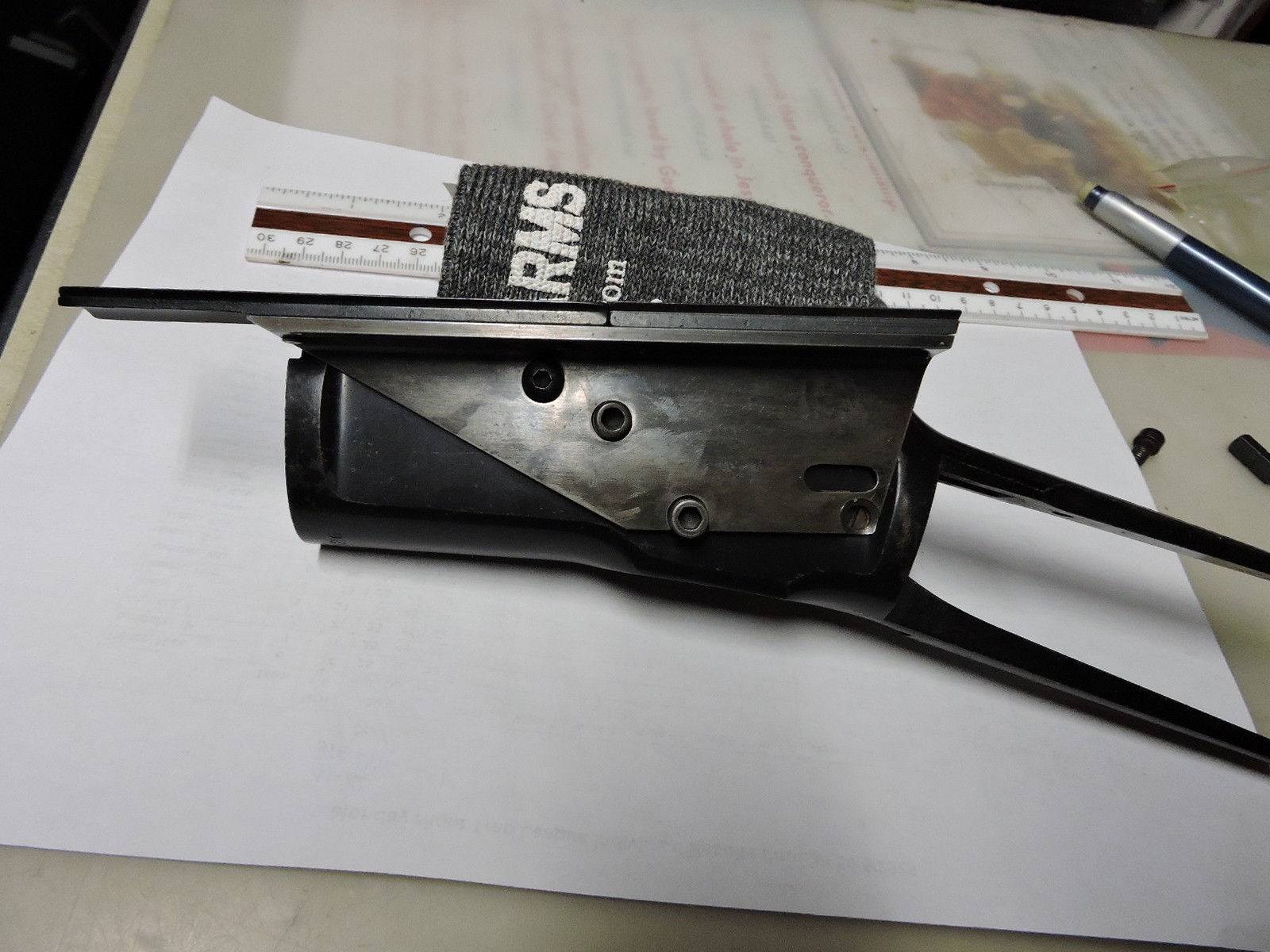

Found it.  I am not well versed in picture taking, but here is the ’92 scope side mount.  I used a bare receiver to give an idea of how it looks and fits.  RDB

92-SIDE-MOUNT-001.JPG92-SIDE-MOUNT-002.JPG92-SIDE-MOUNT-004.JPG92-SIDE-MOUNT-005.JPG92-SIDE-MOUNT-006.JPG92-SIDE-MOUNT-007.JPG92-SIDE-MOUNT-008.JPG

Avatar
steve004
Member
WACA Member
Forum Posts: 5901
Member Since:
November 19, 2006
sp_UserOfflineSmall Offline
4
October 20, 2025 - 10:21 pm
sp_Permalink sp_Print

rogertherelic said
Found it.  I am not well versed in picture taking, but here is the ’92 scope side mount.  I used a bare receiver to give an idea of how it looks and fits.  RDB



Roger –

Very interesting.  I’ve never seen the likes of it.  Thanks for posting the photos.  I agree that it substantially detracts from the sleek aesthetics of the M1892 receiver.  On the other hand, some of us have eyes that are not getting any younger Embarassed

Avatar
eddixon
Member
WACA Guest
Forum Posts: 26
Member Since:
October 12, 2025
sp_UserOfflineSmall Offline
5
October 21, 2025 - 2:24 am
sp_Permalink sp_Print

rogertherelic said
Found it.  I am not well versed in picture taking, but here is the ’92 scope side mount.  I used a bare receiver to give an idea of how it looks and fits.  RDB



i can see what you mean by taking away from its looks….
