1886 serial number
sp_NewTopic Add Topic
Avatar
Member
WACA Member
Forum Posts: 541
Member Since:
February 17, 2022
sp_UserOfflineSmall Offline
1
October 26, 2022 - 10:59 pm
sp_Permalink sp_Print sp_QuotePost

Looking at an 86 made in 1908. Has an A suffix on the serial number. Thought the A denoted a take down? this rifle is solid frame. Any input will be helpful.

Avatar
Member
WACA Member
Forum Posts: 1656
Member Since:
September 22, 2011
sp_UserOfflineSmall Offline
2
October 26, 2022 - 11:02 pm
sp_Permalink sp_Print sp_QuotePost

I can’t remember what the A denotes, but I think it was applied to later .33 WCF rifles?  Mine is from 1909, is in .33 WCF, ends in an “A”, and is NOT a takedown rifle.

Avatar
Member
WACA Member
Forum Posts: 541
Member Since:
February 17, 2022
sp_UserOfflineSmall Offline
3
October 26, 2022 - 11:10 pm
sp_Permalink sp_Print sp_QuotePost

This one is in 45-90

Avatar
Member
WACA Member
Forum Posts: 541
Member Since:
February 17, 2022
sp_UserOfflineSmall Offline
4
October 26, 2022 - 11:12 pm
sp_Permalink sp_Print sp_QuotePost

Could it have meant a “light weight”?

Avatar
Troutdale, OR
Member
WACA Member
Forum Posts: 1843
Member Since:
June 26, 2013
sp_UserOfflineSmall Offline
5
October 27, 2022 - 12:52 am
sp_Permalink sp_Print sp_QuotePost

According to my new 1886 booklet by John Madl (thanks Bill), at “SN approx. 130,000- EOP, the additional “A” added to serial number indicates a threaded magazine tube.”

Don

Avatar
Member
WACA Member
Forum Posts: 4097
Member Since:
November 19, 2006
sp_UserOfflineSmall Offline
6
October 27, 2022 - 1:18 am
sp_Permalink sp_Print sp_QuotePost

deerhunter said
According to my new 1886 booklet by John Madl (thanks Bill), at “SN approx. 130,000- EOP, the additional “A” added to serial number indicates a threaded magazine tube.”

Don



That’s interesting to know.  I figured it meant some sort of production change, but didn’t know what.  This makes sense.

Quite interesting Cool

Avatar
Kingston, WA
Admin
Forum Posts: 10609
Member Since:
April 15, 2005
sp_UserOfflineSmall Offline
7
October 27, 2022 - 1:30 am
sp_Permalink sp_Print sp_QuotePost

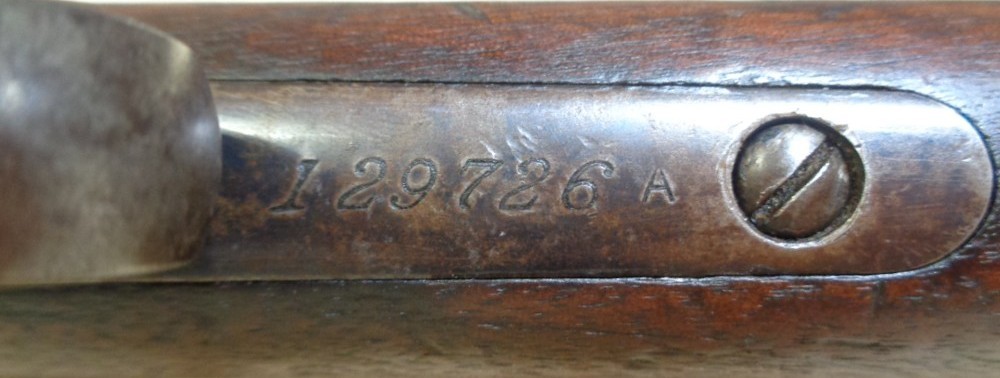

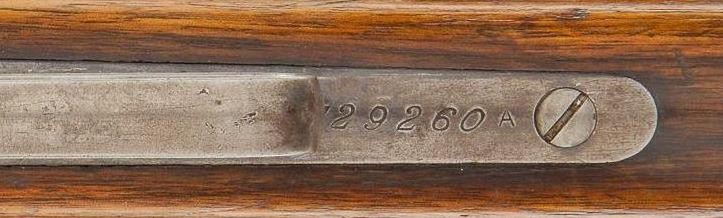

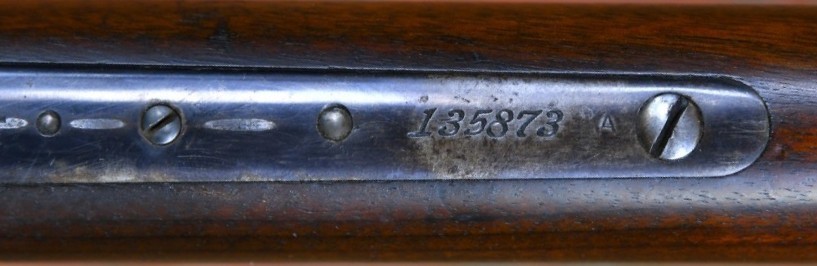

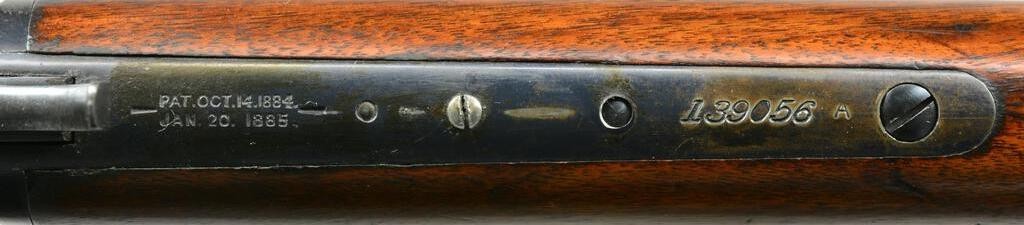

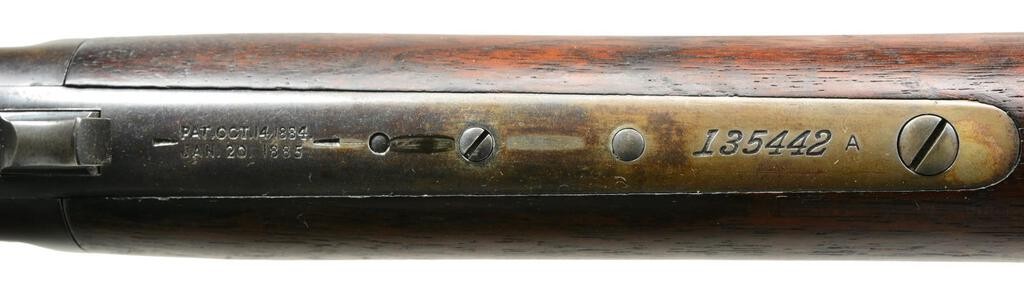

The “A” is actually not part of the serial number (see the attached pictures). It was used on the Solid frame rifles when the change was made from a slip fit magazine tube to a threaded magazine tube. The earliest Model 1886s with the “A” were in the 128700 serial number range.

Bert



129260-A.jpgImage Enlarger129726-A-33-WCF.jpgImage Enlarger135442-A-33-WCF.jpgImage Enlarger135873-A-38-56-WCF.jpgImage Enlarger139056-A-38-70-WCF.jpgImage Enlarger

WACA 6571L, Historian & Board of Director Member

Avatar
Member
WACA Member
Forum Posts: 541
Member Since:
February 17, 2022
sp_UserOfflineSmall Offline
8
October 27, 2022 - 10:45 pm
sp_Permalink sp_Print sp_QuotePost

Ok Bert, thanks for the clarification on that.
