Steve S said
I inherited a Mod 06 from my Gramps many years ago. Ser 733855, Short, Long and Long Rifle. Stock is dinged up but still shoots like a dream.Mfg’d around 1926 would be my guess. Am I close? Thank You
Steve,
December 8th 1926 to be precise.
Thanks for posting it,
Bert
WACA Historian & Board of Director Member #6571L
July 9, 2011
Offline
A couple of new entries for me….#841188 and #845217 both standard model 90 .22 long rifle.
April 15, 2005
Offline
rustyjack said
A couple of new entries for me….#841188 and #845217 both standard model 90 .22 long rifle.
Thanks… both are new entries for the survey.
Bert
WACA Historian & Board of Director Member #6571L
January 9, 2024
Offline

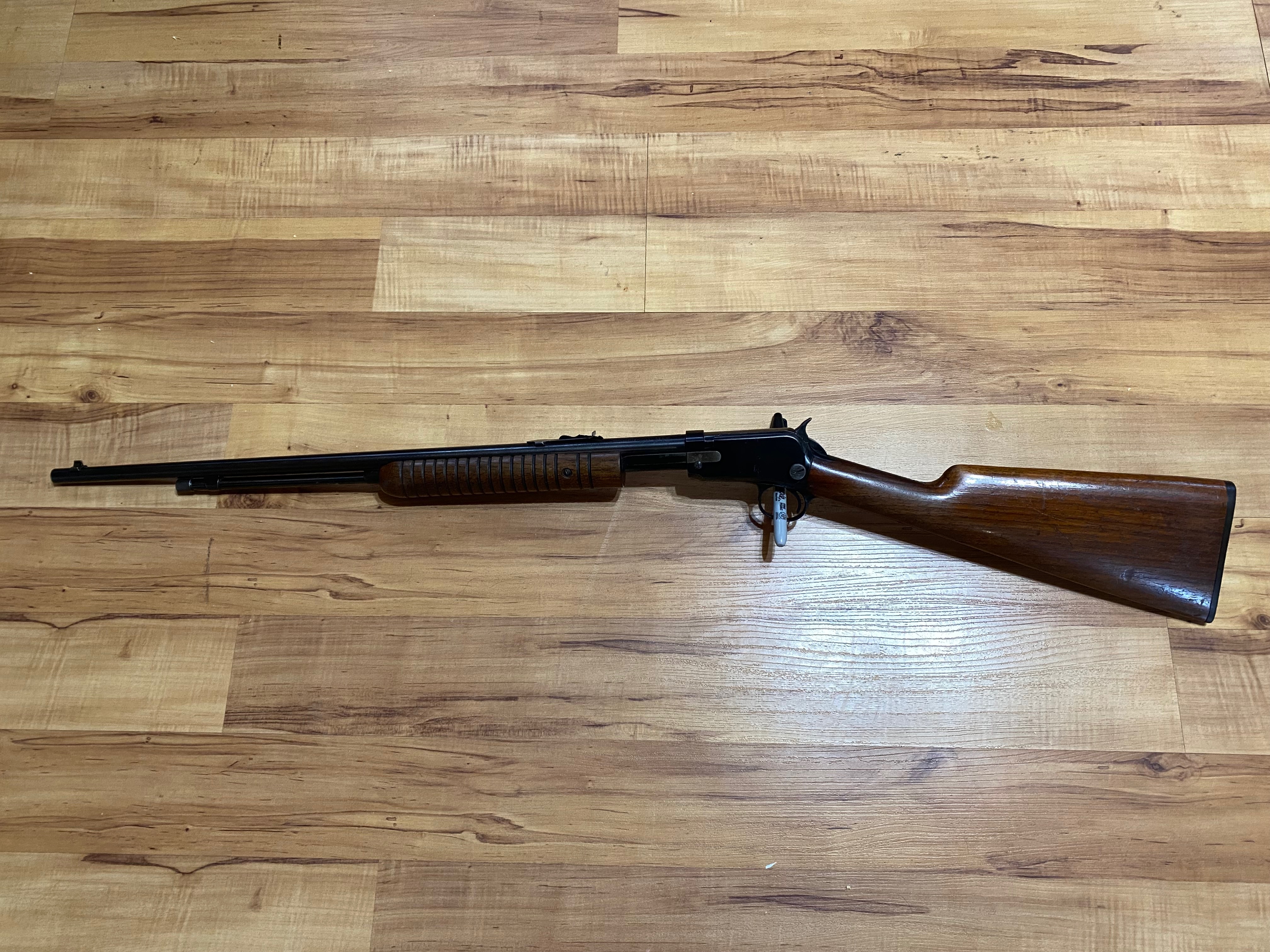

Not sure if you have these. 807080 22wrf , 807875 22short ,stainless barrel, full length magazine tube, tang has serial number 807934. The opposite halves of this rifle sold in a Lock Stock and Barrel auction at some point that said reciever 807934 barrel was a stainless 22 short.
April 15, 2005
Offline
Keith Alling said
Not sure if you have these. 807080 22wrf , 807875 22short ,stainless barrel, full length magazine tube, tang has serial number 807934. The opposite halves of this rifle sold in a Lock Stock and Barrel auction at some point that said reciever 807934 barrel was a stainless 22 short.
If I understand this correctly, you have the back half of the rifle with s/n 807934 with, and barrel assembly 807875 (22 Short Stainless Steel). LS&B sold the opposite halves, also with a 22 Short Stainless Steel barrel. In summary both 807875 and 807934 when complete were 22 Shorts each with a Stainless Steel barrel.
Bert
WACA Historian & Board of Director Member #6571L
January 9, 2024
Offline
Bert H. said
Keith Alling said
Not sure if you have these. 807080 22wrf , 807875 22short ,stainless barrel, full length magazine tube, tang has serial number 807934. The opposite halves of this rifle sold in a Lock Stock and Barrel auction at some point that said reciever 807934 barrel was a stainless 22 short.
If I understand this correctly, you have the back half of the rifle with s/n 807934 with, and barrel assembly 807875 (22 Short Stainless Steel). LS&B sold the opposite halves, also with a 22 Short Stainless Steel barrel. In summary both 807875 and 807934 when complete were 22 Shorts each with a Stainless Steel barrel.
Bert
Yes that is correct
April 15, 2005
Offline
Keith Alling said
Bert H. said
Keith Alling said
Not sure if you have these. 807080 22wrf , 807875 22short ,stainless barrel, full length magazine tube, tang has serial number 807934. The opposite halves of this rifle sold in a Lock Stock and Barrel auction at some point that said reciever 807934 barrel was a stainless 22 short.
If I understand this correctly, you have the back half of the rifle with s/n 807934 with, and barrel assembly 807875 (22 Short Stainless Steel). LS&B sold the opposite halves, also with a 22 Short Stainless Steel barrel. In summary both 807875 and 807934 when complete were 22 Shorts each with a Stainless Steel barrel.
Bert
Yes that is correct
Thanks… that makes it easier to document them in the survey.
Did you try tracking down the LS&B auction buyer? In your shoes, that would be my goal… to reunite the mismatched halves.
Bert
WACA Historian & Board of Director Member #6571L
January 9, 2024
Offline
Bert H. said
Keith Alling said
Bert H. said
Keith Alling said
Not sure if you have these. 807080 22wrf , 807875 22short ,stainless barrel, full length magazine tube, tang has serial number 807934. The opposite halves of this rifle sold in a Lock Stock and Barrel auction at some point that said reciever 807934 barrel was a stainless 22 short.
If I understand this correctly, you have the back half of the rifle with s/n 807934 with, and barrel assembly 807875 (22 Short Stainless Steel). LS&B sold the opposite halves, also with a 22 Short Stainless Steel barrel. In summary both 807875 and 807934 when complete were 22 Shorts each with a Stainless Steel barrel.
Bert
Yes that is correct
Thanks… that makes it easier to document them in the survey.
Did you try tracking down the LS&B auction buyer? In your shoes, that would be my goal… to reunite the mismatched halves.
Bert
I haven’t tried yet but I will. I recently acquired this firearm and was surprised when a internet search of the serial numbers located the LS&B auction listing.
November 12, 2018
Offline
April 15, 2005
Offline
btbell said
Sold recently at RIA:SN 853399 (no additional letter), SN marked on bottom tang; no markings on top tang.Barrel is 23″, ROUND, marked “Model 90” & “22 L. Rifle” with crowned (not flat) muzzle. No markings on underside of barrel other than an indexing mark. Barrel proof is poorly struck, not clear. Bore is excellent.Standard 12-groove slide handle, checkered hammer.There is a small “W” on the bottom metal, about 1.5″ in front of the trigger guard.Outer mag tube appears originally intended for a Model 06, as the retaining pin groove is in the white where used for the Model 90, but there is another (unused) groove which is blued at the normal Model 06 position.Appears to be a pretty late parts cleanup model, WACA lookup gives 1940 SN application date.Hope this helps, happy to answer any further questions.
Would it be possible to send me a picture of the “W” marking? Per the PR records, this rifle was manufactured November 13, 1940, and it is definitely a parts clean-up rifle.
Thanks,
Bert
WACA Historian & Board of Director Member #6571L
November 12, 2018
Offline

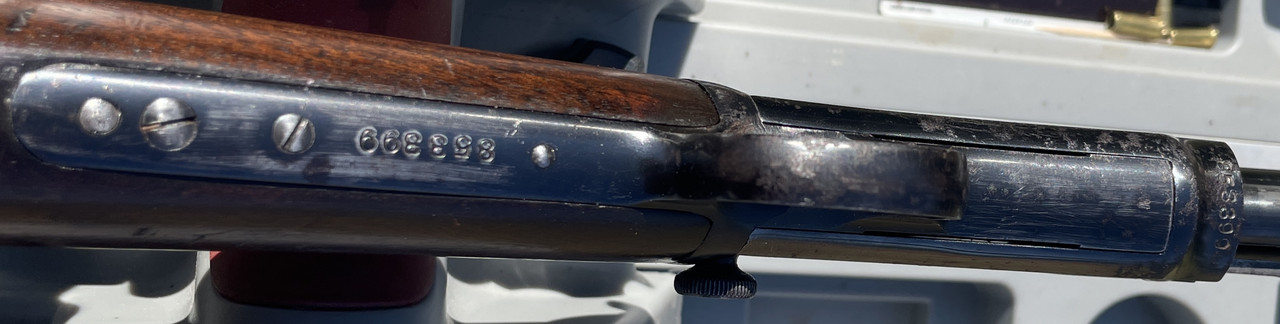

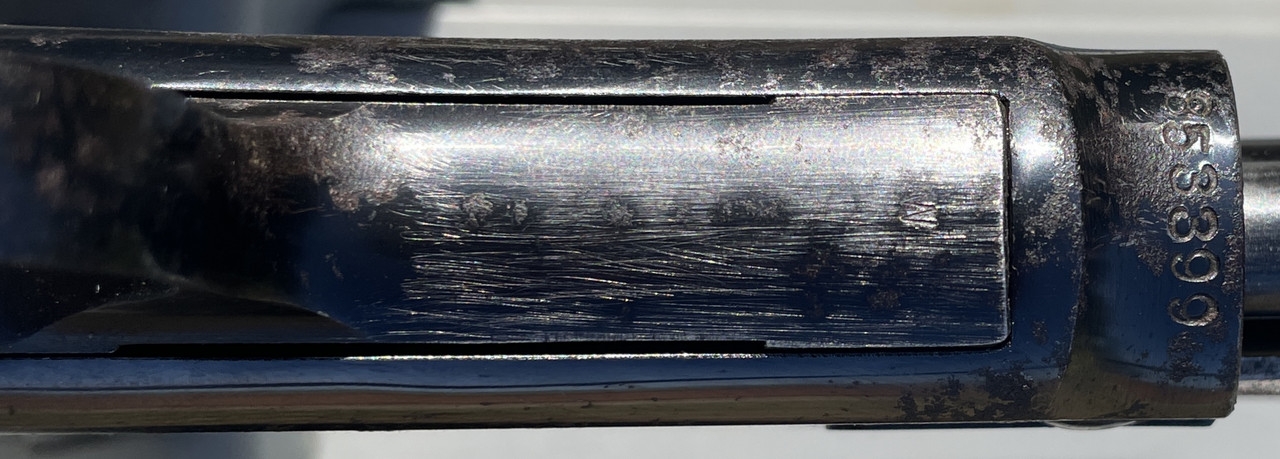

Here’s the bottom of the Model 90, with a closeup of the area with the “W”.
April 15, 2005
Offline
btbell said
Here’s the bottom of the Model 90, with a closeup of the area with the “W”.
Thanks!!
That “W” is the quality test marking that Winchester used for the new Du-light bluing. It is found on nearly all models that were in production from February 1939 through February 1941.
Bert
WACA Historian & Board of Director Member #6571L
Enjoyed your article on Model 90 and 06’s in the most recent magazine. I have 06 #814530 in my collection.
April 15, 2005
Offline
[email protected] said
Enjoyed your article on Model 90 and 06’s in the most recent magazine. I have 06 #814530 in my collection.
Thanks, and I originally documented your Model 06 rifle when it was listed in the December 2006 RIA catalog.
Current count in the survey is 1,347. Hopefully the article will shake loose at least a few dozen more.
Bert
WACA Historian & Board of Director Member #6571L
Bert,
Just read your article, The Winchester Model 90 and 06 Rifles, and offer the following for your research survey:
I have a Model 90 s/n 833787 with a hexagon barrel, 22 SHORT
Really enjoyed reading your research information. Very interesting ……..
Regards,
Randy
April 15, 2005
Offline
[email protected] said
Bert,Just read your article, The Winchester Model 90 and 06 Rifles, and offer the following for your research survey:
I have a Model 90 s/n 833787 with a hexagon barrel, 22 SHORT
Really enjoyed reading your research information. Very interesting ……..
Regards,
Randy
Your Model 90 was manufactured in June 1930, during the regular production period.
Thanks for the information
Bert
WACA Historian & Board of Director Member #6571L
