94 Extra light numbers?
sp_NewTopic Add Topic
Avatar
🇨🇦🇺🇸
Member
WACA Member
Forum Posts: 498
Member Since:
March 14, 2022
sp_UserOfflineSmall Offline
1
August 18, 2023 - 1:04 pm
sp_Permalink sp_Print sp_QuotePost

Is anyone doing a survey on 1894 extra light rifles(pre Ser 353,999) or suggest a source. Looking for how many were full octagon, had crescent butts & approximately how many had dovetail for front sight’s & not the later ramp. I downloaded Bob Renneberg’s 3rd edition which is a wealth of information but wasn’t specific to the numbers I’m looking for.

Thanks

RickC

 RickC



Avatar
Kingston, WA
Admin
Forum Posts: 10640
Member Since:
April 15, 2005
sp_UserOnlineSmall Online
2
August 18, 2023 - 4:35 pm
sp_Permalink sp_Print sp_EditHistory sp_QuotePost

Rick,

I am not aware of anyone trying to survey just the Extra Light Weight rifles, especially those that are letterable.  I have casually observed them0 through the years, and as such, I can tell you that the number of ELW rifles with a full octagon barrel is a relatively small number as compared to the entire ELW rifle production.  The ARMAX survey did not breakdown the several different Rifle variations, or the barrel types used for all of the rifle variations, or the butt plate types used for just the ELW.  That would have required an extensive amount of added time and work to record all of those details.

Having said all of the, 100% of the ELW rifles that I have observed with an octagon barrel always have a shallow dovetail cut for the front sight.  Conversely, nearly all of the 1/2 octagon and full round barrels have a silver soldered front sight base lug (not an actual ramp style).  The black hard rubber butt plate was by far the most common type installed on the ELW rifles, followed by a steel shotgun butt plate, with the standard crescent rifle butt plate being the least common.

Bert

WACA 6571L, Historian & Board of Director Member

Avatar
🇨🇦🇺🇸
Member
WACA Member
Forum Posts: 498
Member Since:
March 14, 2022
sp_UserOfflineSmall Offline
3
August 18, 2023 - 4:54 pm
sp_Permalink sp_Print sp_QuotePost

Hi Bert,

Thank you for the reply. I couldn’t ask for any more information than that and appreciate the response.

RickC

 RickC



Avatar
Member
WACA Member
Forum Posts: 4108
Member Since:
November 19, 2006
sp_UserOfflineSmall Offline
4
August 18, 2023 - 5:41 pm
sp_Permalink sp_Print sp_QuotePost

Bert H. said
Rick,

I am not aware of anyone trying to survey just the Extra Light Weight rifles, especially those that are letterable.  I have casually observed then through the years, and as such, I can tell you that the number of ELW rifles with a full octagon barrel is a relatively small number as compared to the entire ELW rifle production.  The ARMAX survey did not breakdown the several different Rifle variations, or the barrel types used for all of the rifle variations, or the butt plate types used for just the ELW.  That would have required an extensive amount of added time and work to record all of those details.

Having said all of the, 100% of the ELW rifles that I have observed with an octagon barrel always have a shallow dovetail cut for the front sight.  Conversely, nearly all of the 1/2 octagon and full round barrels have a silver soldered front sight base lug (not an actual ramp style).  The black hard rubber butt plate was by far the most common type installed on the ELW rifles, followed by a steel shotgun butt plate, with the standard crescent rifle butt plate being the least common.

Bert



I have seen at least one of these in a 38-55 – ELW with an octagon barrel – and that barrel dovetail cut looked like it must be perilously close to the grooves Confused

Avatar
🇨🇦🇺🇸
Member
WACA Member
Forum Posts: 498
Member Since:
March 14, 2022
sp_UserOfflineSmall Offline
5
August 18, 2023 - 9:33 pm
sp_Permalink sp_Print sp_EditHistory sp_QuotePost

Steve, I read Winchester learned very quickly that the 38–55 and 32–40 calibers were exactly what you describe. It wasn’t as concerning for the 25–35 and 30–30. And if it was a half magazine, it eliminated the notch under the barrel for the lever cam hump on the full mags.
I recently acquired a 94 extra light, 26” octagon half magazine take down, deluxe wood pistol grip with H checkering & crescent butt. DOM 1899(Ser 66,000). Will post photos as soon as I get a chance. Lettered exact. Seems like it’s less common than other extra lights.

RickC

IMG_2919-2.jpegImage Enlarger

sp_PlupAttachments Attachments

 RickC



Avatar
Member
WACA Member
Forum Posts: 4108
Member Since:
November 19, 2006
sp_UserOfflineSmall Offline
6
August 18, 2023 - 10:01 pm
sp_Permalink sp_Print sp_QuotePost

RickC said
Steve, I read Winchester learned very quickly that the 38–55 and 32–40 calibers were exactly what you describe. It wasn’t as concerning for the 25–35 and 30–30. And if it was a half magazine, it eliminated the notch under the barrel for the lever cam hump on the full mags.

I recently acquired a 94 extra light, 26” octagon half magazine take down, deluxe wood pistol grip with H checkering & crescent butt. DOM 1899. Will post photos as soon as I get a chance. Lettered exact. Seems like it’s less common than other extra lights.

RickC

  Rick – Sounds like a very cool rifle. I’m looking forward to the photos.  I don’t think you mentioned the caliber?

Avatar
🇨🇦🇺🇸
Member
WACA Member
Forum Posts: 498
Member Since:
March 14, 2022
sp_UserOfflineSmall Offline
7
August 18, 2023 - 10:17 pm
sp_Permalink sp_Print sp_EditHistory sp_QuotePost

It’s 30WCF. That & 32WS is all I collect now. Sent my 32–40 model 1894 made an 1897 to my son in Calgary and sold my 38–55 and 25–35 src’s. Probably not the wisest decision as a collector, but as you know Steve, I have a soft spot for the 32 special like you and 30-30 is now a close second. ??

 RickC



Avatar
Troutdale, OR
Member
WACA Member
Forum Posts: 1861
Member Since:
June 26, 2013
sp_UserOnlineSmall Online
8
August 19, 2023 - 1:36 am
sp_Permalink sp_Print sp_QuotePost

The extra light octagon barrels seem to be few and far between.  I had been looking for a decent one for quite some time and finally came across this one awhile back and had to have it.  The full octagon and full magazine combo looks pretty cool at the muzzle end.

Don

P1070940.JPGImage EnlargerP1070941.JPGImage EnlargerP1070942.JPGImage EnlargerP1070944.JPGImage EnlargerP1070946.JPGImage EnlargerP1070948.JPGImage EnlargerP1070949.JPGImage EnlargerP1070951.JPGImage EnlargerP1070953.JPGImage EnlargerP1070955.JPGImage EnlargerP1070956.JPGImage EnlargerP1070957.JPGImage EnlargerP1070959.JPGImage Enlarger

sp_PlupAttachments Attachments
Avatar
🇨🇦🇺🇸
Member
WACA Member
Forum Posts: 498
Member Since:
March 14, 2022
sp_UserOfflineSmall Offline
9
August 19, 2023 - 4:57 am
sp_Permalink sp_Print sp_EditHistory sp_QuotePost

Very nice example Don. Thank you for sharing.

 RickC



Avatar
Member
WACA Member
Forum Posts: 4108
Member Since:
November 19, 2006
sp_UserOfflineSmall Offline
10
August 19, 2023 - 3:00 pm
sp_Permalink sp_Print sp_QuotePost

Don – very nice rifle.  The photo of the muzzle end was most interesting.  In just looking at it, and the proportions involved, it sure looks like a .375 caliber hole rather than a .30 caliber hole.  I looked at that photo first and was surprised when I learned it was a .30 WCF.  Of particular interest, the angle of your photo allowed me to roughly line up the top of the bore with the bottom of the dovetail.  It sure didn’t seem there was much metal there.  And then, I imagined if it had been a .375 hole instead Confused

Avatar
Member
WACA Member
Forum Posts: 132
Member Since:
June 12, 2013
sp_UserOfflineSmall Offline
11
August 19, 2023 - 4:54 pm
sp_Permalink sp_Print sp_QuotePost

Here is an extra light in 38-55. Not much metal for DSC5647.JPGImage EnlargerDSC5648.JPGImage EnlargerDSC5649.JPGImage EnlargerDSC5650.JPGImage EnlargerDSC5651.JPGImage Enlargerthat dovetail but gun is very accurate

sp_PlupAttachments Attachments
Avatar
Wyoming - Gods Country
Member
WACA Member
Forum Posts: 1267
Member Since:
January 26, 2011
sp_UserOfflineSmall Offline
12
August 19, 2023 - 5:19 pm
sp_Permalink sp_Print sp_QuotePost

Here’s a link where I posted some observations from my short rifle survey. One of the items was the front sights dovetailed on the ELWs. They were found out to about 1902 on the round barrels before they transitioned to the ramps on all of them. All the octagon barrels were dovetailed, as Bert mentioned.

Early 1894 Rifle Fun Facts – Short Rifle Survey Observations | Winchester Research Surveys | Forum | Winchester CollectorWinchester Collector

I agree with Bert and others that the octagon barrel ELWs are a fairly scarce variation and should be considered a good find if you have one.

#56873

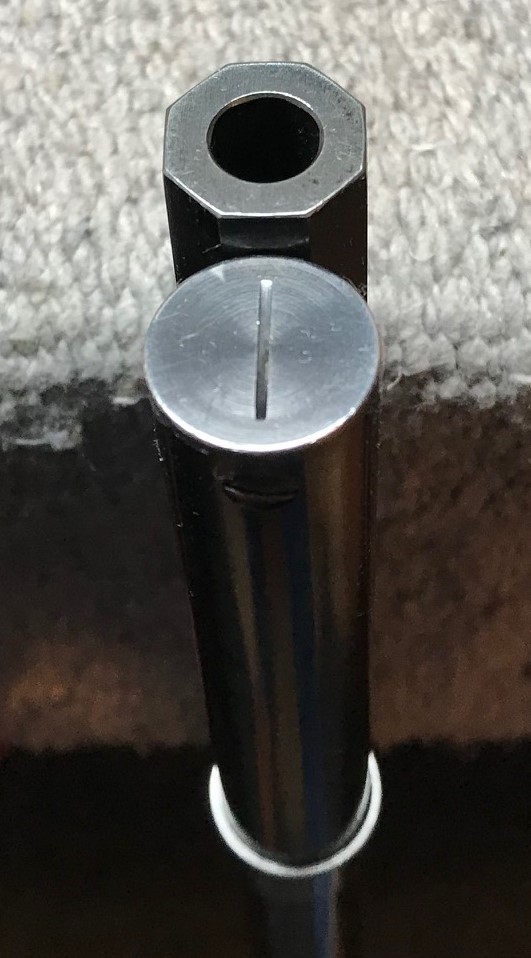

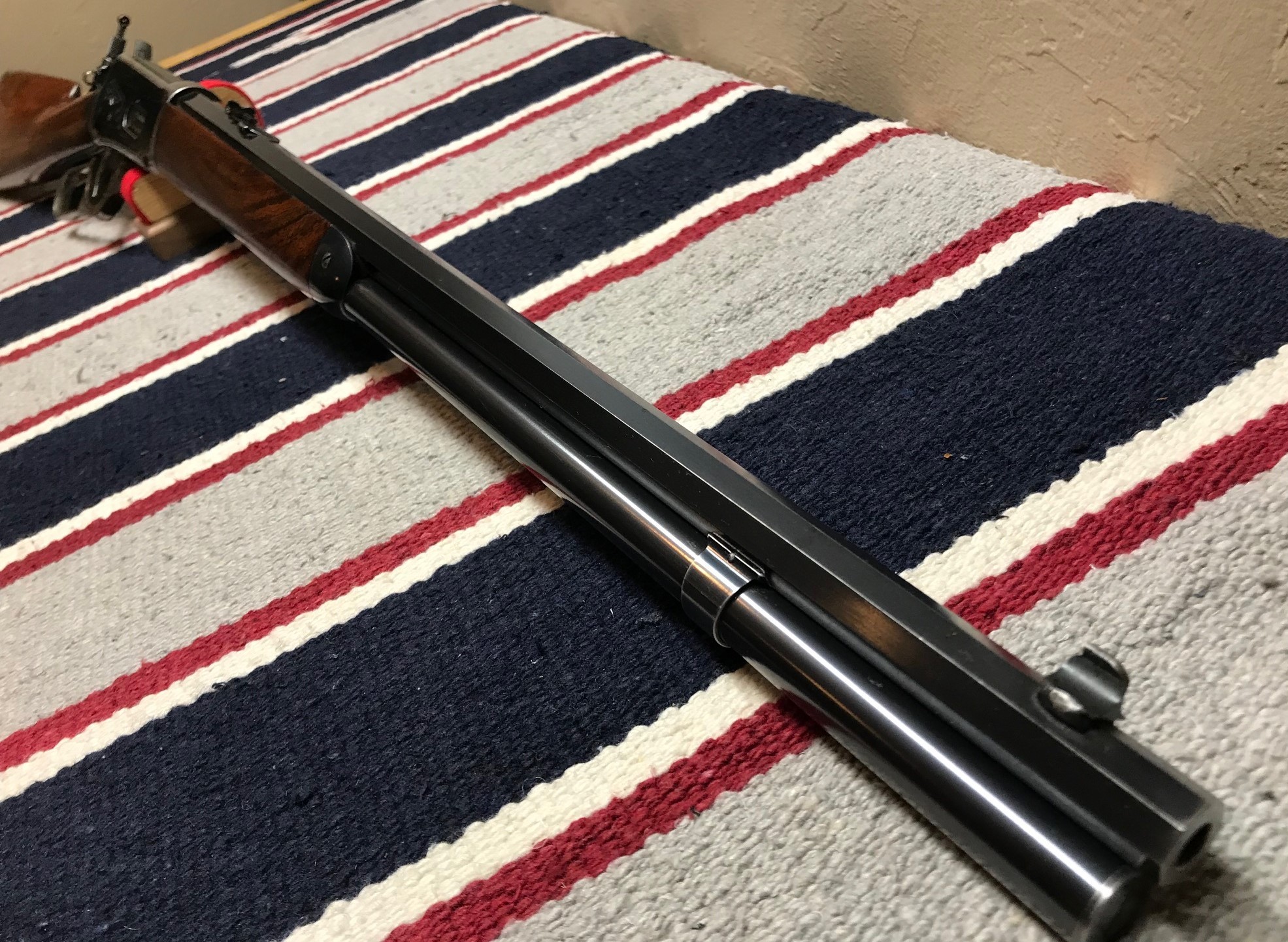

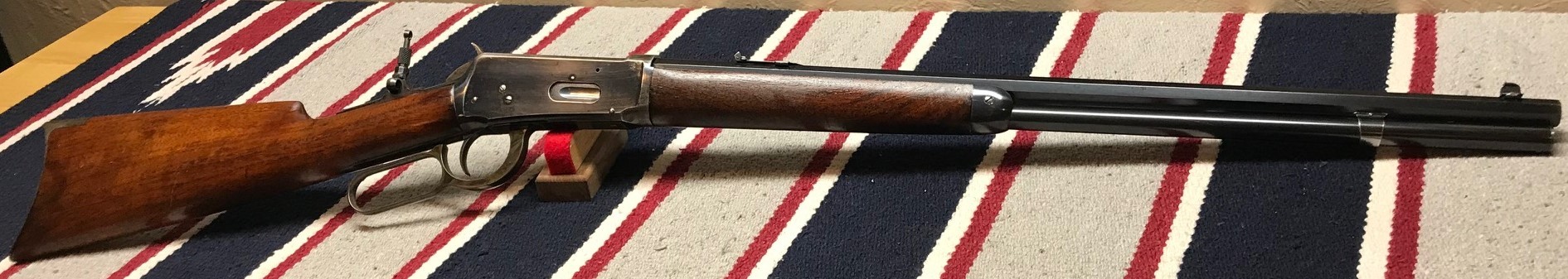

IMG_3489-2.jpgImage EnlargerIMG_3493-2.jpgImage EnlargerIMG_3495-2.jpgImage Enlarger

A few others…

DSCF5068-2.JPGImage EnlargerDSCF5042.JPGImage Enlarger22-inch-ELW-TD.jpgImage EnlargerDSCF5183.JPGImage Enlarger

sp_PlupAttachments Attachments

                                                                               ~Gary~


Avatar
Wyoming - Gods Country
Member
WACA Member
Forum Posts: 1267
Member Since:
January 26, 2011
sp_UserOfflineSmall Offline
13
August 19, 2023 - 5:21 pm
sp_Permalink sp_Print sp_QuotePost

deerhunter said
The extra light octagon barrels seem to be few and far between.  I had been looking for a decent one for quite some time and finally came across this one awhile back and had to have it.  The full octagon and full magazine combo looks pretty cool at the muzzle end.

Don

P1070940.JPGImage EnlargerP1070941.JPGImage EnlargerP1070942.JPGImage EnlargerP1070944.JPGImage EnlargerP1070946.JPGImage EnlargerP1070948.JPGImage EnlargerP1070949.JPGImage EnlargerP1070951.JPGImage EnlargerP1070953.JPGImage EnlargerP1070955.JPGImage EnlargerP1070956.JPGImage EnlargerP1070957.JPGImage EnlargerP1070959.JPGImage Enlarger



Forgot about this one, …………. what a great rifle, Don. Thanks for posting again.

                                                                               ~Gary~


Avatar
Wyoming - Gods Country
Member
WACA Member
Forum Posts: 1267
Member Since:
January 26, 2011
sp_UserOfflineSmall Offline
14
August 19, 2023 - 5:23 pm
sp_Permalink sp_Print sp_EditHistory sp_QuotePost

antler1 said
Here is an extra light in 38-55. Not much metal for DSC5647.JPGImage EnlargerDSC5648.JPGImage EnlargerDSC5649.JPGImage EnlargerDSC5650.JPGImage EnlargerDSC5651.JPGImage Enlargerthat dovetail but gun is very accurate



Pat

Thats a killer configuration ……. think I perused that one at Greeley. Good luck to anyone trying to find a twin to it. A rare beauty for sure. Thanks for the pics.

Did I get that in my survey? …… can’t remember……….what’s the number?

                                                                               ~Gary~


Avatar
Member
WACA Member
Forum Posts: 132
Member Since:
June 12, 2013
sp_UserOfflineSmall Offline
15
August 19, 2023 - 5:28 pm
sp_Permalink sp_Print sp_QuotePost

Yes you have it

Avatar
Member
WACA Member
Forum Posts: 4108
Member Since:
November 19, 2006
sp_UserOfflineSmall Offline
16
August 19, 2023 - 8:10 pm
sp_Permalink sp_Print sp_QuotePost

To my eyes, when I look at the photo of the bore of the .30 WCF of the rifle Don posted, and the bore of the .38-55 Antler just posted, they look the same.

Avatar
Member
WACA Member
Forum Posts: 132
Member Since:
June 12, 2013
sp_UserOfflineSmall Offline
17
August 20, 2023 - 12:30 am
sp_Permalink sp_Print sp_QuotePost

Probably the difference between 24 inch 30 caliber and 22 inch 38 caliber

Avatar
🇨🇦🇺🇸
Member
WACA Member
Forum Posts: 498
Member Since:
March 14, 2022
sp_UserOfflineSmall Offline
18
August 21, 2023 - 8:31 pm
sp_Permalink sp_Print sp_EditHistory sp_QuotePost

Photos as promised:



IMG_3014-1.jpegImage EnlargerIMG_3009-1.jpegImage EnlargerIMG_3011.jpegImage EnlargerIMG_3013-1.jpegImage EnlargerIMG_3019-1.jpegImage EnlargerIMG_3002-1.jpegImage EnlargerIMG_2996-1.jpegImage EnlargerIMG_2995-1.jpegImage Enlarger

IMG_3060-1.jpegImage Enlarger

 RickC



Avatar
🇨🇦🇺🇸
Member
WACA Member
Forum Posts: 498
Member Since:
March 14, 2022
sp_UserOfflineSmall Offline
19
August 21, 2023 - 8:36 pm
sp_Permalink sp_Print sp_QuotePost

The lighting was overcast then sunny so blotchy pics. Oil residue showing also but you can see it has the notch under the barrel for the cam on the back of the takedown lever. Couldn’t download a photo of the entire gun on the first reply above.

IMG_3020.jpegImage Enlarger

sp_PlupAttachments Attachments

 RickC



Avatar
Kingston, WA
Admin
Forum Posts: 10640
Member Since:
April 15, 2005
sp_UserOnlineSmall Online
20
August 21, 2023 - 11:47 pm
sp_Permalink sp_Print sp_QuotePost

Rick,

Awesome & Gorgeous Fancy ELW rifle!  That bore looks very promising as well Cool

Bert

WACA 6571L, Historian & Board of Director Member
