Model 74 need advice on refinishing stock
sp_NewTopic Add Topic
Avatar
New Member
WACA Guest
Forum Posts: 2
Member Since:
December 21, 2021
sp_UserOfflineSmall Offline
1
February 3, 2023 - 9:26 pm
sp_Permalink sp_Print sp_QuotePost

When I bought this gun the barreled action had been re-blued and other metal parts have been Ceracoated. Since the originality is long gone I didn’t see any harm in refinishing the stock. I’m looking forward to doing this myself even though I’ve never done it before. It certainly would be appreciated if someone with the proper knowledge would guide me in the right direction.

1. This model 74 was made in 1955 and appears to have the original finish on the stock. What type of finish is that and what is the best way to remove it?

2. The gentleman at the LGS sold me some Birchwood Casey gunstock sealer and filler and a bottle of Tru Oil. I wasn’t planning on using any stain. Is that a good plan?

 Thanks

Bill

Avatar
NY
Member
WACA Guest
Forum Posts: 6528
Member Since:
November 1, 2013
sp_UserOfflineSmall Offline
2
February 3, 2023 - 11:26 pm
sp_Permalink sp_Print sp_QuotePost

Bill Hunter said
1. This model 74 was made in 1955 and appears to have the original finish on the stock. What type of finish is that and what is the best way to remove it?



Lacquer, removed with lacquer thinner.

Avatar
Northern edge of the D/FW Metromess
Member
WACA Member
Forum Posts: 5197
Member Since:
November 7, 2015
sp_UserOnlineSmall Online
3
February 4, 2023 - 11:25 pm
sp_Permalink sp_Print sp_QuotePost

I’ve had excellent results using Birchwood Casey Tru-Oil. Take your time, several light coats are better than a few thick ones. Prep work is very important, you will always be able to see where you should have spent a little more time.



Mike

Life Member TSRA, Endowment Member NRA
BBHC Member, TGCA Member
Smokeless powder is a passing fad! -Steve Garbe
I hate rude behavior in a man. I won't tolerate it. -Woodrow F. Call, Lonesome Dove
Some of my favorite recipes start out with a handful of depleted counterbalance devices.-TXGunNut
Presbyopia be damned, I'm going to shoot this thing! -TXGunNut
Avatar
Member
WACA Member
Forum Posts: 4685
Member Since:
March 31, 2009
sp_UserOfflineSmall Offline
4
February 4, 2023 - 11:34 pm
sp_Permalink sp_Print sp_EditHistory sp_QuotePost

Like Mike said.  Once you remove the old finish you may want to consider stain.  Be hesitant about sanding the wood.  If you have scratches or dings these will show up after the finish is applied but excess sanding may cause other problems.  Light coats, let dry between coats, lightly sand with very fine grit paper like 400 or finer, use a sanding block.  Shiny spots are low spots.  Apply coats until the finish is flat.  Don’t sand the final coat.  This will produce a high gloss finish.

Avatar
SO. Oregon
Member
WACA Member
Forum Posts: 678
Member Since:
June 5, 2015
sp_UserOfflineSmall Offline
5
February 6, 2023 - 9:26 pm
sp_Permalink sp_Print sp_QuotePost

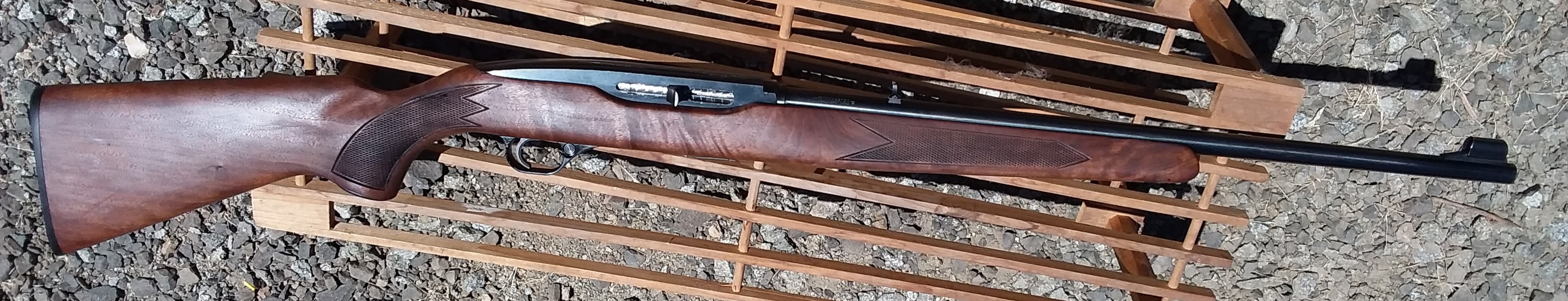

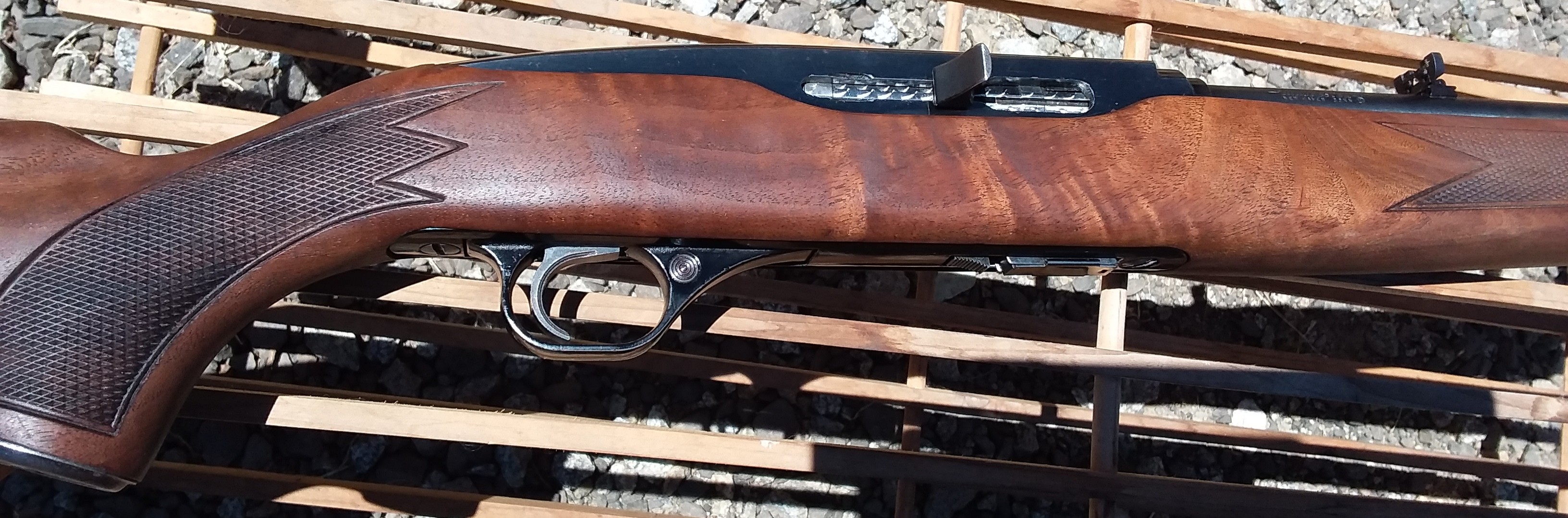

Since at the time Winchester was using tinted/stained lacquer, I tint some pure Tung Oil and apply it like we do linseed oil. Apply small amounts by hand and hand rub oil into the wood, many coats sometimes needed. It gives a very durable waterproof finish. You must use pure Tung Oil , no driers added.  This is my model 490, who’s finish had been water damaged.

Winchester-490-1.jpgImage EnlargerWinchester-490-2.jpgImage EnlargerWinchester-490-3.jpgImage Enlarger and my 06 which was from a beyond repair bin.  Winchester-1906-2.jpgImage Enlarger

Vince
Southern Oregon
NRA member
Fraternal Order of Eagles

 “There is but one answer to be made to the dynamite bomb and that can best be made by the Winchester rifle.”

Teddy Roosevelt
