Interesting Model 61 Production History
sp_NewTopic Add Topic
Avatar
Member
WACA Member
Forum Posts: 2303
Member Since:
March 20, 2009
sp_UserOfflineSmall Offline
1
February 5, 2018 - 2:56 pm
sp_Permalink sp_Print sp_QuotePost

Good morning all,

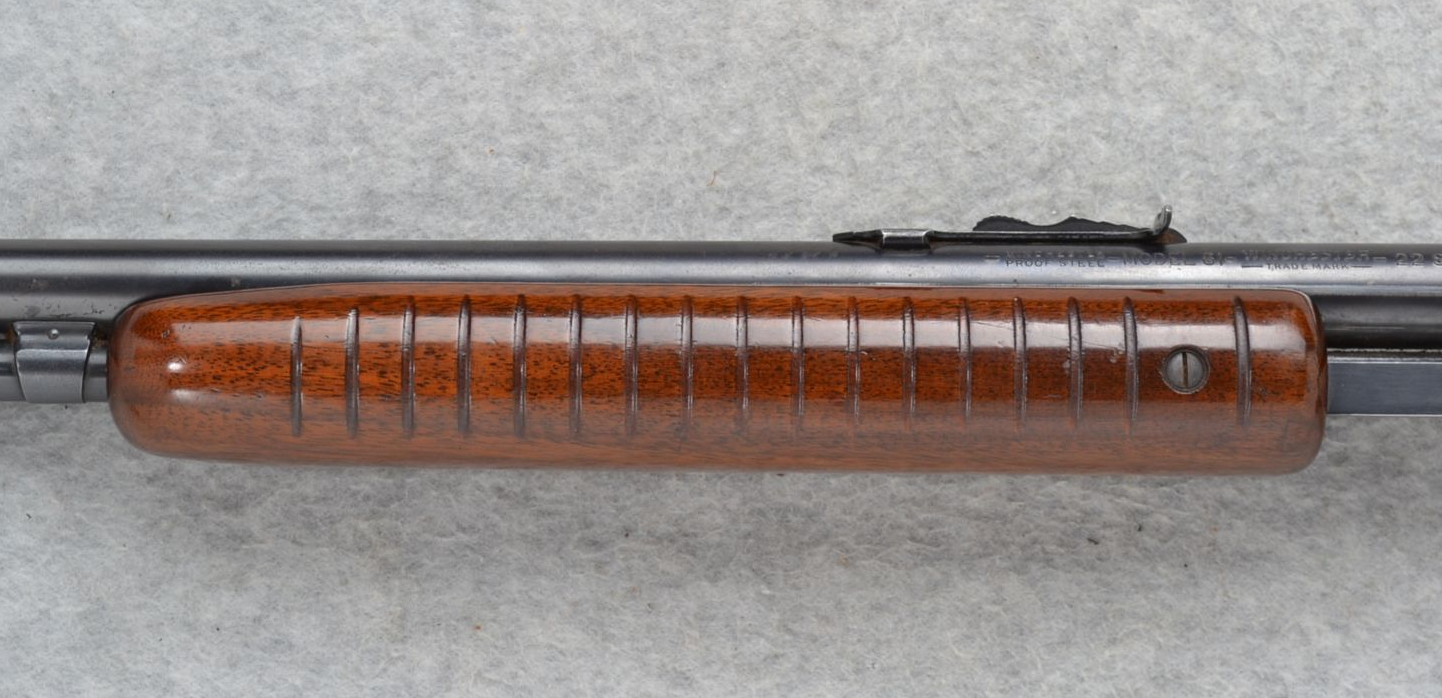

While entering rifles into my Model 61 survey I came across this one this morning while in my hotel room in chilly Traverse City , MI.   The receiver is serialized at number 20154 corresponding to 1936.  The magazine end cap is “non collared” which is correct for the time.  BUT, The slide handle has 17 grooves!!!  What????  That does not show up until the 44000 range about three years later in 1939.  The slide handle MUST be replaced flashes in my coffee stimulated brain.  I look at the SN again to make certain it looks correct and by chance notice the “W” stamped a couple inches below it.  What???  Again.  Way to early for that to be there.  That does not consistently show up until around SN 43000 during 1939.  So…..  Apparently this receiver was manufactured and serialized during 1936, but was not blued until sometime between 1939 and early 1941 when the bluing process was changed and Winchester marked the receiver bottoms with the “W”.   So an apparent +3 year shelf life for a non blued receiver!

The story is in the details.

Michael

Screenshot-2018-02-05-09.53.47.pngImage EnlargerScreenshot-2018-02-05-09.53.55.pngImage EnlargerScreenshot-2018-02-05-09.54.03.pngImage EnlargerScreenshot-2018-02-05-09.54.15.pngImage EnlargerScreenshot-2018-02-05-09.54.23.pngImage EnlargerScreenshot-2018-02-05-09.54.33.pngImage Enlarger




Model 1892 / Model 61 Collector, Research, Valuation

Avatar
Northern edge of the D/FW Metromess
Member
WACA Member
Forum Posts: 5054
Member Since:
November 7, 2015
sp_UserOfflineSmall Offline
2
February 6, 2018 - 5:04 am
sp_Permalink sp_Print sp_QuotePost

Sounds like that receiver found a home at the bottom of the pile. Or maybe assembly was started and then delayed for some time. Reminds me of the 1894 (12963) I requested a search on last year; SNA almost a full year before it went to the warehouse. Good eye.

What the heck are you doing in MI this time of year?



Mike

Life Member TSRA, Endowment Member NRA
BBHC Member, TGCA Member
Smokeless powder is a passing fad! -Steve Garbe
I hate rude behavior in a man. I won't tolerate it. -Woodrow F. Call, Lonesome Dove
Some of my favorite recipes start out with a handful of depleted counterbalance devices.-TXGunNut
Presbyopia be damned, I'm going to shoot this thing! -TXGunNut
Avatar
Member
WACA Member
Forum Posts: 1388
Member Since:
July 8, 2012
sp_UserOfflineSmall Offline
3
February 6, 2018 - 1:12 pm
sp_Permalink sp_Print sp_QuotePost

thanks Michael.  I had a model 62 sn13728 with some features of a later rifle. I no longer have it and will have to dig out the pictures.

Al

Avatar
Member
WACA Member
Forum Posts: 2303
Member Since:
March 20, 2009
sp_UserOfflineSmall Offline
4
February 6, 2018 - 1:14 pm
sp_Permalink sp_Print sp_QuotePost

TXGunNut said
Sounds like that receiver found a home at the bottom of the pile. Or maybe assembly was started and then delayed for some time. Reminds me of the 1894 (12963) I requested a search on last year; SNA almost a full year before it went to the warehouse. Good eye.

What the heck are you doing in MI this time of year?



Mike

Mike,

Bought a summer house on Grand Traverse Bay a bit north of Traverse City.

Michael




Model 1892 / Model 61 Collector, Research, Valuation

Avatar
Santa Clara, CA
Member
WACA Member
Forum Posts: 805
Member Since:
January 27, 1992
sp_UserOfflineSmall Offline
5
February 12, 2018 - 9:11 pm
sp_Permalink sp_Print sp_EditHistory sp_QuotePost

Sounds like my model 63 serial #6774 with a 23″ barrel.  This gun should have a 20″ barrel, according to the serial number.

RDB
