Who works on '73 Winchester set triggers?
sp_NewTopic Add Topic
Avatar
Member
WACA Guest
Forum Posts: 65
Member Since:
November 30, 2020
sp_UserOfflineSmall Offline
1
January 10, 2023 - 12:39 am
sp_Permalink sp_Print sp_QuotePost

I have all of the parts including the tiny set screw. When you cock the hammer and push the trigger forward to engage the set trigger, it catches like it should. I can adjust the tiny screw for what type of trigger pull I want. But when I pull the trigger all it does is trip the set trigger sear, not the hammer. I tried adjusting the hammer main spring as light as possible but still won’t release the hammer unless I keep pulling the trigger like a standard rifle. It will fire like normal but won’t like it’s supposed to in set trigger mode. I took the entire trigger assembly out and assembled and observed the action and just can’t see why the set trigger sear isn’t letting the hammer drop. Ugh…..



Any help muchly appreciated, Jim

Avatar
Wisconsin
Member
WACA Member
Forum Posts: 4259
Member Since:
May 2, 2009
sp_UserOfflineSmall Offline
2
January 10, 2023 - 12:49 am
sp_Permalink sp_Print sp_QuotePost

Jim,

There is a pin with a flat spot on one side. Is it installed with the flat side against the spring? Are the springs install in the correct order?

Bob

WACA Life Member---
NRA Life Member----
Cody Firearms member since 1991
Researching the Winchester 1873's


Email: [email protected]

Avatar
Member
WACA Guest
Forum Posts: 65
Member Since:
November 30, 2020
sp_UserOfflineSmall Offline
3
January 10, 2023 - 1:39 am
sp_Permalink sp_Print sp_QuotePost

1873man said
Jim,

There is a pin with a flat spot on one side. Is it installed with the flat side against the spring? Are the springs install in the correct order?

Bob



I’ll check the pin. The springs are in order thanks to someone on this site correcting me a while back.



Jim

Avatar
Member
WACA Guest
Forum Posts: 65
Member Since:
November 30, 2020
sp_UserOfflineSmall Offline
4
January 10, 2023 - 2:59 am
sp_Permalink sp_Print sp_QuotePost

I was missing that flat sided pin…. Found it and installed it flat side up towards the spring. Now the set trigger sear doesn’t even come close to latching. If when the pin is out and you push the trigger forward, if you look in the pin hole there is maybe 20 thousands of a gap at the bottom of the hole.



Jim

Avatar
Wisconsin
Member
WACA Member
Forum Posts: 4259
Member Since:
May 2, 2009
sp_UserOfflineSmall Offline
5
January 10, 2023 - 3:24 am
sp_Permalink sp_Print sp_QuotePost

Jim,

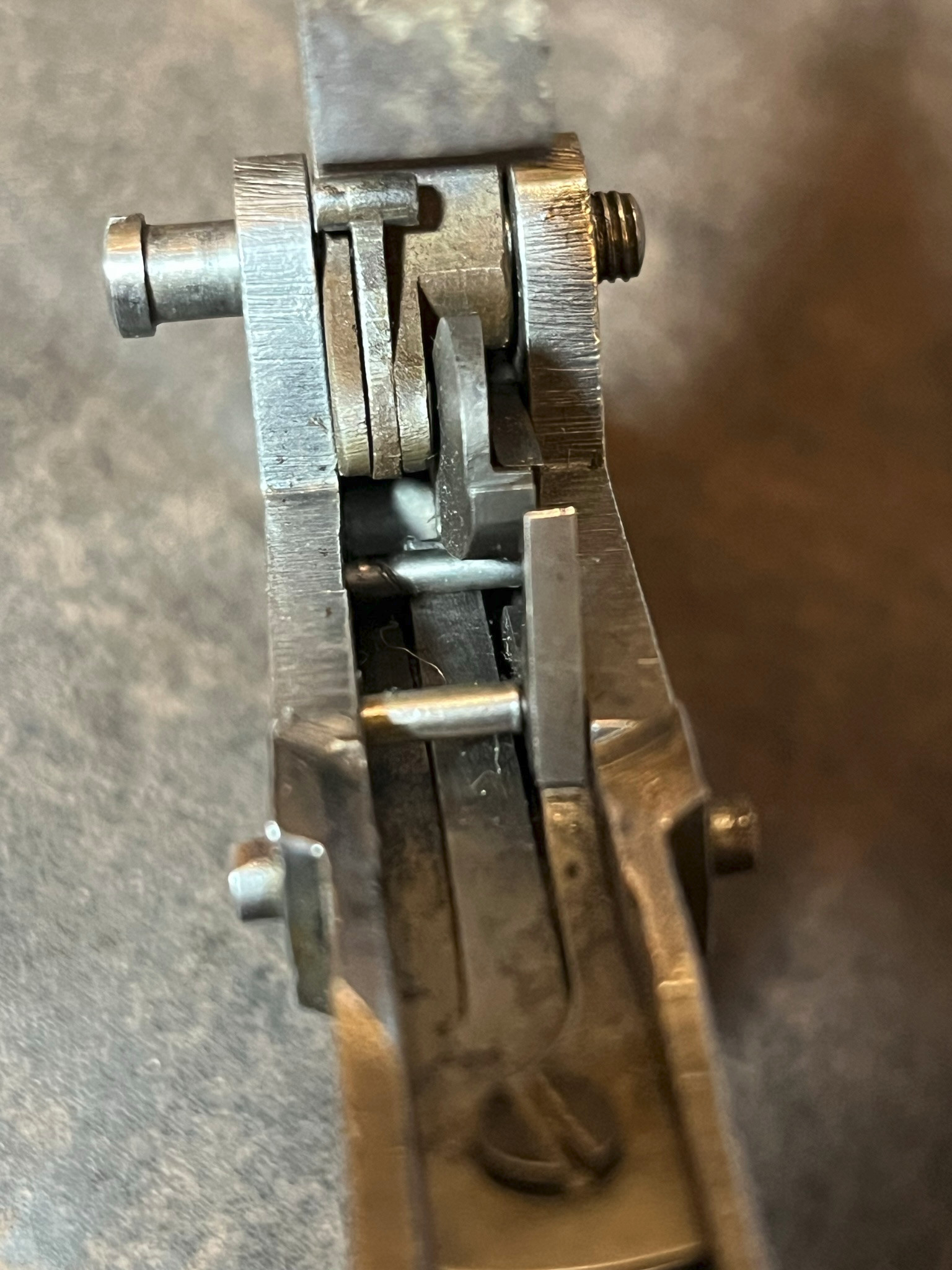

The only thing the flat sided pin rides on is the heavy kick off spring. Is the heavy spring installed with the bump up?

Bob

IMG_0536.jpegImage EnlargerIMG_0534.jpegImage Enlarger

sp_PlupAttachments Attachments
WACA Life Member---
NRA Life Member----
Cody Firearms member since 1991
Researching the Winchester 1873's


Email: [email protected]

Avatar
Member
WACA Guest
Forum Posts: 65
Member Since:
November 30, 2020
sp_UserOfflineSmall Offline
6
January 10, 2023 - 3:28 am
sp_Permalink sp_Print sp_QuotePost

1873man said
Jim,

The only thing the flat sided pin rides on is the heavy kick off spring. Is the heavy spring installed with the bump up?

Bob

IMG_0536.jpegImage EnlargerIMG_0534.jpegImage Enlarger



OK, I see my problem. My pin is riding under the spring instead of on top of it. The spring still has the bump to towards the top correct?



Jim

Avatar
Wisconsin
Member
WACA Member
Forum Posts: 4259
Member Since:
May 2, 2009
sp_UserOfflineSmall Offline
7
January 10, 2023 - 3:37 am
sp_Permalink sp_Print sp_QuotePost

The pin limits the springs maximum travel. If the pin is installed with the flat spot the wrong way you don’t get the full force to the kick off. The bump is up.

Bob

WACA Life Member---
NRA Life Member----
Cody Firearms member since 1991
Researching the Winchester 1873's


Email: [email protected]

Avatar
Member
WACA Guest
Forum Posts: 65
Member Since:
November 30, 2020
sp_UserOfflineSmall Offline
8
January 10, 2023 - 3:47 am
sp_Permalink sp_Print sp_QuotePost

1873man said
Jim,

The only thing the flat sided pin rides on is the heavy kick off spring. Is the heavy spring installed with the bump up?

Bob

IMG_0536.jpegImage EnlargerIMG_0534.jpegImage Enlarger



Well….. Installed and it’s doing the same thing as originally. Cock the hammer, push the trigger forward. Pull the trigger and the sear trips but the hammer stays cocked. Pulling the trigger like normal and the hammer falls like it’s supposed to. Ugh!



Jim

Avatar
Member
WACA Guest
Forum Posts: 65
Member Since:
November 30, 2020
sp_UserOfflineSmall Offline
9
January 10, 2023 - 3:49 am
sp_Permalink sp_Print sp_QuotePost

The flat side of the pin is against the spring too.



Jim

Avatar
Member
WACA Guest
Forum Posts: 65
Member Since:
November 30, 2020
sp_UserOfflineSmall Offline
10
January 10, 2023 - 3:53 am
sp_Permalink sp_Print sp_QuotePost

Got it!!!! Didn’t have my springs tightened. Doh! Works like a charm! Thanks again Bob!



Jim
