Need help with close coupled double set trigger on model 1894
April 23, 2018
12:54 pm
Avatar
WACA Member
Forum Posts: 880
Member Since:
July 8, 2012
sp_UserOfflineSmall Offline

Hello,

I just bought a model 1894 that has double set trigger. (See picture). From what I understand, after the gun is closed and cocked, you should be able to push the trigger forward until it clicks.  Mine doesn't do this. When I work the lever and cock the gun I see that the rear trigger looks like it "sets", but I cannot push it forward for the "click".  Is there some kind of adjustment for this? Any help would be appreciated.IMG_2248-1.JPGImage Enlarger

I also posted the gun in the "What's New" section of the forum. In reply to Gary's post "When Sights Mattered"

Thanks,

Al

sp_PlupAttachments Attachments
April 23, 2018
2:14 pm
Avatar
Wisconsin
WACA Member
Forum Posts: 4157
Member Since:
May 2, 2009
sp_UserOfflineSmall Offline

Al,

You don't have to cock the hammer to have the set trigger function. You push the rear trigger forward to set it and it should click then pull the front trigger to fire it. If it doesn't set, the adjustment screw could be turned in too far at least that how a single set is adjusted.

Bob

WACA Life Member---
NRA Life Member----
Cody Firearms member since 1991


Email: bob.1873man@gmail.com

April 23, 2018
6:35 pm
Avatar
WACA Member
Forum Posts: 880
Member Since:
July 8, 2012
sp_UserOfflineSmall Offline

1873man said
Al,

You don't have to cock the hammer to have the set trigger function. You push the rear trigger forward to set it and it should click then pull the front trigger to fire it. If it doesn't set, the adjustment screw could be turned in too far at least that how a single set is adjusted.

Bob

Bob,

I'll give that a try when I get home from work.

Thanks.

April 23, 2018
10:13 pm
Avatar
WACA Member
Forum Posts: 880
Member Since:
July 8, 2012
sp_UserOfflineSmall Offline

Bob,

I tried backing the set screw out and the set trigger still won't set.

Al

April 23, 2018
10:27 pm
Avatar
Wisconsin
WACA Member
Forum Posts: 4157
Member Since:
May 2, 2009
sp_UserOfflineSmall Offline

Al,

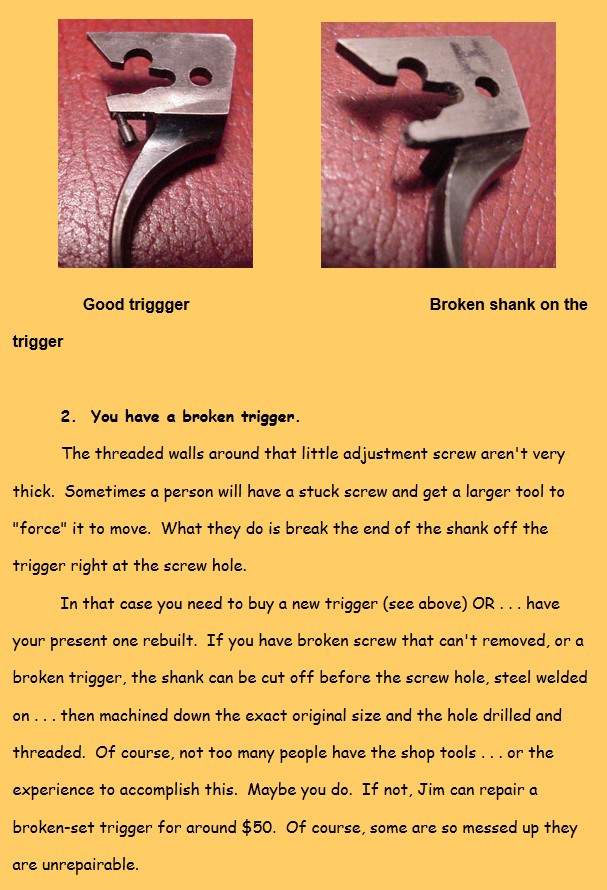

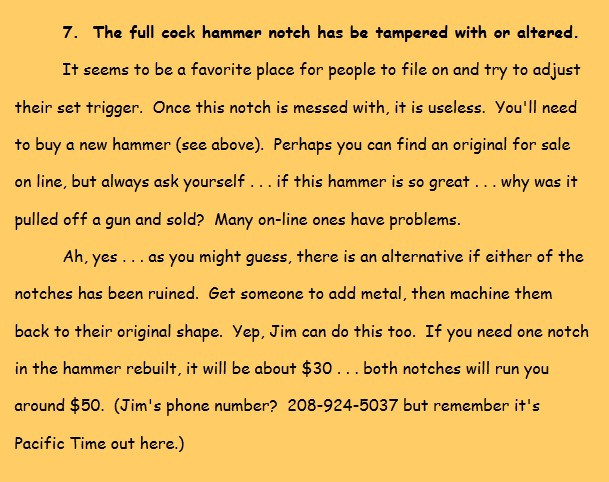

Then there is something messed up. Pull the stock and then you can look in there and see what is going on. You should be able to see as you try to set it, you can watch the catch moving and see if its missing the kickoff. Here is a copy of a article that will help you understand the set trigger.

Bob

set1.jpgImage Enlargerset2.jpgImage Enlargerset3.jpgImage Enlargerset4.jpgImage Enlargerset5.jpgImage Enlargerset6.jpgImage Enlargerset7.jpgImage Enlargerset8.jpgImage Enlargerset9.jpgImage Enlargerset10.jpgImage Enlarger

sp_PlupAttachments Attachments

WACA Life Member---
NRA Life Member----
Cody Firearms member since 1991


Email: bob.1873man@gmail.com

April 24, 2018
1:40 am
Avatar
WACA Member
Forum Posts: 880
Member Since:
July 8, 2012
sp_UserOfflineSmall Offline

Bob,

Thanks, I'll take a look. Hope I don't need new parts.

Al

December 2, 2019
7:08 pm
Avatar
WACA Member
Forum Posts: 1
Member Since:
December 2, 2019
sp_UserOfflineSmall Offline

Did you ever get your triggers sorted out? I am looking for photos of the parts and am trying to make a set to restore mine.
